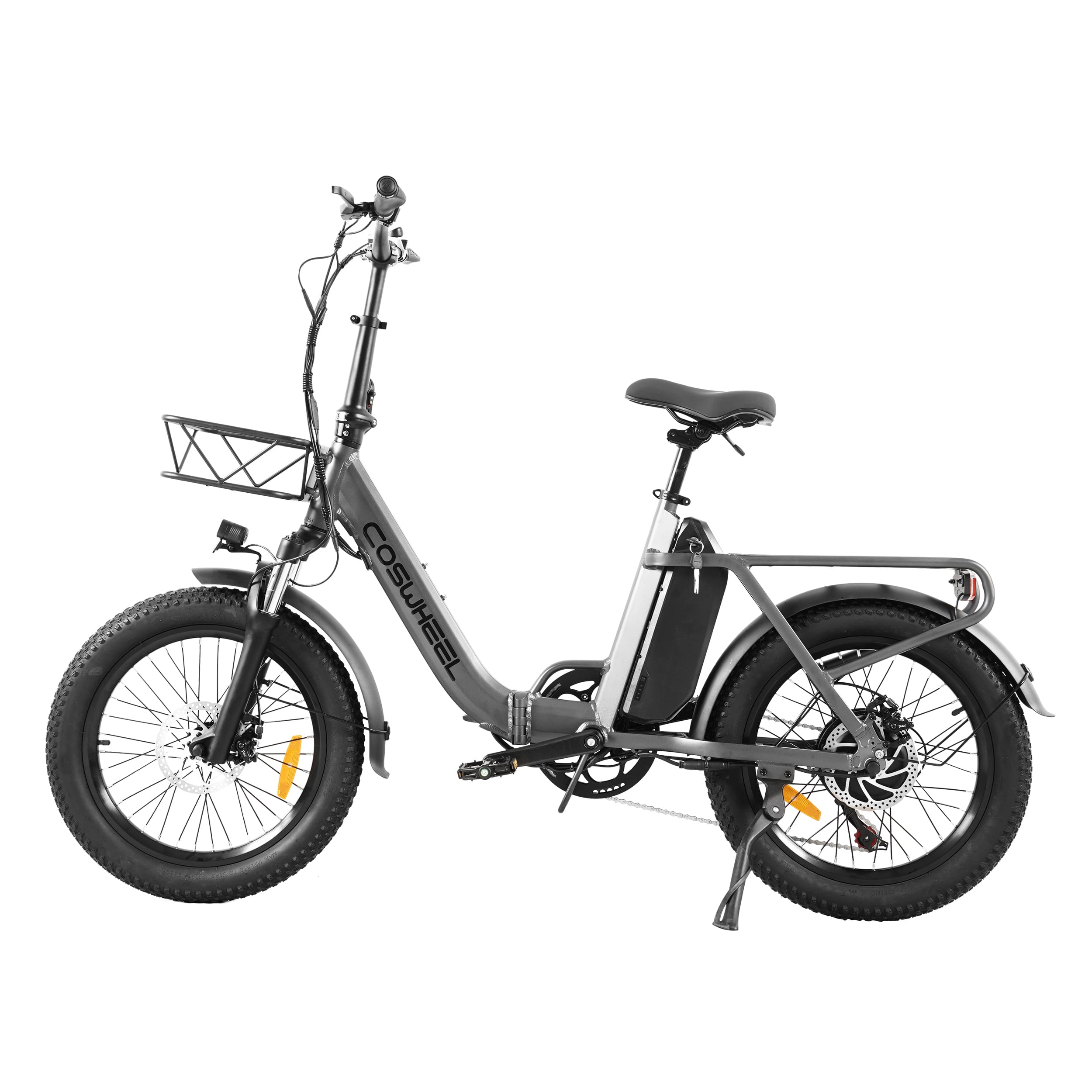

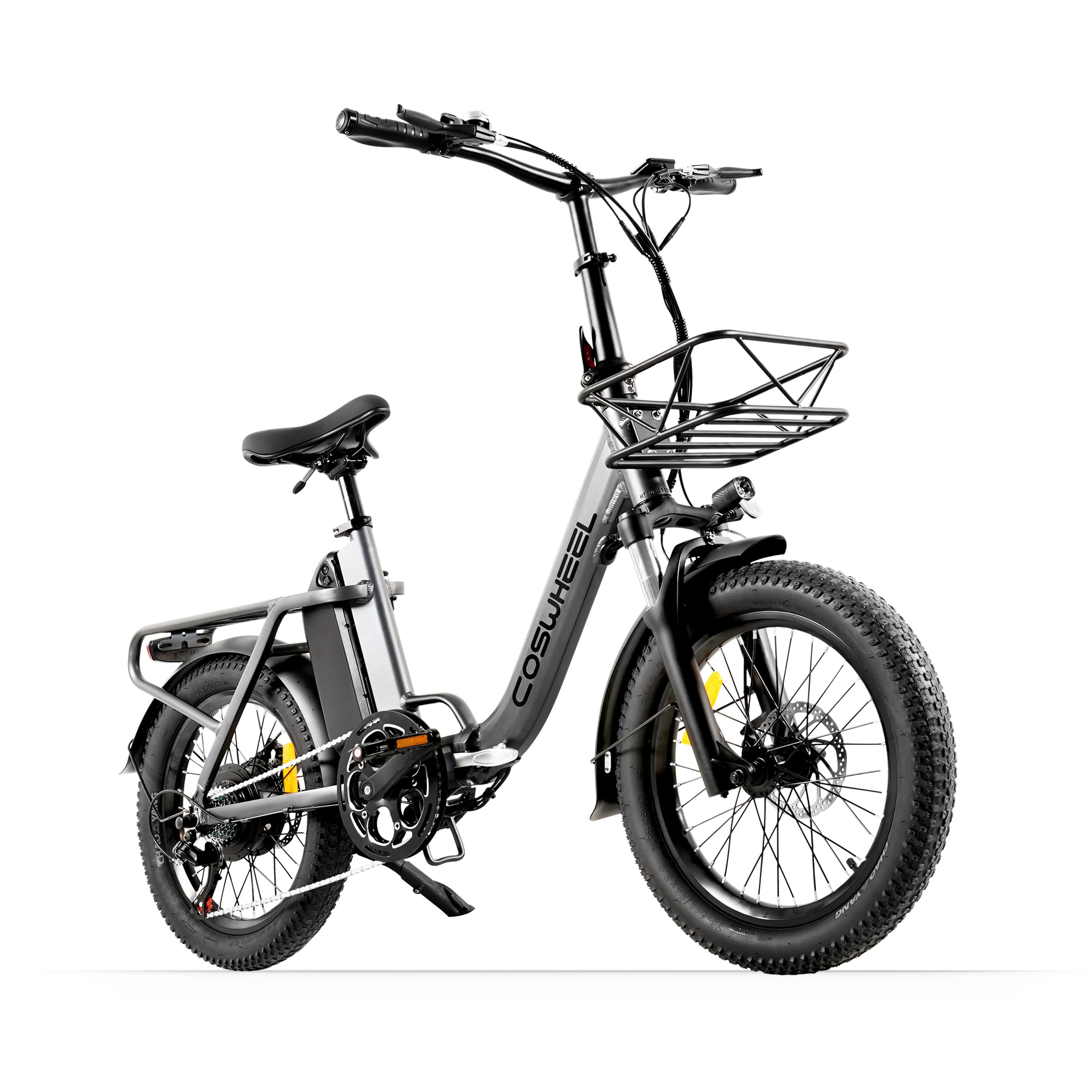

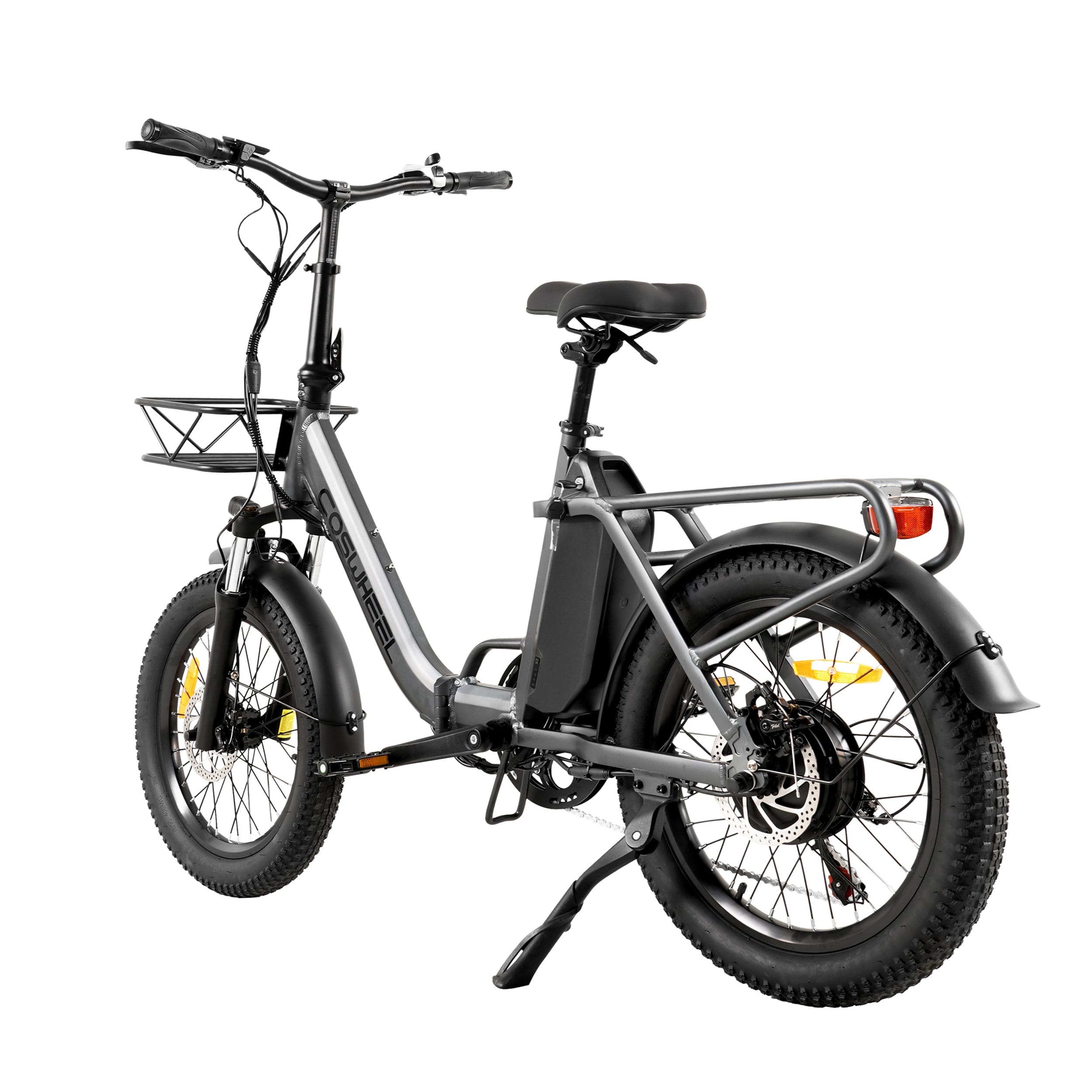

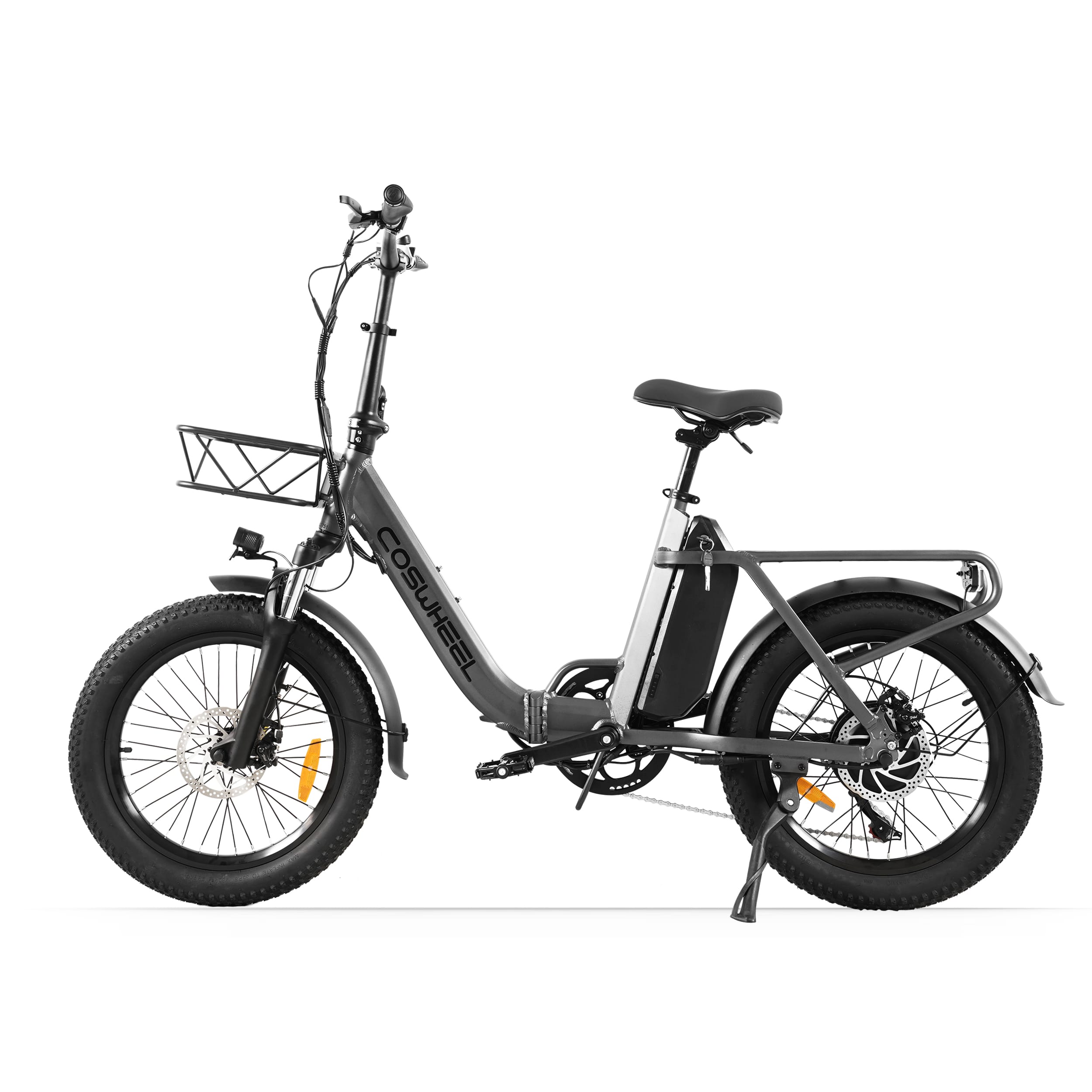

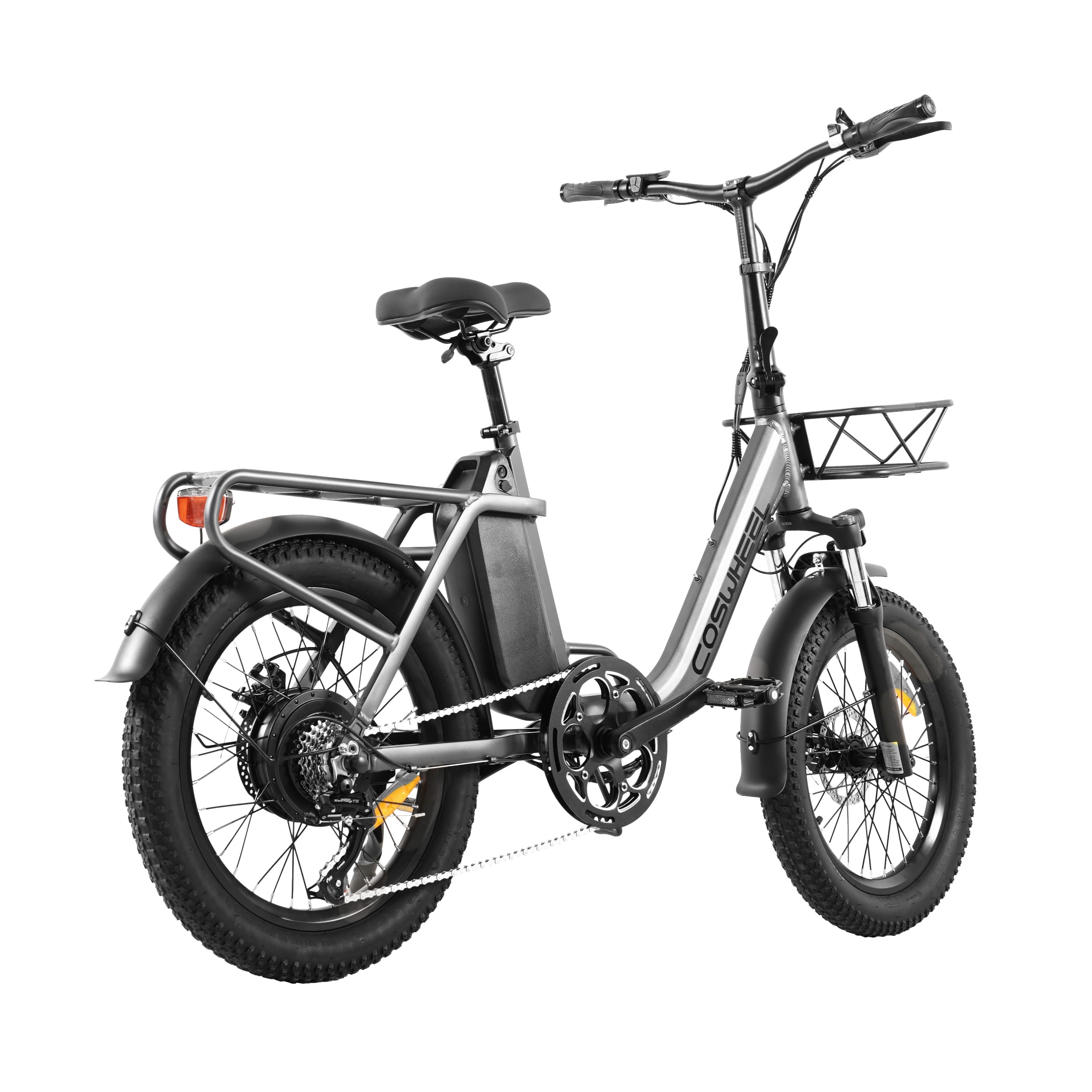

Y20L Step-Thru Foldable Electric Bike
50N.m torque, can climb 30° slope, free front cargo basket, torque sensor electric utility bike




Torque Sensor for Smooth Power
Y20L is a Step-Thru commuter electric bike that uses a torque sensor. Compared with electromagnetic induction sensors, torque sensors make the power output of electric bicycles more stable, available as you pedal, making riding more labor-saving and more friendly to aging and physically disabled riders.

Compact and Lightweight
The frame and handlebars of the Y20L are both foldable, and the net weight of the whole vehicle is only 28kg. In addition, the handles are designed at the folding point, which makes it very easy to lift and it is also very convenient to put into the car when traveling. It is one of the best choices for cycling exercise.
Y20L Every Part Counts

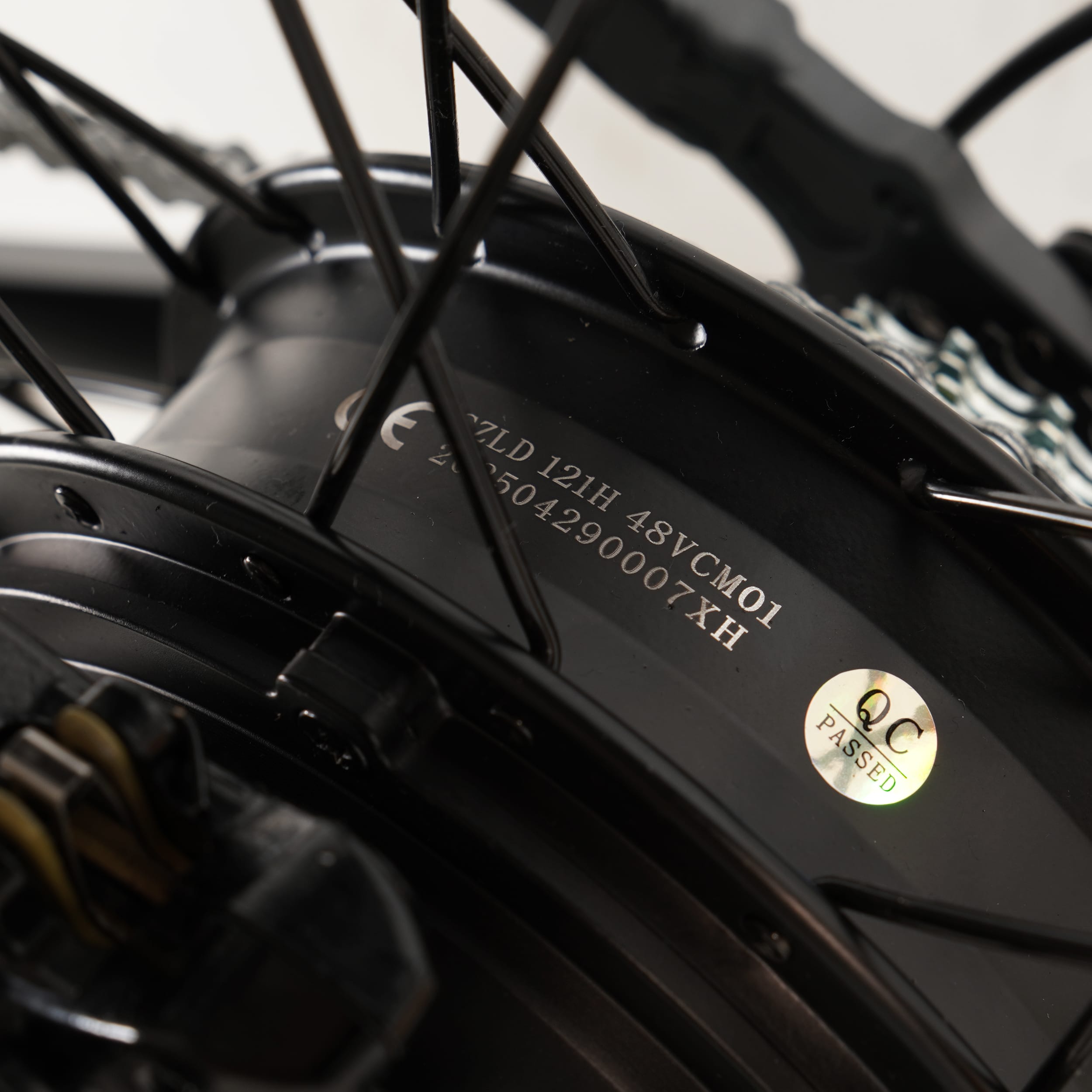

Peak 1200W Motor
The Y20L is equipped with a peak 1200W (rated 750W) high-speed brushless motor, a torque of 50N.m, a maximum speed of 28mph (45km/h), and can easily climb a 30° slope.

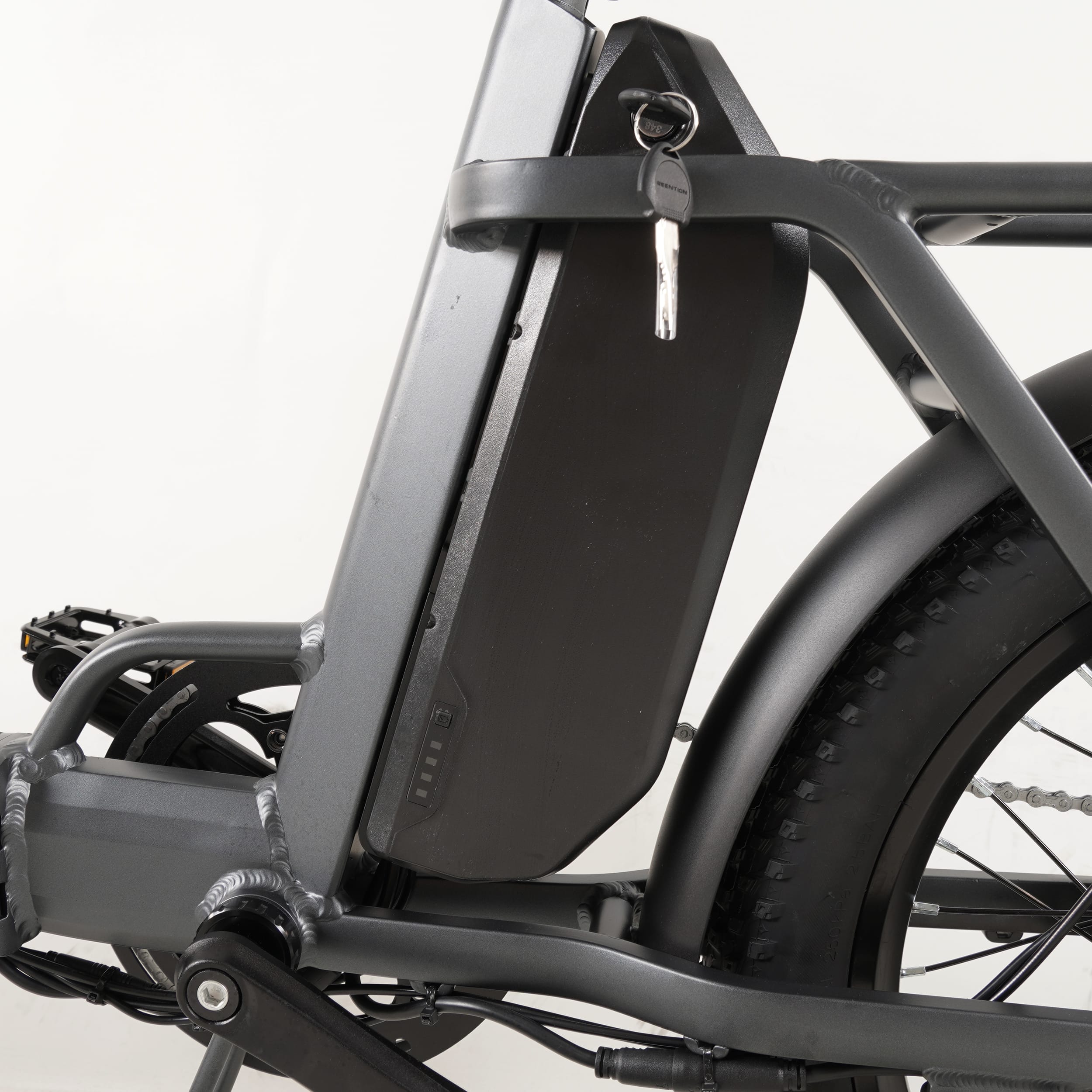

15AH Removable Battery
The Y20L is equipped with a 15AH lithium battery, 720WH, with a maximum range of 52 miles (84km) (accelerator + pedal assist). It is equipped with a key switch and the battery is removable.

Torque Sensors
It uses a new torque sensor, which ensures smooth power output and outputs power according to the strength of your foot, making riding more labor-saving and friendly to the elderly and disabled.

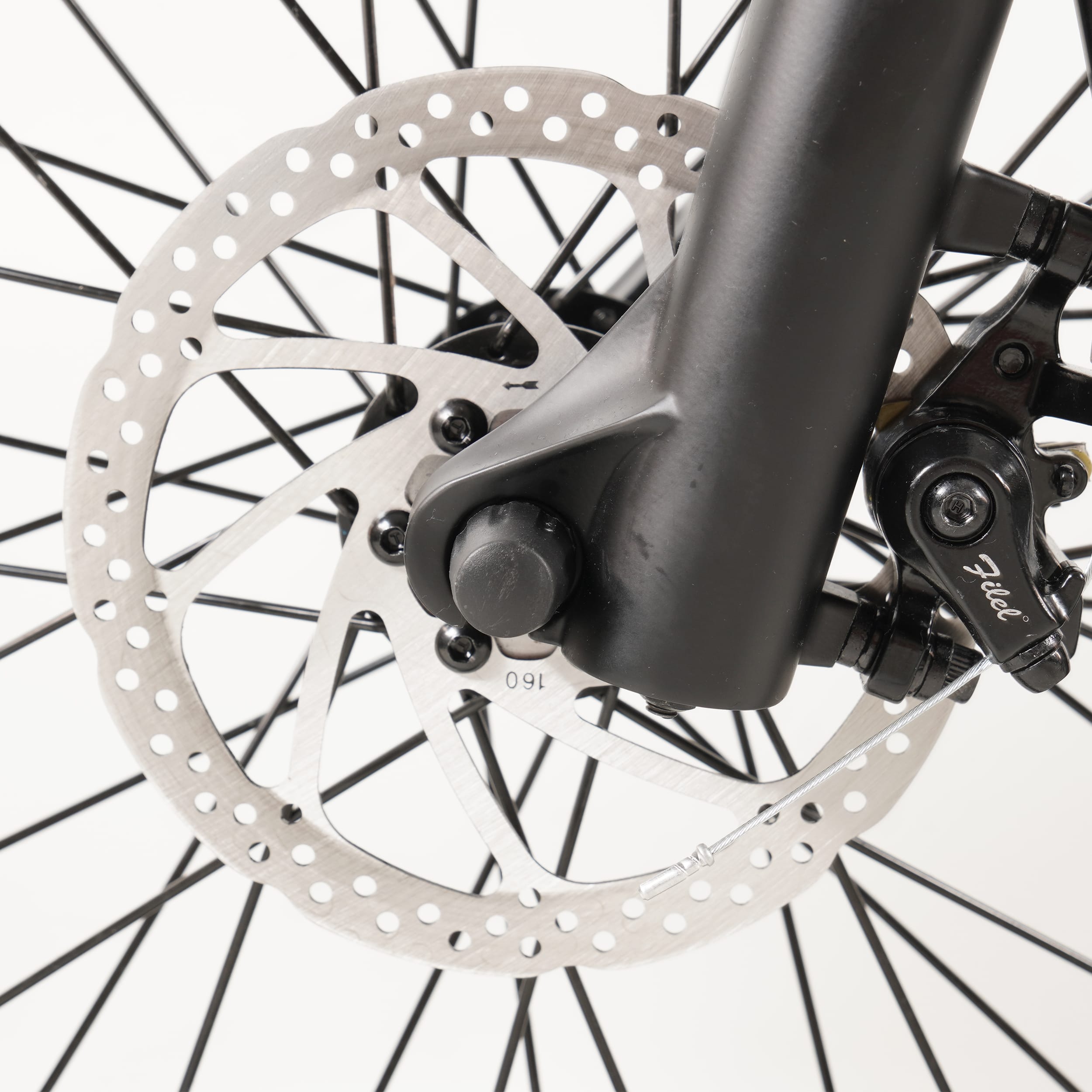

160mm Brake Disc
Equipped with 160mm brake discs at the front and rear, providing smooth braking.

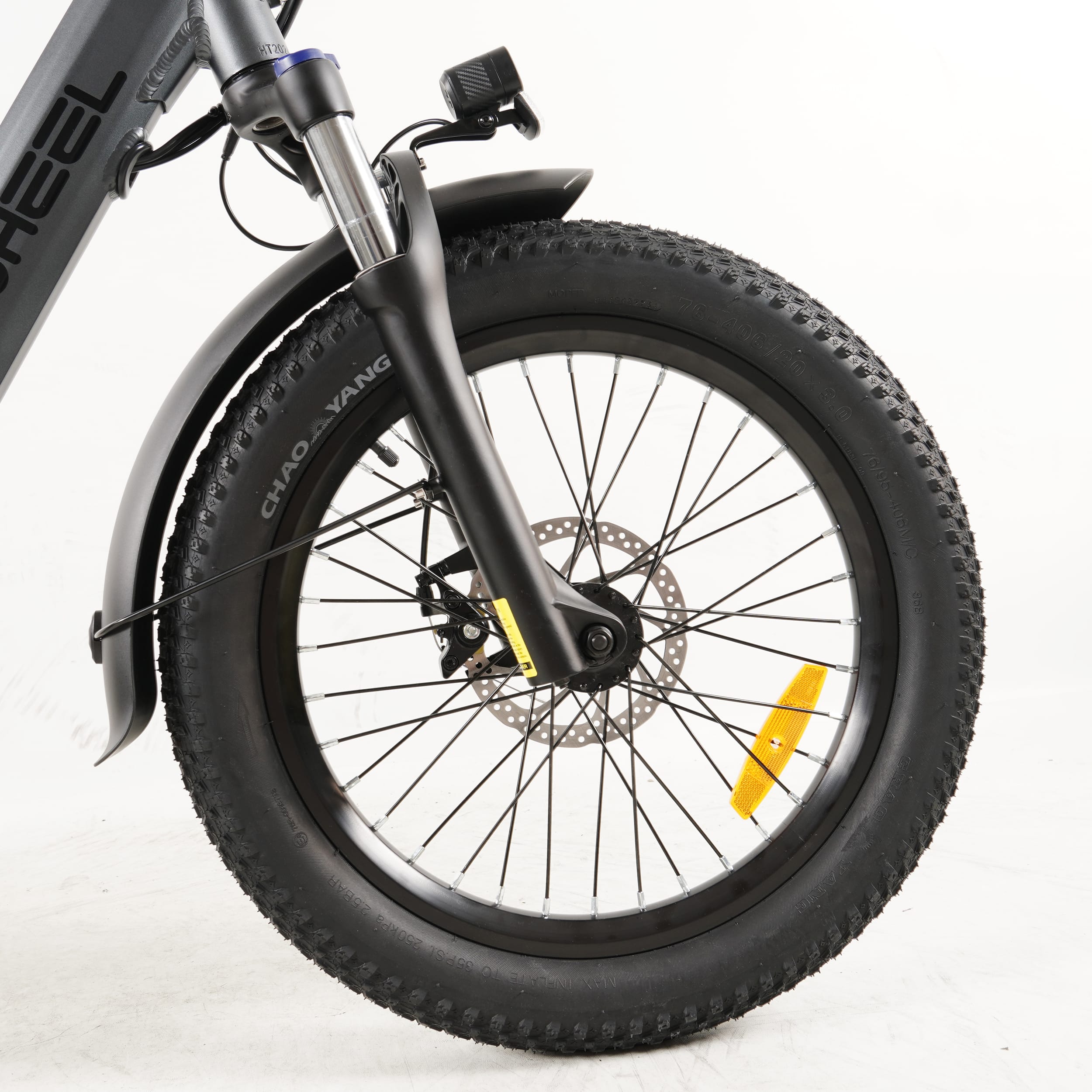

Lockable Front Suspension
The front suspension has 80mm travel and is equipped with a locking function, which can fix the front fork and prevent it from rebounding, allowing you to enjoy more riding pleasure.

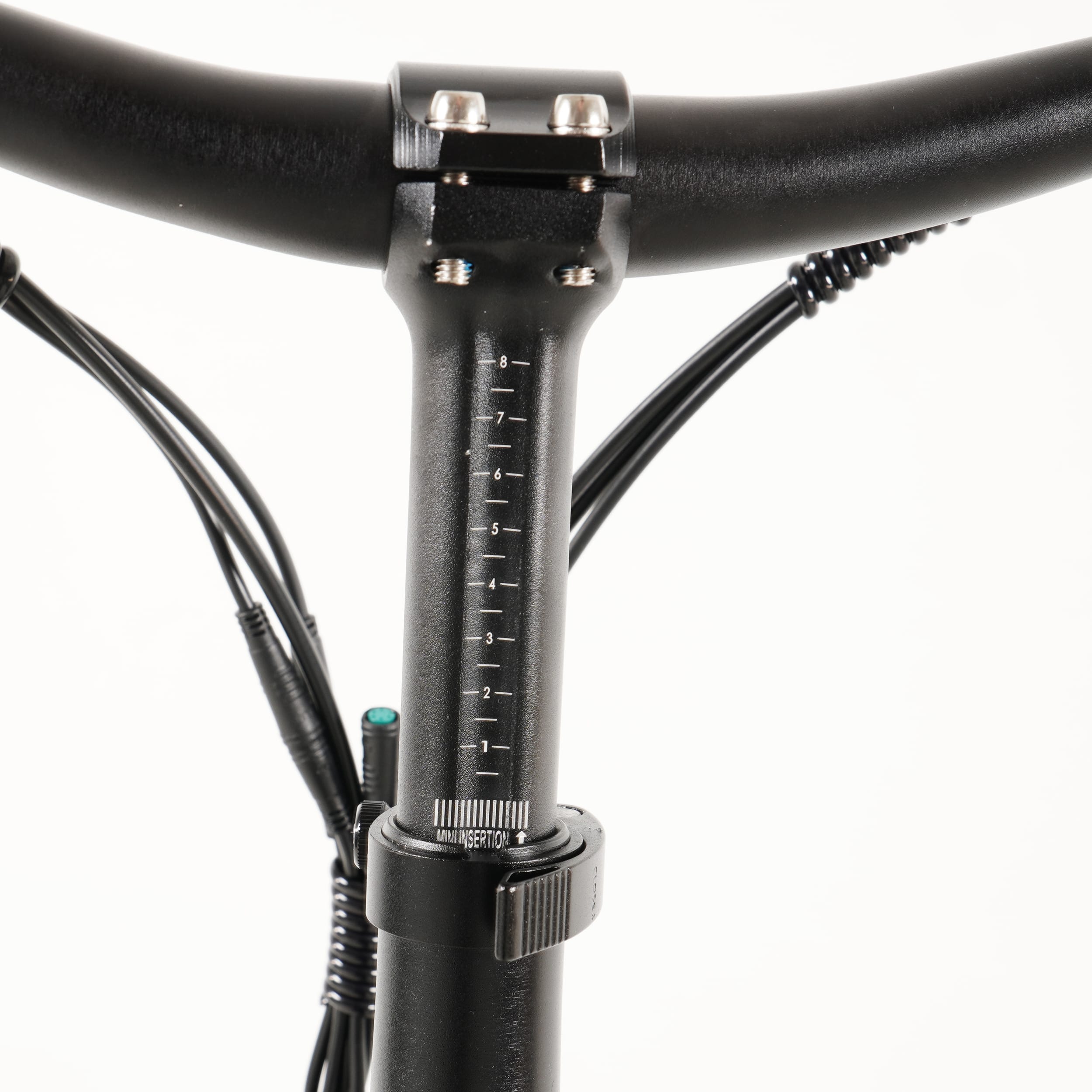

Adjustable Handlebar
The handlebars can be adjusted in height according to your preference and can be folded, which is very convenient.

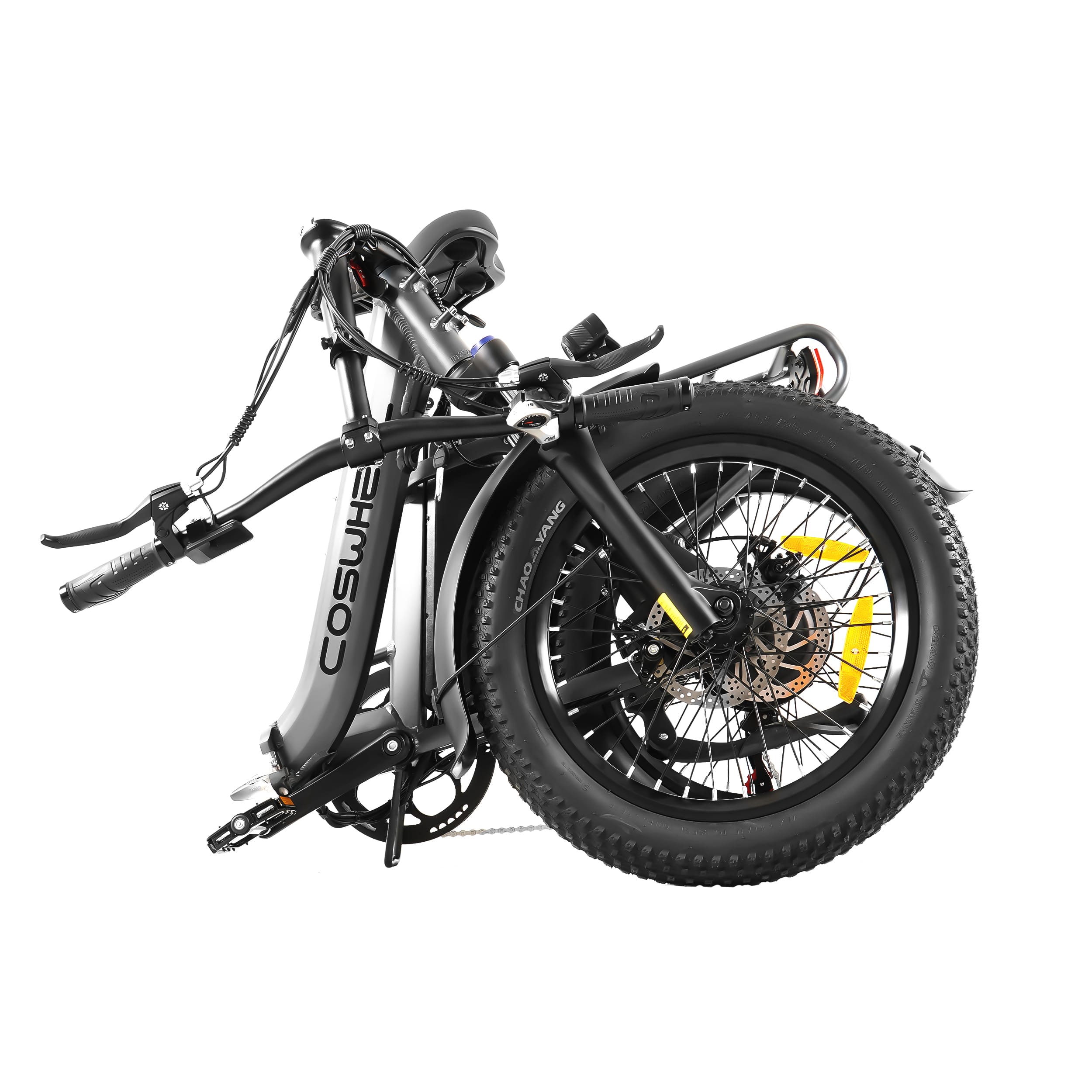

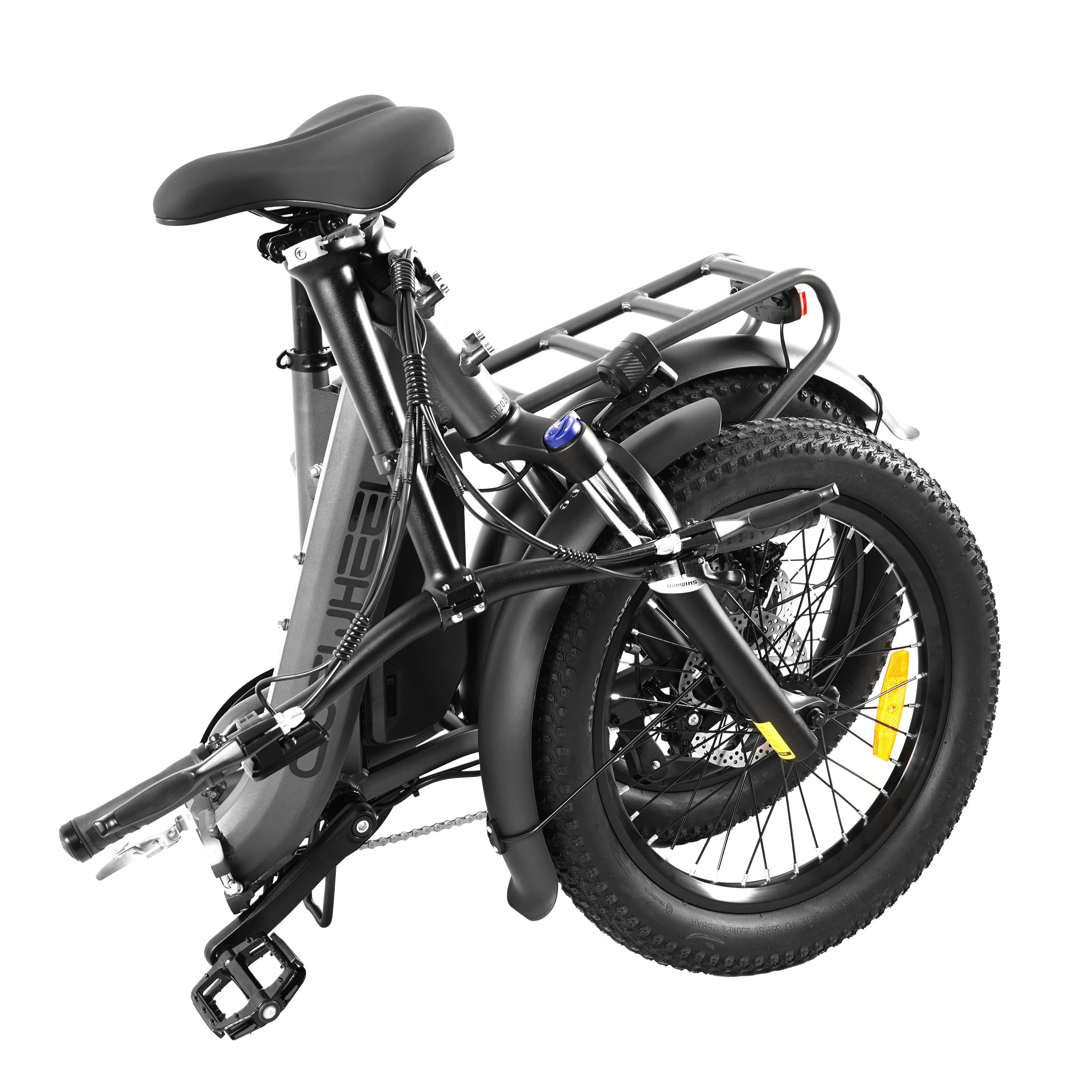

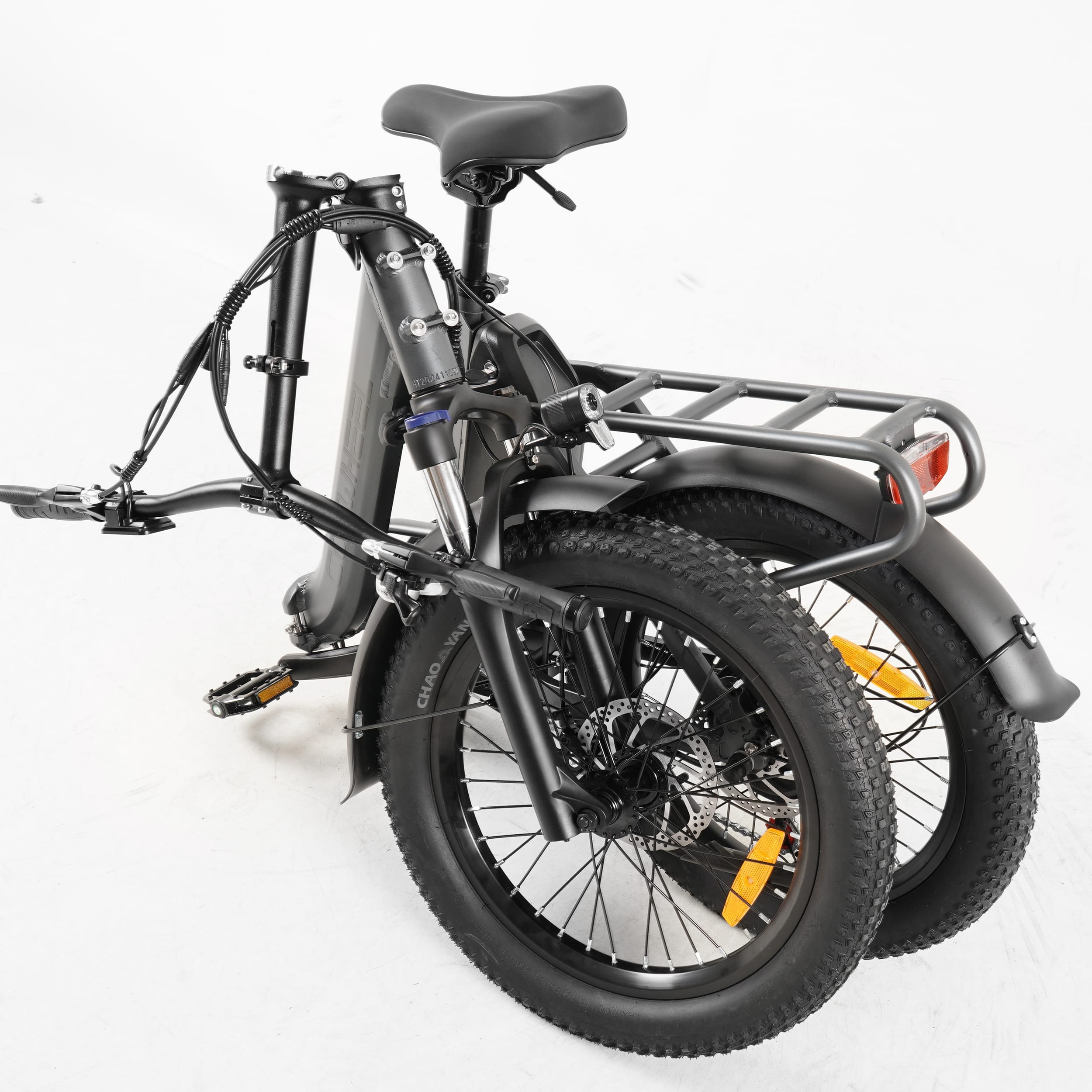

Foldable Frame
The frame can be folded and equipped with armrests, with a net weight of only 28kg, so it can be easily placed in the trunk of a car.

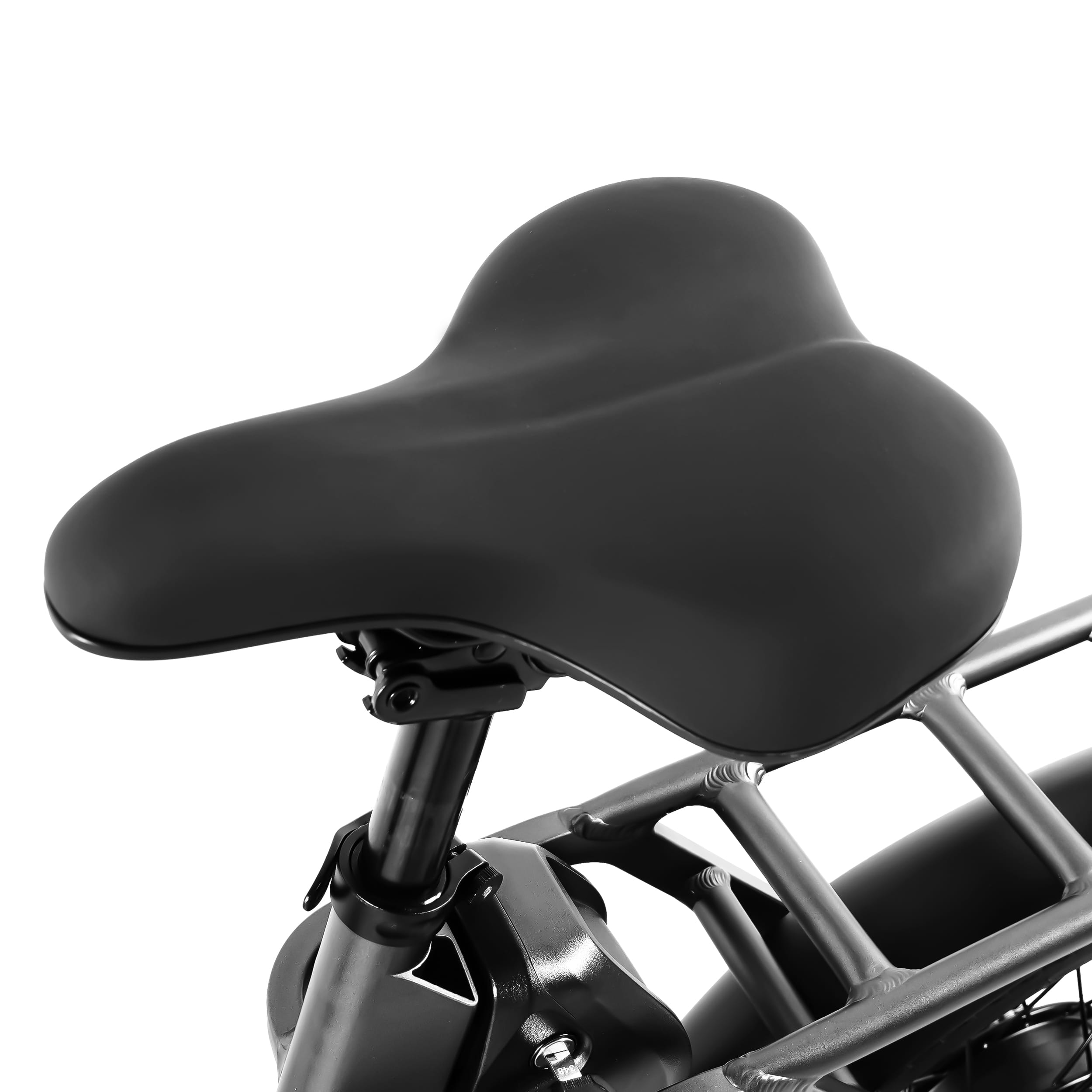

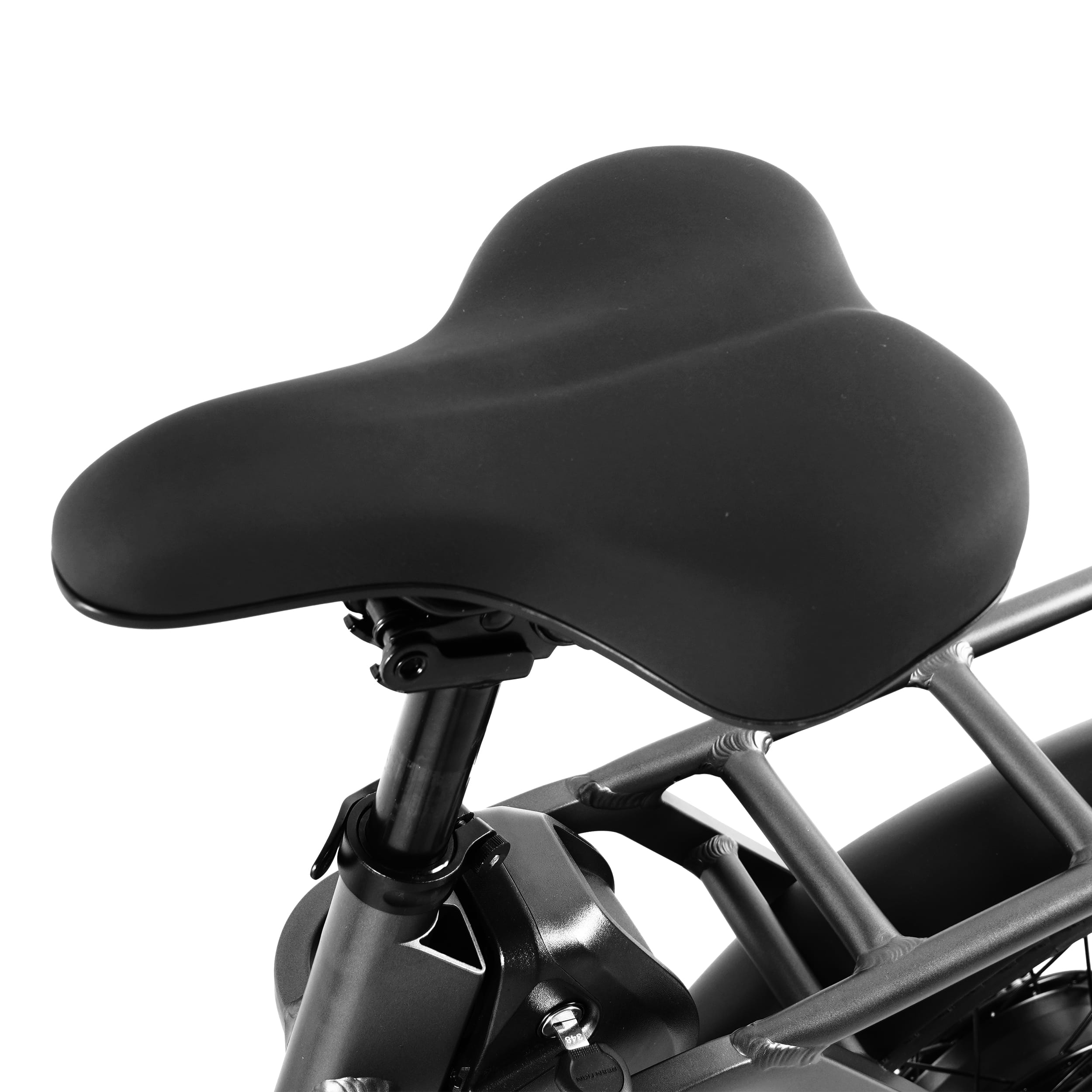

Adjustable Seat
The seat is adjustable from 32.3"-39.7" (82-101cm) above the ground, suitable for riders 5'1" - 6'5".

Front Cargo Basket
The Y20L is equipped with a front cargo basket, making your travel more convenient.
Y20L Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52miles (84km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1200W(Rated 750W) Brushless Rear Hub Motor 50N.m
- Battery: 48V 15Ah Battery (Lithium 18650 Cells)
- Energy: 720Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel, Lockable
- Brakes: Disc Brakes, Equipped with 160mm Stainless Brake Disc
- Tires: Chaoyang Off Road Tire 20" × 3.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Grip Twist Throttle
Electronics
- Charger: 54.6V2A Charger
- Charging Time: 7.5 Hours

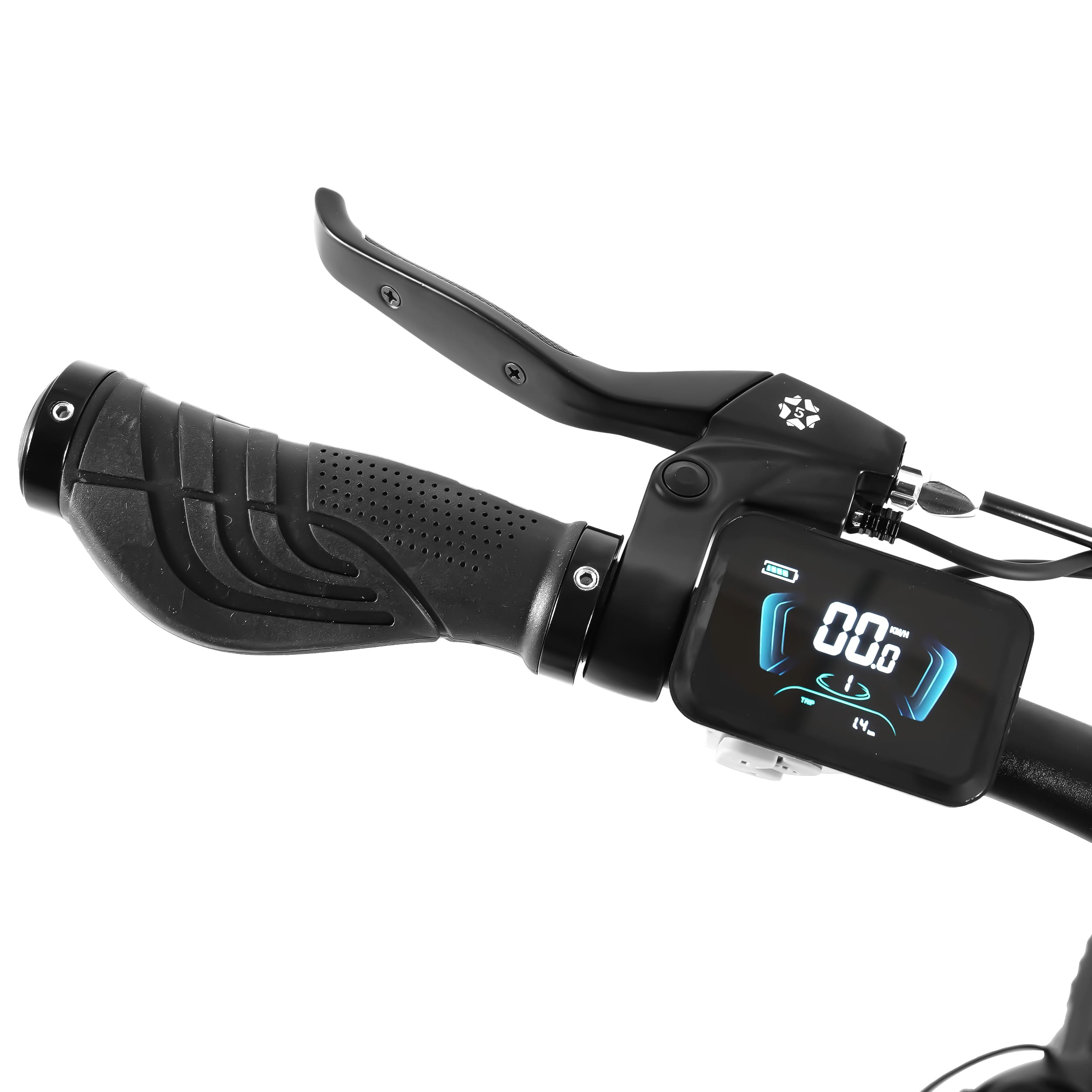

- Display: Easy Read LCD Display
- Controller: 48V 25A

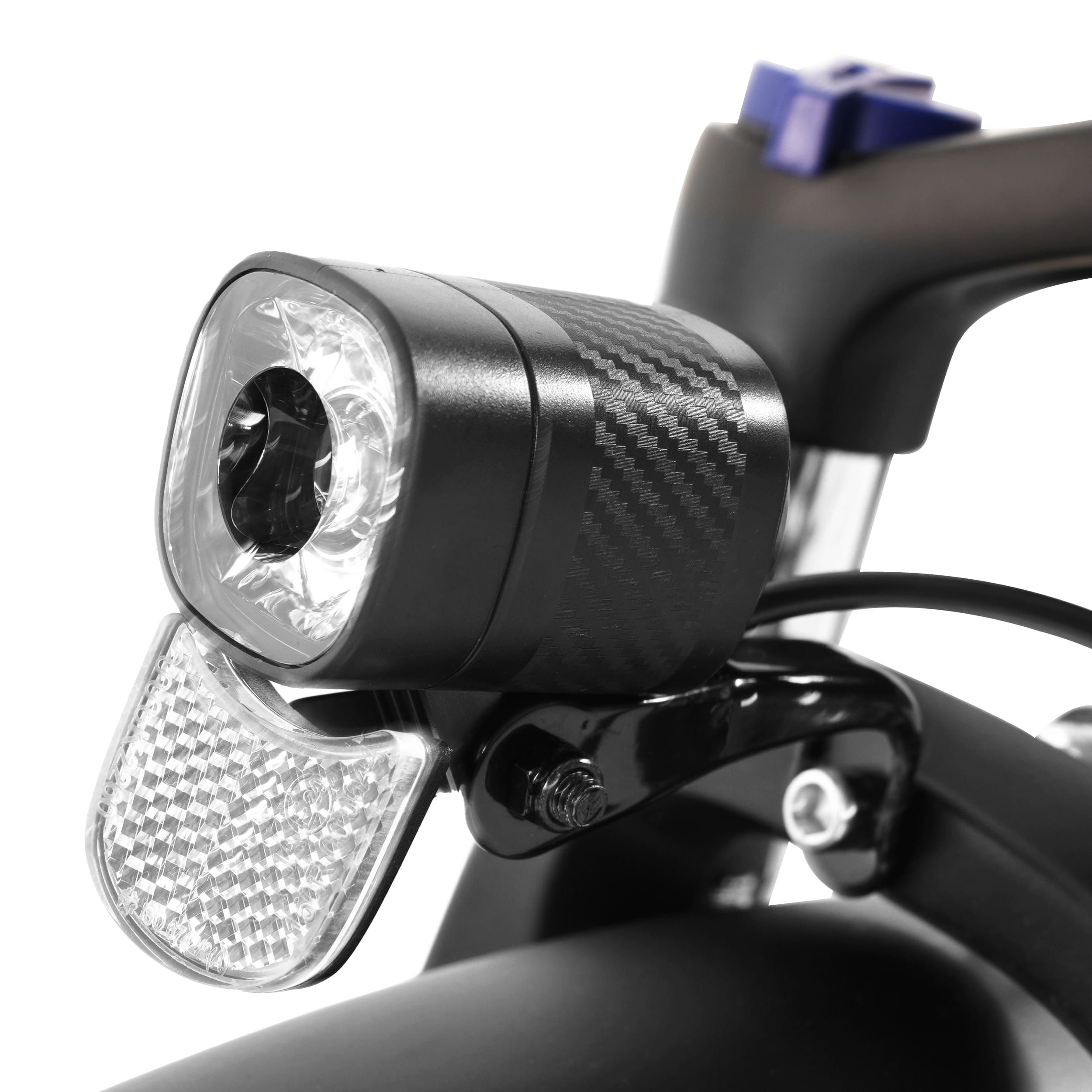

- Front Light: LED, 120 LUX

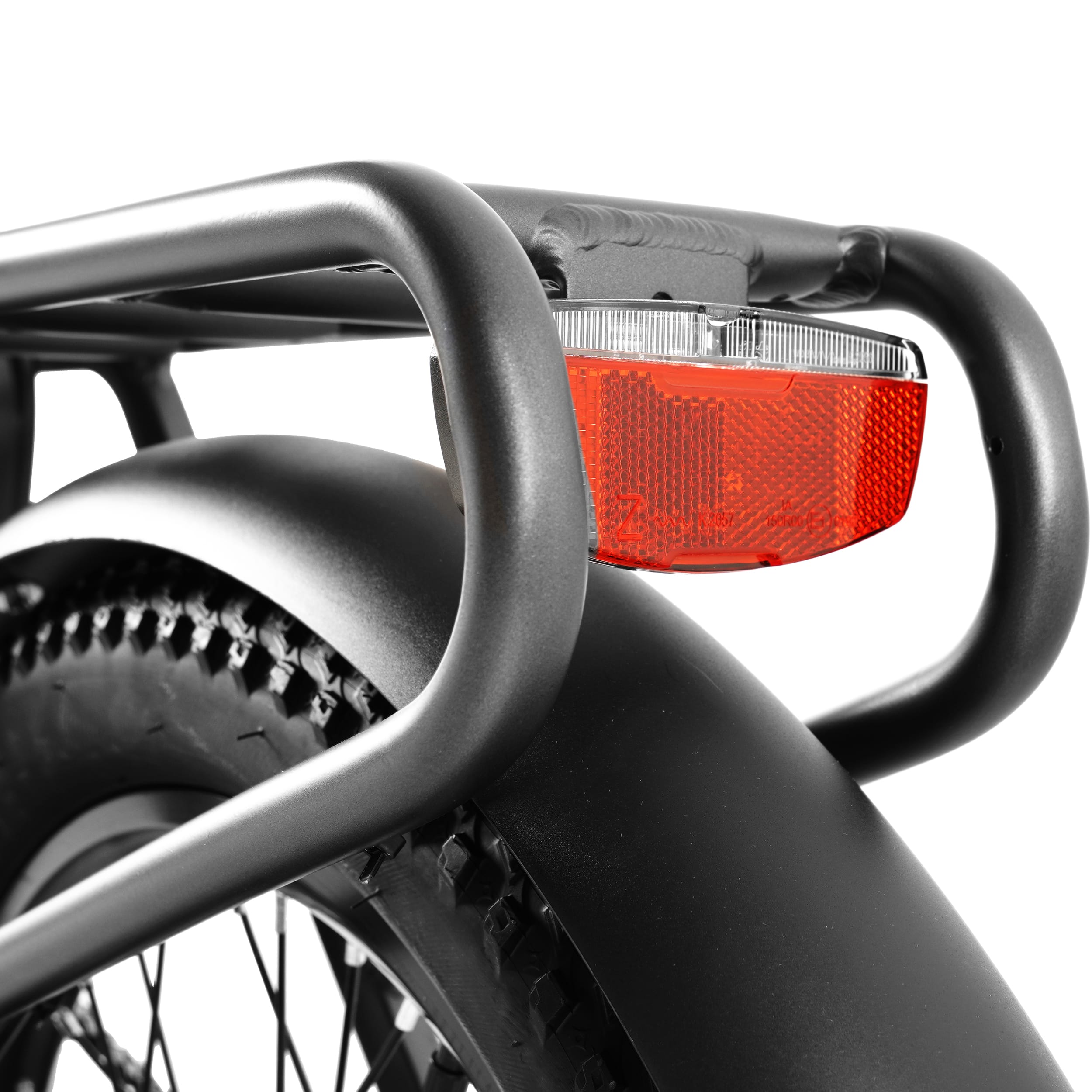

- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Torque Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

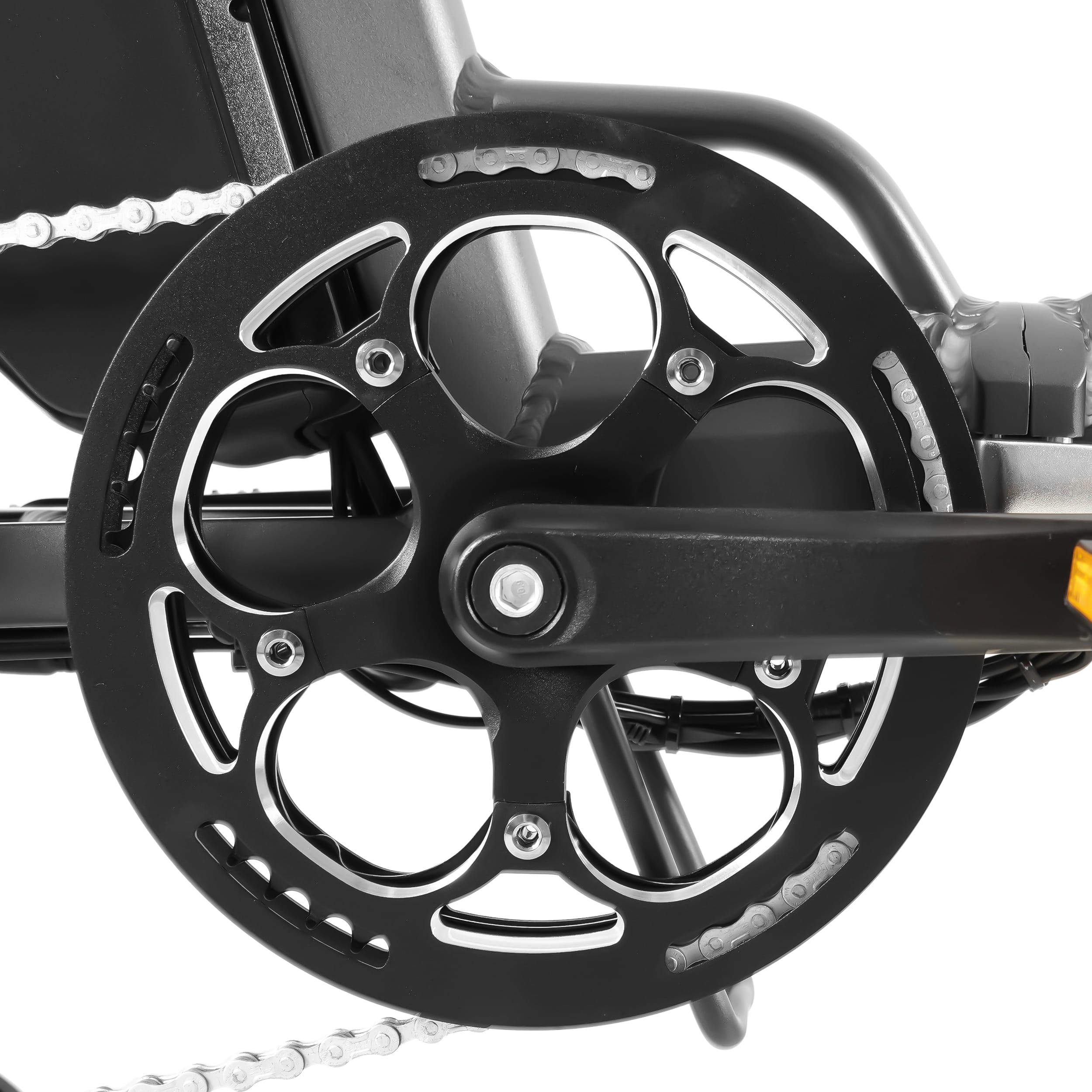

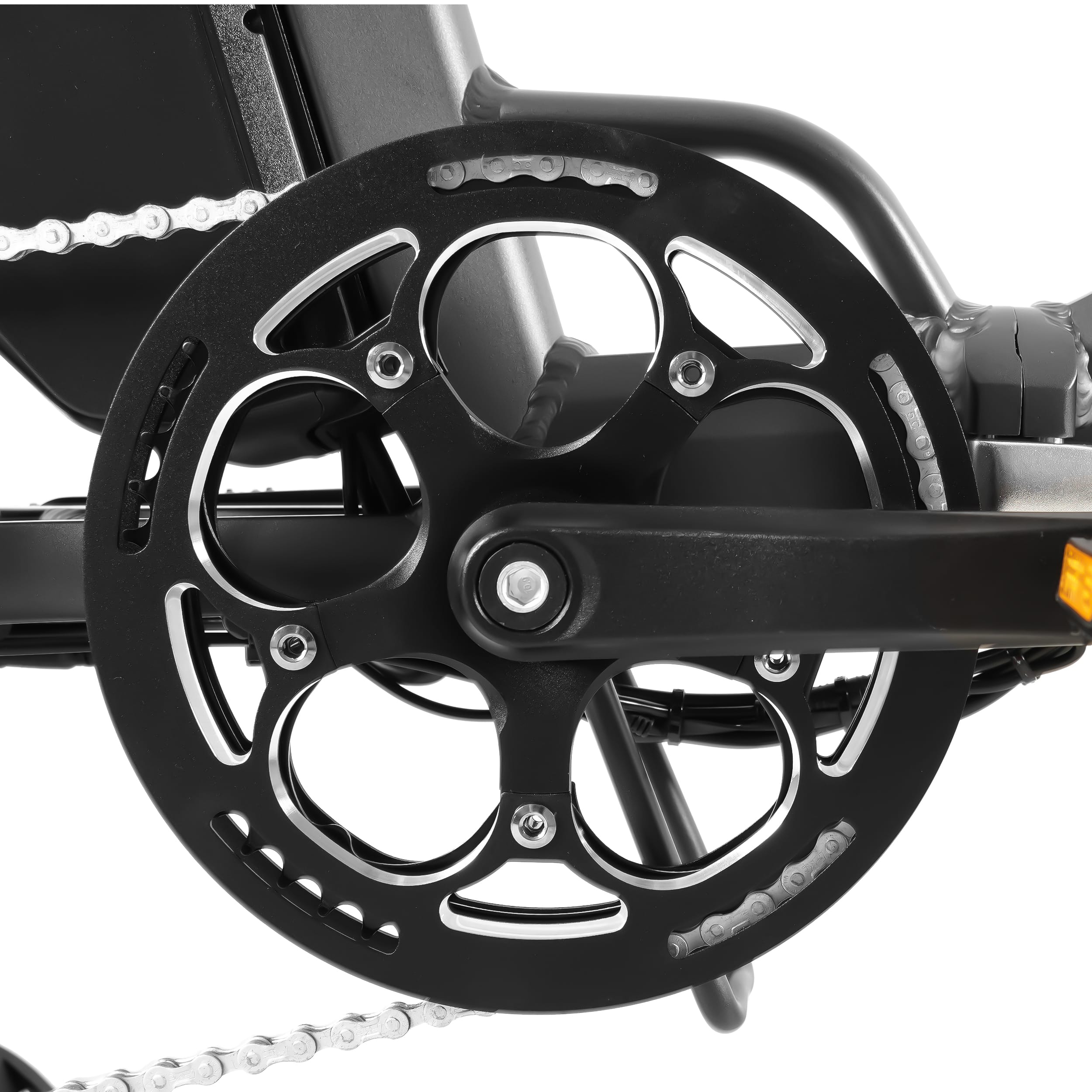

- Crank: 148T 170mm 7-speed ED Tooth Plate

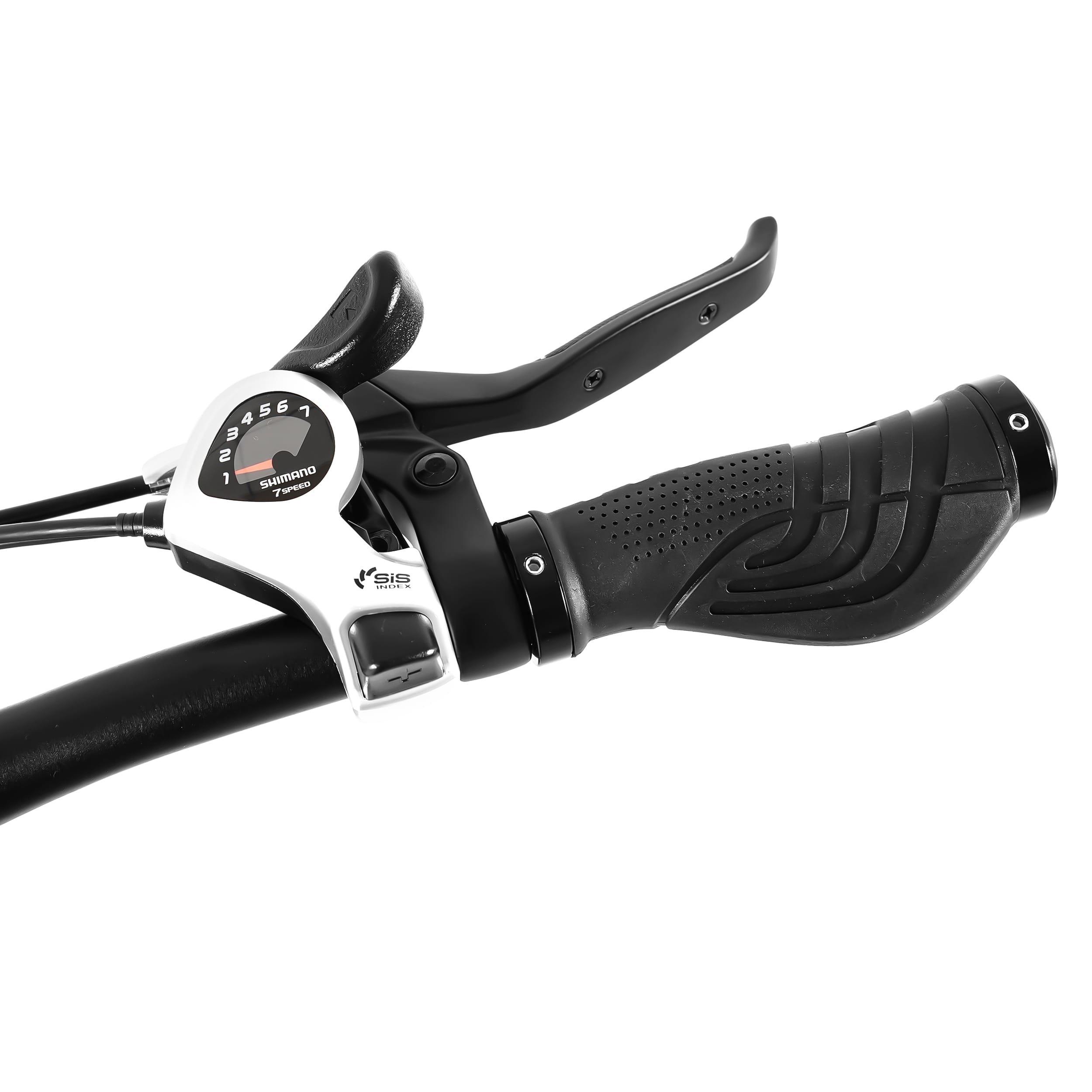

- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Aluminum Alloy
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.3"-39.7"(82-101cm)
- Handlebar Height: 41.7"-45.7" (106-116cm)
- Bike Weight: ≥79lbs (with Battery) (≥36kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 66.2" * 26.4" *41.7" (168*67*106cm)
- Package Size: 37.4" * 17.3" * 29.9" (95*44*76cm)
Support
Manual
Get Y20L ebike manual
Certificate
- UL2849 test report
- GCC certification
- GCC test report
- EU EN15194 and CE certification
- EU EN15194 and CE test report
VIN Number
The VIN number (Serial number) of the Y20L ebike is in the middle of the front fork of each Y20L (please note that the VIN number of the Y20L is unique and cannot be repeated)
Package
Y20L Ebike*1/Fender*2/Charger*1/Display Manual*1/Tool Bag*1/Bag*1/Bottle Cage*1/Phone Holder*1/Front Cargo Basket*1/Throttle Handle*1
