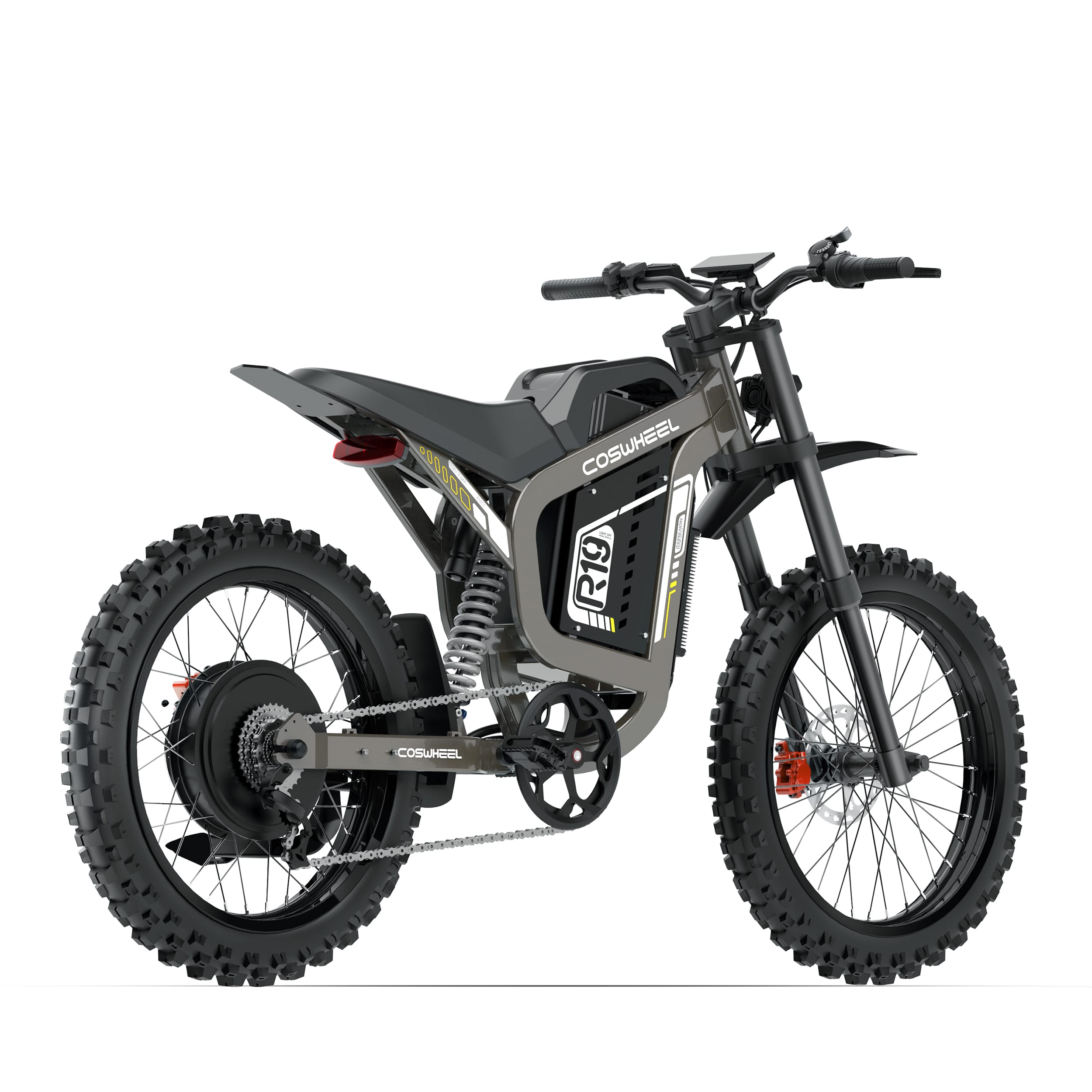

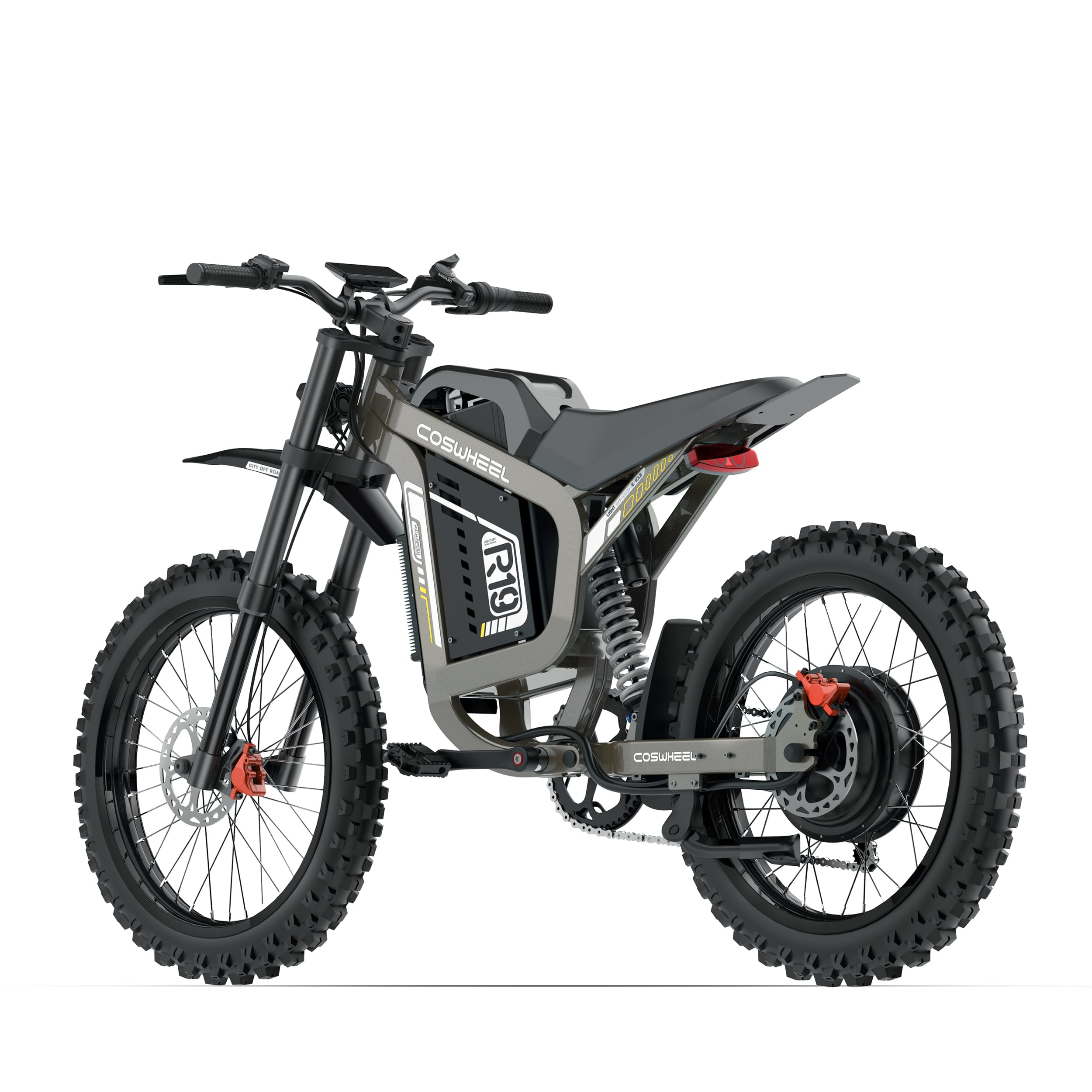

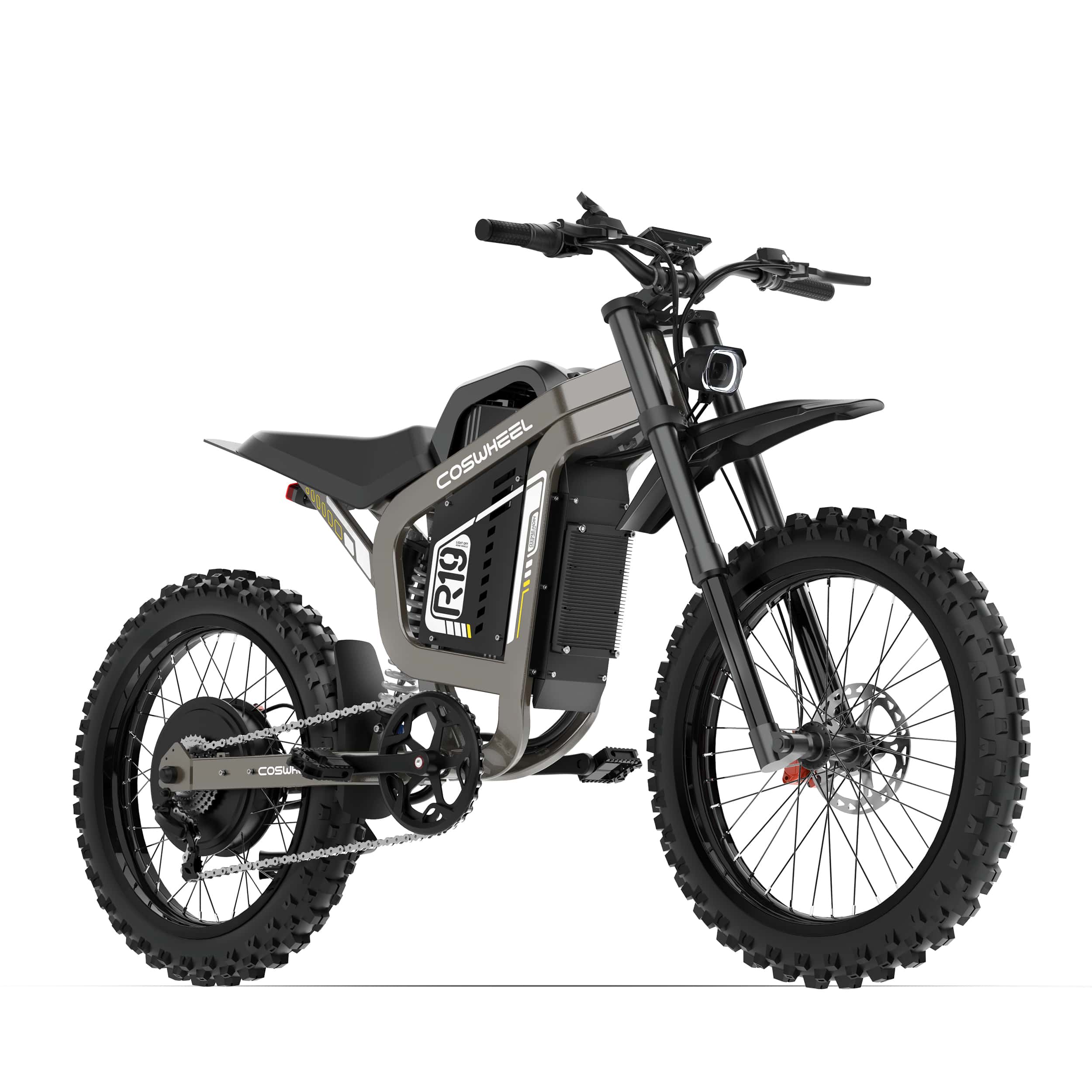

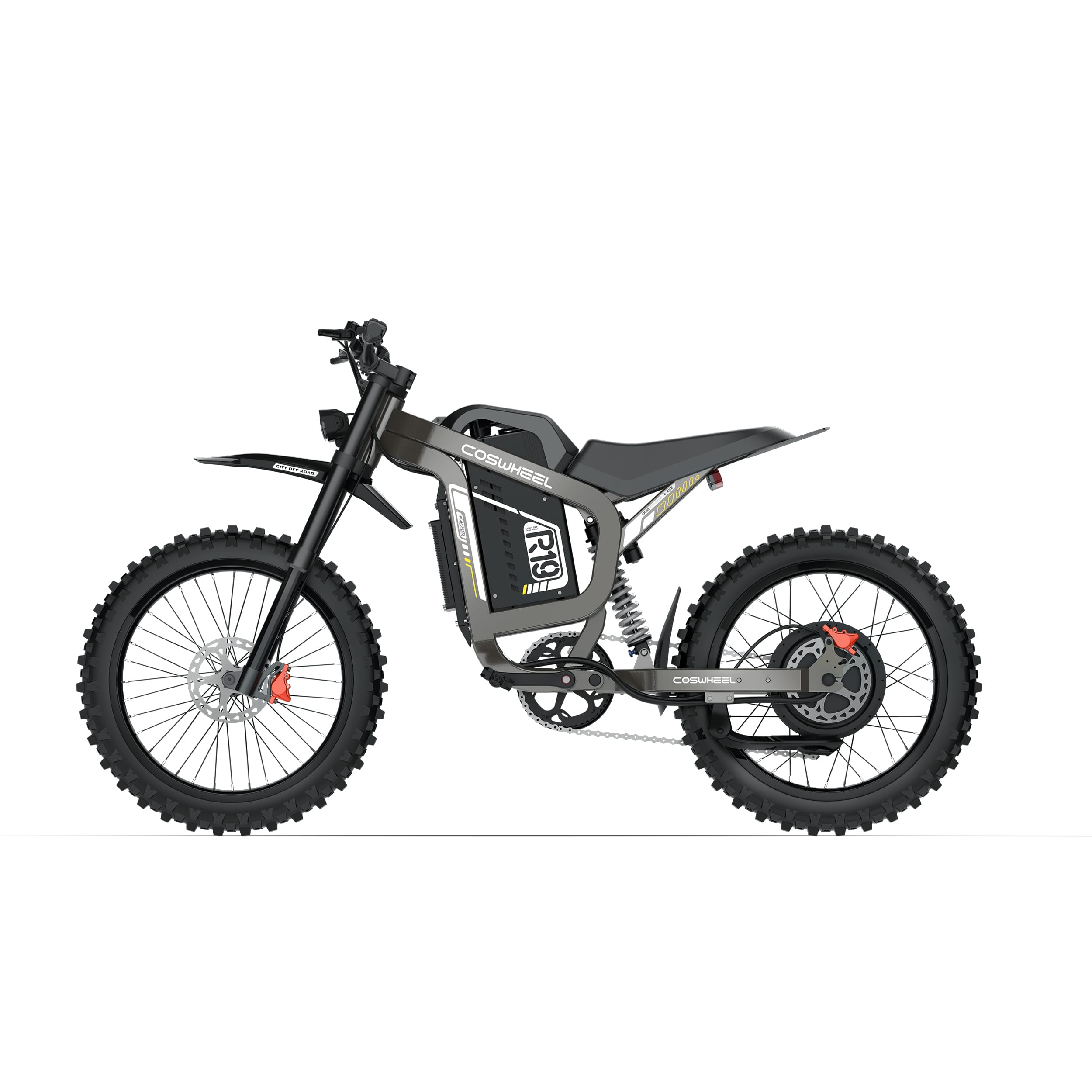

R19 Electric Dirt Bike
Torque 240N.m, can climb 45 degrees slope, front 70/100-19 and rear 80/100-19 professional off-road wheelset.

An adult electric dirt bike built for off-road riding.


What Online Reviewers Say R19
The R19 ebike is favored by more and more customers, and many customers have posted their objective evaluations of the R19 on YouTube.

72V Power. Built for Real Riders.
The R19 delivers up to 9000W peak power and 240N.m torque for strong acceleration, confident climbing ability, and responsive performance across trails, dirt roads, and urban streets.
A horizontal smart display creates a cleaner, more premium cockpit experience, while the removable 72V 40Ah battery and top speed of up to 60mph (96km/h) make the R19 a powerful electric dirt bike built for serious adult riders.

Engineered Through Real Rider Feedback
We continuously listen to rider feedback to further refine the R19 riding experience. The front suspension travel has been increased from 150mm to 220mm, helping reduce harsh bottom-outs during aggressive off-road riding and improving overall comfort, stability, and control when landing on rough terrain.
Optional accessories such as the full-twist throttle and street tires were also developed based on rider demand, and we welcome more feedback from the community as we continue improving the R19 platform.
R19 Every Part Counts

Aluminum Alloy Frame
R19 frame is made of Hydroformed Triple-Butted 6061-T6 Aluminum Alloy, which is stronger and more reliable than other brands of iron frames, and is not easily corroded or aged. At the same time, our frames have undergone more than 10,000 collision tests to ensure your safety.

Safety Power Interface

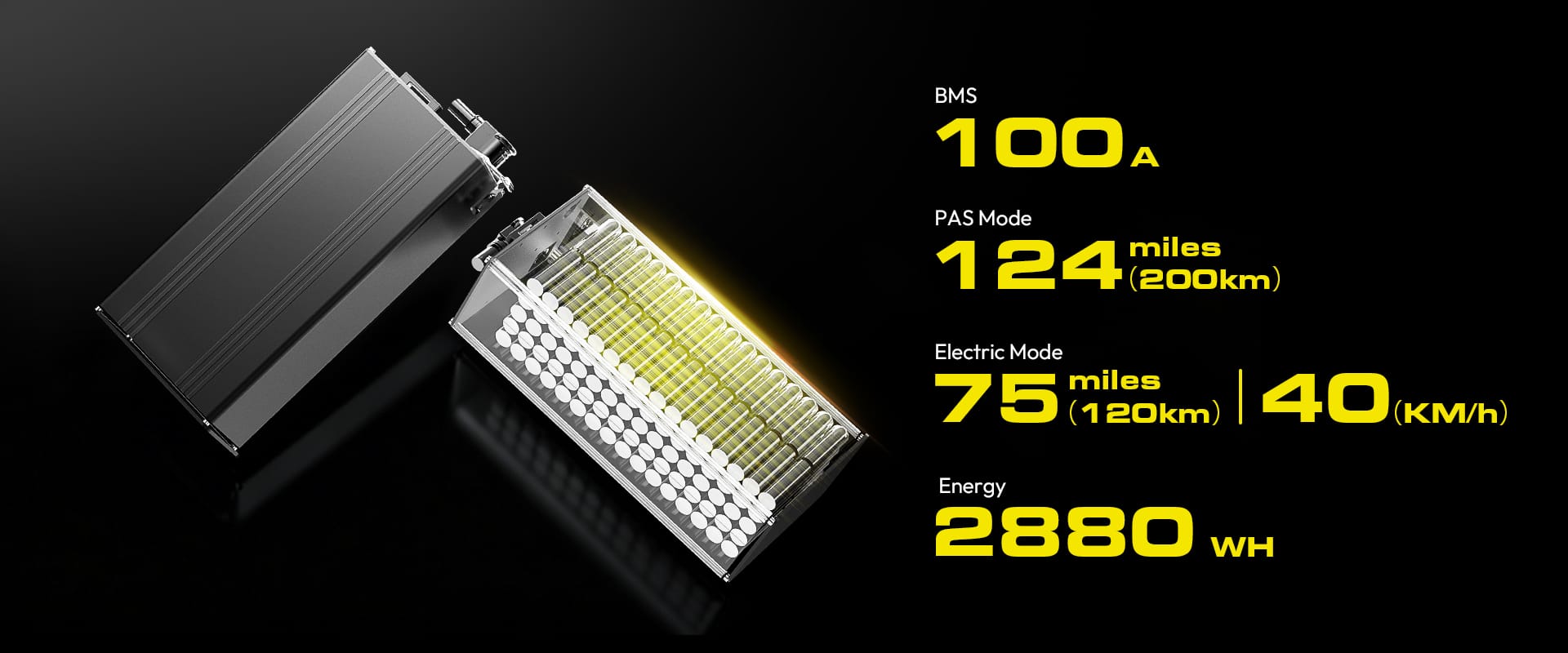

The R19 72V 40AH battery discharge port is made of high-quality technology, with a maximum discharge voltage of 84V, and is equipped with a 6A charger, which can be fully charged in 6-7 hours. The maximum range of a full charge is 124 miles (200km) (accelerator + pedal assist). If the speed is maintained at 25mph (40km/h), it is more friendly to the battery life.

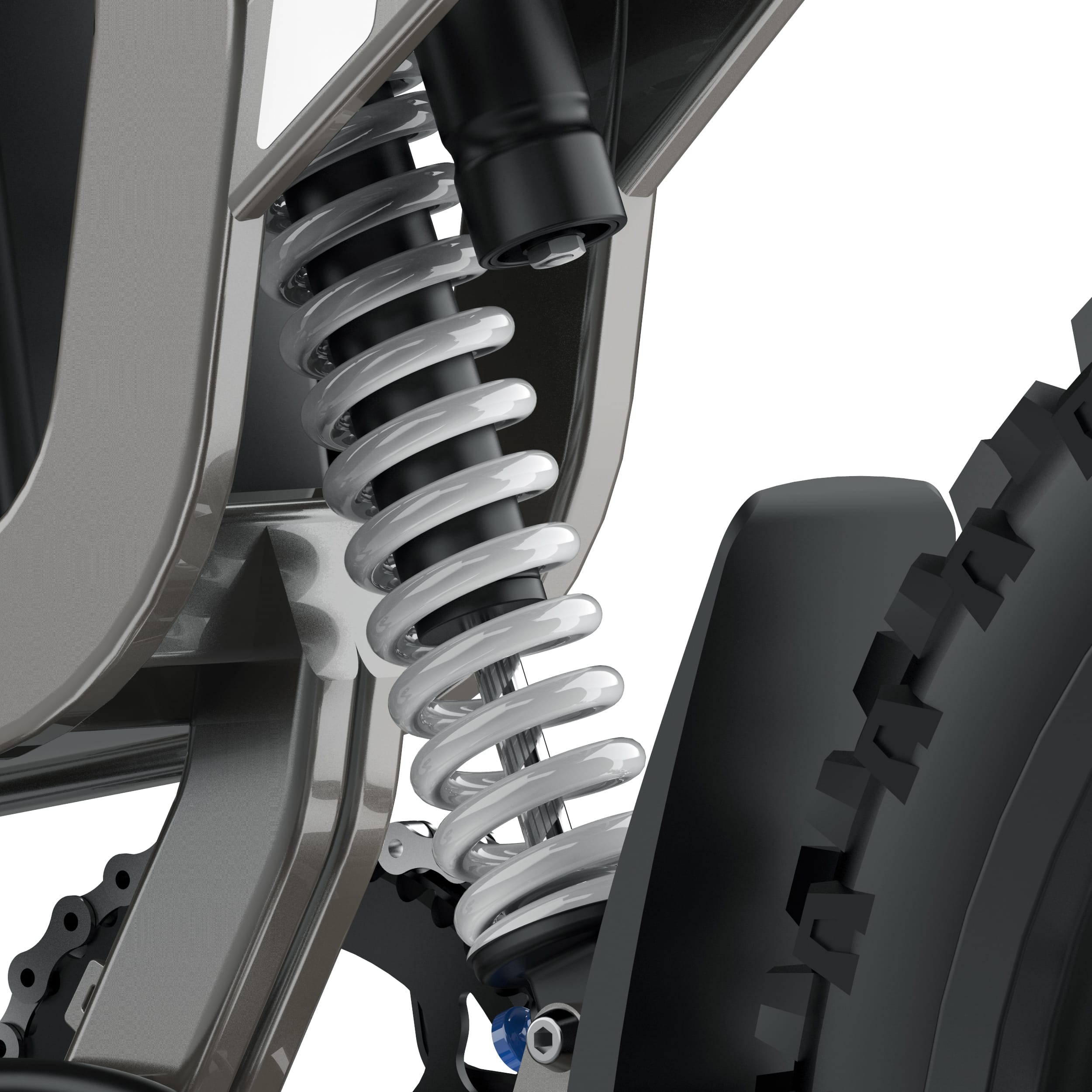

Adjustable Rear Suspension
The R19 rear suspension is equipped with a white 300mm adjustable damping shock absorber. The blue rotary button on the top can adjust the downward damping pressure, and the red rotary button on the bottom can adjust the upward damping pressure.

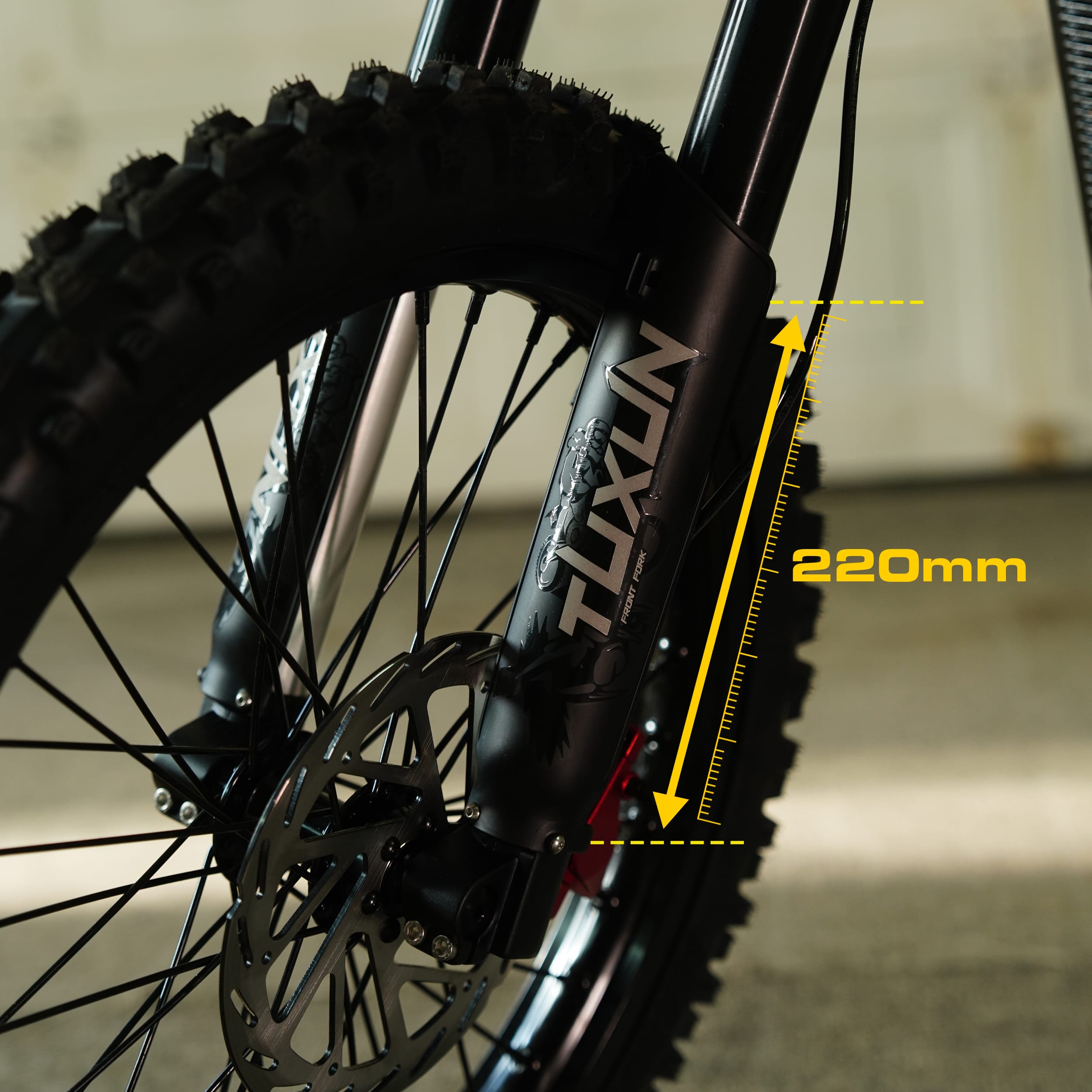

Adjustable Front Suspension
Upgraded to 220mm travel (from 150mm) for better impact absorption and stability on rough terrain and jumps.
Still damping adjustable, allowing riders to tune comfort and control for different riding conditions.

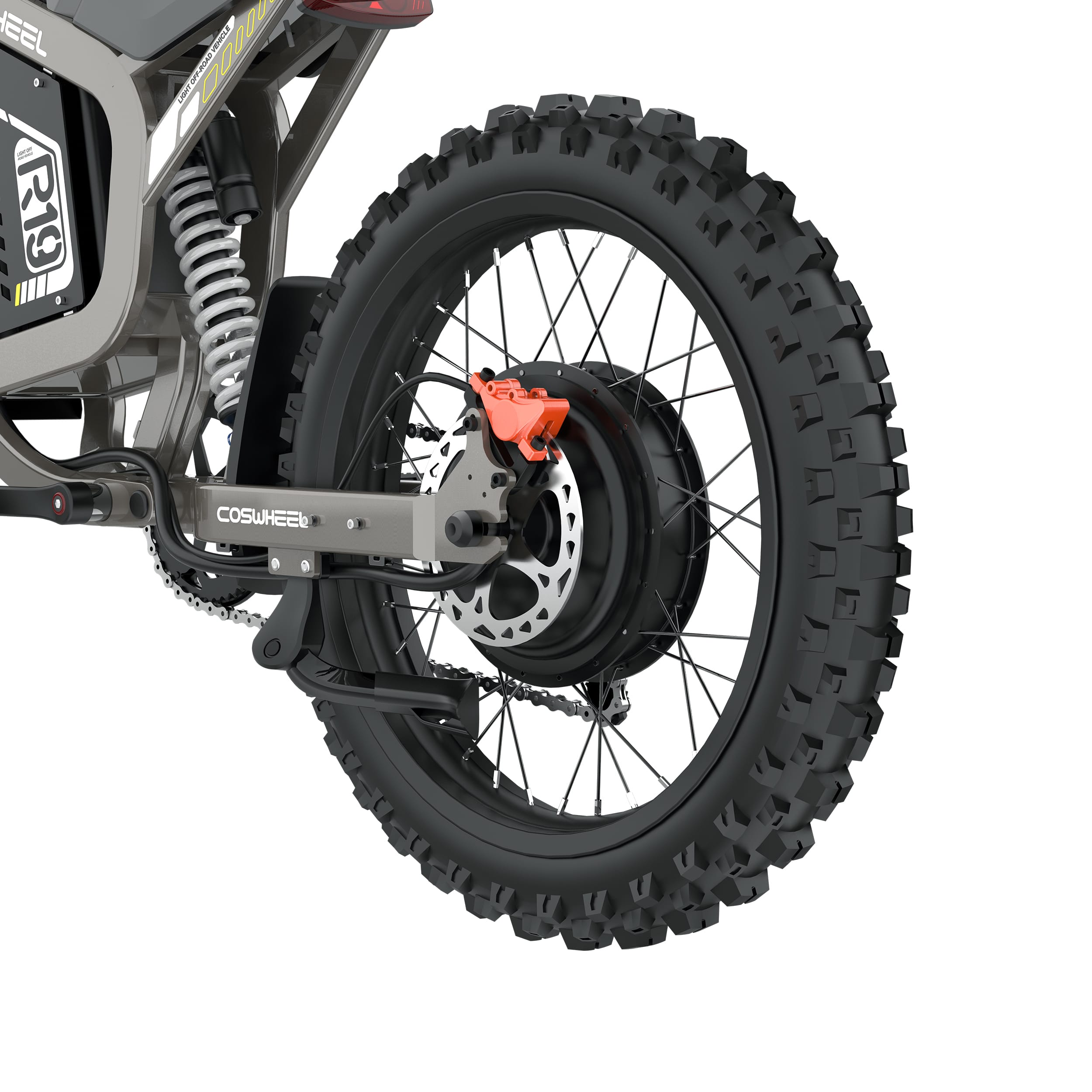

Heavy Duty Hydraulic Brakes
The R19 is equipped with a heavy-duty dual-piston hydraulic braking system with 203mm x 2.8 brake discs, providing strong and stable braking performance.

Professional Off-road Tires
The front wheel 70/100-19M/C high-strength off-road tire and the rear wheel 80/100-19M/C high-strength off-road tire can easily cross gravel, mud and bumpy roads.

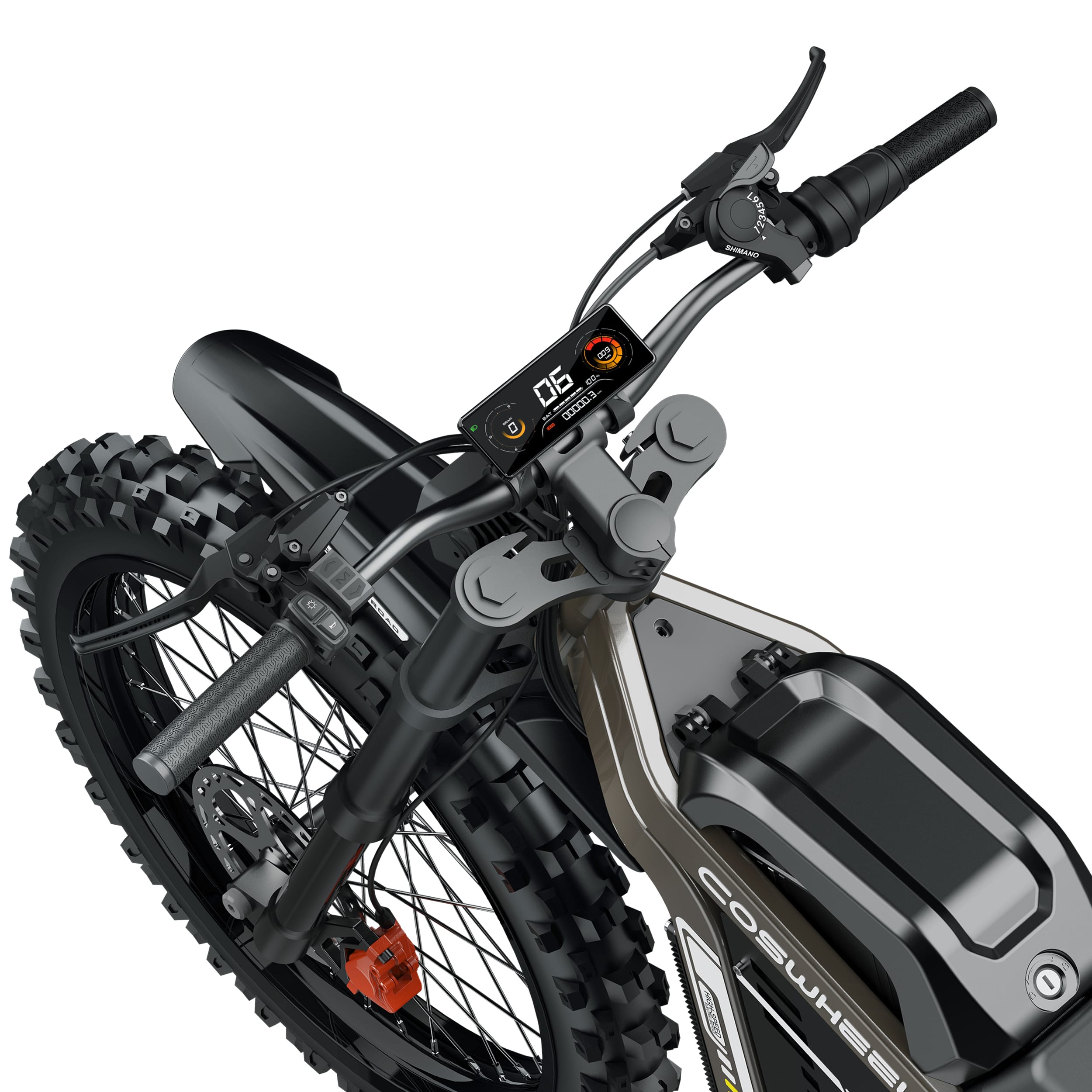

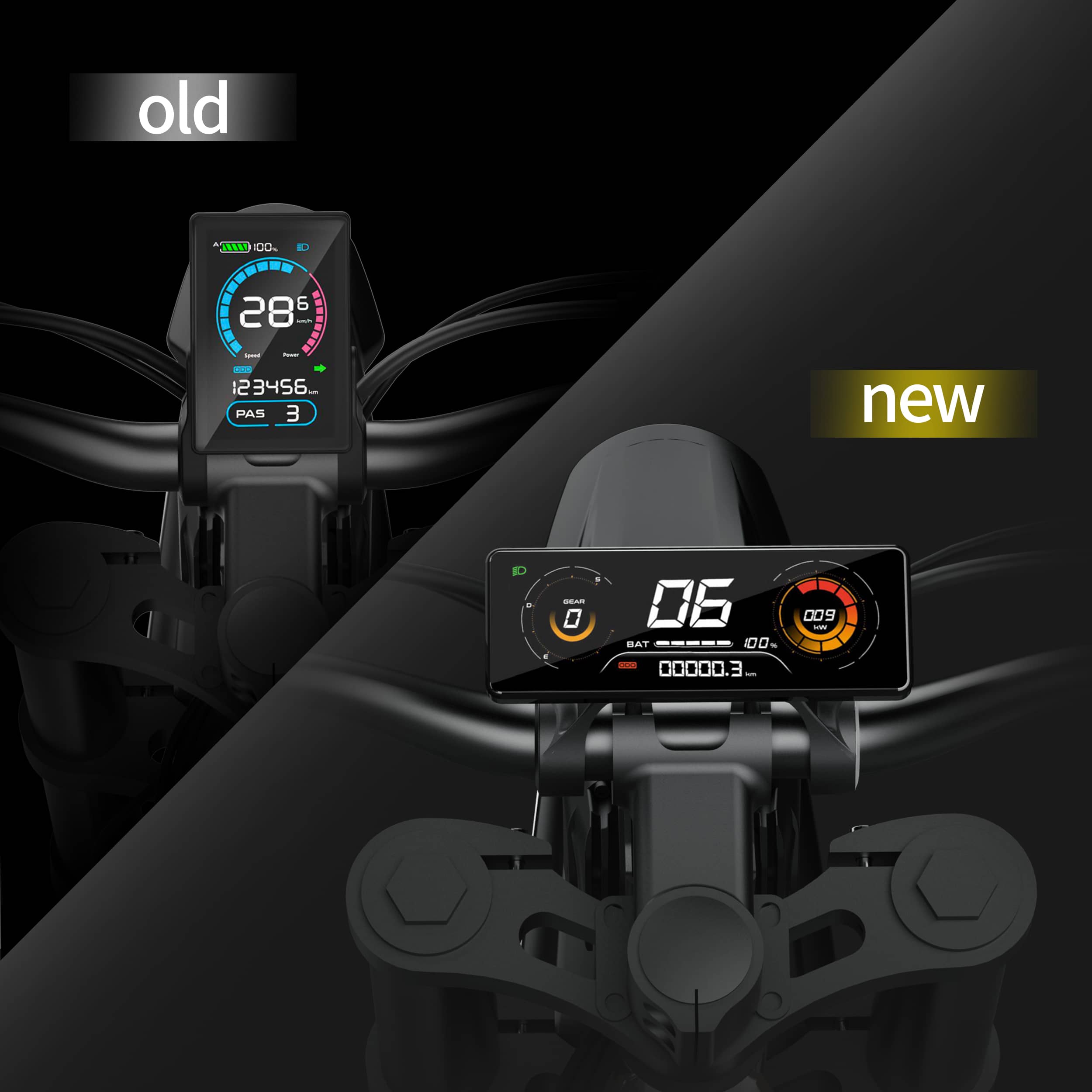

Upgraded Color Display
New horizontal full-color HD display replaces the 3.5” LCD, offering clearer data visibility and a more aggressive, modern cockpit look—even at high speeds and in sunlight.

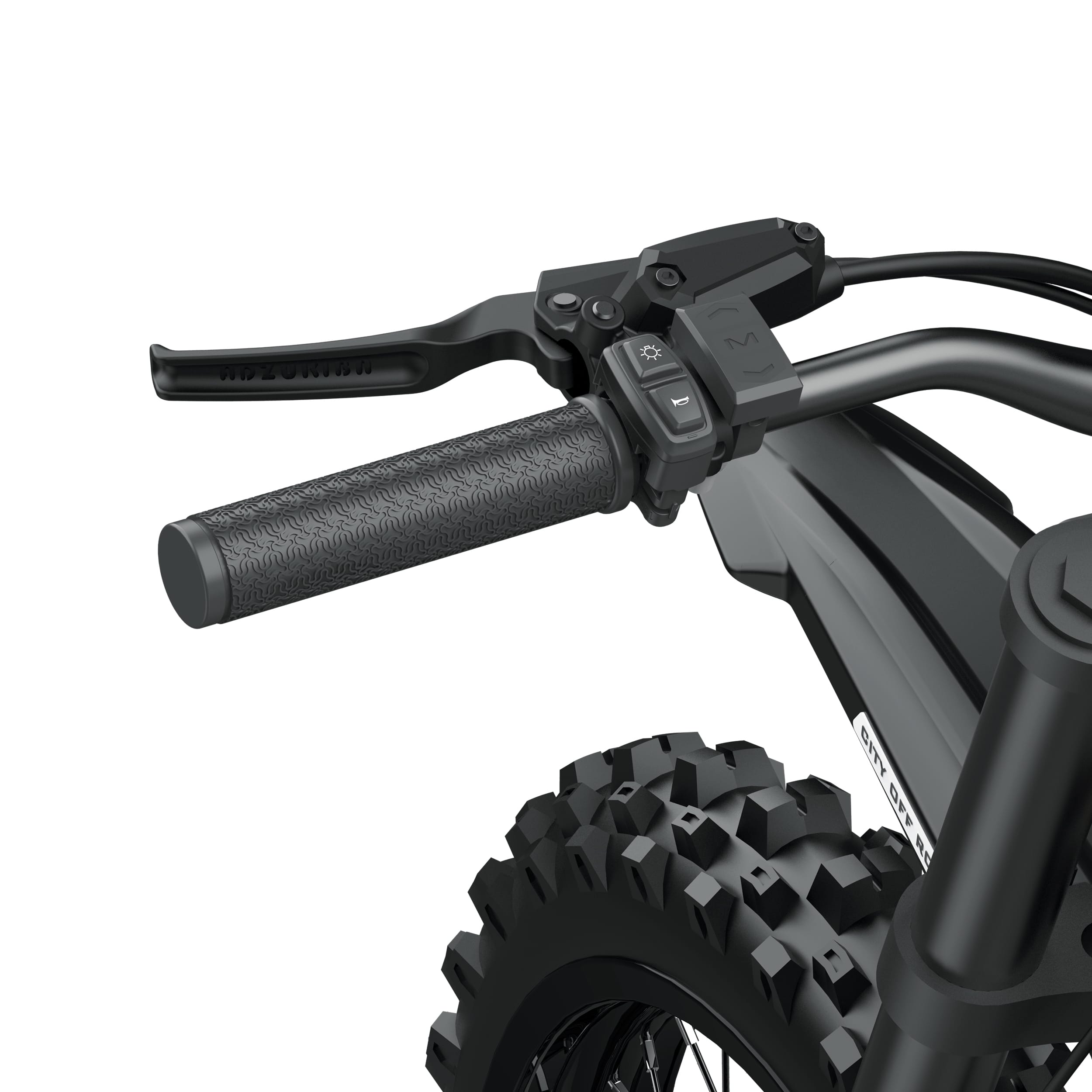

Smart Control System
Unlock the R19 with the NFC card and switch between 3 riding modes using the left handlebar controls. In Mode 3, the R19 can reach speeds up to 60mph (96km/h).
Press and hold the top button to activate the 15mph (25km/h) speed limit mode when “25km/h” appears on the display. Hold the button again until “99km/h” appears to restore full power and unlock speeds up to 60mph (96km/h).
Use the center “M” button to cycle through display functions and riding data.

Battery Lock
The R19 is equipped with a removable power supply. When you need to remove the battery, please unplug the discharge port on the battery and loosen the lock. When you put the battery back in, remember to lock the battery lock to prevent the battery from shaking during riding, which may cause danger.
R19 Specifications
Performance
- Top Speed: Class 2/3, 60Mph (96Km/h)
- Range: 75+miles (120km) in Class-2 throttle-only mode (pure electricity); 124miles (200km) in Class-1 PAS (pedal assist)
- Motor: 72V Peak 9000W Brushless Rear Hub Motor 240Nm
- Battery: 72V 40Ah Lithium Battery, BMS 100A
- Energy: 2880Wh
- Front Suspension: Dual-shoulder front fork, 750L, 60LBS, vertical tube length with left and right anti-collision pads, 110mm crotch opening, adjustable damping, 220mm Travel
- Rear Suspension: 310Lx950LBS, 8x24x24mm, Adjustable Damping, 300mm Travel
- Brakes: Double piston hydraulic oil brake, Equipped with 203mm*2.8 brake disc
- Front Tires: 70/100-19 professional off-road tire
- Rear Tires: 80/100-19 professional off-road tire
- Throttle: Grip Twist Throttle
Electronics
- Charger: 84V6A Charger
- Charging Time: 6.0-7.0 Hours
- Display: 3.5" LCD high-brightness color screen
- Controller: 72V 90A

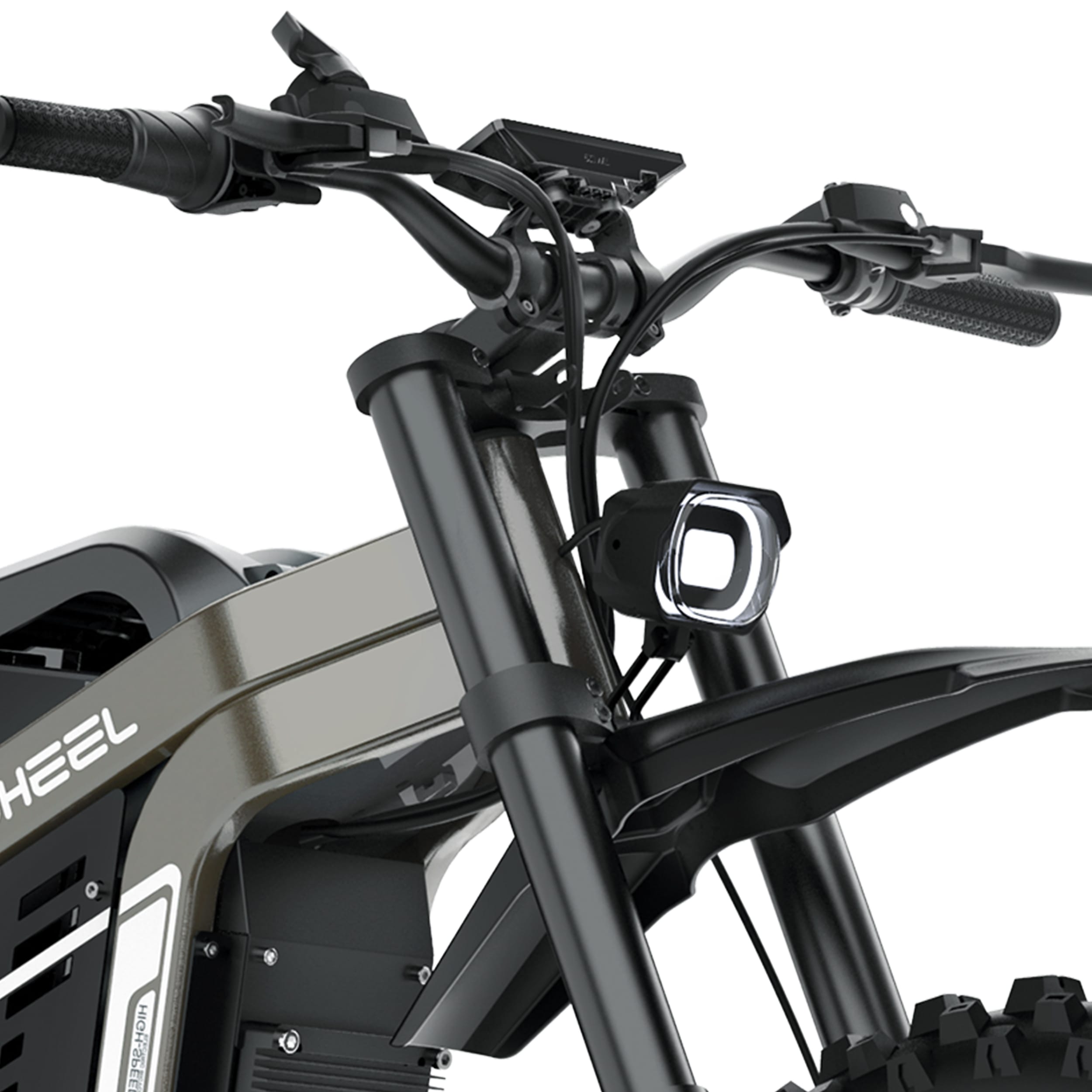

- Front Light: 12V Headlight

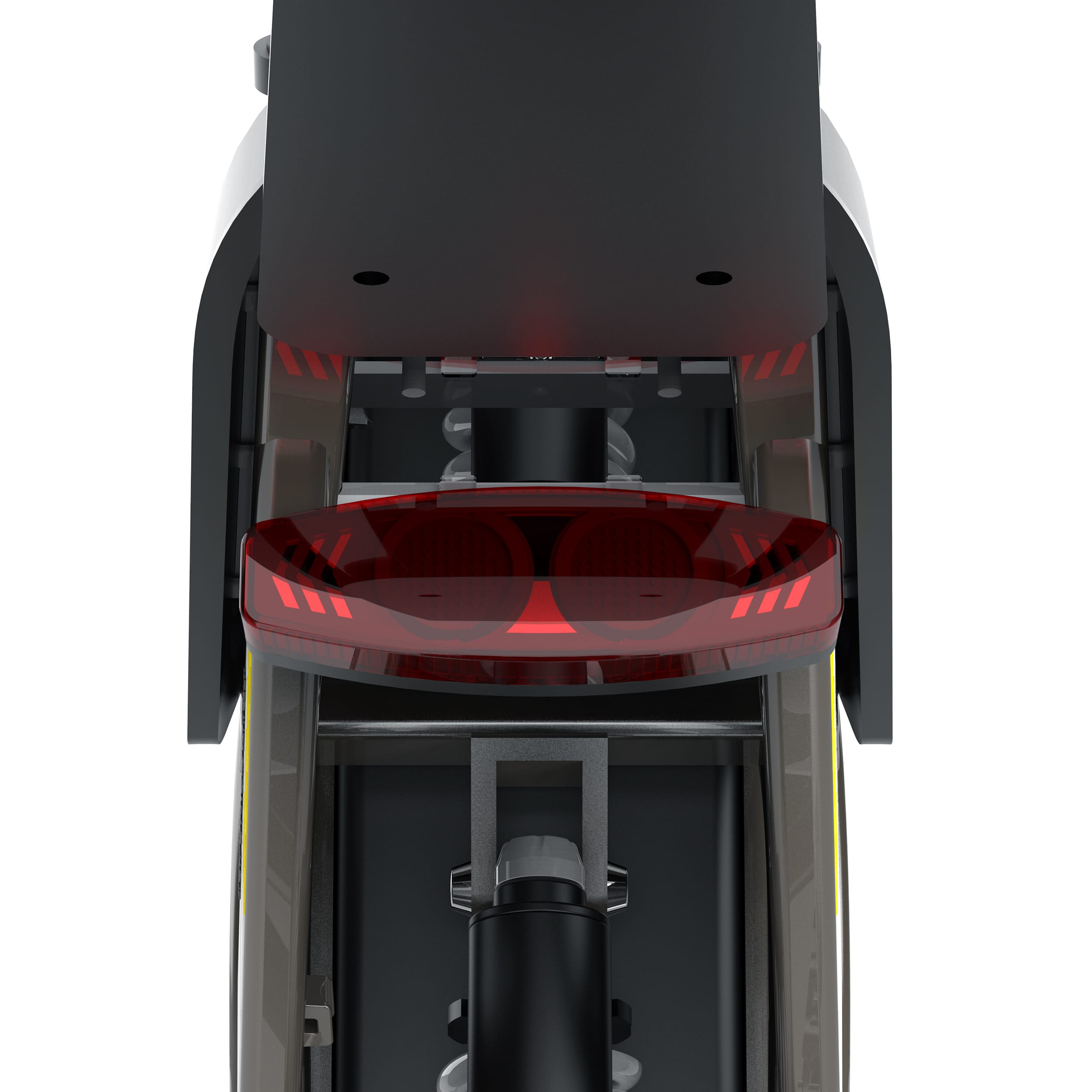

- Rear Light: LED
- Pedal Assist: 3 Levels
- Unlock Method: NFC Card
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2"*3/32"*48T(2.3T)ED Iron Teeth with Black Double Chain Cover

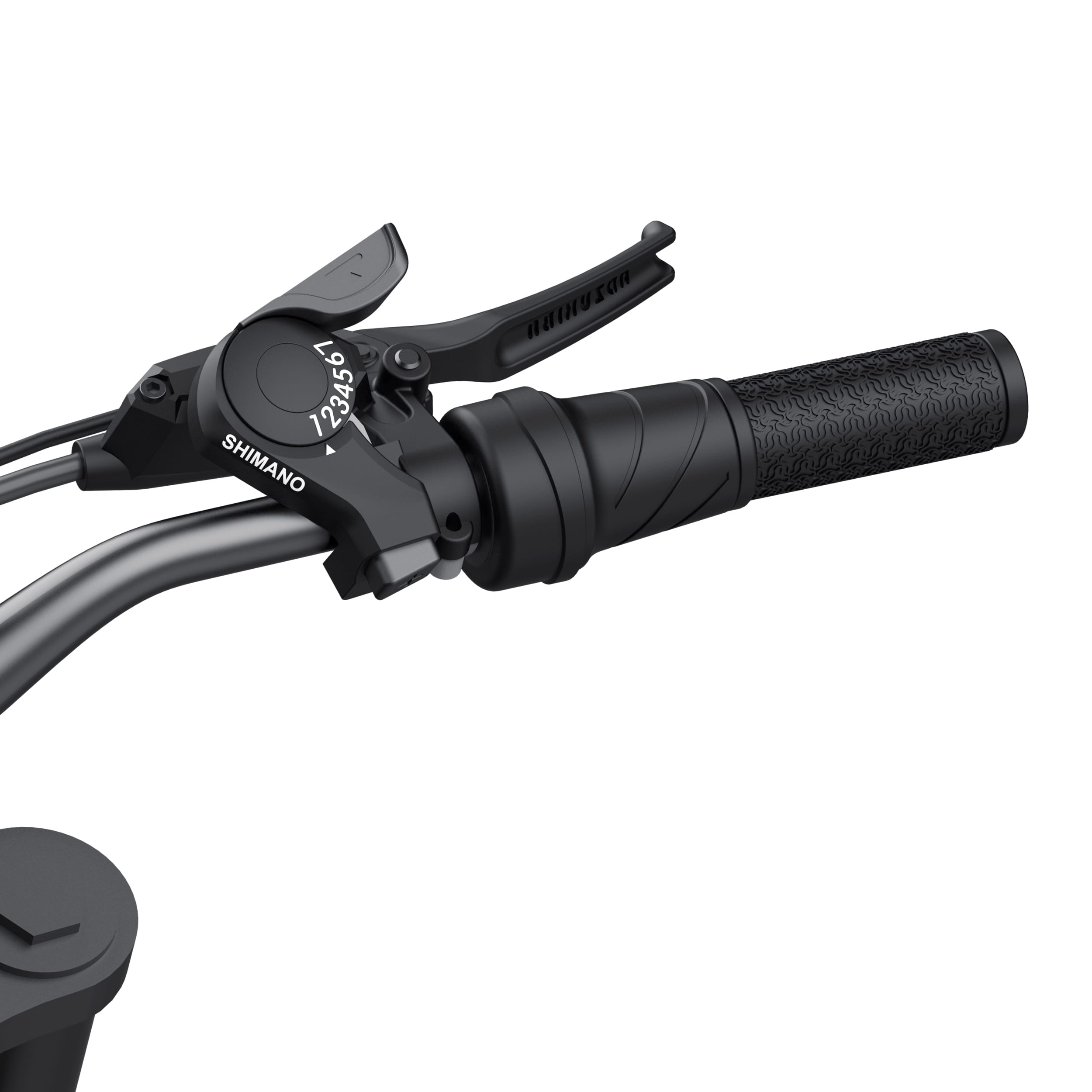

- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, S33*132L, 1/2" * 3/32"
- Handlebars: Anodized sandblasted black Φ: 680*Φ31.8*9°, tilted upwards 15°
Geometry
- Suitable Height: 5'3" - 6'5"
- Seat Height: 33.5" (85cm)
- Bike Height: 41.1" (104.5cm)
- Wheelbase: 47.2" (120cm)
- Handlebar Width: 26.7" (68cm)
- Bike Weight: 139lbs (with Battery) (63kg)
- Maximum Load: 440lbs (200kg)
- Safe Load: 330lbs (150kg)
- Overall Size: 74.8" * 27.6" *43" (190*70*109cm)
Some Things
You Might Want To Know
1. US warehouse: 5-8 business days, free shipping.
2. European warehouse: 7-10 business days, additional shipping fee applies.(If there is no stock in the European warehouse, the goods may be shipped from the Chinese warehouse, which takes a long time.)
3. For other regions, please go to the checkout page and enter the corresponding zip code to view the specific shipping time.
R19 Ebike*1/Fender*2/Charger*1/Tool Bag*1
In the United States, high-performance eBikes like the R19 may exceed the standard Class 1/2/3 eBike definitions due to higher speed and power. However, many customers successfully register the R19 for road use by following local regulations.
Here’s how we support legal registration:
Certificate of Origin (COO) Provided
COSWHEEL can provide a valid Certificate of Origin upon request. This document allows customers to register the R19 as a motor-driven cycle or similar vehicle type, depending on state regulations.
VIN / Frame Identification Support
The R19 includes identifiable frame numbering to assist with registration where required.
Customer Responsibility by State
Registration requirements vary by state. Some states allow vehicles like the R19 to be registered similarly to mopeds or electric motorcycles.
Important Notice:
The COSWHEEL R19 is designed for off-road and private property use by default.
Customers are responsible for checking local laws and regulations regarding registration, licensing, and road use before riding on public roads.
The legality of the COSWHEEL R19 in Australia depends on how the bike is configured and where it is used.
In Australia, electric bikes used on public roads must comply with specific regulations, including speed and power limits.
Road-Compliant Mode (25 km/h Limited)
The R19 includes a built-in speed limiting function that allows it to be restricted to 25 km/h (15.5 mph), aligning with Australian eBike regulations for on-road use.
Quick Speed Limiting Function
The bike can be set to a compliant 25 km/h mode by holding the ∧ control button for several seconds.
Suitable for Public Road Conditions (Where Applicable)
When limited appropriately, the R19 can be used in accordance with local eBike rules, subject to regional regulations.
Yes, the R19's battery can be removed and charged independently.
On the left side, press and hold the upshift button for 7-9 seconds to limit your speed to 25 km/h (15 mph). To de-limit, repeat the process to restore your speed to 96km/h (60mph).
