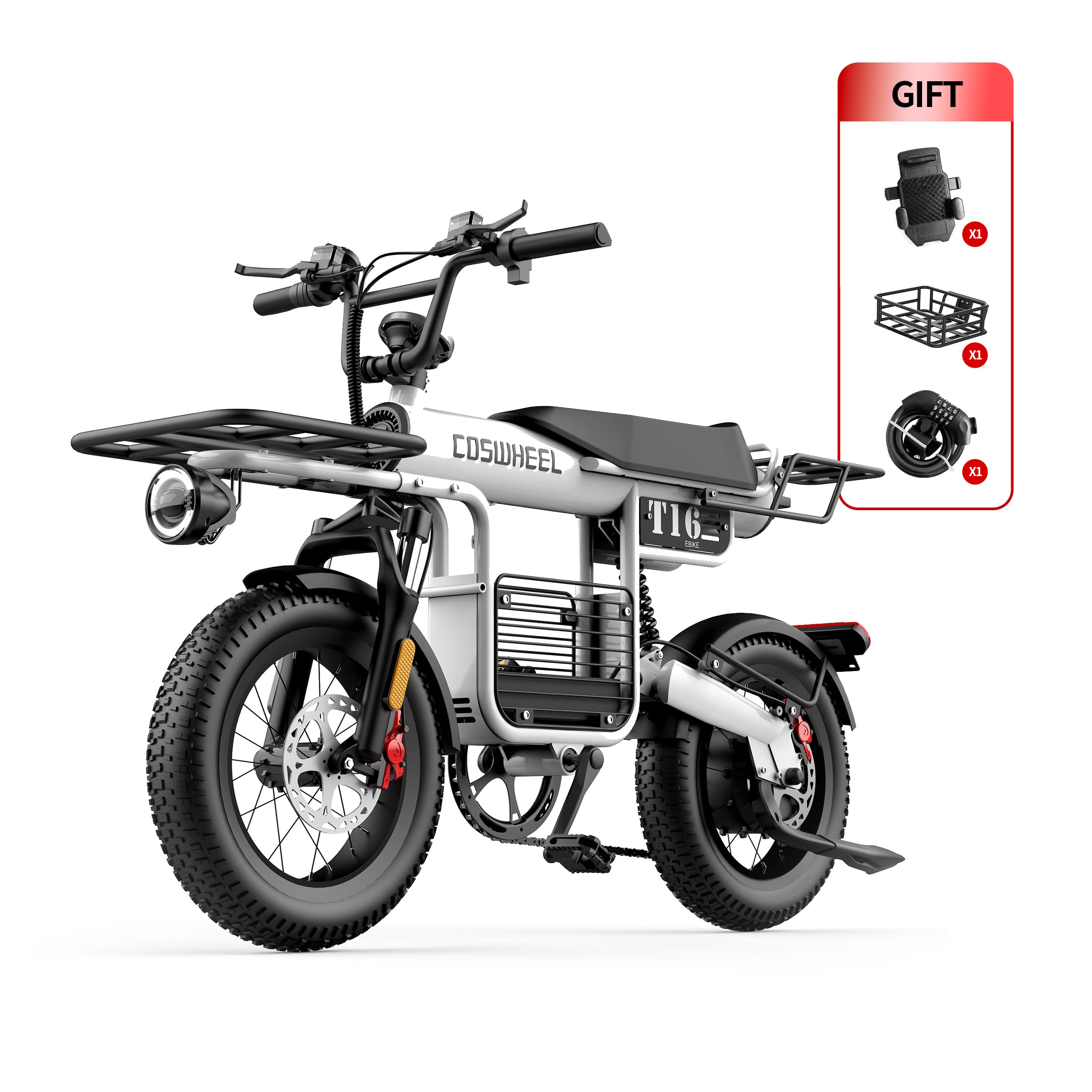

T16 EBIKE
torque 50N.m, can climb 25 degrees slope, off-road commuting ebike
T16 Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 40+miles (64km) in Class-2 throttle-only mode (pure electricity); 70+miles (113km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m
- Battery: 48V 20Ah Battery (Lithium 18650 Cells)
- Energy: 960Wh
- Front Suspension: Single-shoulder shock-absorbing front fork 16 inches * 4.0 * 135mm \ total height 385mm \ toothless riser length 215mm, 80mm Travel
- Rear Suspension: 3000 Pounds, 170mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ChaoYang All Terrain Tire 16" × 4.0" H5176 30TPI
- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display, Equipped with UDE remote control + 2 NFC cards
- Controller: 48V 22A
- Front Light: Round retro headlights with daytime running lights
- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: HB-B072\25.4*L:640mm*H:180mm\17°\middle horizontal φ22.2*H:140mm\sandblasting black
Geometry
- Suitable Height: 4'11" - 5'11" (4.9ft-5.9ft)
- Seat Height: 29.53" (75cm)
- Bike Height: 39.37" (100cm)
- Wheelbase: 38.58" (98cm)
- Handlebar Width: 25.59" (65cm)
- Bike Weight: ≥97lbs (with Battery) (≥44kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 60.24" * 25.59" *39.37" (153*65*100cm)
- Package Size: 55.91" * 12.60" * 32.28" (142*32*82cm)
T16 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
T16 adopts a new unlocking method, using NFC card and remote control instead of key switch.
The T16 seat is 29.53" (75cm) above the ground, suitable for people 4'11" - 5'11" (4.9ft-5.9ft). Therefore, the T16 is very friendly to women and teenagers and can be a good travel tool for them.
The T16 seat is 22.24" (56.5cm) long and 2.36" (6cm) thick. The long, thick and soft seat can accommodate an adult and a child, making it very suitable for family travel.
Front suspension has 80MM travel, rear suspension 170MM, 3000 pounds
The T16 is equipped with front and rear shelves, which can be combined with a basket to make your travel more convenient.
The crank adopts a double cover chain design, which effectively reduces the risk of chain dropping and makes you ride more safely.
Double-piston power-off hydraulic brake, equipped with 180MM high-quality brake disc. The brake is soft and powerful, enhancing safety.
There is a large storage rack under the frame where you can store your travel items, such as water bottles, umbrellas, thermal bags, etc.
It uses Chaoyang 16" * 4" all-terrain tires, which have strong grip, adapt to various road surfaces, and can effectively lower the body, allowing more people to experience the joy of riding T16.
The 20AH battery can be removed and charged at will, which is convenient and flexible.
Brand new waterproof and rust-proof chain, silver-white.
Equipped with high-quality front and rear lights to illuminate your way.
T16 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
T16 adopts a new unlocking method, using NFC card and remote control instead of key switch.
The T16 seat is 29.53" (75cm) above the ground, suitable for people 4'11" - 5'11" (4.9ft-5.9ft). Therefore, the T16 is very friendly to women and teenagers and can be a good travel tool for them.
The T16 seat is 22.24" (56.5cm) long and 2.36" (6cm) thick. The long, thick and soft seat can accommodate an adult and a child, making it very suitable for family travel.
Front suspension has 80MM travel, rear suspension 170MM, 3000 pounds
The T16 is equipped with front and rear shelves, which can be combined with a basket to make your travel more convenient.
The crank adopts a double cover chain design, which effectively reduces the risk of chain dropping and makes you ride more safely.
Double-piston power-off hydraulic brake, equipped with 180MM high-quality brake disc. The brake is soft and powerful, enhancing safety.
There is a large storage rack under the frame where you can store your travel items, such as water bottles, umbrellas, thermal bags, etc.
It uses Chaoyang 16" * 4" all-terrain tires, which have strong grip, adapt to various road surfaces, and can effectively lower the body, allowing more people to experience the joy of riding T16.
The 20AH battery can be removed and charged at will, which is convenient and flexible.
Brand new waterproof and rust-proof chain, silver-white.
Equipped with high-quality front and rear lights to illuminate your way.
The T16 is equipped with a high-speed brushless motor with a peak value of 1000W (rated at 750W), with an instantaneous maximum current of 22AH and a torque of 50N.m, allowing you to easily shuttle between cities and country roads.
T16 provides three high-quality 18650 lithium battery options of 960Wh (20AH), with a battery life of up to 70miles (113km) and a maximum speed of 28MPH (45KM/H), which is legal and meets Class 2 and Class 3 mode, please ride with confidence.
The T16 has three speed settings, and its acceleration and deceleration are smoother than previous models.
Support
Manual
VIN Number
The VIN number (Serial number) of the T16 ebike is in the middle of the front fork of each T16, as shown in the picture (please note that the VIN number of the T16 is unique and cannot be repeated);
Package
T16 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1/Front Shelf*1
The VIN number (Serial number) of the T16 ebike is in the middle of the front fork of each T16, as shown in the picture (please note that the VIN number of the T16 is unique and cannot be repeated);
T16 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1/Front Shelf*1
