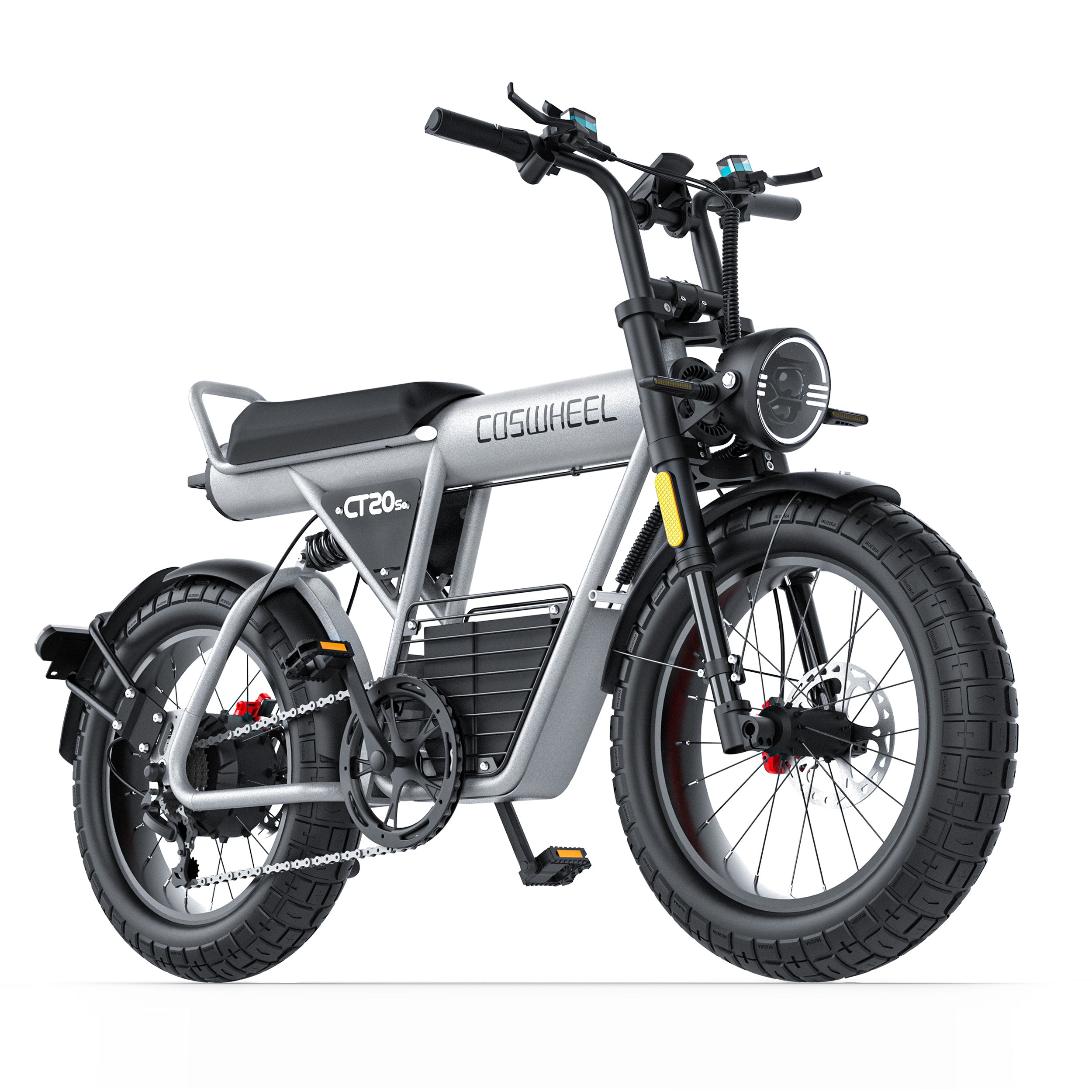

CT20S EBIKE

torque 120N.m, can climb 35 degrees slope, off-road commuting ebike

Battery

48V 35AH

60V 27.5AH

Price

$2,199.00

~~$2,399.00~~

Qty

PERFORMANCE

Top Speed: Class 2/3, 28 Mph (45Km/h)

Range: 40-45+ miles in Class-2 throttle-only mode; 75+miles in Class-1 PAS

Motor: 48V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m

Battery: 48V 35Ah And 60V 27.5Ah Battery (Lithium 18650 Cells)

Energy: 1680/1650Wh

Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel

Rear Suspension: Adjustable Damping Suspension, 180mm Travel

Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc

Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining

Throttle: Grip Twist Throttle

ELECTRONICS

Charger: 48V3A Charger

Charging Time: 3.5-8.0 Hours

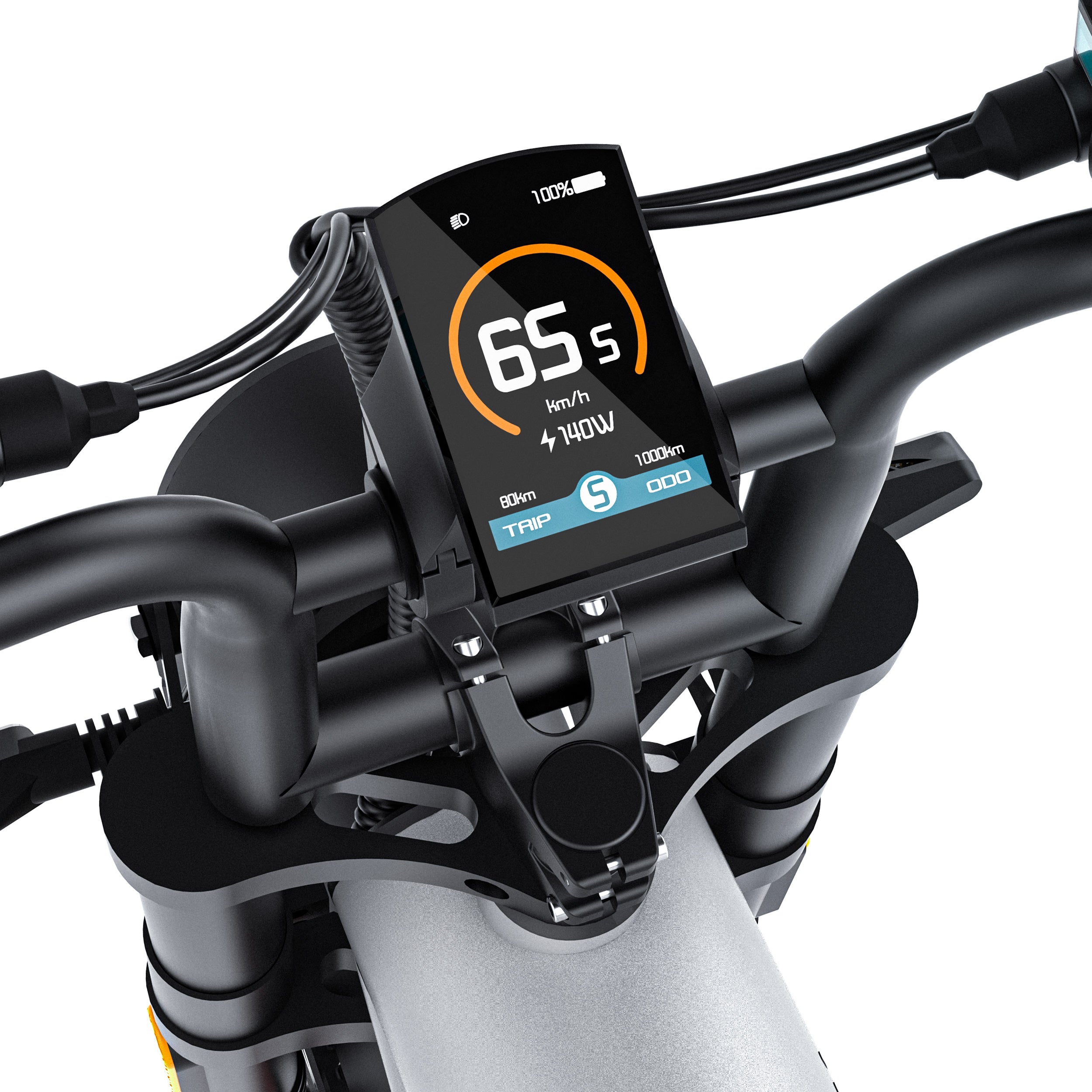

Display: Easy Read LCD Display

Controller: 48V 28A

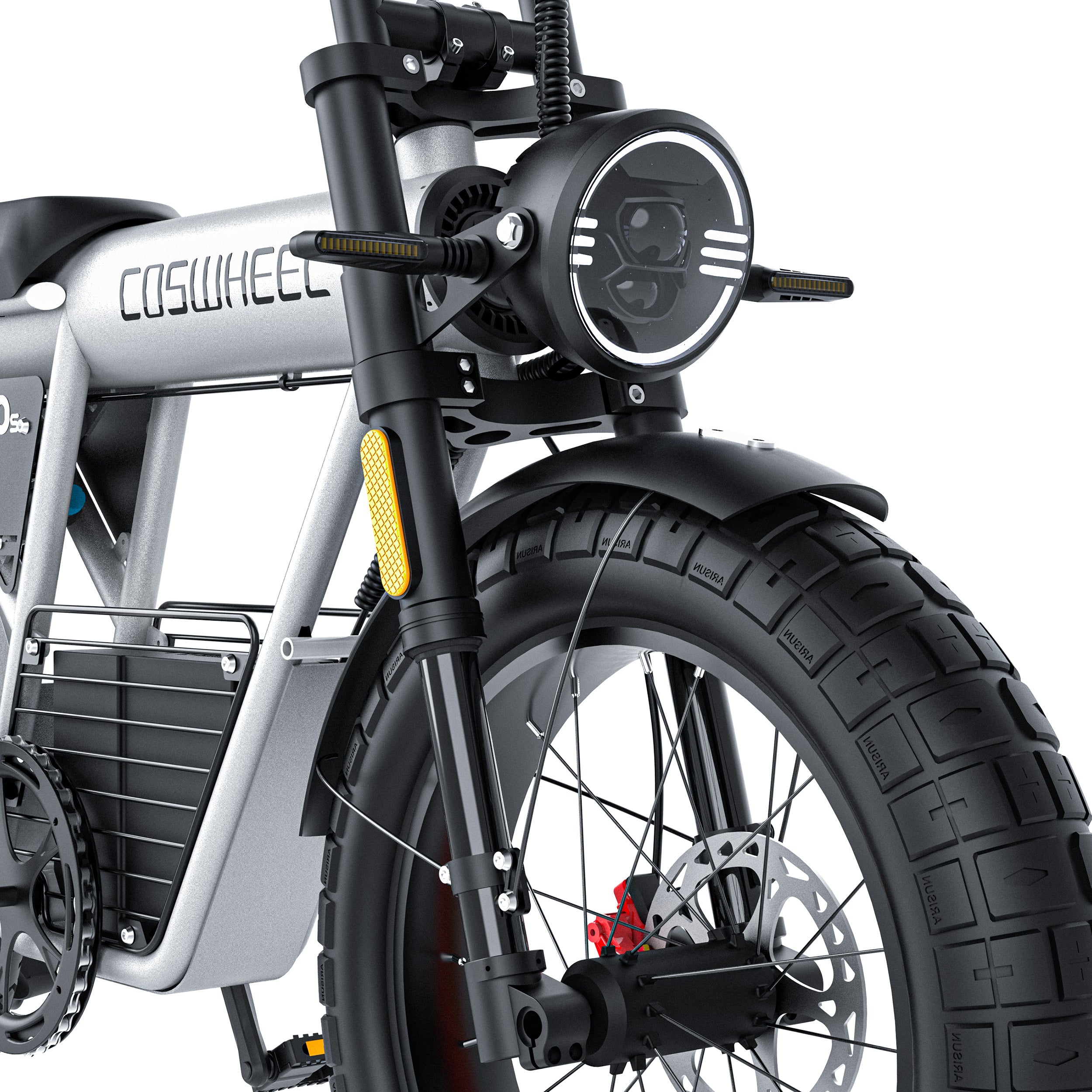

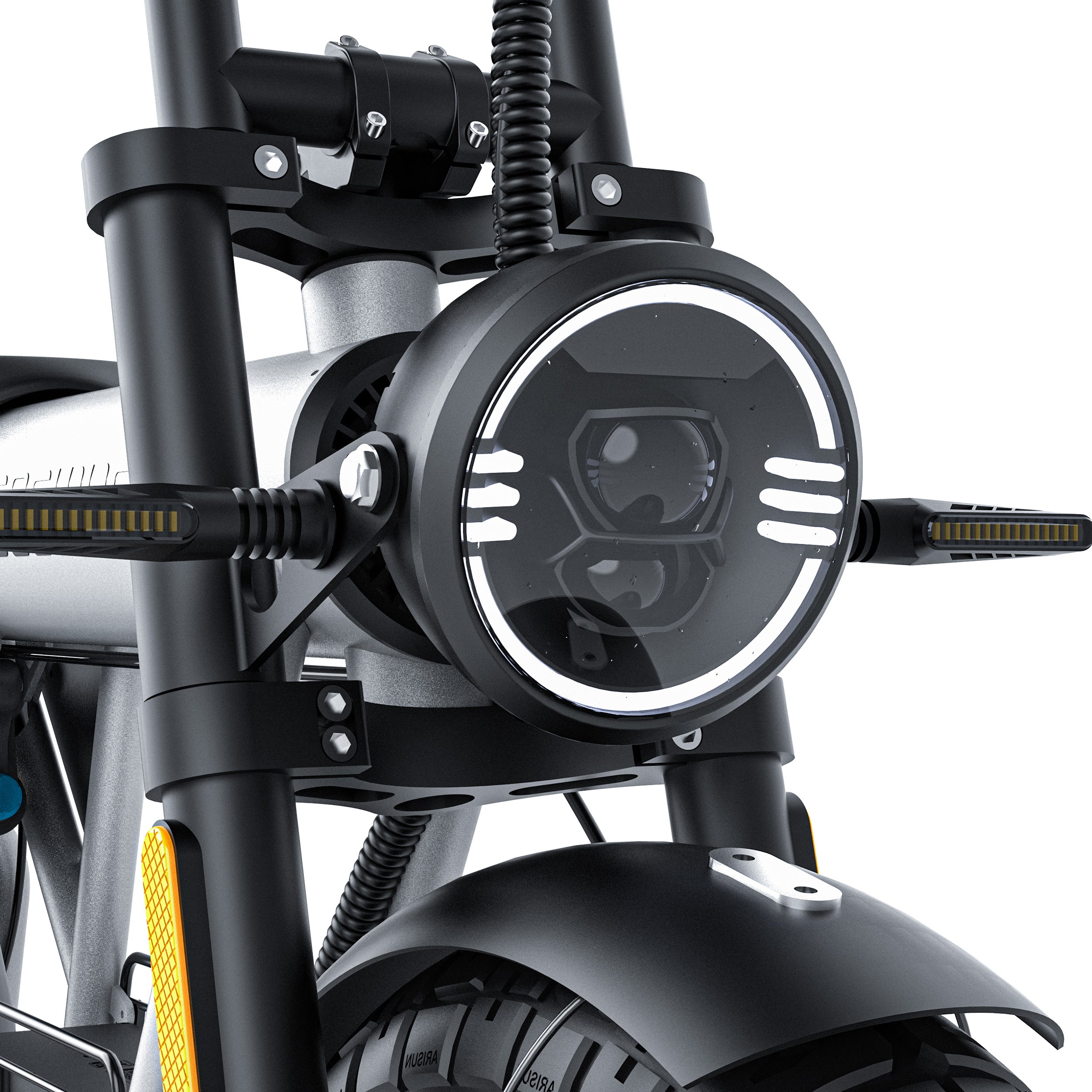

Front Light: Classic Angel Eye Headlight, 120 LUX

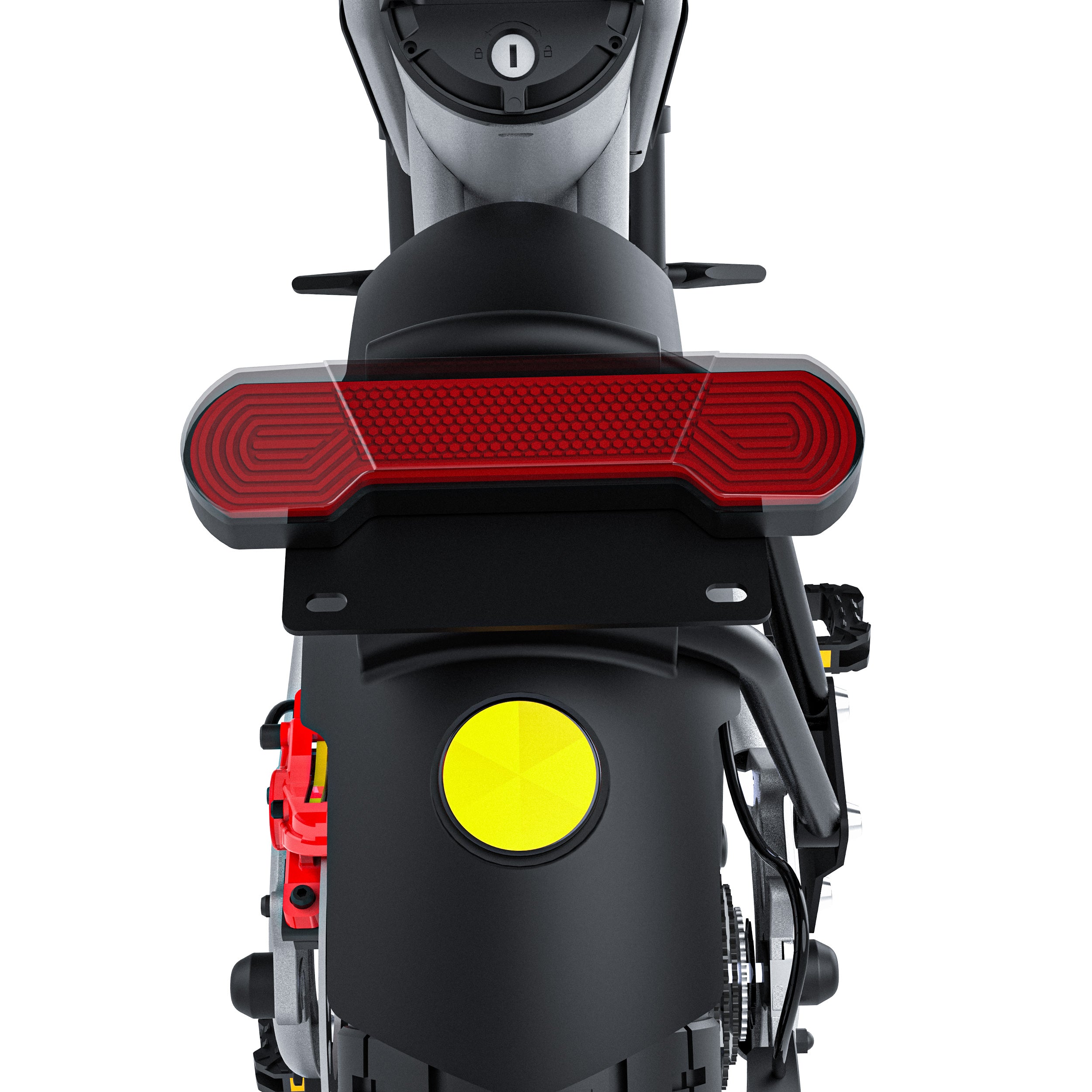

Rear Light: LED

Pedal Assist: 5 Levels

Sensors: Speed Sensor

COMPONENTS

Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy

Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate

Rear Derailleur: Shimano 7-Speed

Chain: 7-speed Anti-rust, 1/2" * 3/32"

Handlebars: Split Handlebar, φ32 φ22 Sand Black

GEOMETRY

Suitable Height: 5'1" - 6'5"

Seat Height: 32.6" (83cm)

Bike Height: 41.7" (106cm)

Wheelbase: 47.8" (121.5cm)

Handlebar Width: 27.2" (69cm)

Bike Weight: ≥99lbs (with Battery) (≥45kg)

Maximum Load: 330lbs (150kg)

Safe Load: 265lbs (120kg)

Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)

Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)

Product Description
Support
Faq

In 2023, COSWHEEL will launch an upgraded version of CT20 - CT20S ebike, which has stronger power and better suspension. The motor has been upgraded to a peak power of 2000W (rated 1500W), the torque has been increased to 120N.m, and the climbing speed is faster. It is also equipped with a variable damping rear suspension system to improve the body stability of the ebike.
1. GT20 Ebike Manual
Get manual

2. CT20S Ebike EU EN15194 and CE Certification Certificate and Test Report
CT20S ebike EU EN15194 and CE certification
CT20S ebike EU EN15194 and CE test report

3. CT20S Ebike VIN Number (Serial Number)
The VIN number (Serial number) of the CT20S ebike is in the middle of the front fork of each CT20S, as shown in the picture (please note that the VIN number of the CT20S is unique and cannot be repeated);
1. What's in The CT20S Package?
CT20S Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1

2. How Can I Get Help?
Please contact online customer service, or add business manager Luanr's WhatsApp +8615078385627, or send an email to service@coswheel.com

3. What Should I Do If I Want to Cancel an Order Or Return an Item?
Please refer to our Return & Refund Policy

MAIN FEATURE

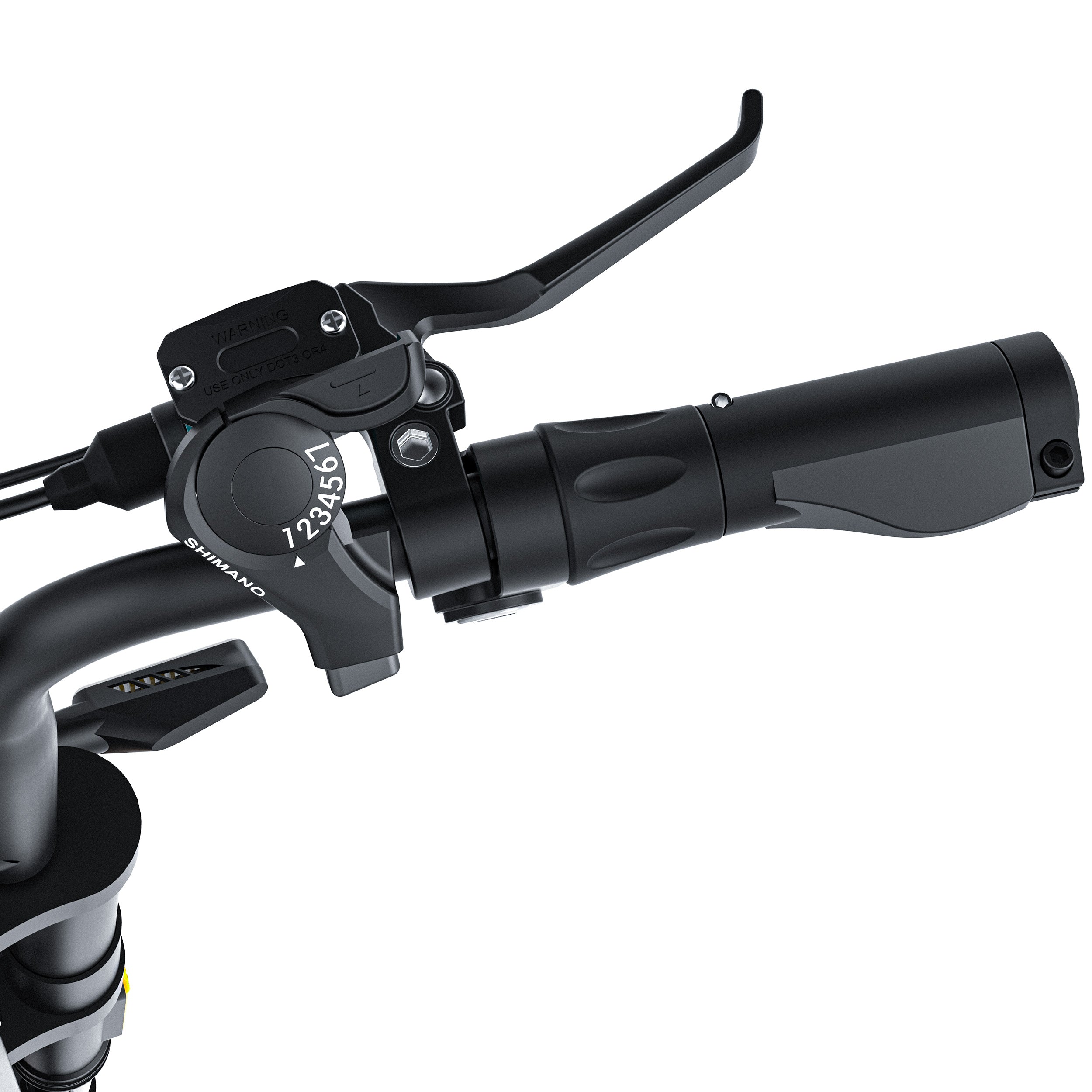

7-Speed Gearing

GT20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

Deluxe Fenders

Equipped with double protection fenders, it is sturdy and durable, and the rear taillight LED is mounted on the fenders, making it look more luxurious.

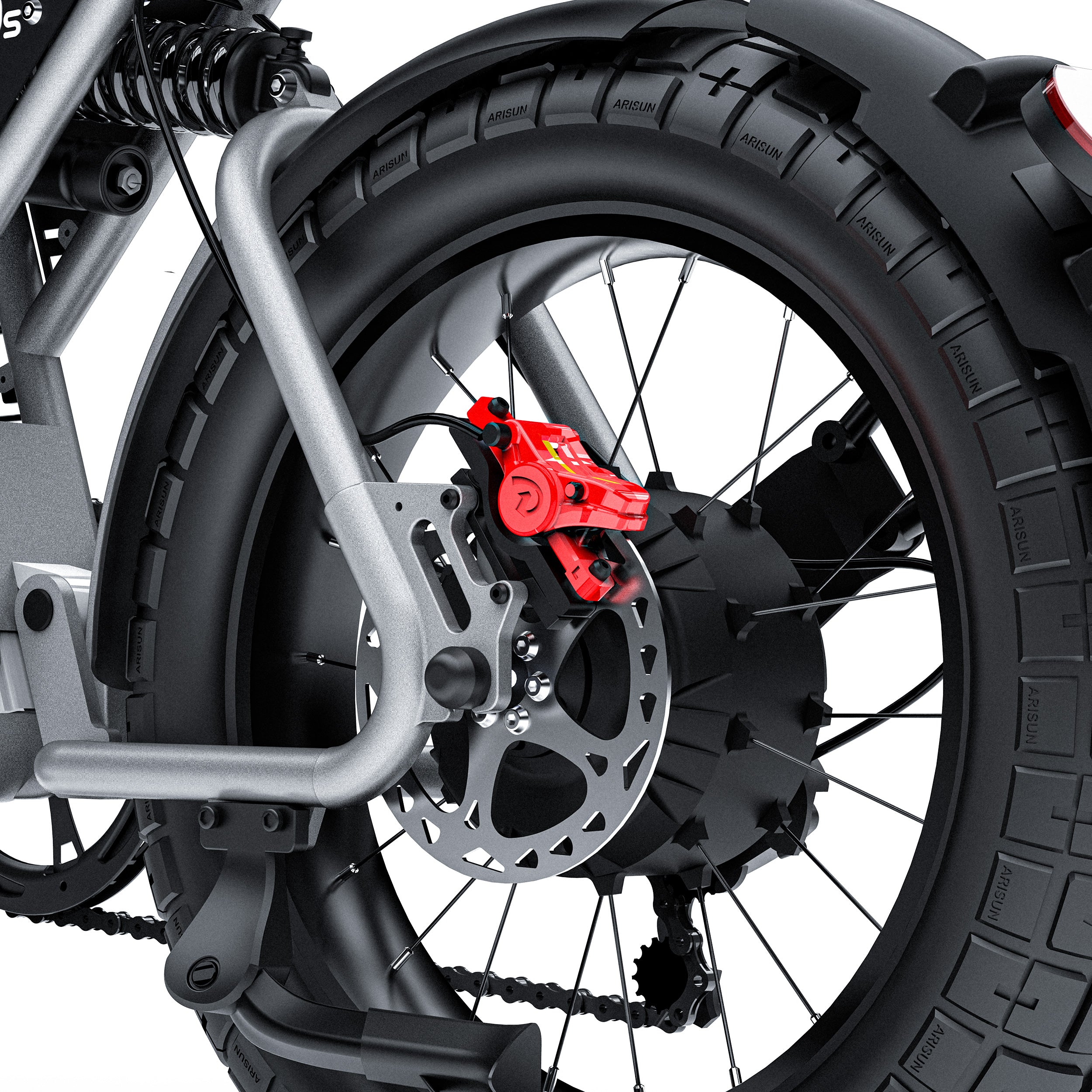

Oil Brake

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.

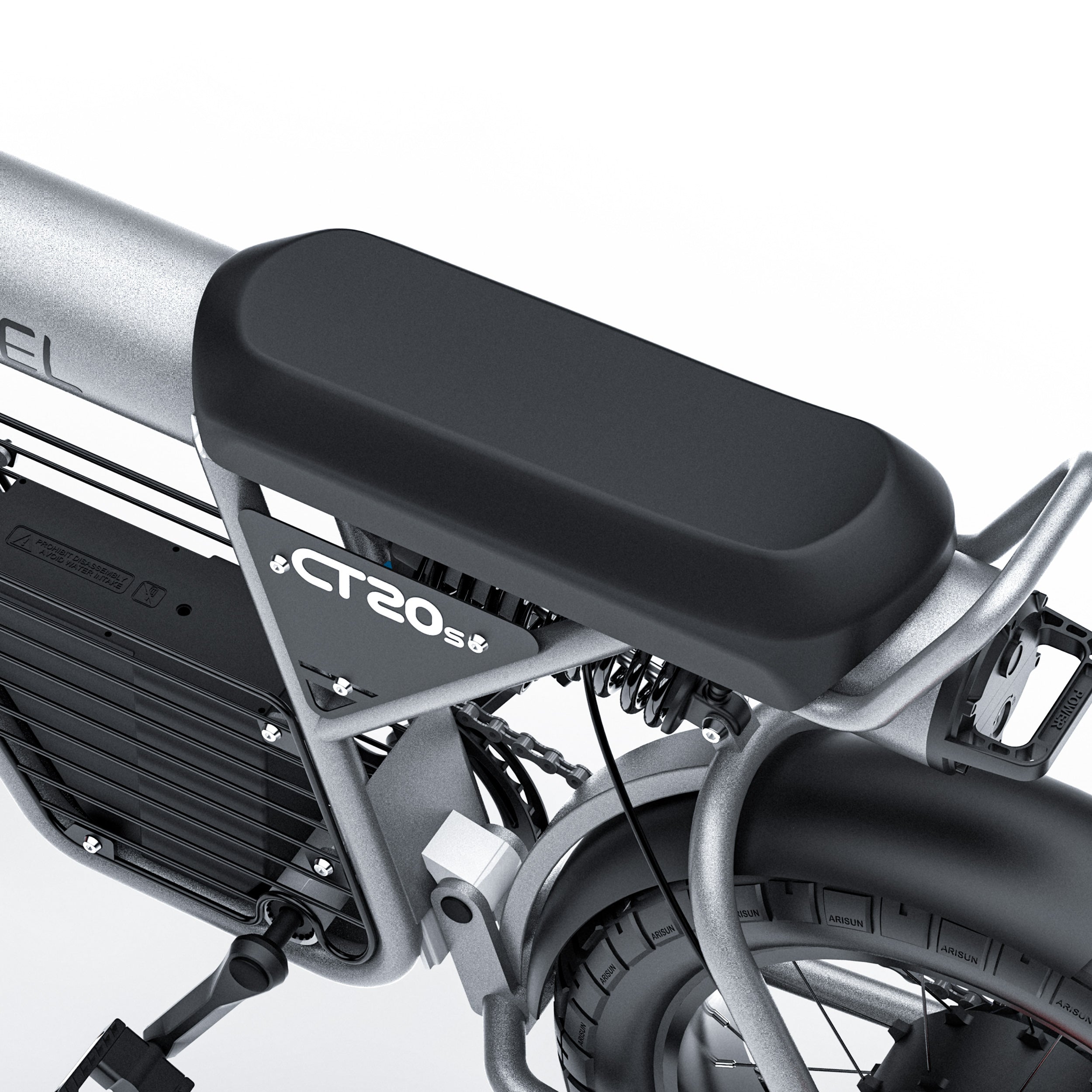

Soft Seat

With soft and thick leather seat, make your ride more comfortable.

Front Rear Suspension

Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.

DIFFERENT EXPERIENCE

The CT20S is equipped with a high-speed brushless motor with a peak value of 2000W (rated at 1500W), with an instantaneous maximum current of 35AH and a torque of 120N.m, allowing you to easily shuttle between cities and country roads.

GO FAR AWAY HAPPILY

CT20S provides two high-quality 18650 lithium battery options of 1680/1650Wh (48V 35AH and 60V 27.5AH), with a battery life of up to 75 miles (120KM). The maximum speed is 28MPH (45KM/H).

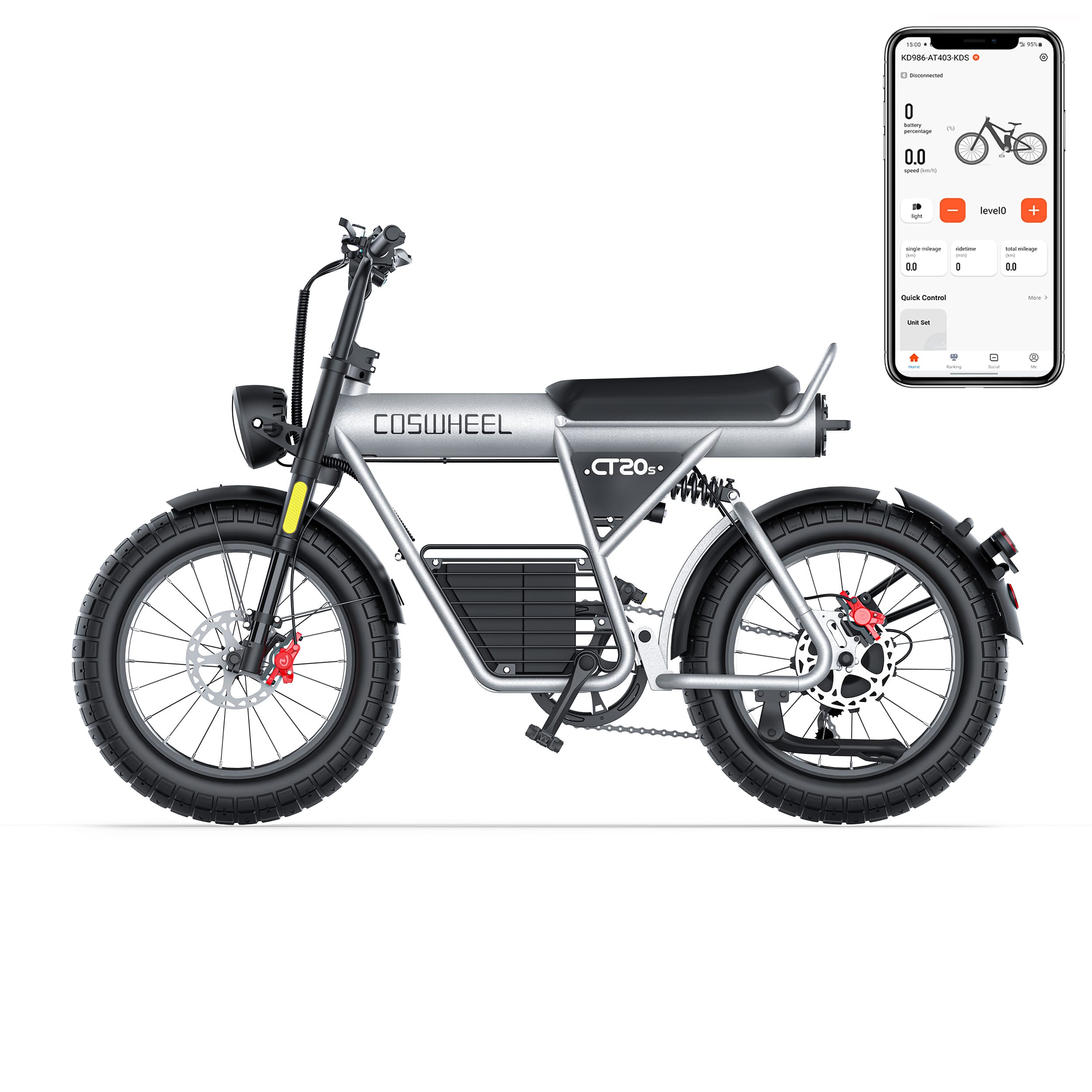

SMART APP

The CT20S LED display can be connected to an iphone to locate the ebike's position and view various parameters at any time.
