R19 Electric Dirt Bike
torque 120N.m, can climb 40 degrees slope, front 70/100-19 and rear 80/100-19 professional off-road wheelset.
An adult electric dirt bike built for off-road riding.
What Online Reviewers Say R19
The R19 ebike is favored by more and more customers, and many customers have posted their objective evaluations of the R19 on YouTube.
True 72V Power. Exceptional Value.

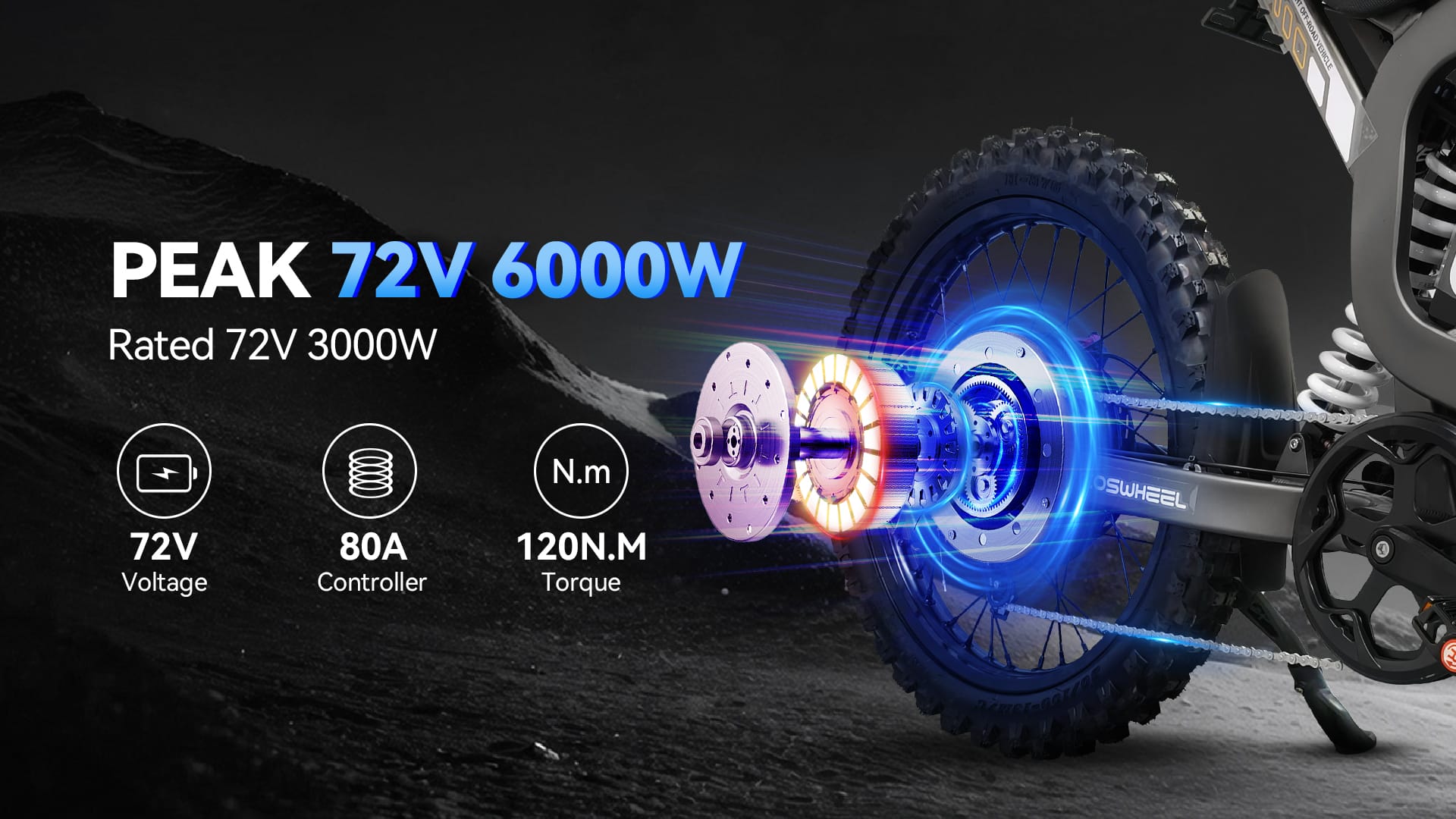

The R19 is built as a true 72V high-performance electric dirt bike, delivering up to 6000W peak power for strong off-road riding.
Equipped with a large 40Ah battery and a 100A BMS system, the R19 provides significantly improved power delivery and extends riding range by over 33%.
With this level of performance and battery capacity, the R19 stands out as one of the most affordable 72V electric dirt bikes available today.
Built With Rider Feedback
The R19 continues to evolve based on real rider feedback.
After listening to our community, we introduced the full-twist throttle many riders requested. We are also developing new pedal crank designs and integrated turn signals for future improvements.
In addition, we’re working on dedicated road tires for the R19, allowing riders to enjoy both off-road adventures and daily commuting on the same bike.

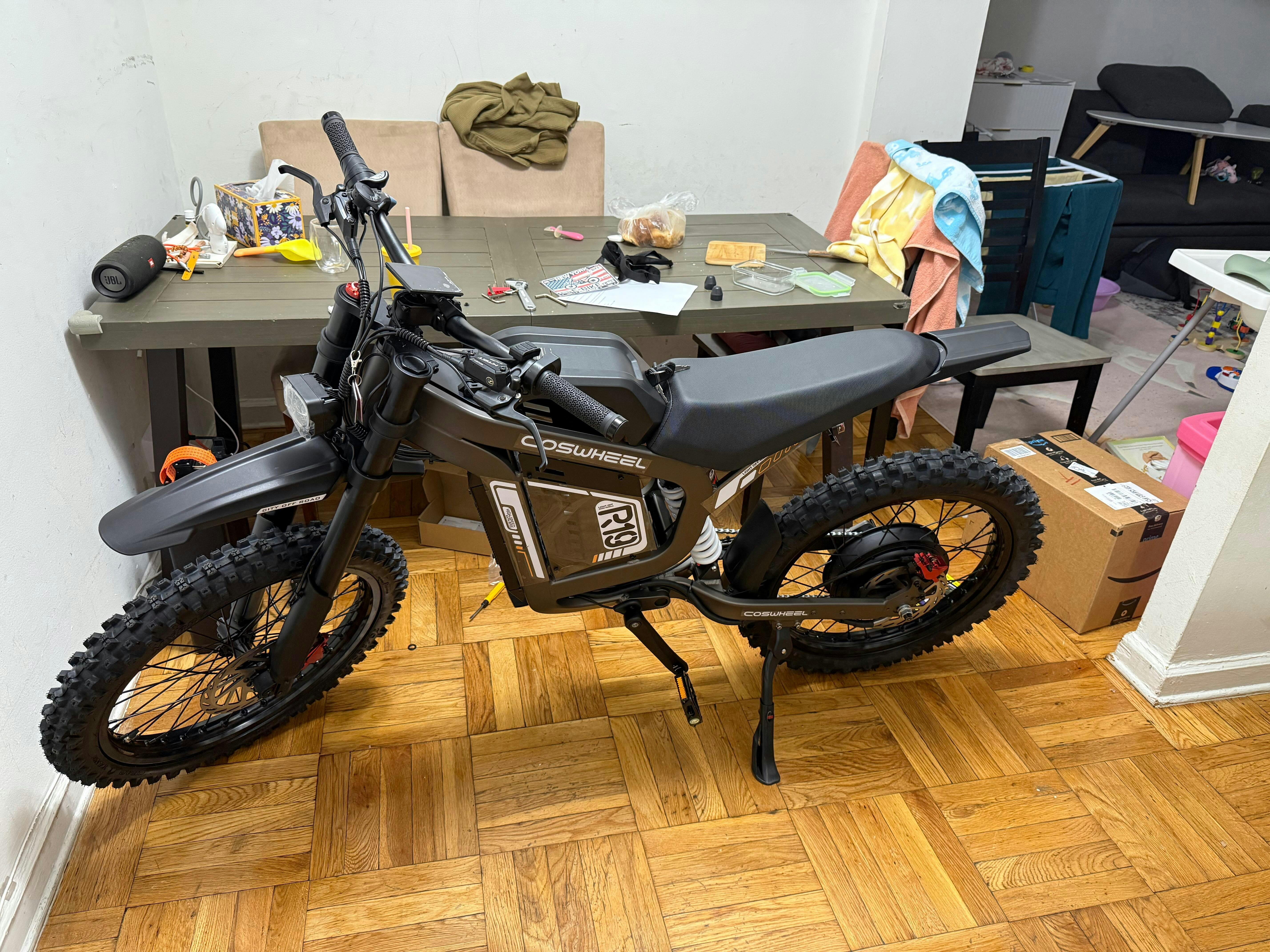

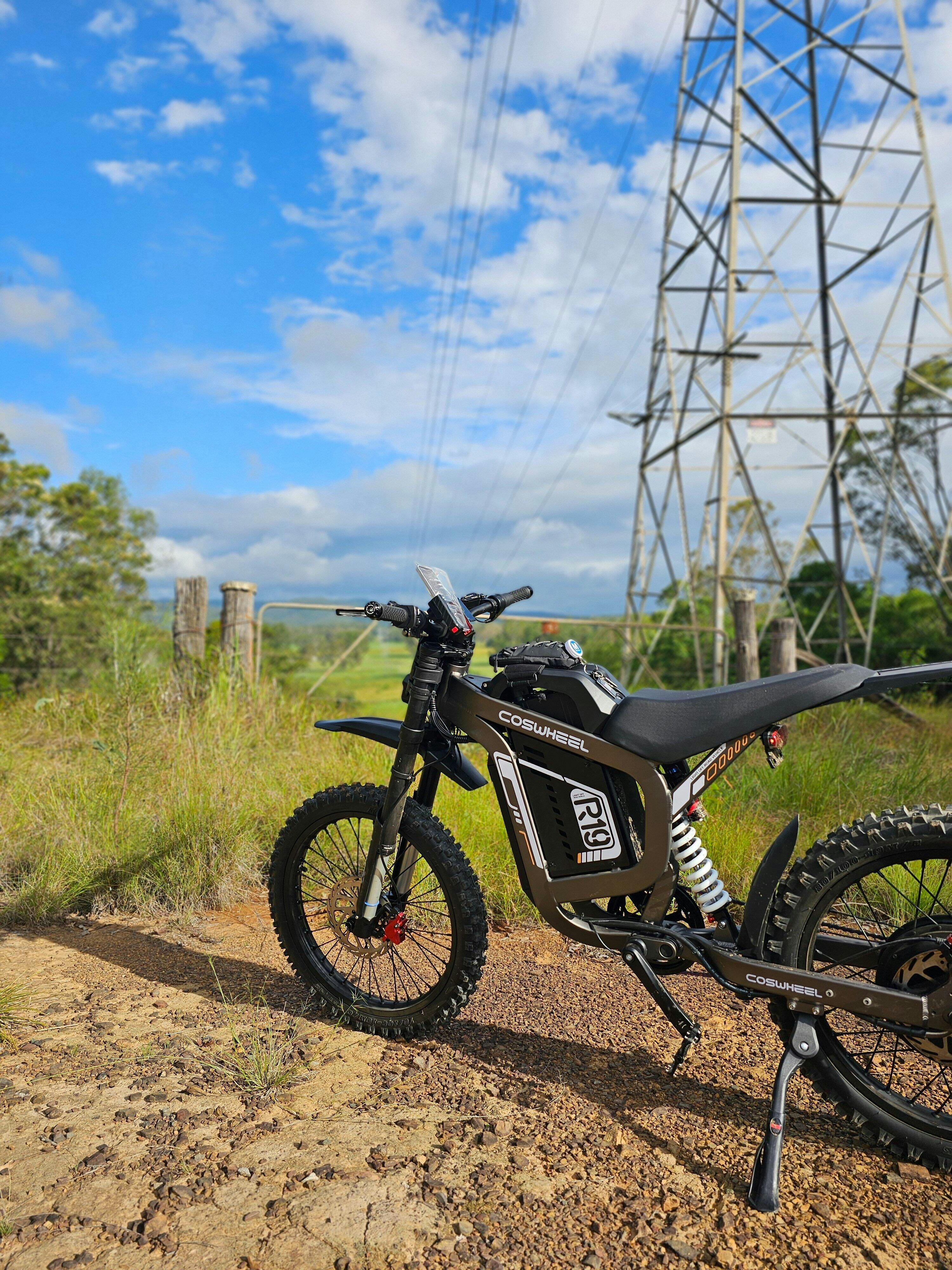

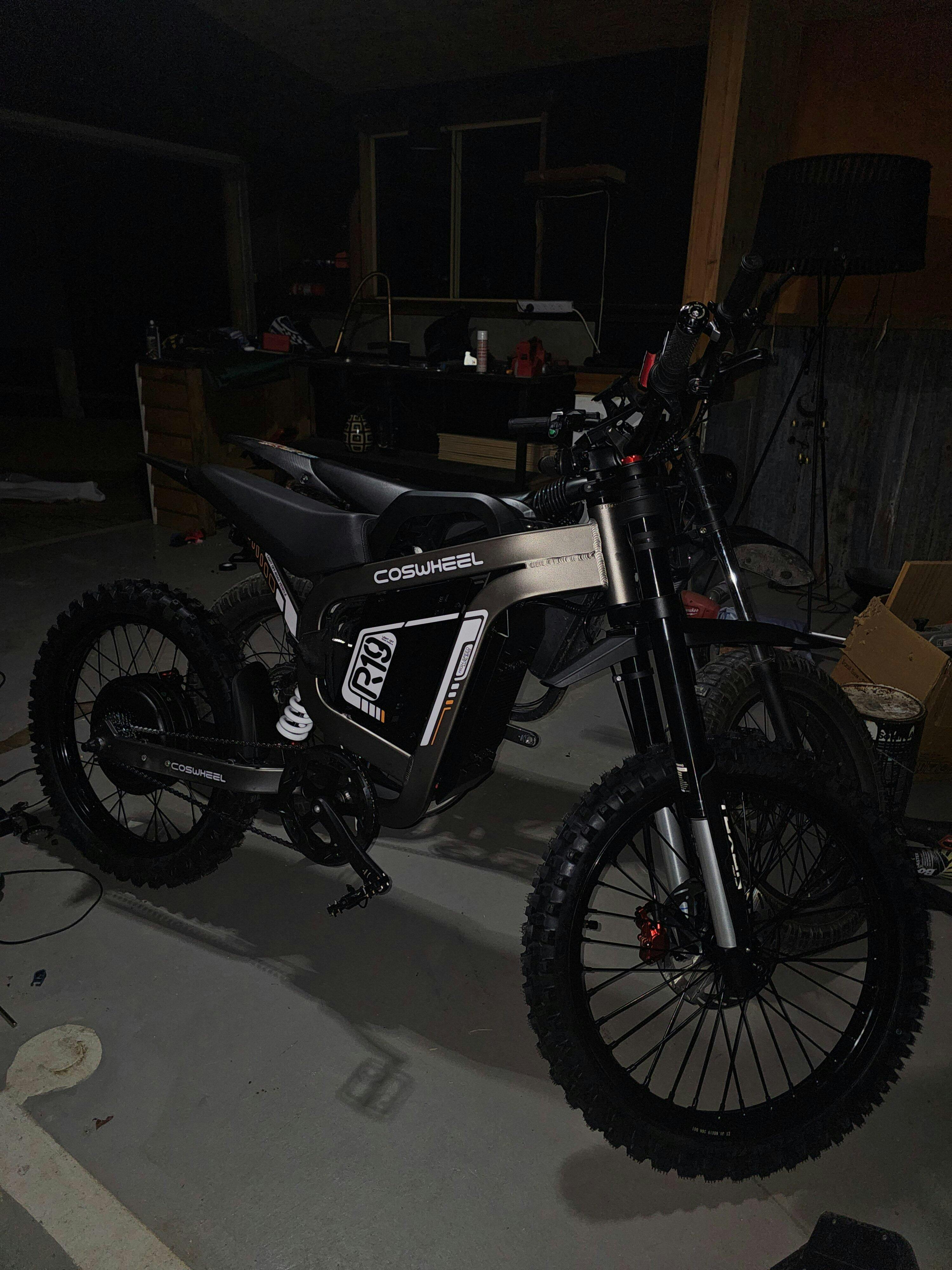

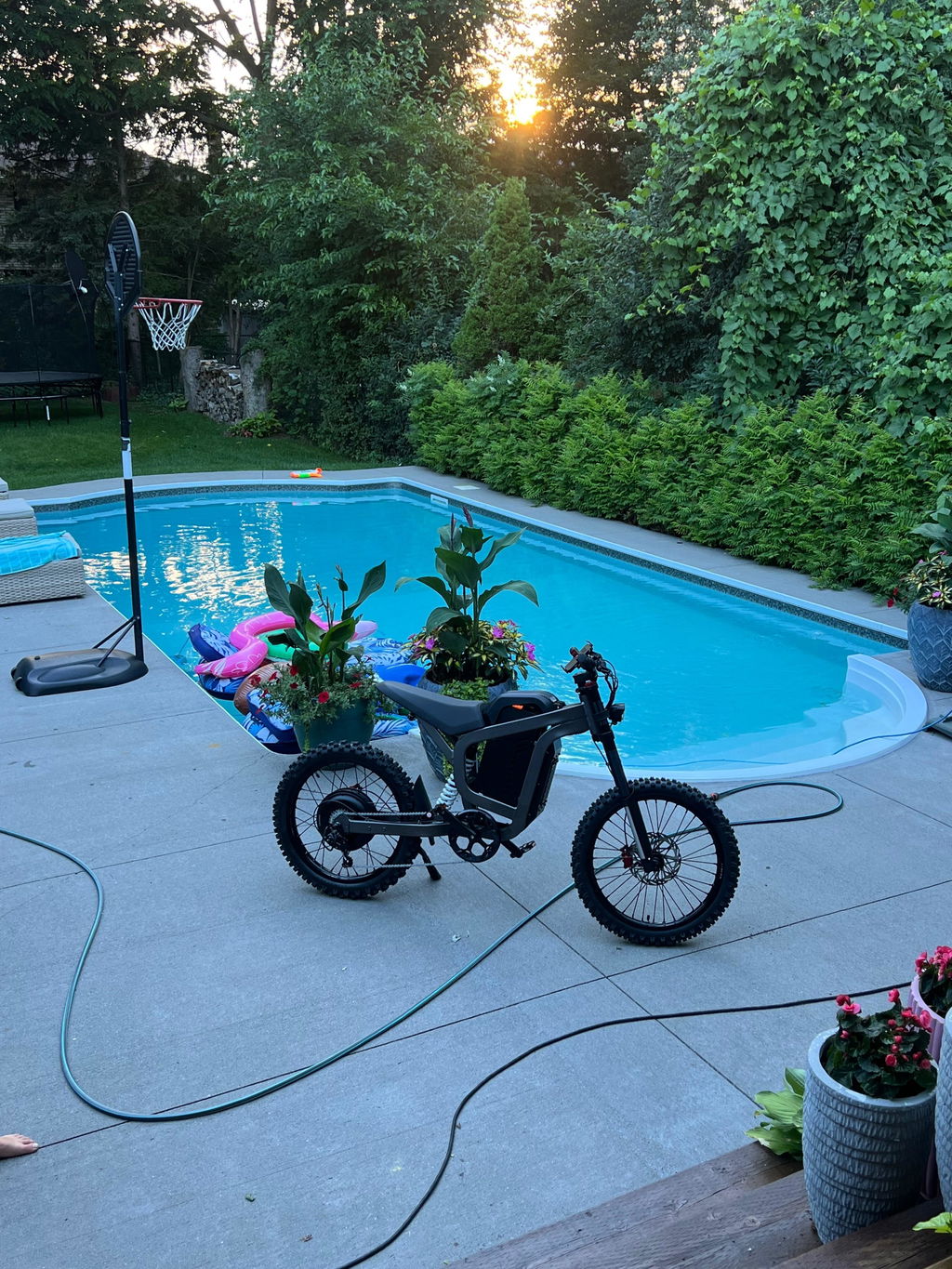

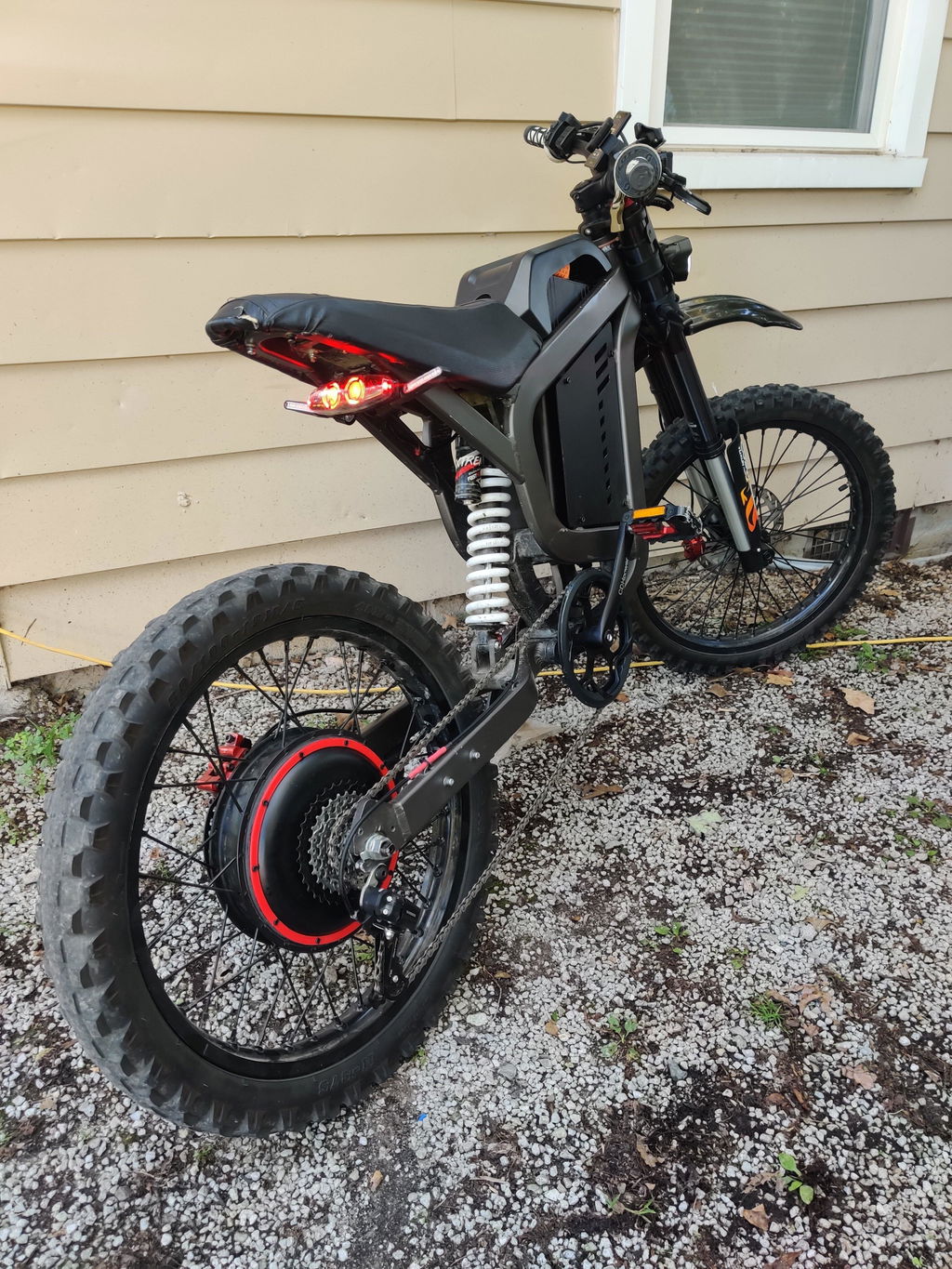

Riders Around the World Choose R19

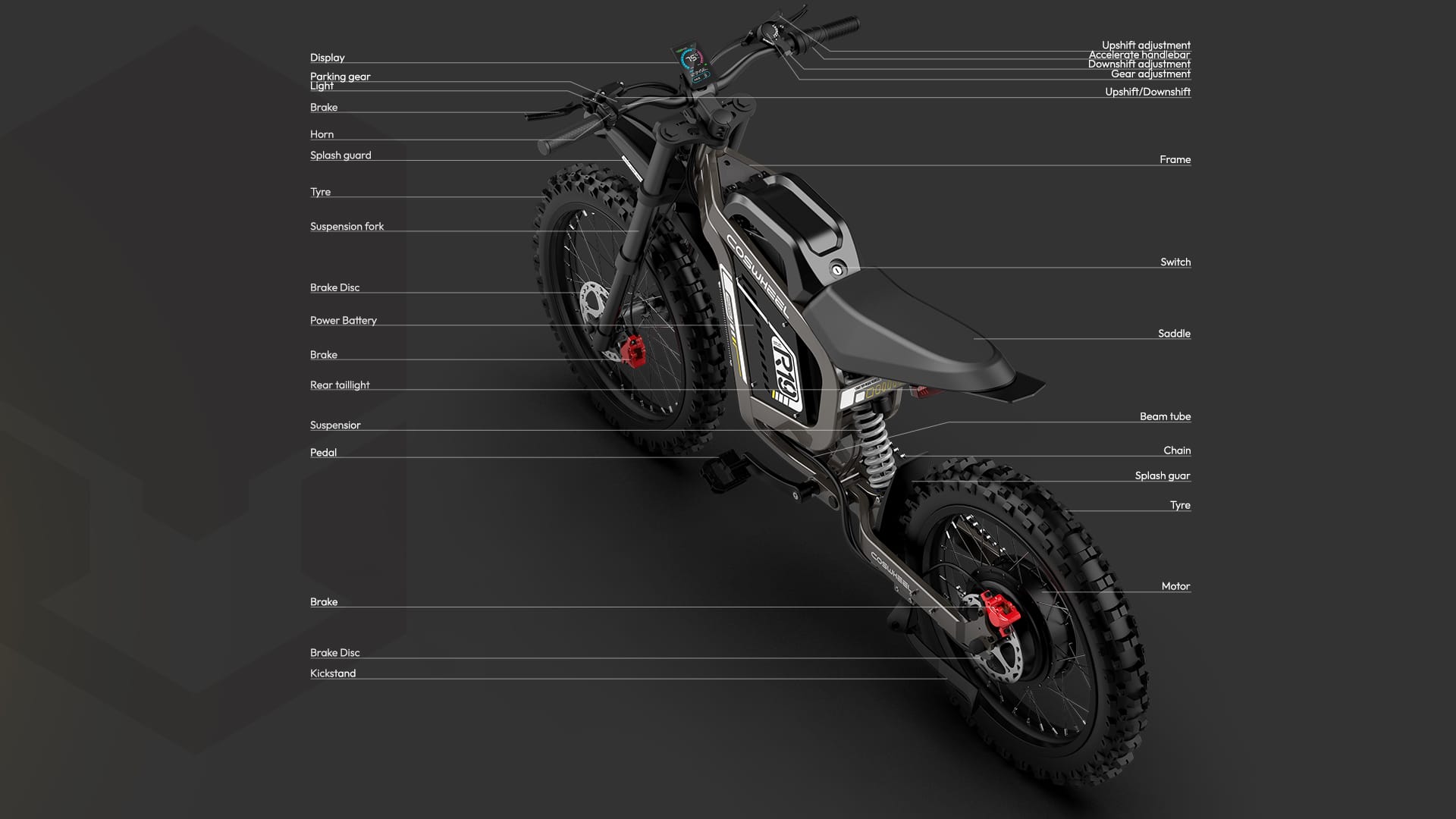

R19 Every Part Counts
Aluminum Alloy Frame
R19 frame is made of Hydroformed Triple-Butted 6061-T6 Aluminum Alloy, which is stronger and more reliable than other brands of iron frames, and is not easily corroded or aged. At the same time, our frames have undergone more than 10,000 collision tests to ensure your safety.
Safety Power Interface
The R19 72V 40AH battery discharge port is made of high-quality technology, with a maximum discharge voltage of 84V, and is equipped with a 6A charger, which can be fully charged in 6-7 hours. The maximum range of a full charge is 124 miles (200km) (accelerator + pedal assist). If the speed is maintained at 25mph (40km/h), it is more friendly to the battery life.
Adjustable Rear Suspension
The R19 rear suspension is equipped with a white 300mm adjustable damping shock absorber. The blue rotary button on the top can adjust the downward damping pressure, and the red rotary button on the bottom can adjust the upward damping pressure.
Adjustable Front Suspension
The front fork has an inverted hydraulic shock absorber with adjustable damping and 200mm suspension travel. By rotating the red button on the right, you can slowly adjust the oil pressure to adjust the damping, making the front suspension rebound slower or faster.
Heavy Duty Hydraulic Brakes
The R19 is equipped with a heavy-duty dual-piston hydraulic brake system, with a front wheel brake pad of 220mmX2.8 and a rear wheel brake pad of 180mmX2.8, providing heavy and stable brakes.
Professional Off-road Tires
The front wheel 70/100-19M/C high-strength off-road tire and the rear wheel 80/100-19M/C high-strength off-road tire can easily cross gravel, mud and bumpy roads.
3.5" LCD Color Display
Place the NFC card that comes with the R19 below the 3.5" color display (the sensor is slightly below the display) to unlock the off-road electric bike. It should be noted that when the bike is just unlocked or the bike has been stationary for 3 seconds, the R19 will enter the neutral setting and display the "P" gear position, and the bike will not start when the throttle is twisted. You need to hold the brake handle tightly to resume the throttle.
Switches For Feature Sets

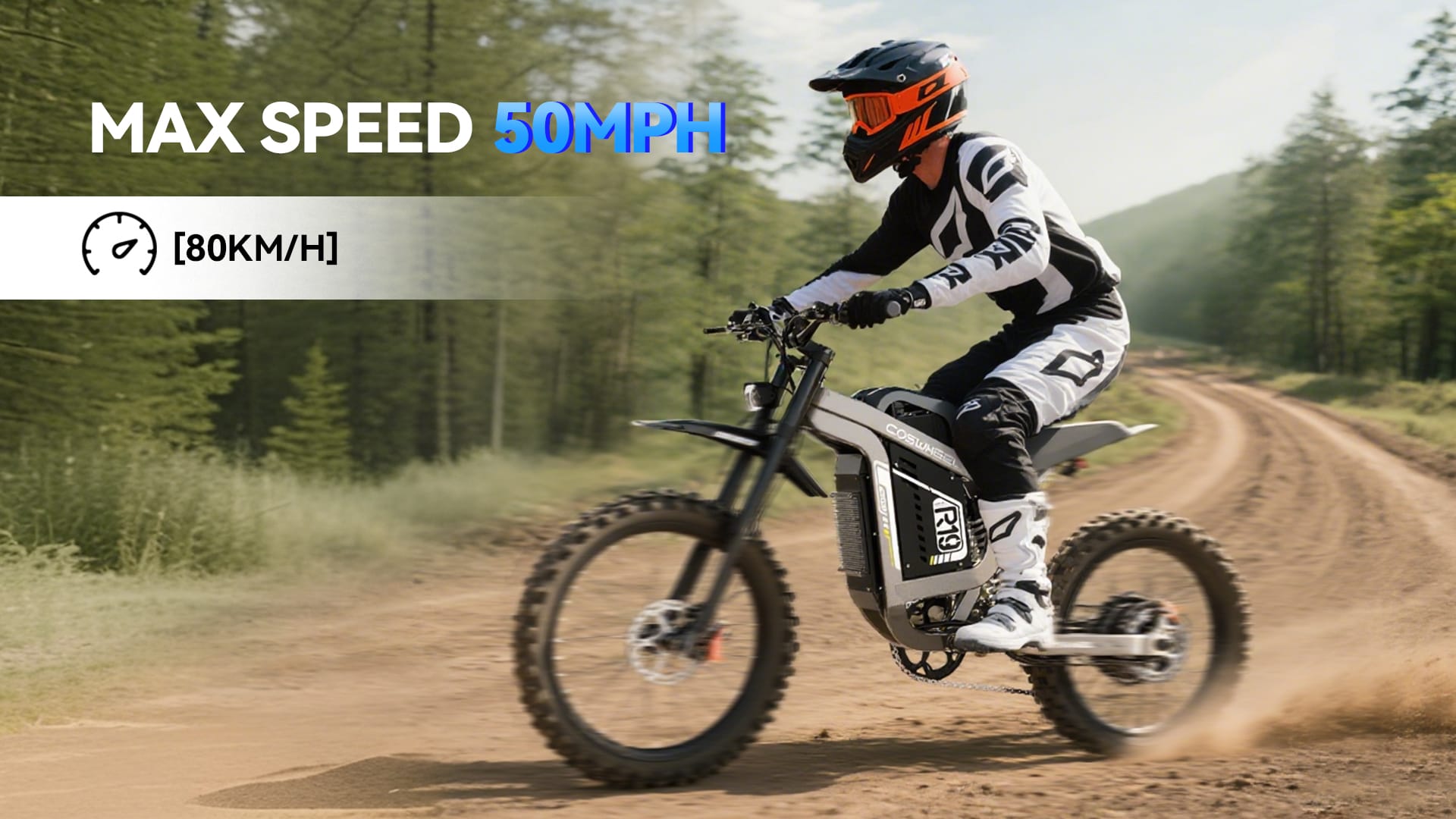

After unlocking the R19 by placing the NFC card on the display, the throttle speed can be switched by increasing or decreasing the gear on the left handle. There are 3 gears to switch, and the maximum speed can reach 50mph (80km/h) in gear 3. After pressing and holding the top button for a few seconds, when the display shows "25km/h", it means that the R19 speed limit is 15mph (25km/h). After pressing and holding the top button again, when the display shows "99km/h", it means that the R19 speed limit is lifted and restored to 50mph (80km/h). Press the middle "M" button to switch the function of the display.
Battery Lock
The R19 is equipped with a removable power supply. When you need to remove the battery, please unplug the discharge port on the battery and loosen the lock. When you put the battery back in, remember to lock the battery lock to prevent the battery from shaking during riding, which may cause danger.

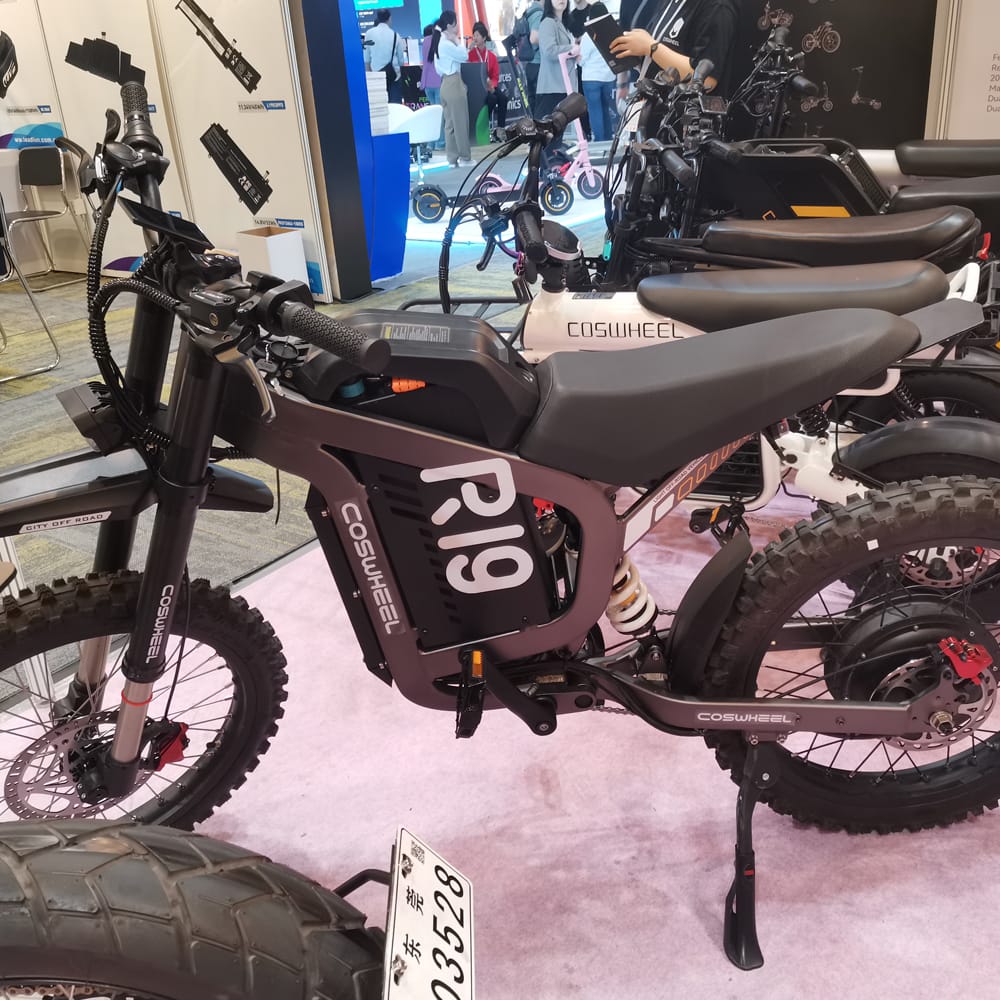

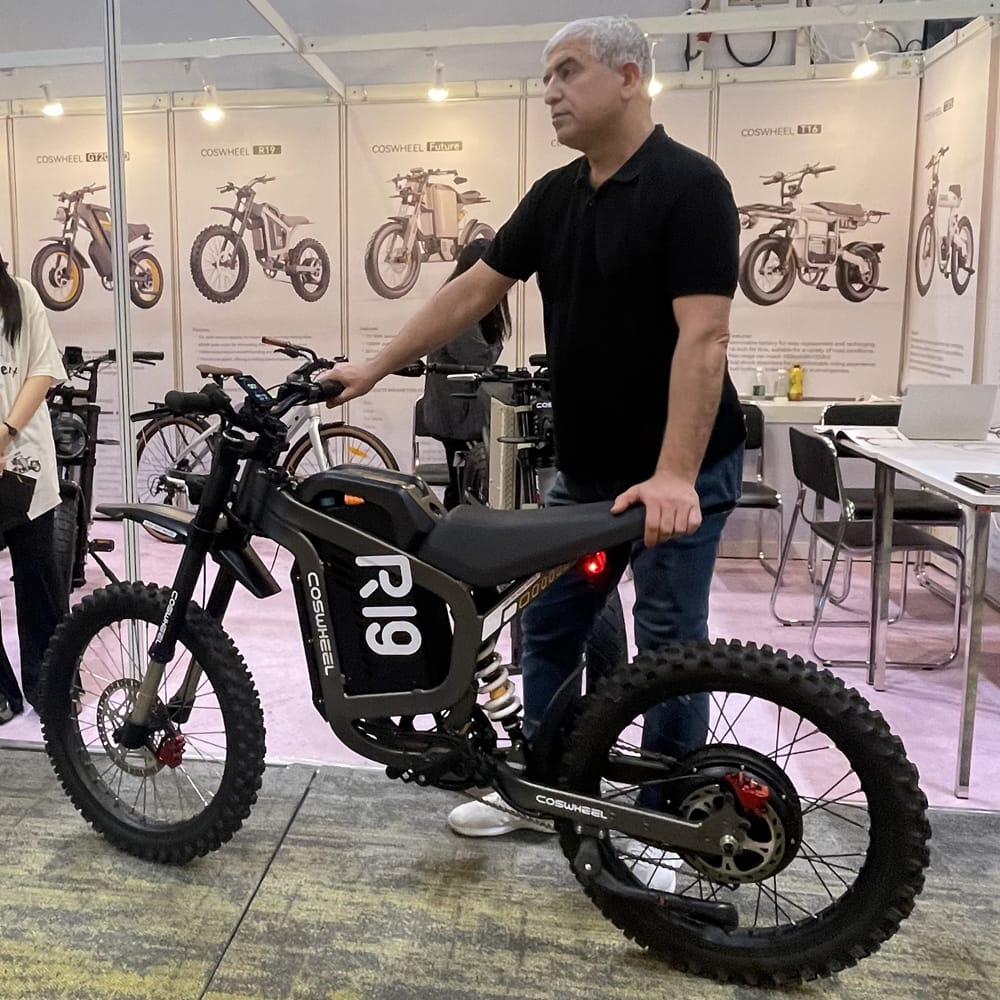

R19 on the Global Stage
R19 Specifications
Performance
- Top Speed: Class 2/3, 50 Mph (80Km/h)
- Range: 75+miles (120km) in Class-2 throttle-only mode (pure electricity); 124miles (200km) in Class-1 PAS (pedal assist)
- Motor: 72V Peak 6000W (Rated 3000W) Brushless Rear Hub Motor 120Nm
- Battery: 72V 40Ah Lithium Battery, BMS 100A
- Energy: 2880Wh
- Front Suspension: Dual-shoulder front fork, 750L, 60LBS, vertical tube length with left and right anti-collision pads, 110mm crotch opening, adjustable damping, 200mm Travel
- Rear Suspension: 310Lx950LBS, 8x24x24mm, Adjustable Damping, 300mm Travel
- Brakes: Double piston hydraulic oil brake, Equipped with 203mm*2.8 brake disc
- Front Tires: 70/100-19 professional off-road tire
- Rear Tires: 80/100-19 professional off-road tire
- Throttle: Grip Twist Throttle
Electronics
- Charger: 84V6A Charger
- Charging Time: 6.0-7.0 Hours
- Display: 3.5" LCD high-brightness color screen
- Controller: 72V 80A
- Front Light: 12V Headlight
- Rear Light: LED
- Pedal Assist: 3 Levels
- Unlock Method: NFC Card
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2"*3/32"*48T(2.3T)ED Iron Teeth with Black Double Chain Cover
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, S33*132L, 1/2" * 3/32"
- Handlebars: Anodized sandblasted black Φ: 680*Φ31.8*9°, tilted upwards 15°
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 440lbs (200kg)
- Safe Load: 330lbs (150kg)
- Overall Size: 74.8" * 27.6" *43" (190*70*109cm)
Some Things
You Might Want To Know
1. US warehouse: 5-8 business days, free shipping.
2. European warehouse: 7-10 business days, additional shipping fee applies.(If there is no stock in the European warehouse, the goods may be shipped from the Chinese warehouse, which takes a long time.)
3. For other regions, please go to the checkout page and enter the corresponding zip code to view the specific shipping time.
R19 Ebike*1/Fender*2/Charger*1/Tool Bag*1
The R19 has CE certification. After receiving the ebike, please send us the VIN number (Serial number) to make a COC certificate. The VIN number (Serial number) is located in the middle of the frame.
Yes, the R19's battery can be removed and charged independently.
On the left side, press and hold the upshift button for 7-9 seconds to limit your speed to 25 km/h (15 mph). To de-limit, repeat the process to restore your speed to 80 km/h (50 mph).
1-Year Warranty: https://www.coswheelebike.com/pages/warranty-policy
30-Day Return and Refund Policy: https://www.coswheelebike.com/pages/return-refund-policy
After receiving the ebike, if you have any questions, please contact our online customer service or email service@coswheel.com
1. Klarna and Afterpay installment payments are supported in the US.
2. Klarna installment payments are supported in most European countries.
3. Klarna and Afterpay installment payments are supported in the UK.
4. Afterpay installment payments are supported in Australia and Canada.
5. Installment payment options are not currently available in other countries.
Yes, you can check the link:
https://www.coswheelebike.com/products/speed-handlebar-for-coswheel-ebike?variant=52804093903164
Of course, we've always listened to our community members.
We're currently designing a new set of accessories for motorcycle footpegs with interchangeable bottom bracket cranks and pedals, allowing for greater rider comfort.
Turn signals and high-performance road tires are also under development, further enhancing the rider experience during daily commutes.
Feel free to contact us with any ideas you may have: service@coswheel.com
