GT20 EBIKE
torque 80N.m, can climb 30 degrees slope, fat tire motorcycle ebike
What Online Reviewers Say GT20
The GT20 ebike is favored by more and more customers, and many customers have posted their objective evaluations of the GT20 on YouTube.
GT20 Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 50+miles (80km) in Class-2 throttle-only mode (pure electricity); 87miles (140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
- Battery: 48V 25Ah Battery (Lithium 18650 Cells)
- Energy: 1200Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ARISUN Off Road Tire 20" × 4.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Grip Twist Throttle (Old) / Thumb Throttle (New)
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 28A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)
- Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)
Legitimate
US: It has passed the US UL2849 certification and can be shipped with a 750W logo affixed to the motor according to the laws of each state.
EU: At present, European customers have not reported any regulatory issues after riding. We have CE and COC certificates. The speed of bikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.
Other Regions: Please consult us
GT20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
There is a USB 1AH charging port under the GT20 display, which is convenient for you to charge your mobile phone with low battery when riding outdoors, ensuring your safety.

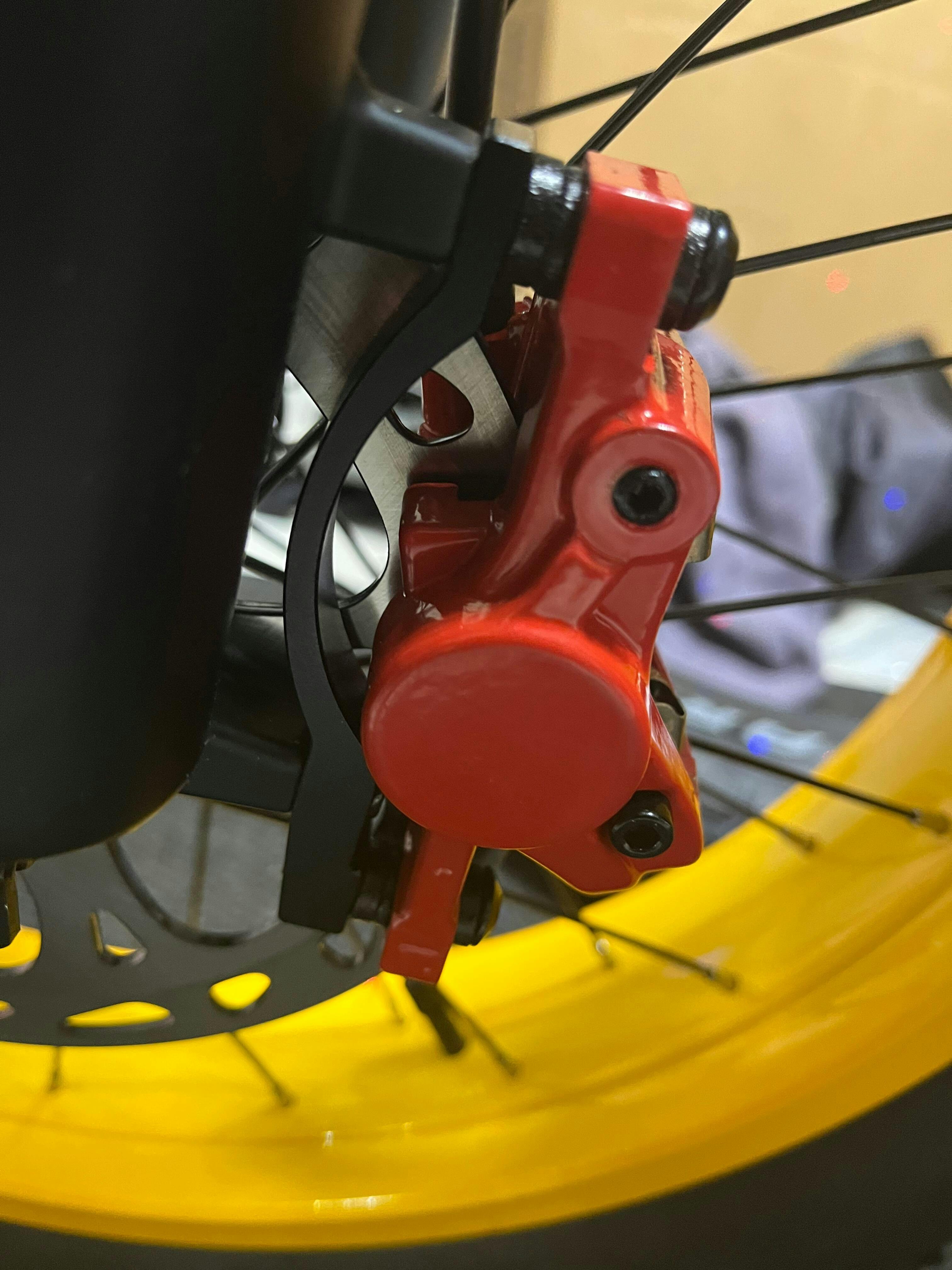

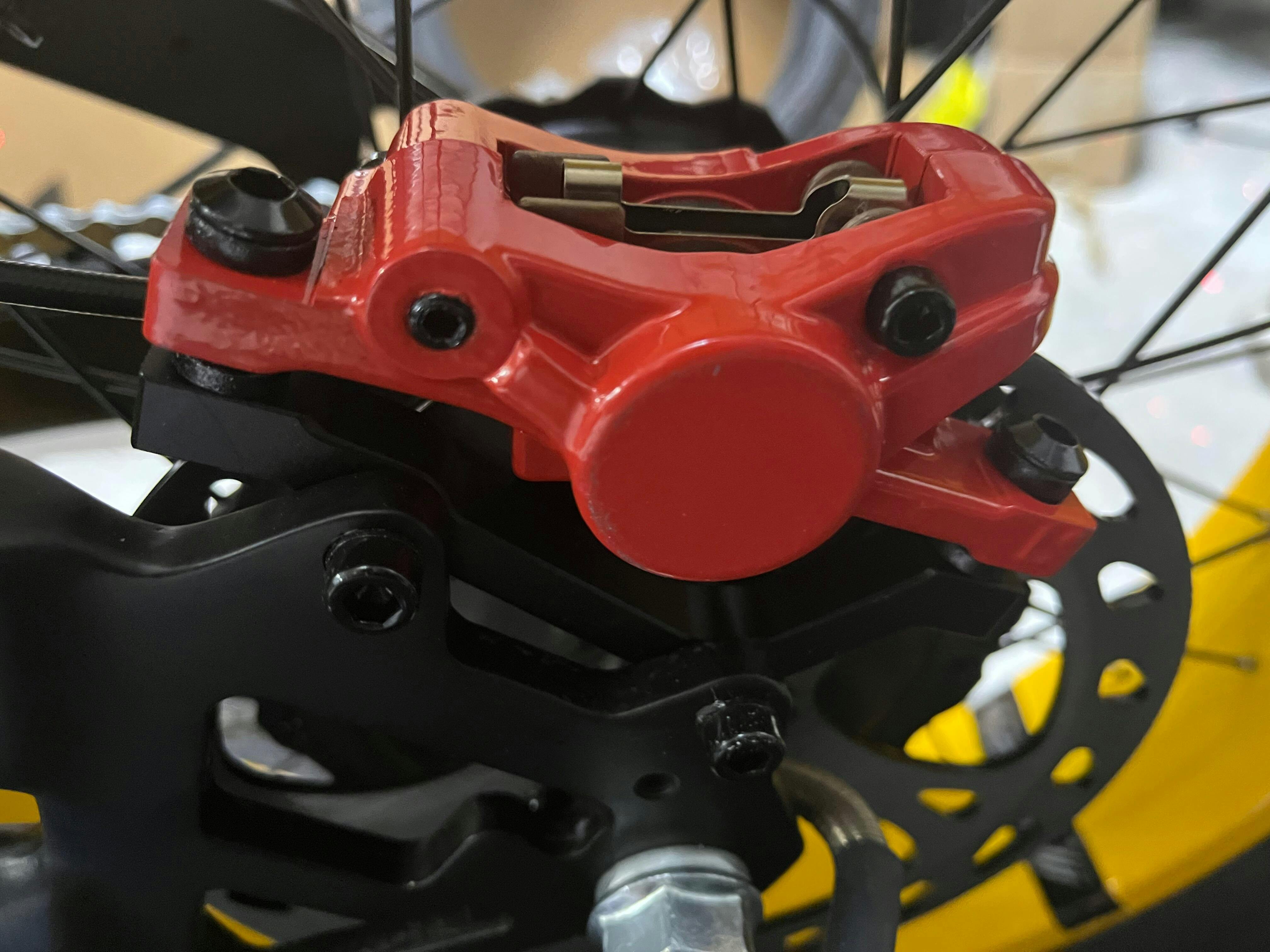

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.
With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
There is a sturdy shelf under the frame that can be used to store items such as water bottles.
In 2024, the new GT20 has upgraded the handlebar from Grip Twist Throttle to Thumb Throttle. A quick release function has been added to make it easier to replace accessories.
GT20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
There is a USB 1AH charging port under the GT20 display, which is convenient for you to charge your mobile phone with low battery when riding outdoors, ensuring your safety.
Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.
With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
There is a sturdy shelf under the frame that can be used to store items such as water bottles.
In 2024, the new GT20 has upgraded the handlebar from Grip Twist Throttle to Thumb Throttle. A quick release function has been added to make it easier to replace accessories.
The GT20 is equipped with a high-speed brushless motor with a peak value of 1500W (rated at 1000W), with an instantaneous maximum current of 28AH and a torque of 80N.m, allowing you to easily shuttle between cities and country roads.
GT20 provides 1200Wh (25AH) high-quality 18650 lithium battery with a range of up to 87 miles (140KM) and a max speed of 28MPH (45KM/H). It is legal and complies with Class 2 and Class 3 modes. Please feel free to ride.
The GT20 is ideal for people 5.1(ft) - 6.5(ft) tall. At the same time, the rear suspension has 3 levels of adjustment, so you can adjust your sitting posture according to your height.
Customers And GT20
Support
Manual
Certificate
VIN Number
The VIN number (Serial number) of the GT20 ebike is in the middle of the front fork of each GT20 (please note that the VIN number of the GT20 is unique and cannot be repeated)
Package
GT20 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1
The VIN number (Serial number) of the GT20 ebike is in the middle of the front fork of each GT20 (please note that the VIN number of the GT20 is unique and cannot be repeated)
GT20 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1
Does what says on the tin. Looks solidly built and handles even light offroad. Weak spots are the fenders, slim saddle. Would like manual activation of cruise control (not only automatic), blinkers indication on main screen and range estimation, as opposed to showing only 5 battery bars. Overall satisfied and would reccomend.
I have been riding bikes a long time by far this is the best bike I’ve ever owned gears are smooth suspension is great and looks great
I love this bike it’s the best I ever got so I bought a 2nd one for my wife
5 stars for coswheel
2nd gt20 I’ve bought great bike but breaks a nightmare please check yours as you will find there’s no bleed point
This is our first electric bike, but my son is absolutely delighted with this gift for his birthday.
Customer service is excellent. I had some details regarding the purchase and the guys fulfilled all my requests. Special thanks to Lunar, manager in China! She was always in touch with me and worked very quickly to ship our bike, as it was very important to me.
The parcel was processed on Monday with dispatch from a Polish warehouse, and by Thursday at 11:00 the bike was already in my French Alps. We assembled the bike in a couple of hours and off we went! The fit, controls, brakes, comfort, everything is great. It goes uphill without any problems, it jumps forward, the only thing is that the speed is a little lacking, since from European warehouses there is a limit of 25 km per hour, but down the mountain it accelerates at 50 km per hour. Well, and this is the fit of a 13-year-old boy with a height of 160 cm on this bike. Look at the photo. I hope this bike will bring joy and pleasure from riding to my son for a long time.
