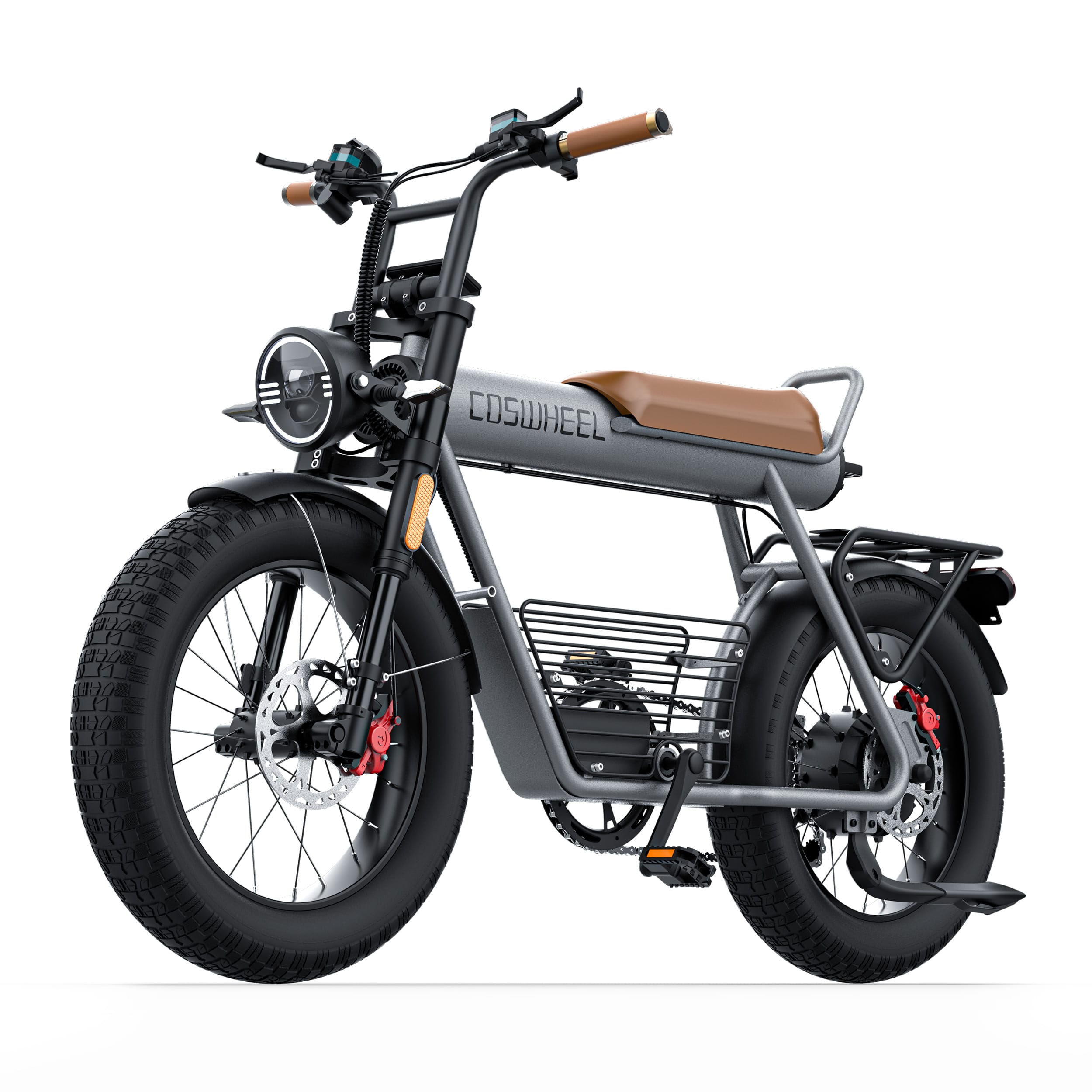

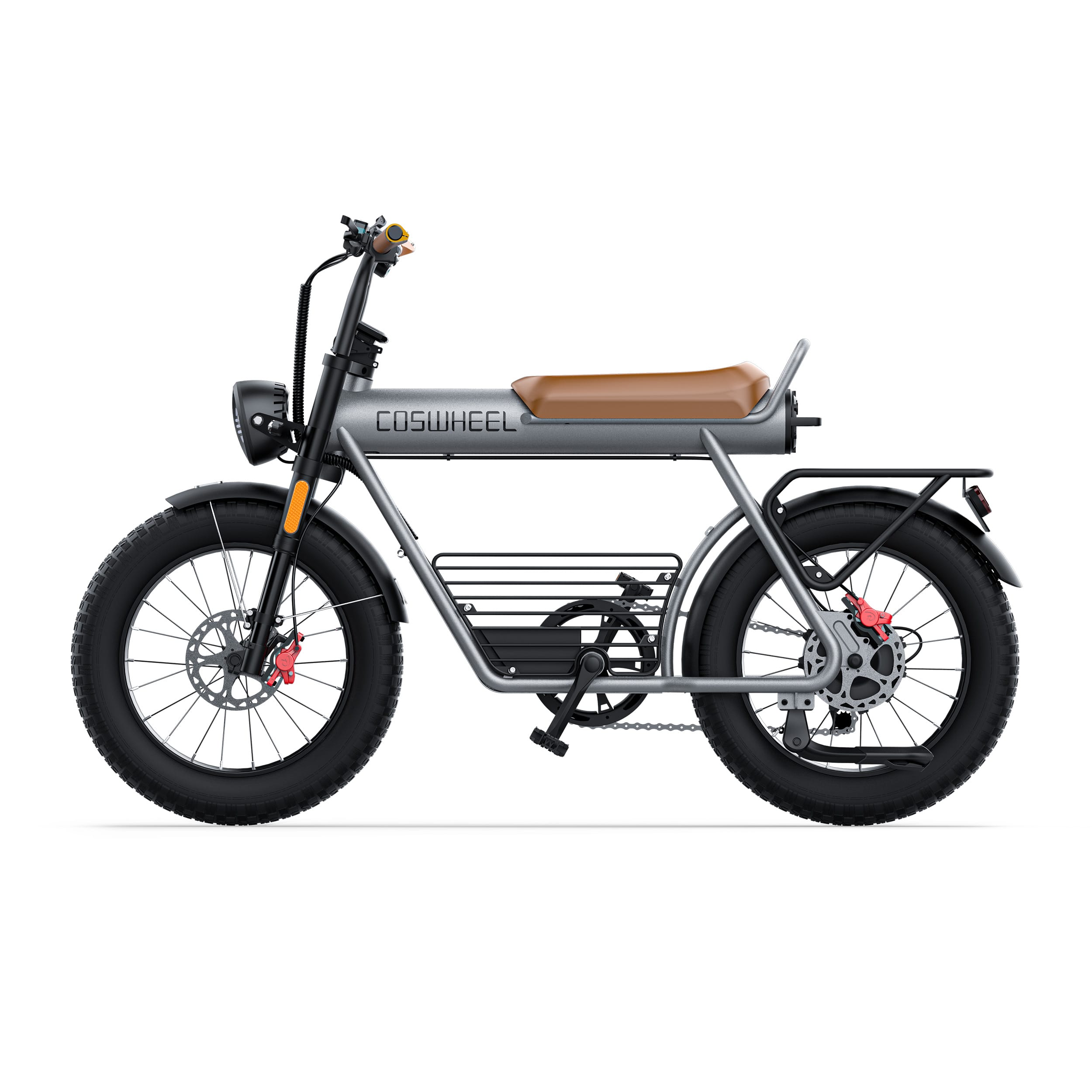

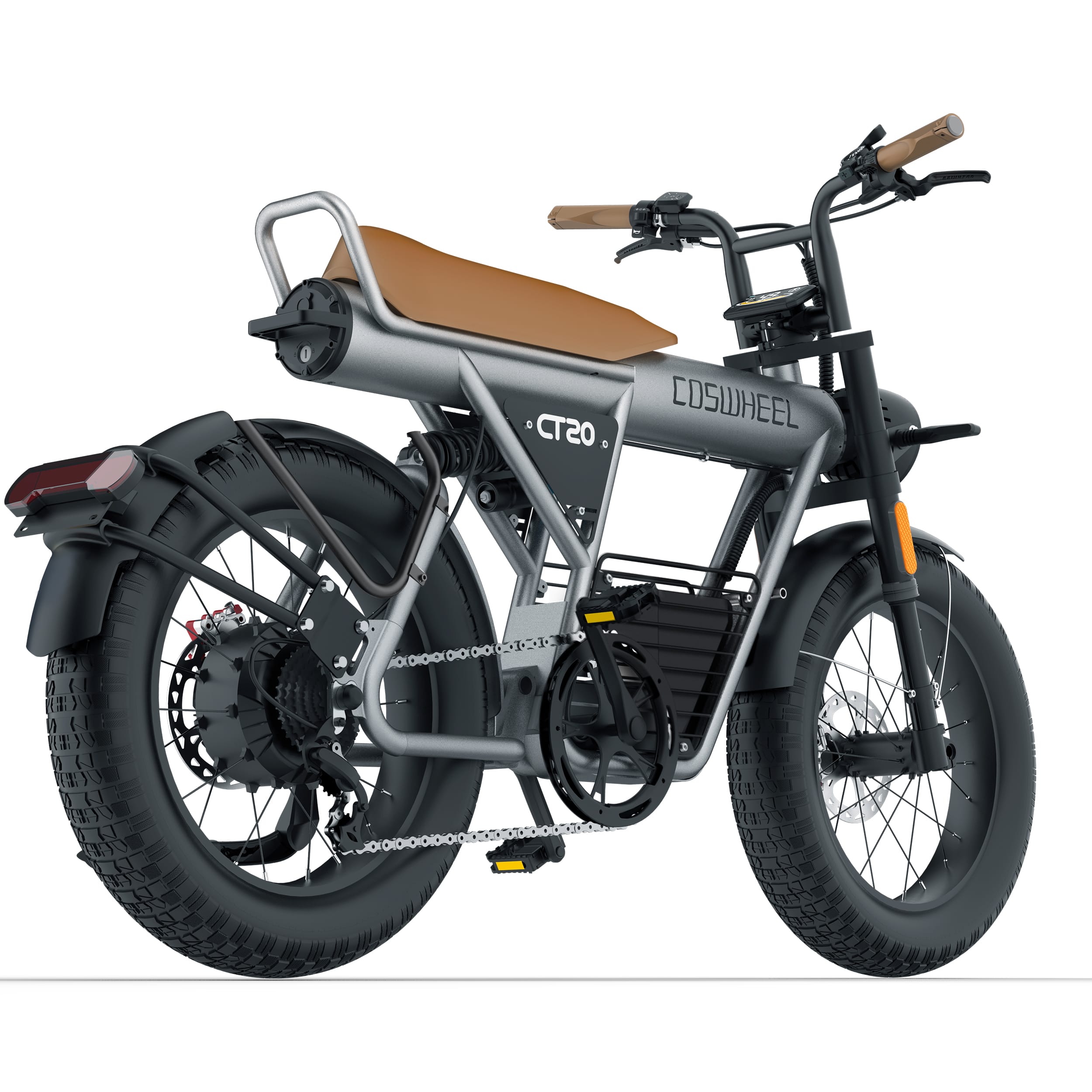

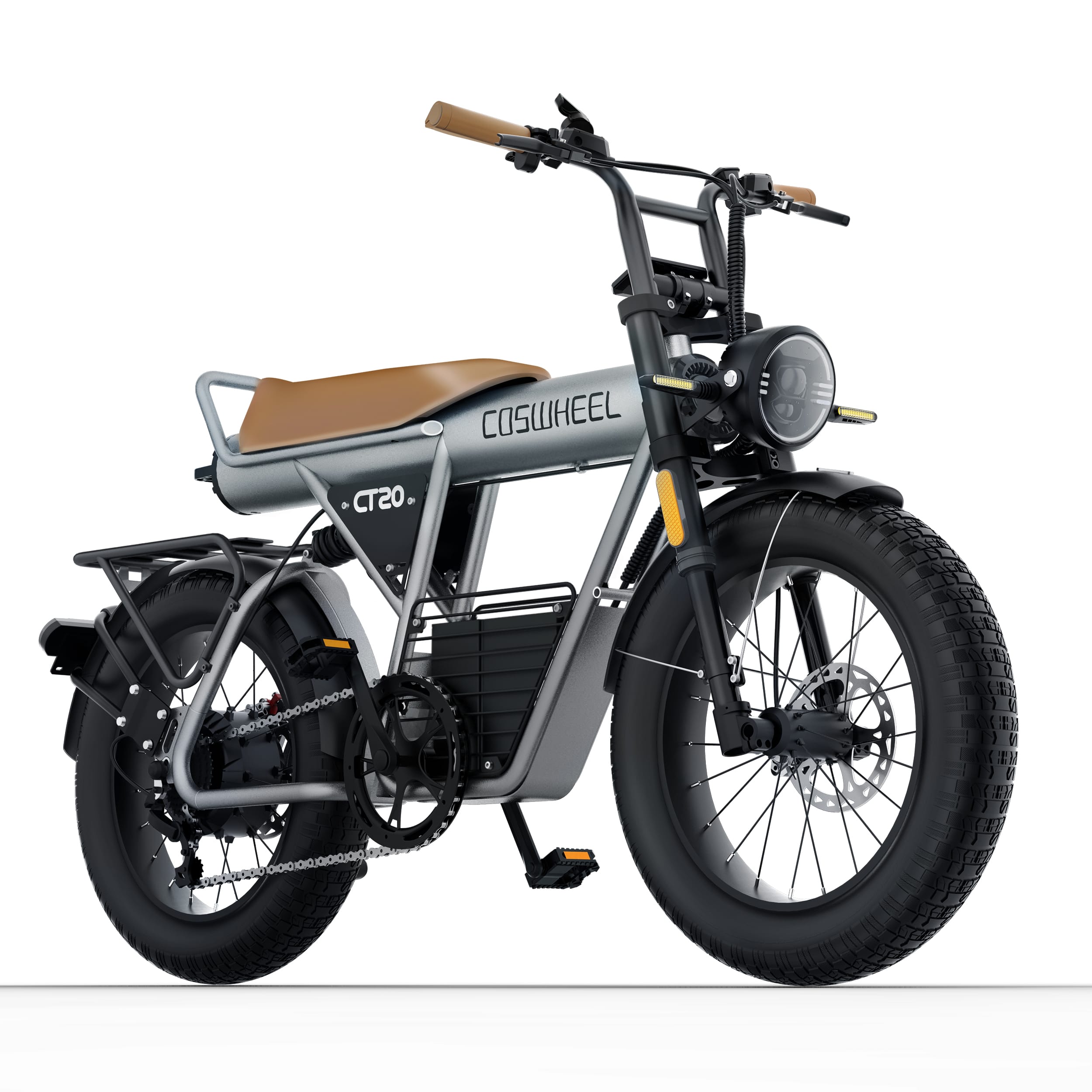

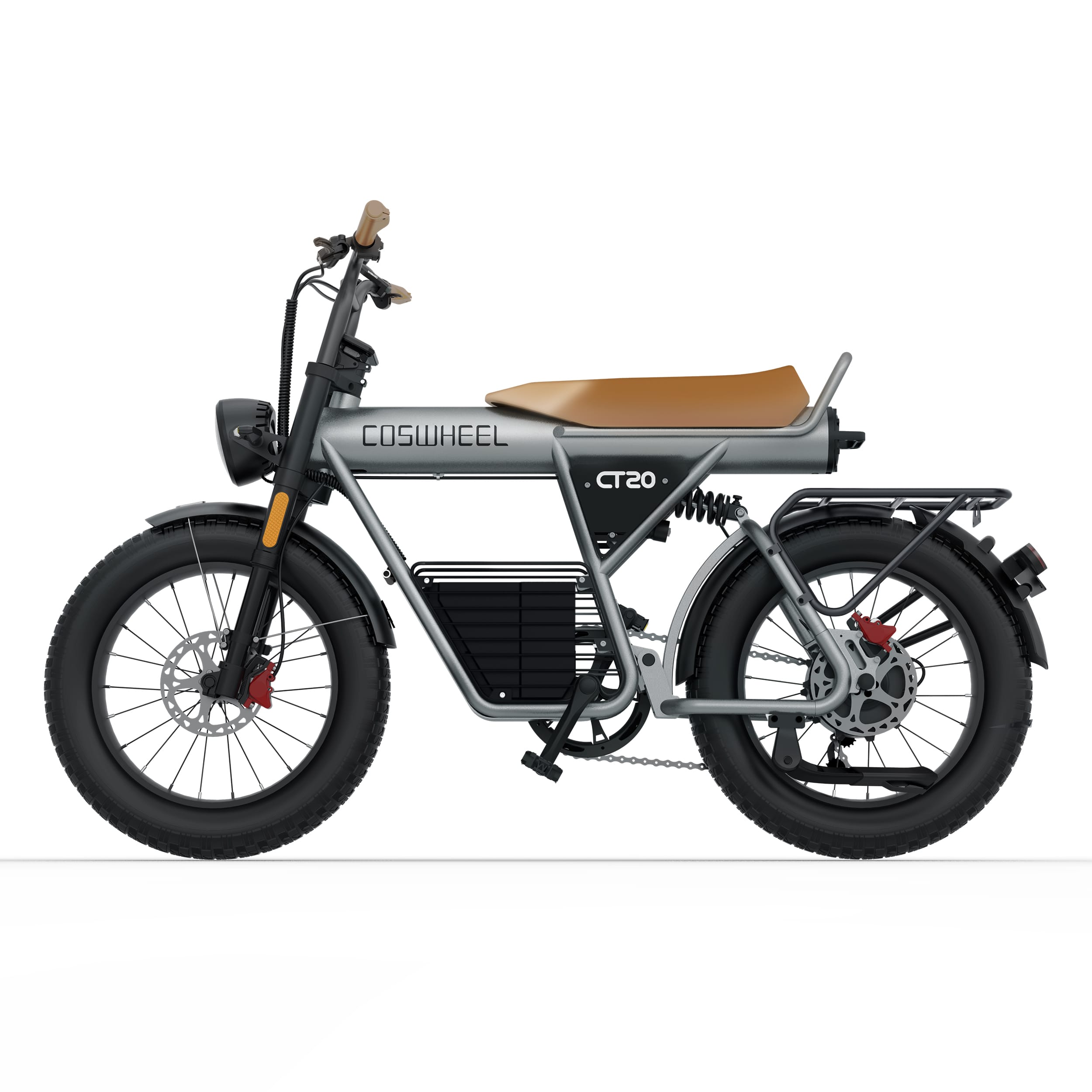

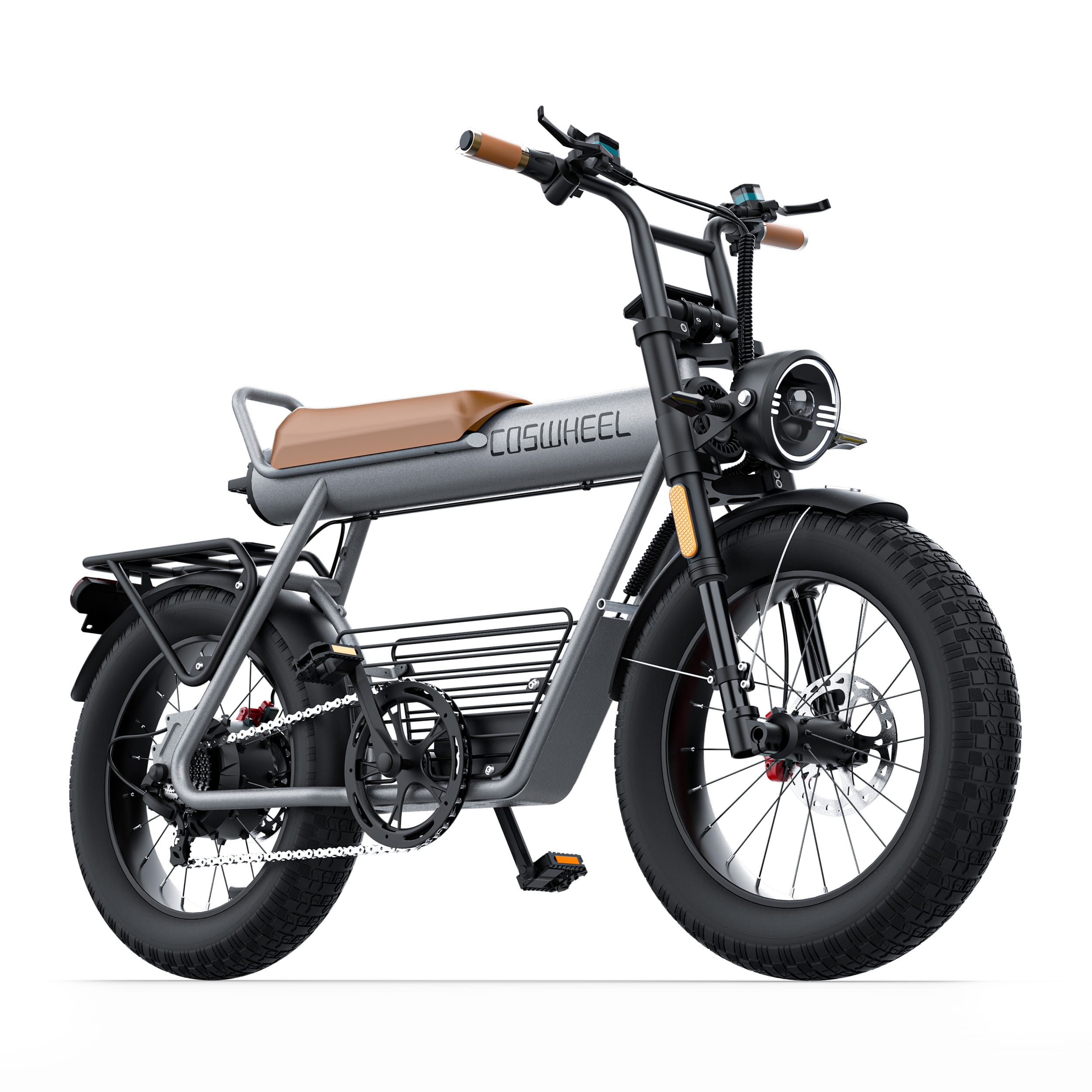

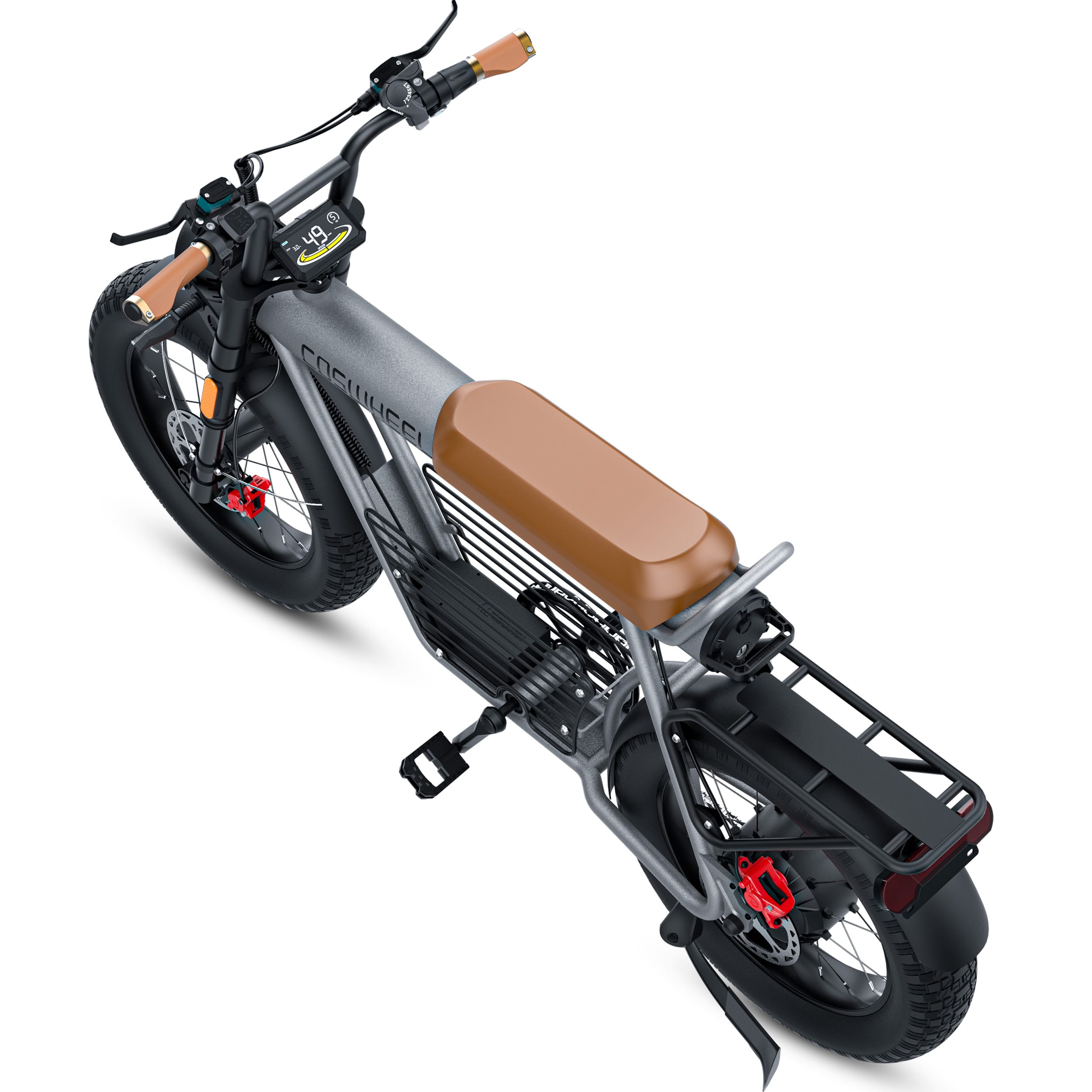

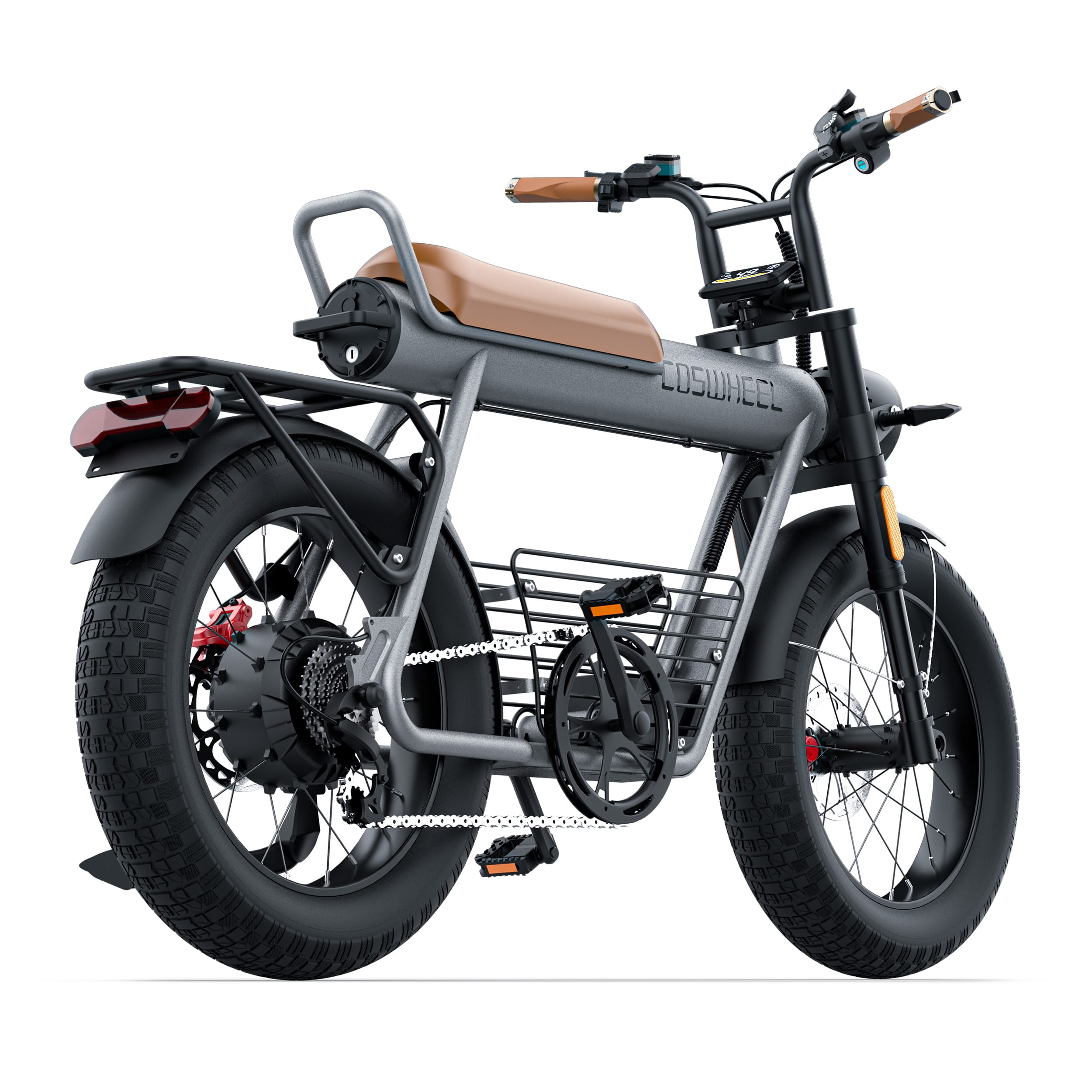

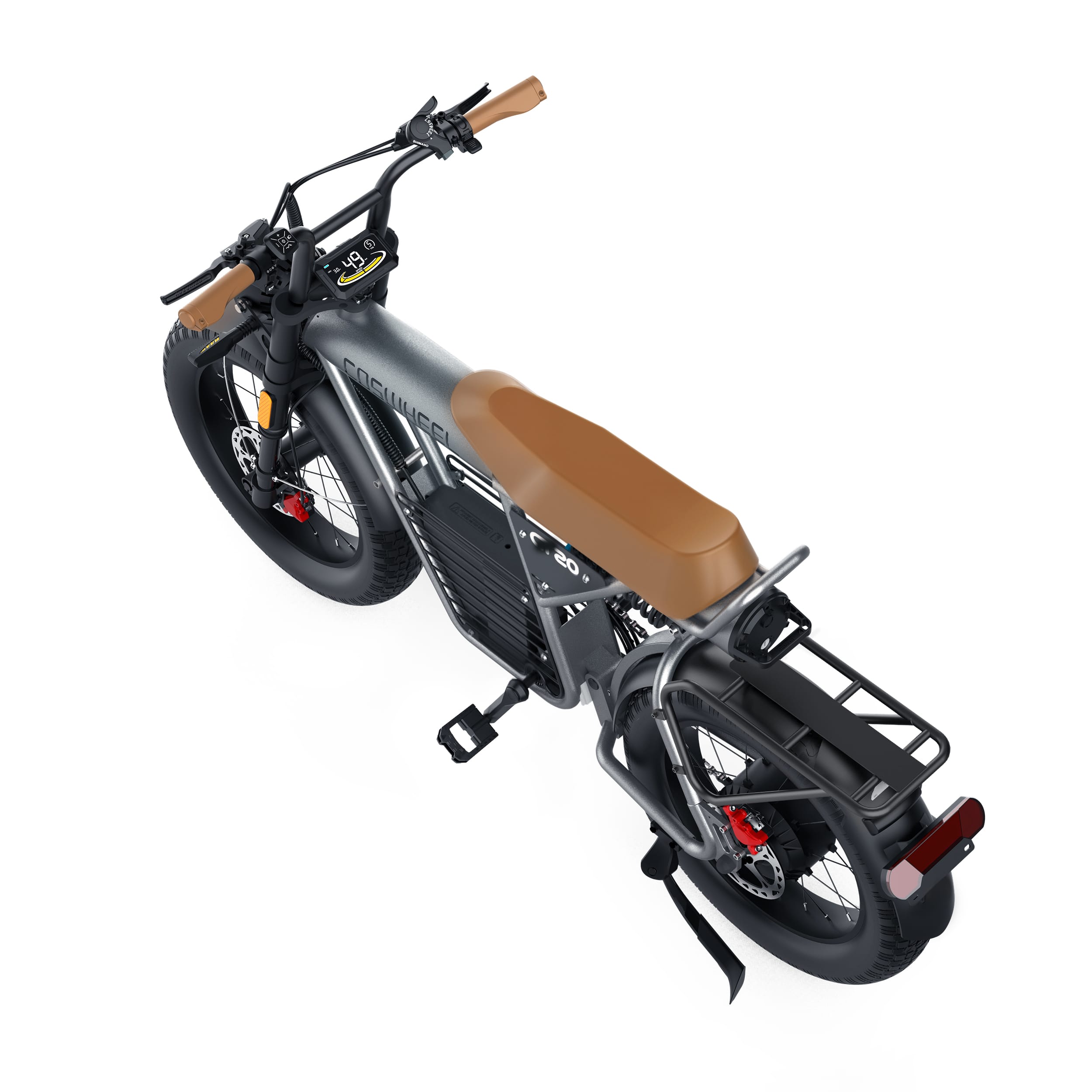

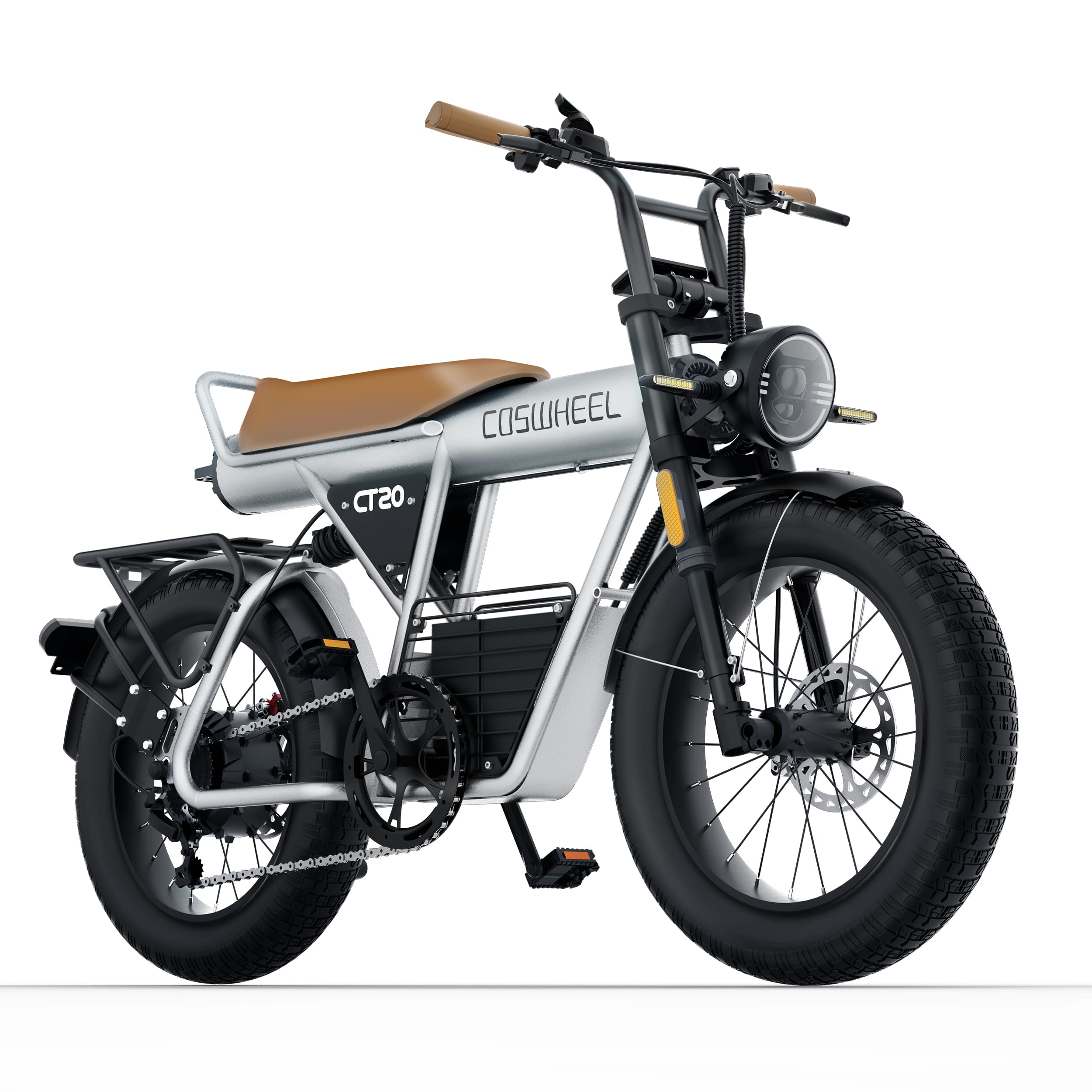

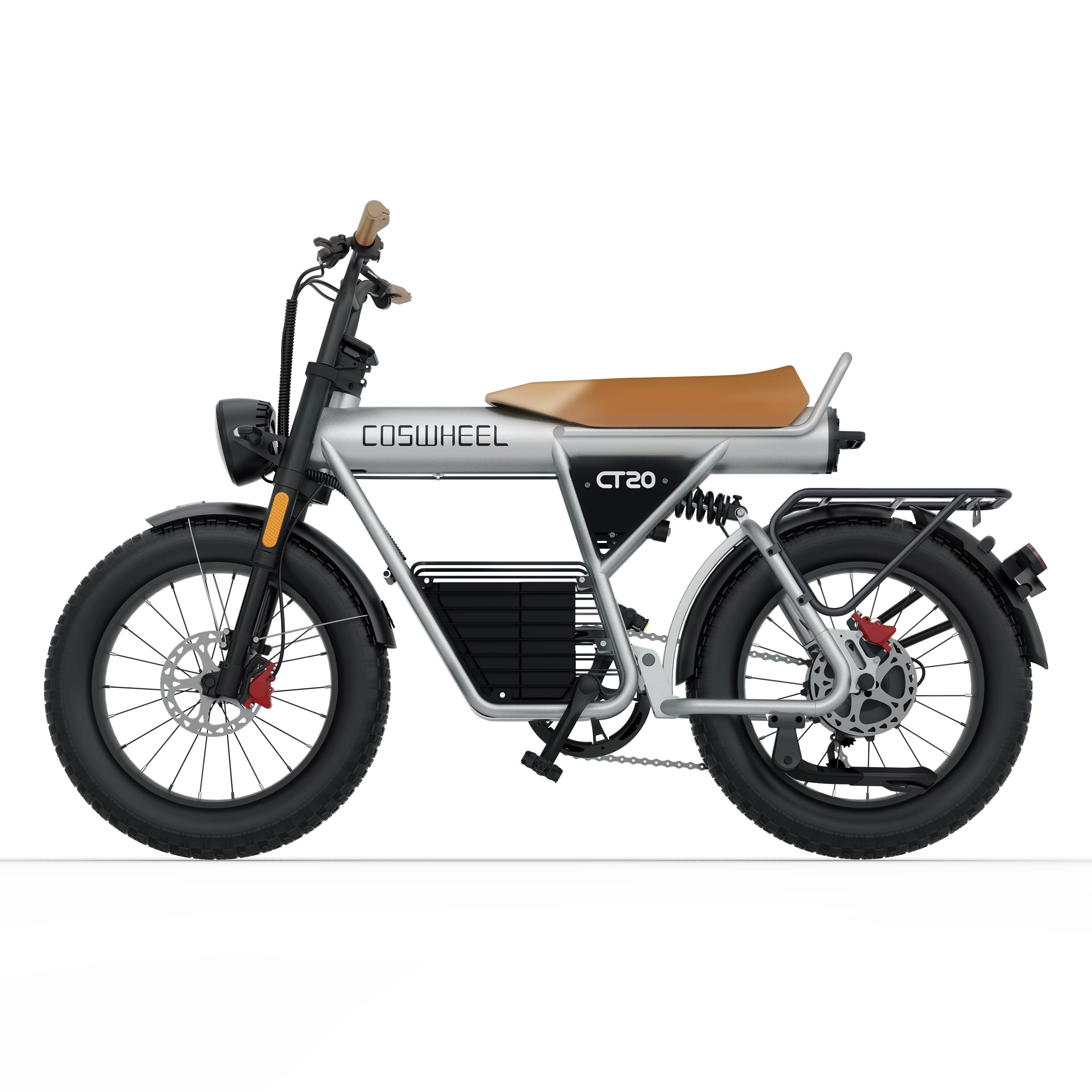

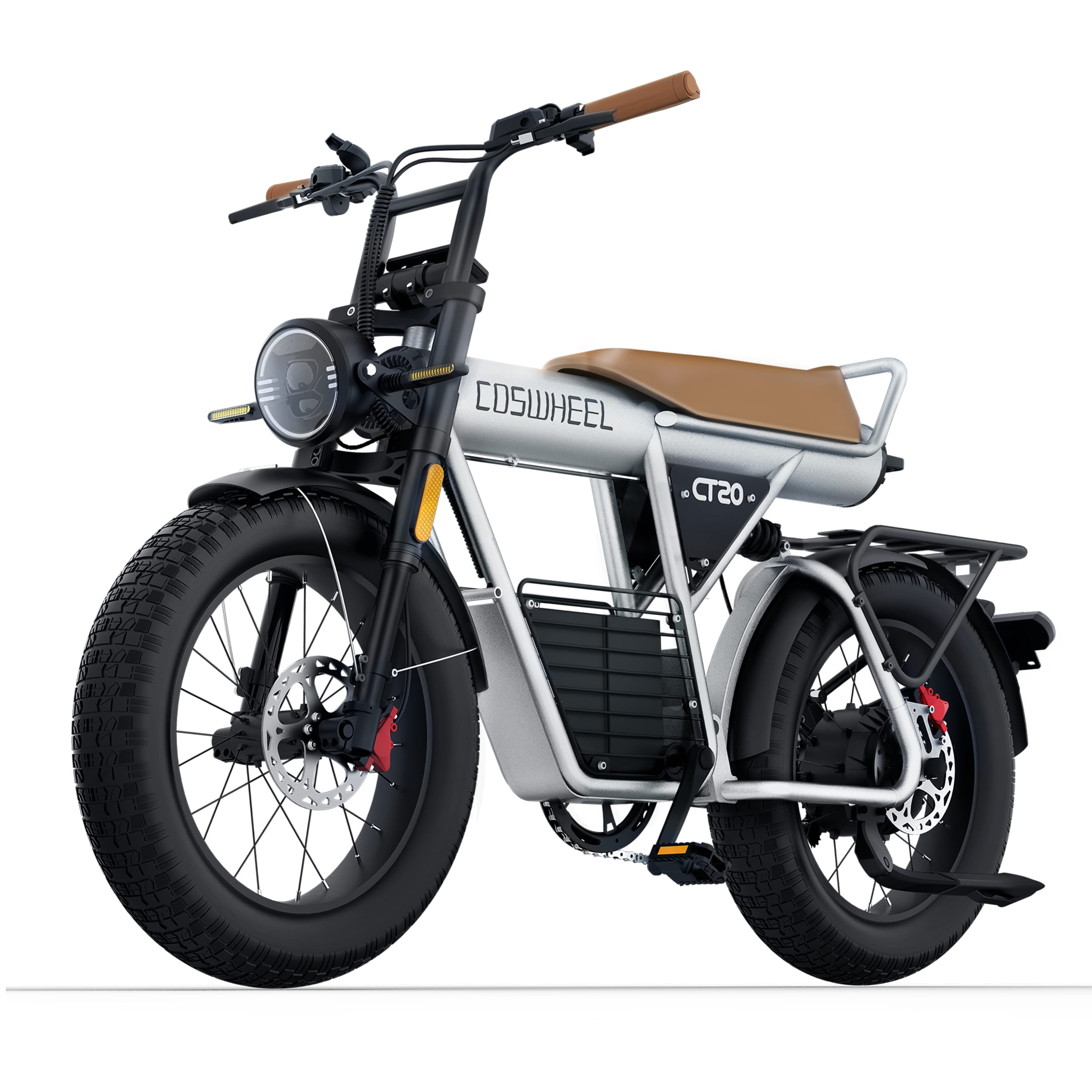

CT20 5" Fat Tire Electric Bike
CT20 2.0 rear suspension upgraded to 180mm travel, torque 80N.m, 30° climbing, family adult electric bike
What Online Reviewers Say CT20
The CT20 ebike is favored by more and more customers, and many customers have posted their objective evaluations of the CT20 on YouTube.
CT20 New Upgrade
After receiving suggestions from fans, we upgraded CT20 from 1.0 to 2.0, mainly upgrading the 350-pound 180mm travel rear suspension and the new seat. The three-electric system configuration is the same as 1.0, with the same peak 1500W (rated 1000W) motor, maximum speed of 28mph (45km/h), 25AH lithium battery, 1200WH, and maximum range of 87 miles (140km) (throttle + pedal assist).
Perfect Family Commuter Property
Since 1.0, the design positioning of CT20 has been biased towards family commuting. The extra-long frame, with the front footrest (installed in the hole in the front of the frame, needs to be purchased separately), can accommodate a child and an adult on the tube, and with the standard rear rack, it can also accommodate another adult, making it the best choice for family travel (note that the load of the whole vehicle is not to exceed 150kg)
CT20 Every Part Counts
Peak 1500W High-speed Motor
The CT20 is equipped with a 48V peak 1500W (rated 1000W) high-speed brushless motor, with a 28A controller, a torque of 80N.m, and a maximum speed of 28mph (45km/h) (the CT20 in the European warehouse will be limited to 25km/h, please contact us to lift the speed limit after receiving the bike). Compared with low-speed motors, the motor rotates more smoothly and is easier to ride.

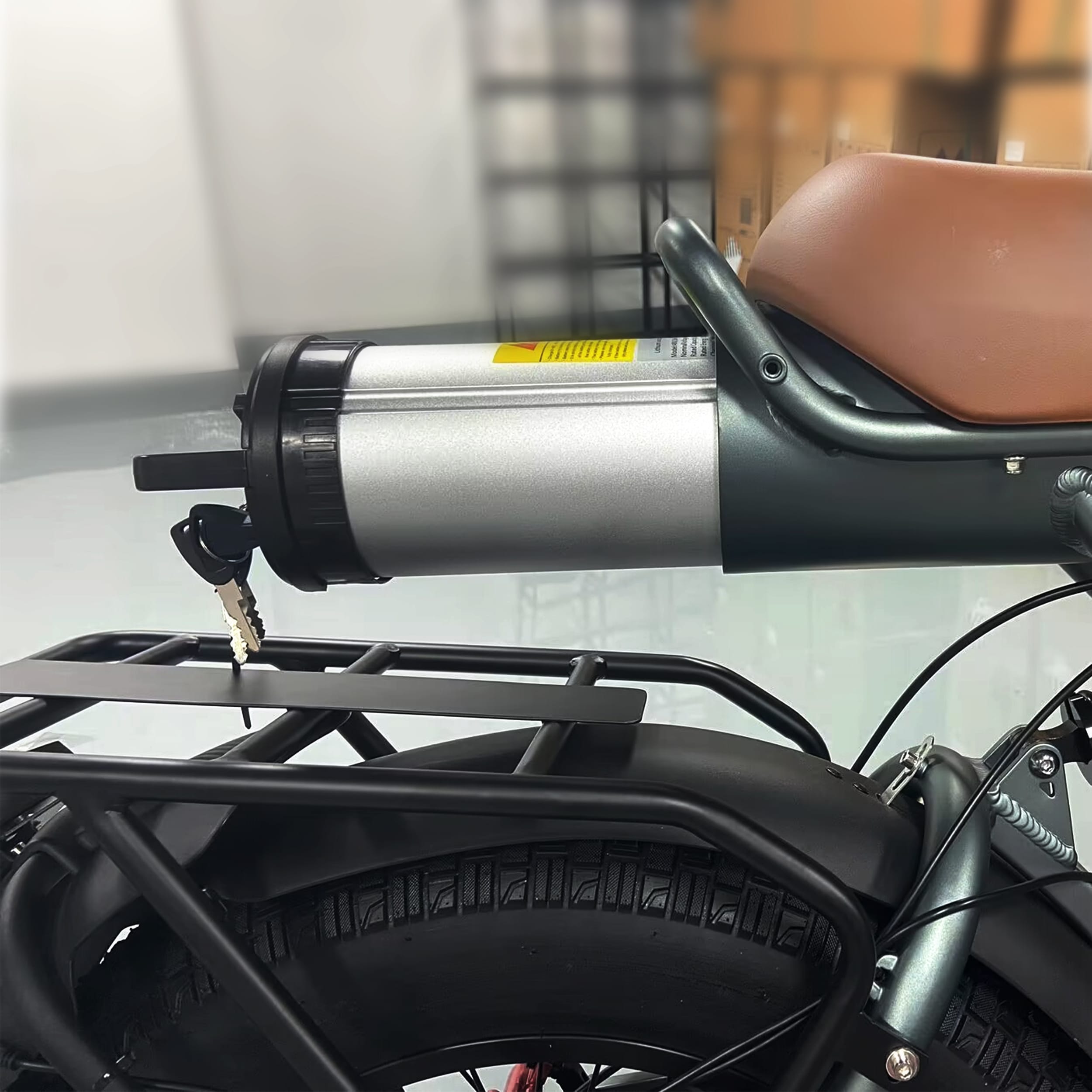

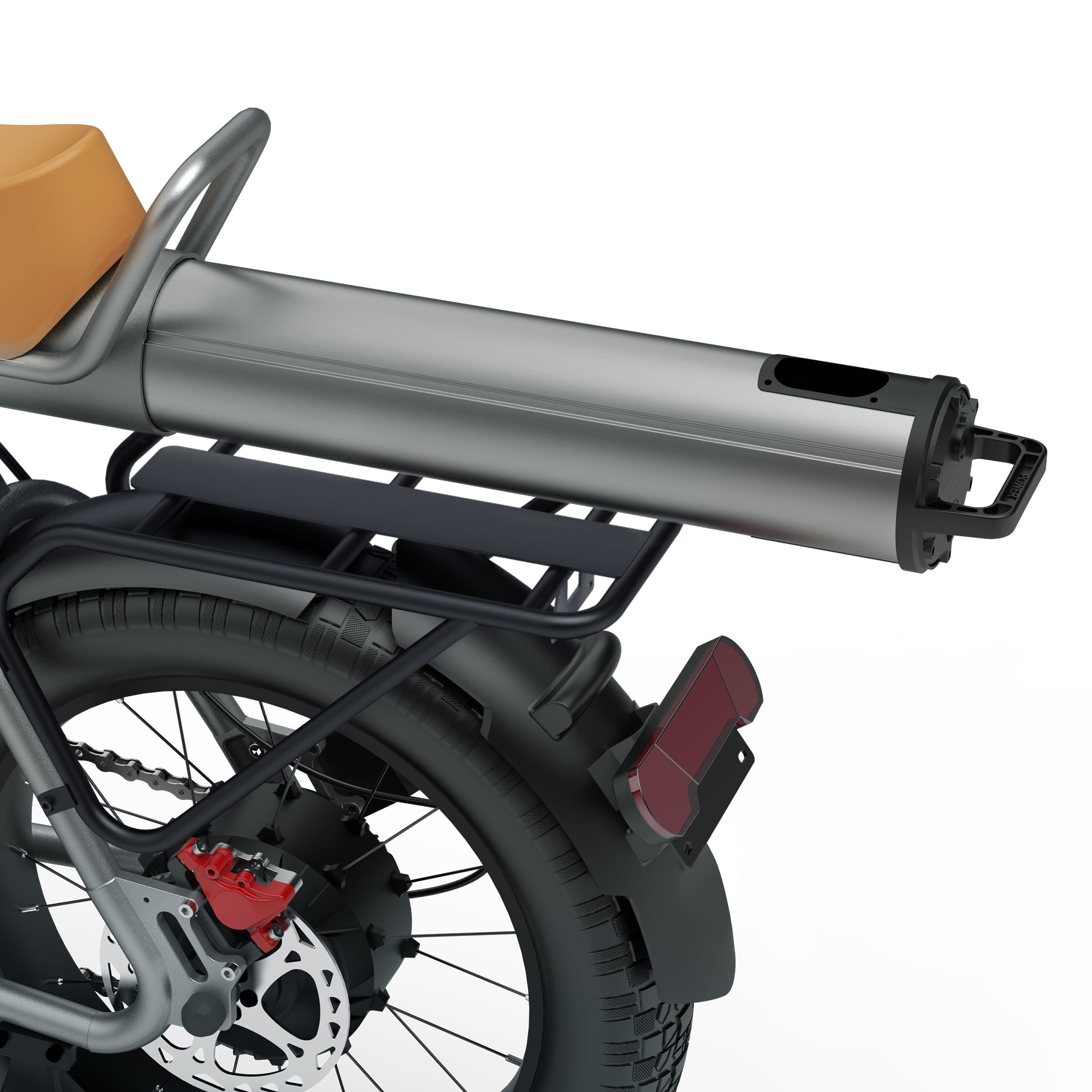

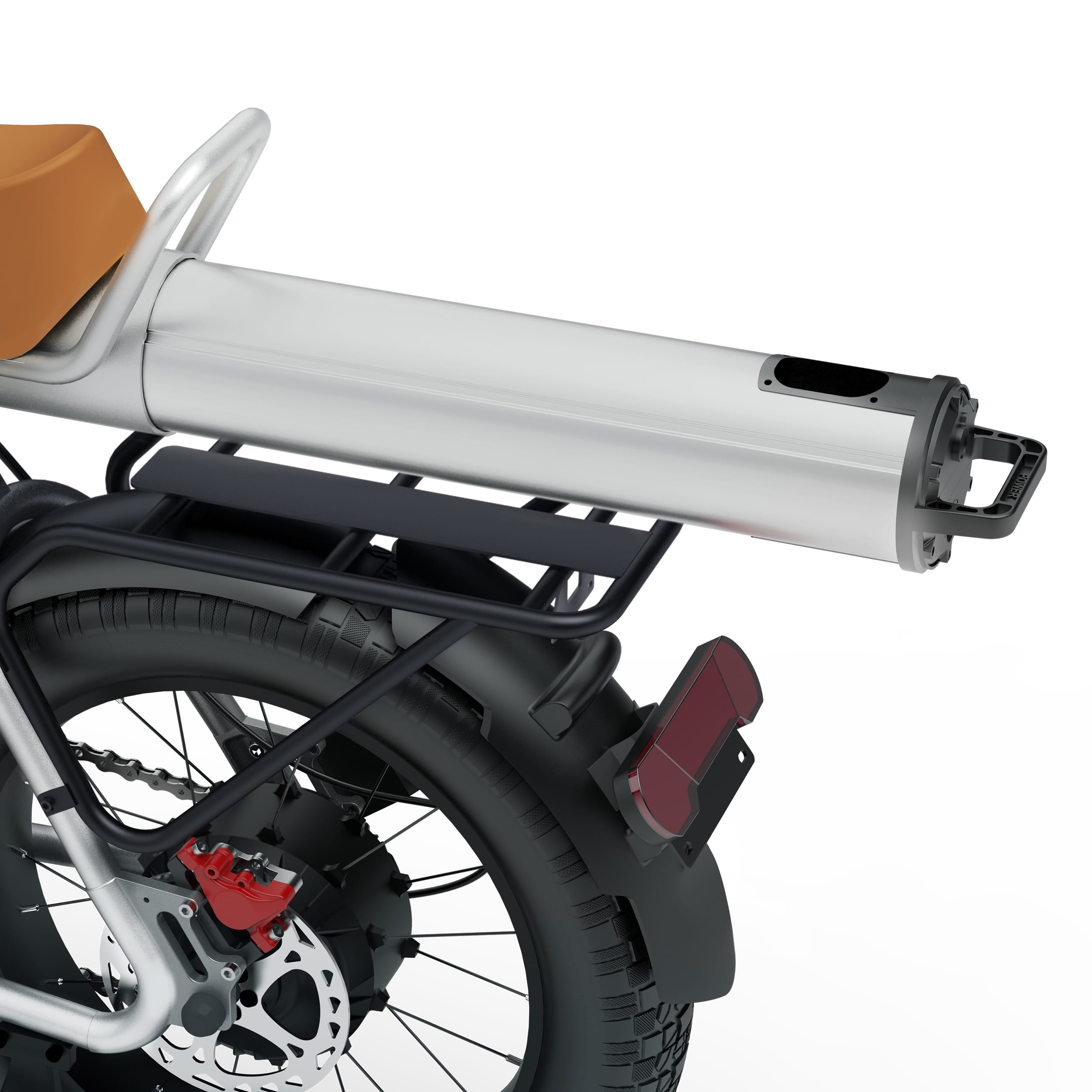

25AH Removable Battery
The CT20 is equipped with a 48V 25AH lithium battery, 18650 battery cell, 1200WH, and a maximum range of 87 miles (140km) (accelerator + pedal assist). The battery protective shell is coated with a heat-insulating coating to improve safety performance. The battery is equipped with a key switch and can be taken out for charging.

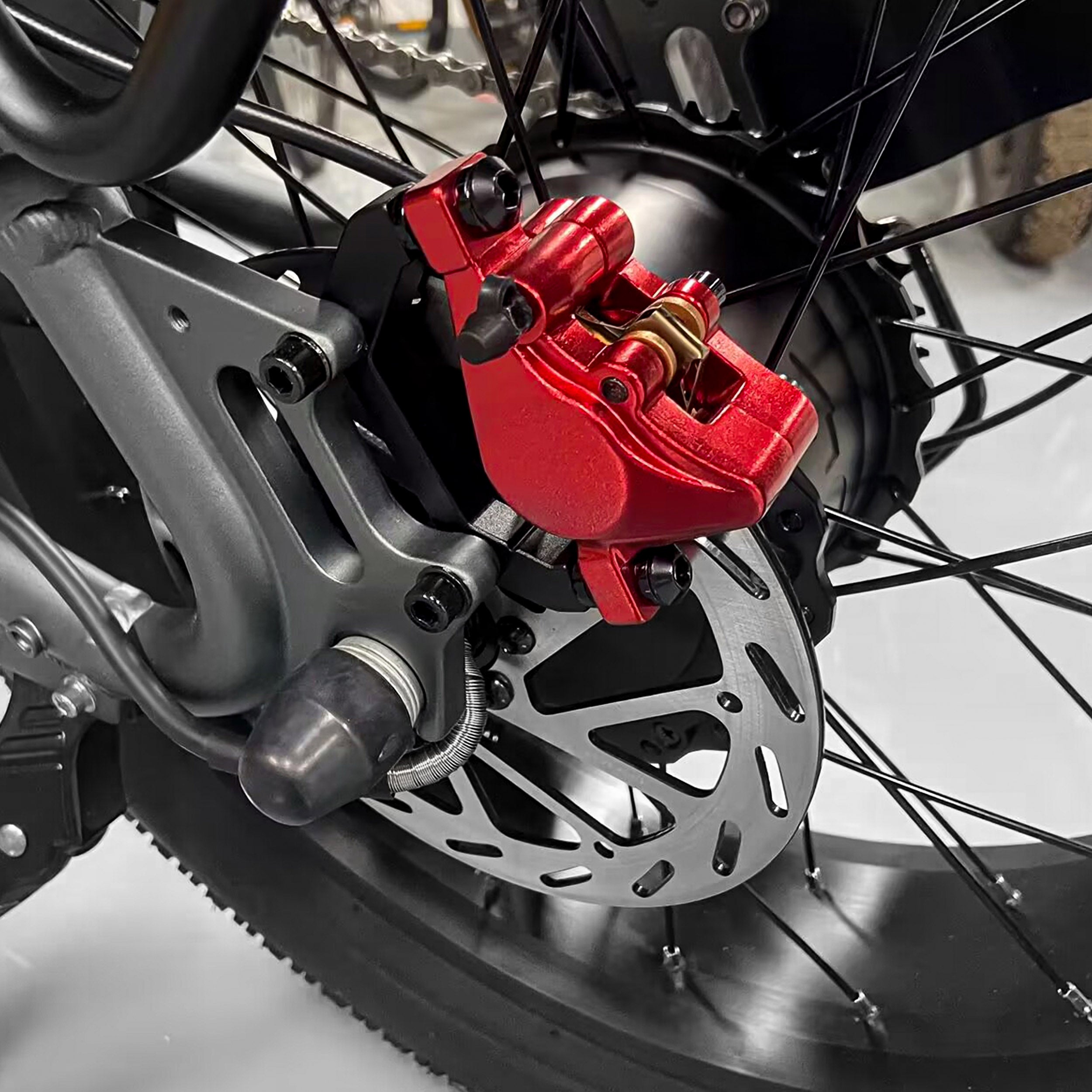

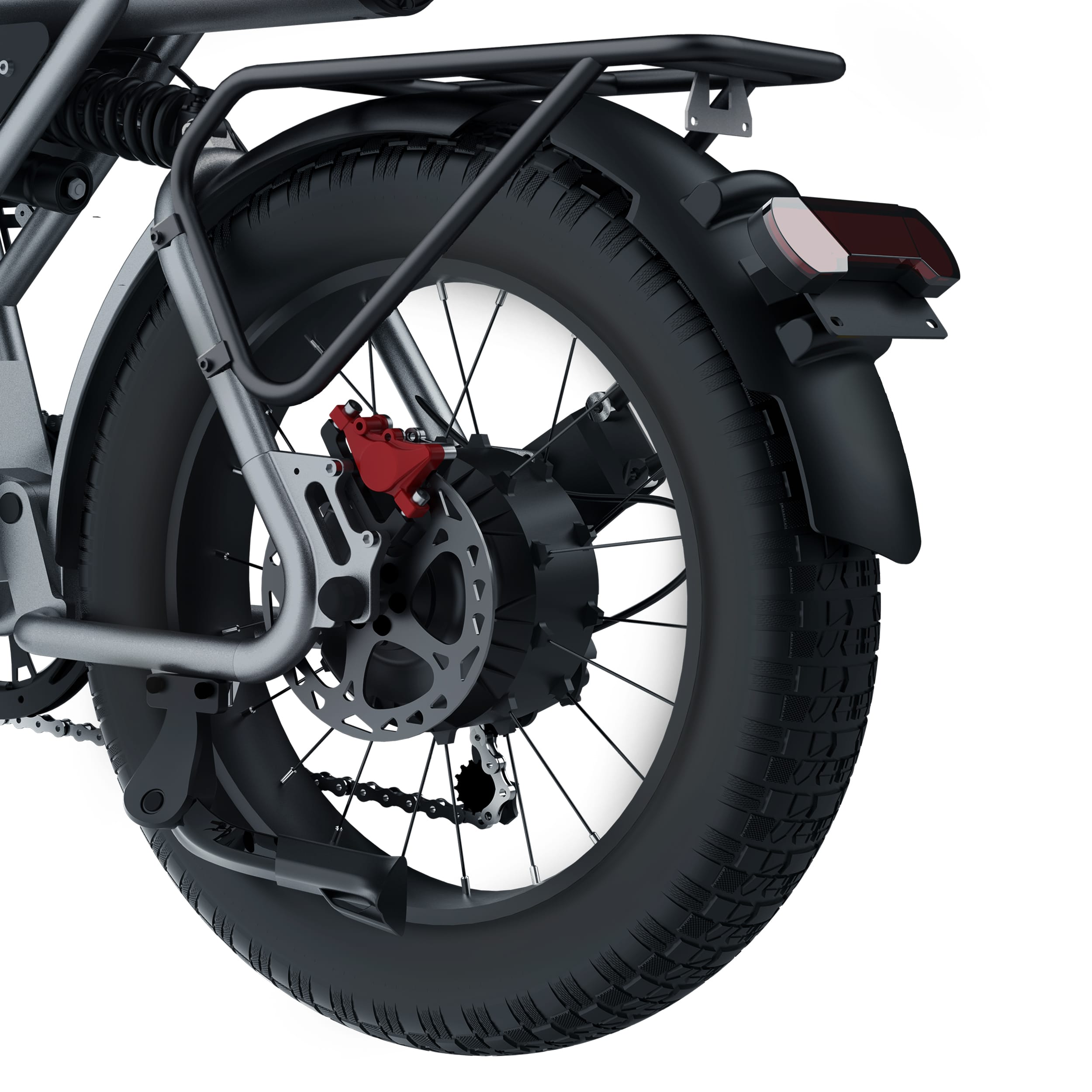

Dual Piston Hydraulic Brake
The front and rear wheels are equipped with high-quality dual-piston hydraulic brakes, 180mm brake discs, and multi-hole linkage heat dissipation to shorten the braking distance.llection, or blog post. Add details on availability, style, or even provide a review.

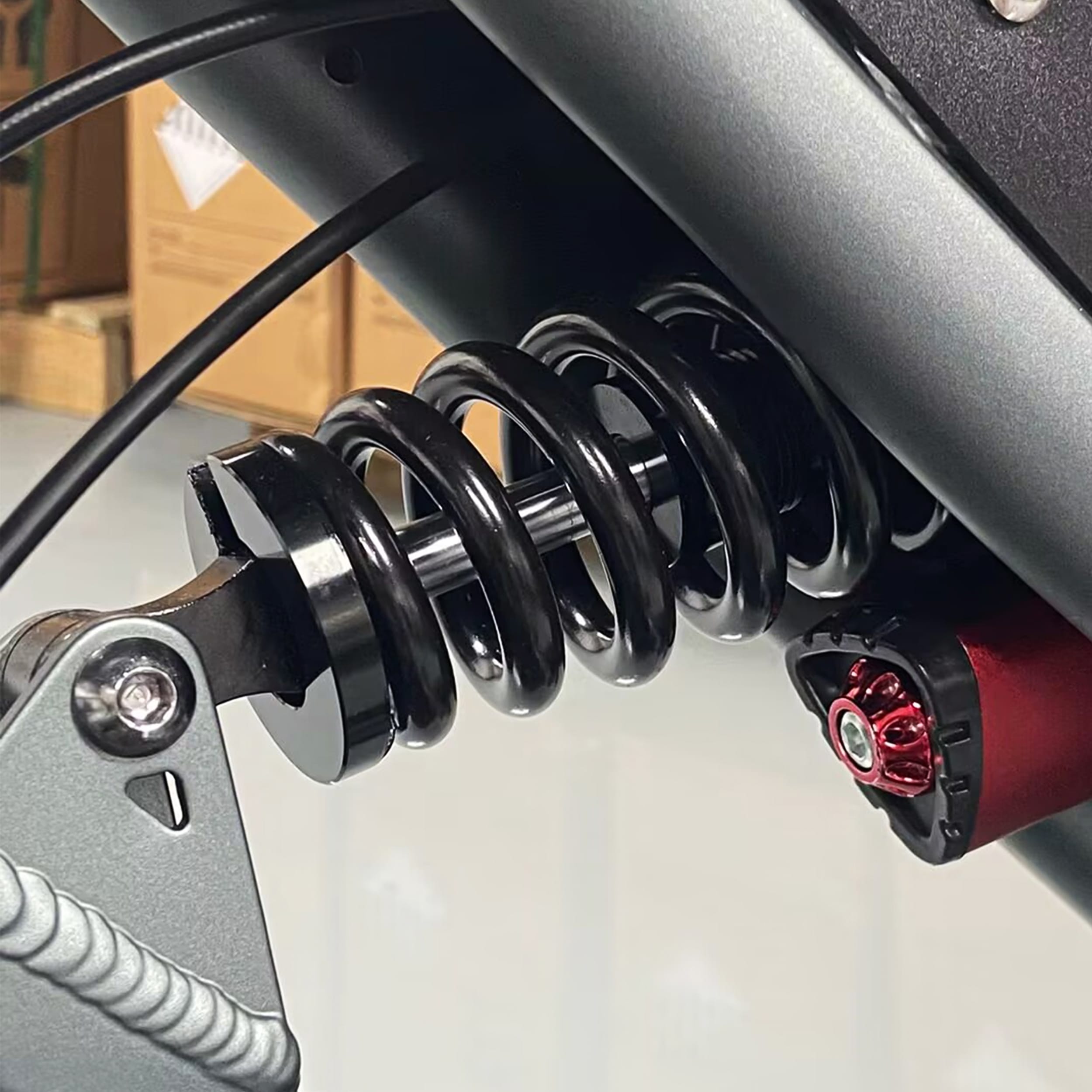

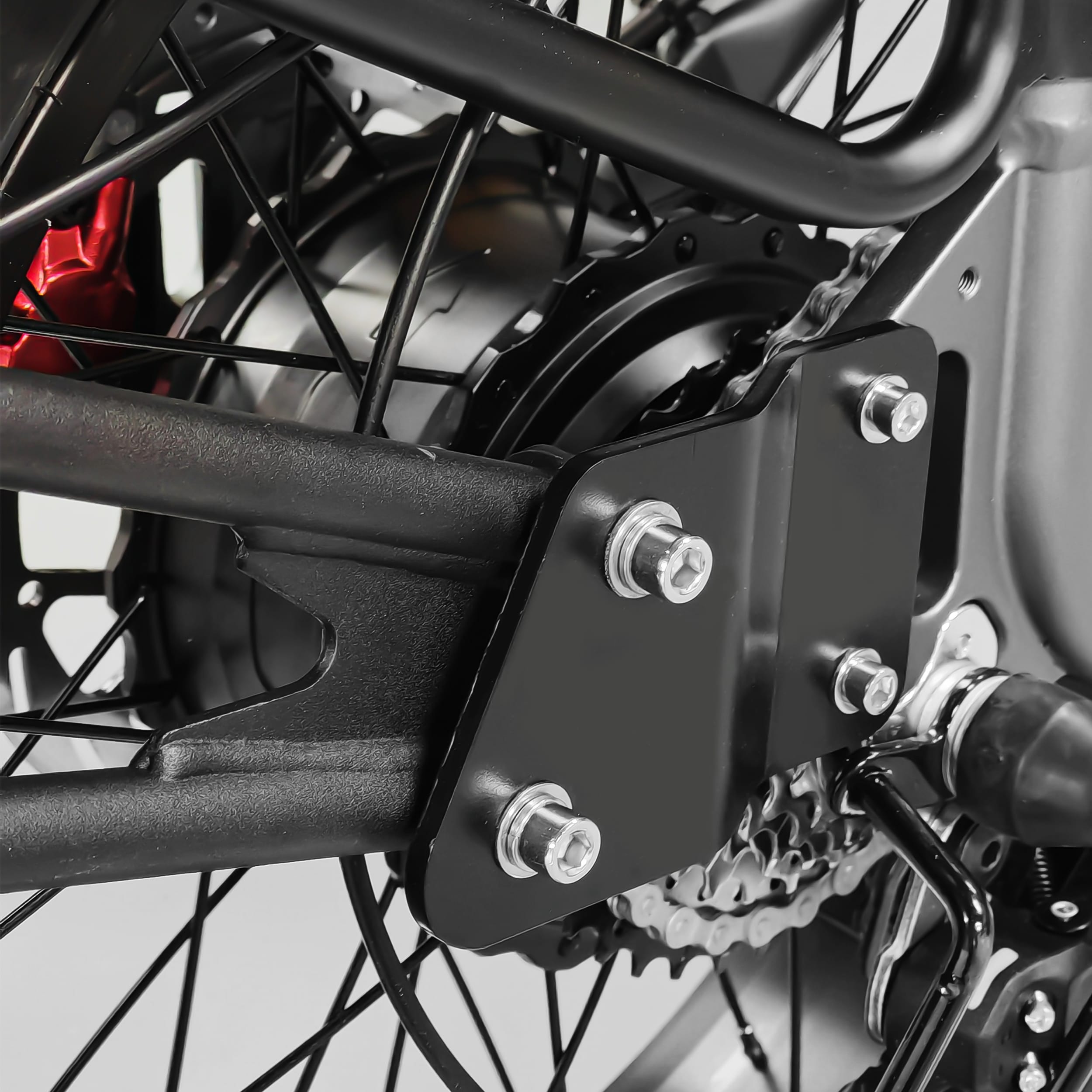

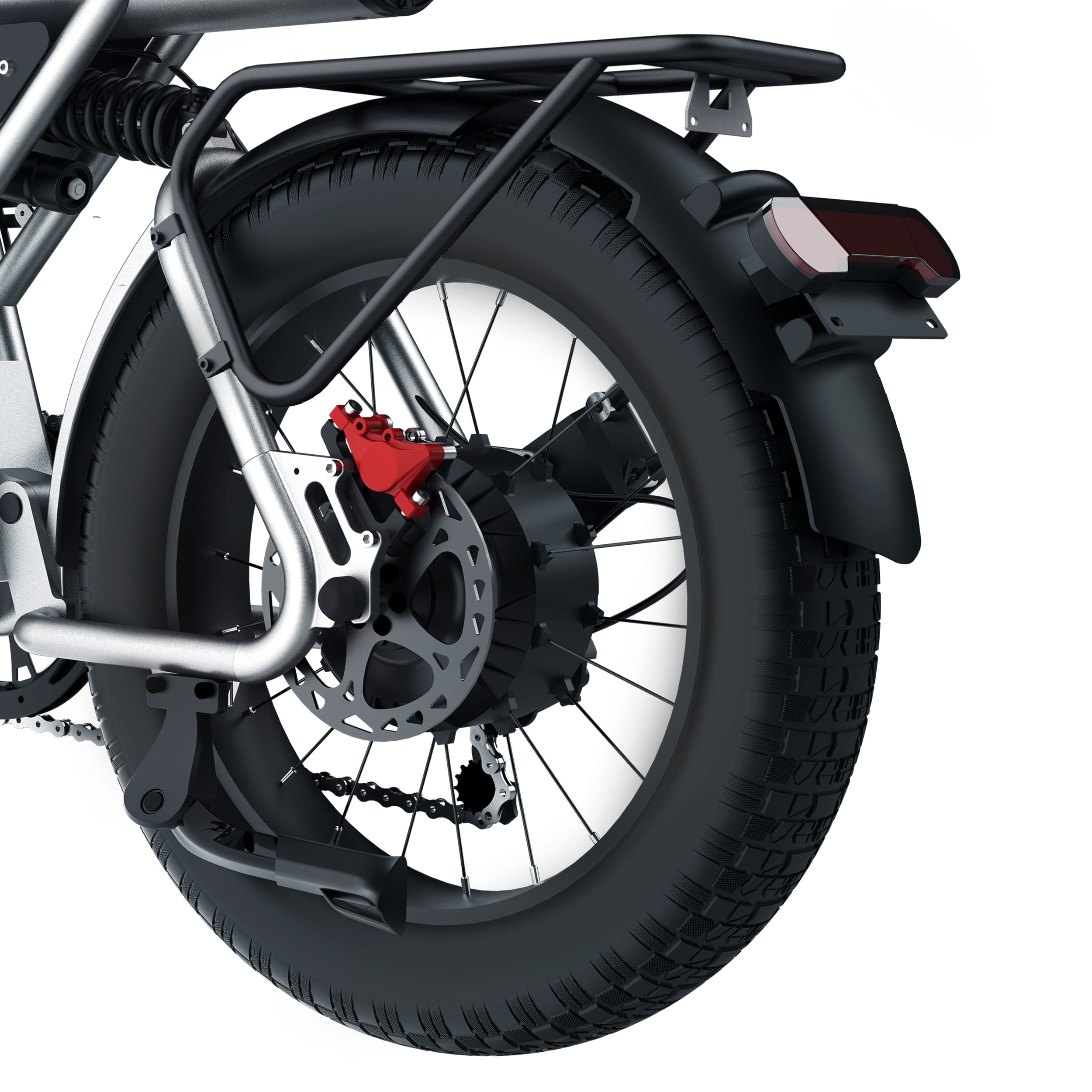

350 LB Rear Suspension
The CT20 2.0 adds 350 pounds of rear suspension and 180mm of suspension travel, which reduces road bumps and makes riding more comfortable compared to the 1.0.

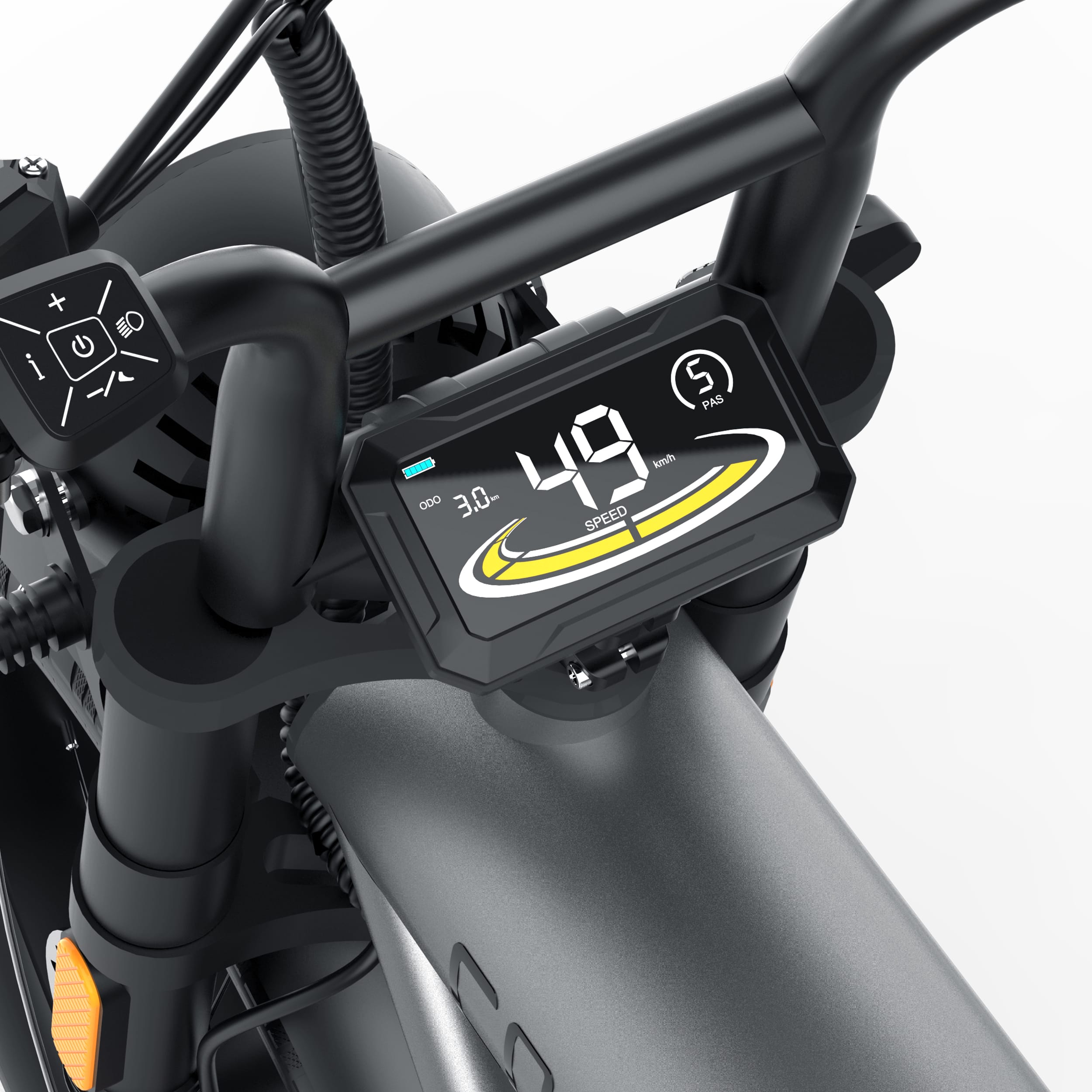

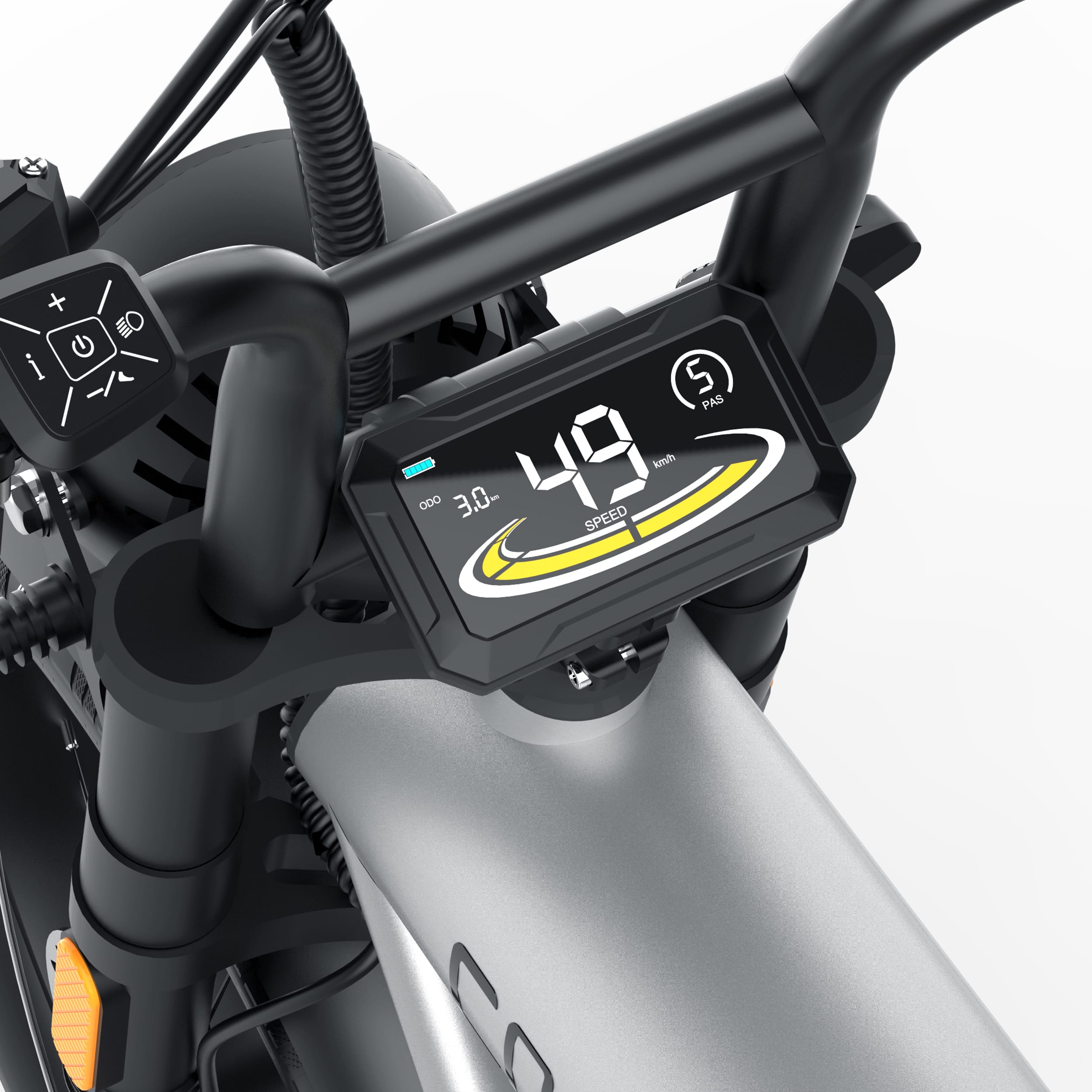

4" Color LCD Display

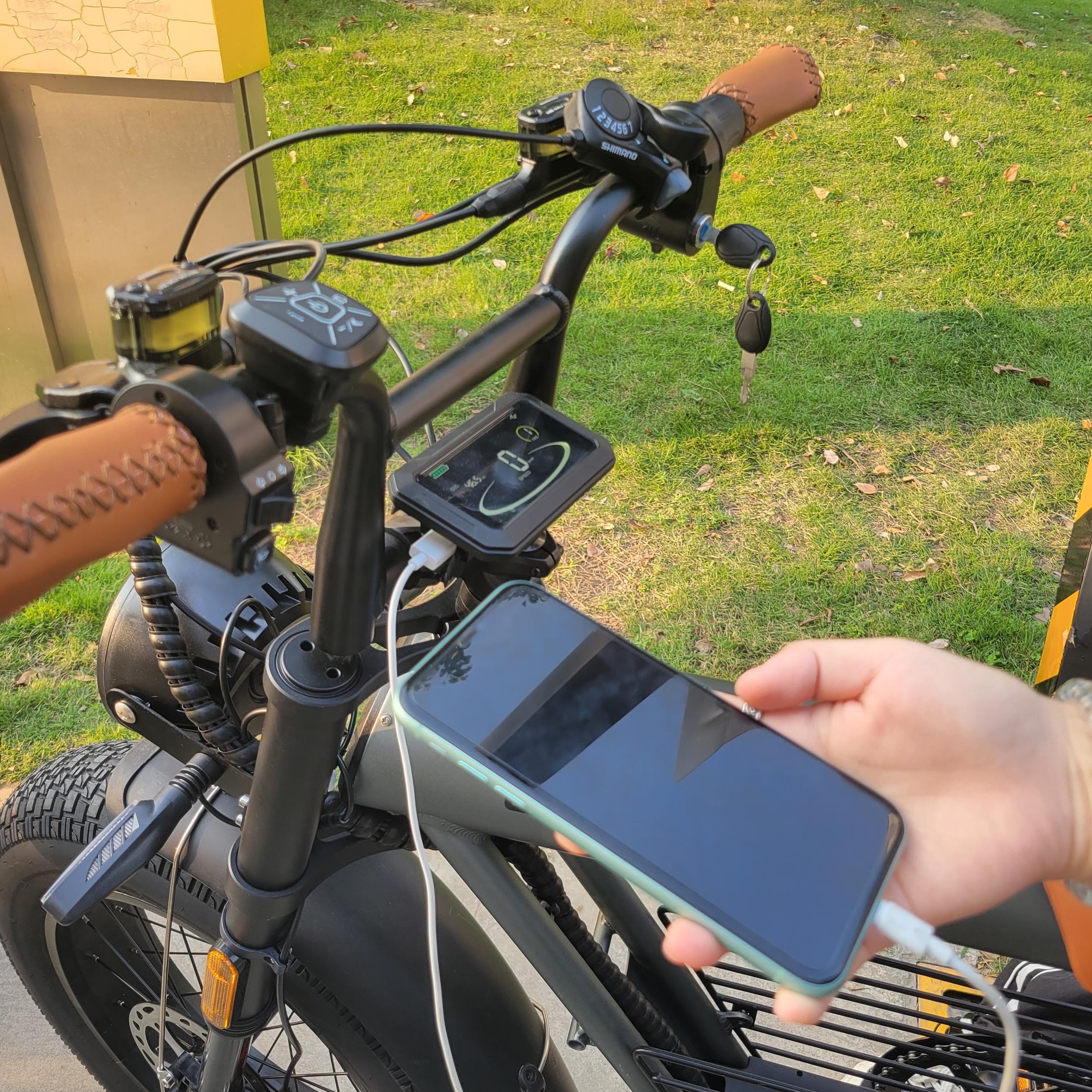

The CT20 is equipped with a 4” color LCD display. In addition to displaying functions such as power, speed, gear, etc., there is a USB 1A discharge port at the bottom left of the display, which can charge your mobile phone, making you safer when riding.

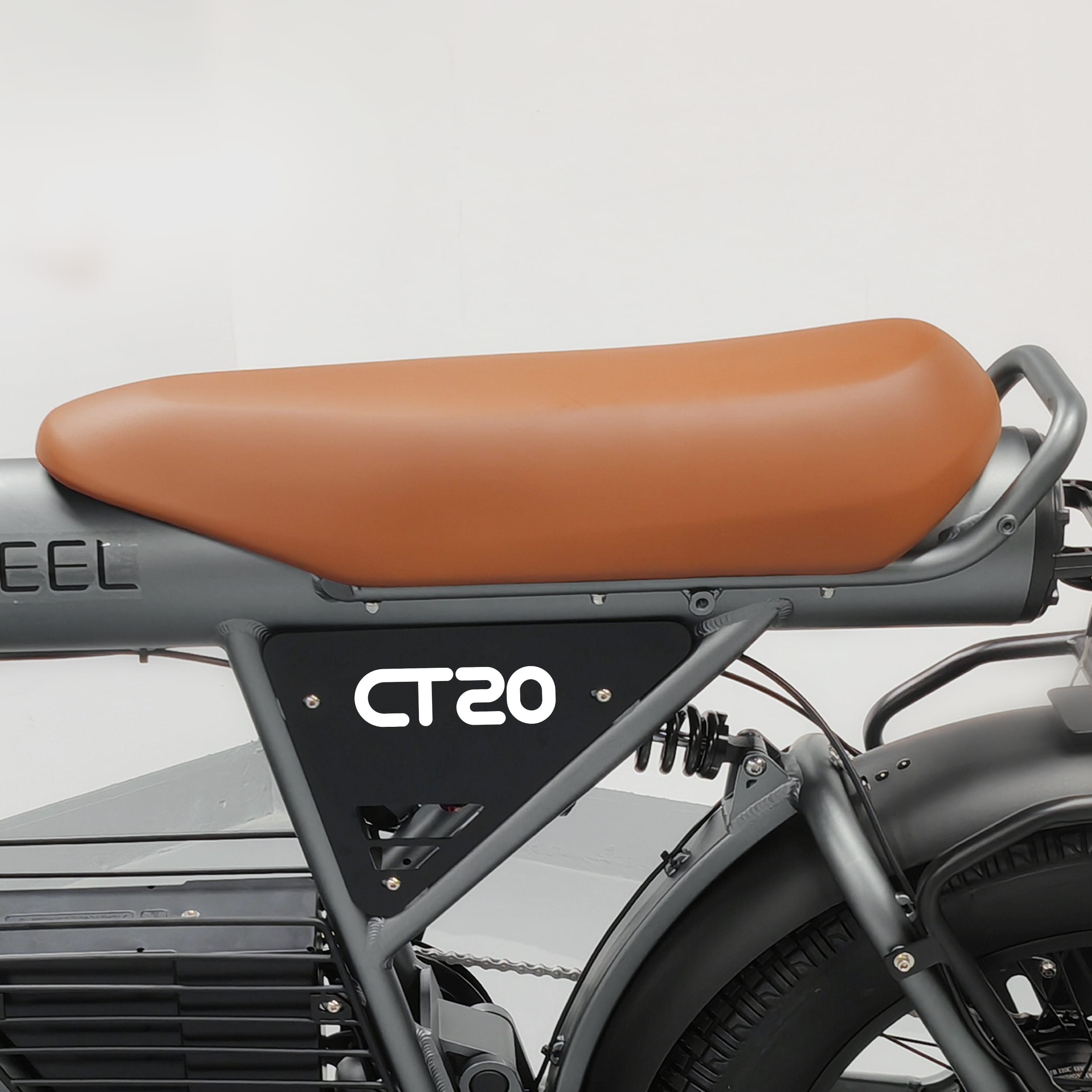

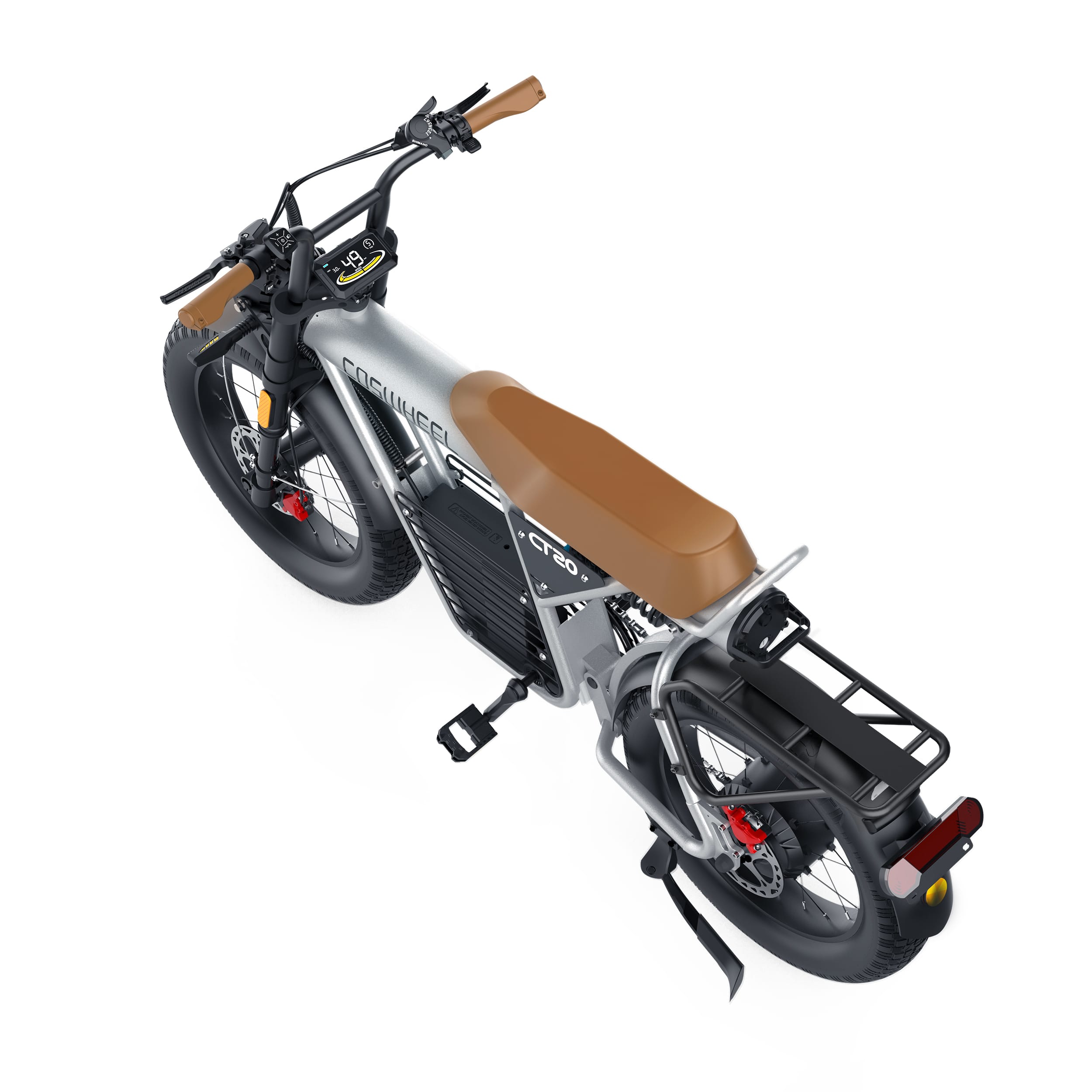

Seat Upgrade More Comfort
As requested by fans, the 2.0 seat is longer and thicker, making your riding more comfortable.

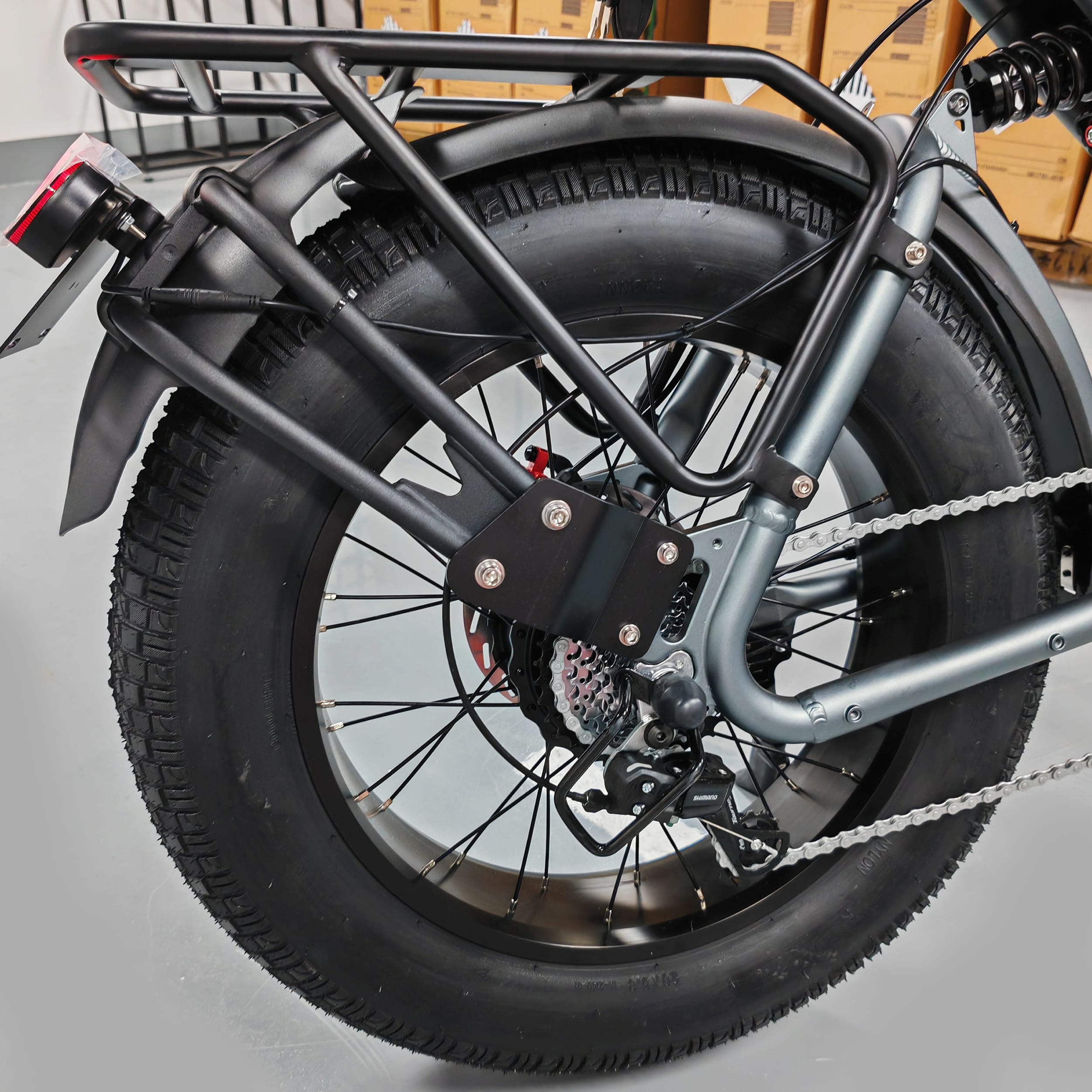

20"*5" Fat Tire
5" fat tires are rare in the industry, giving you stronger road passability. Plus wide fenders and rear racks, your adventure trip will be more enjoyable.

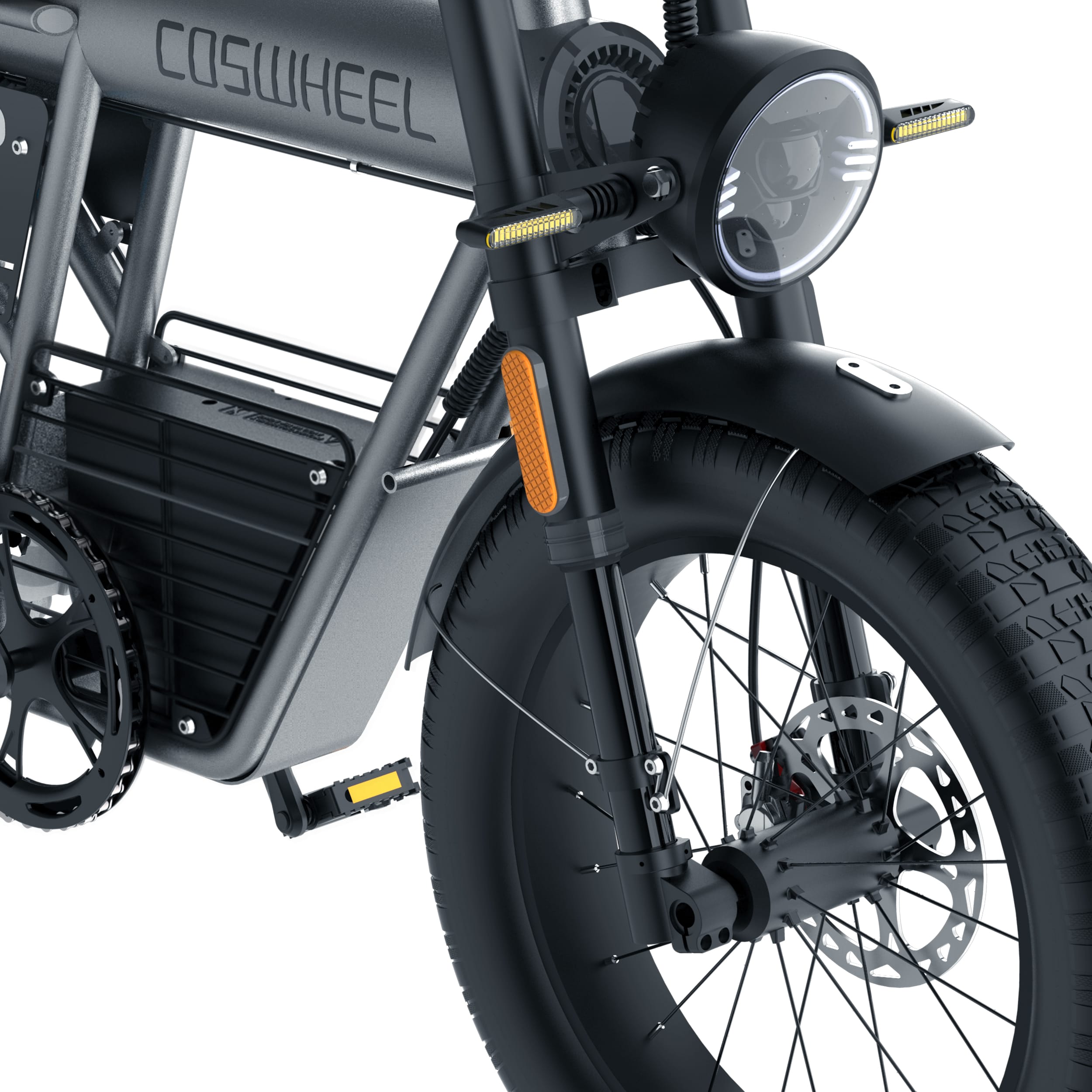

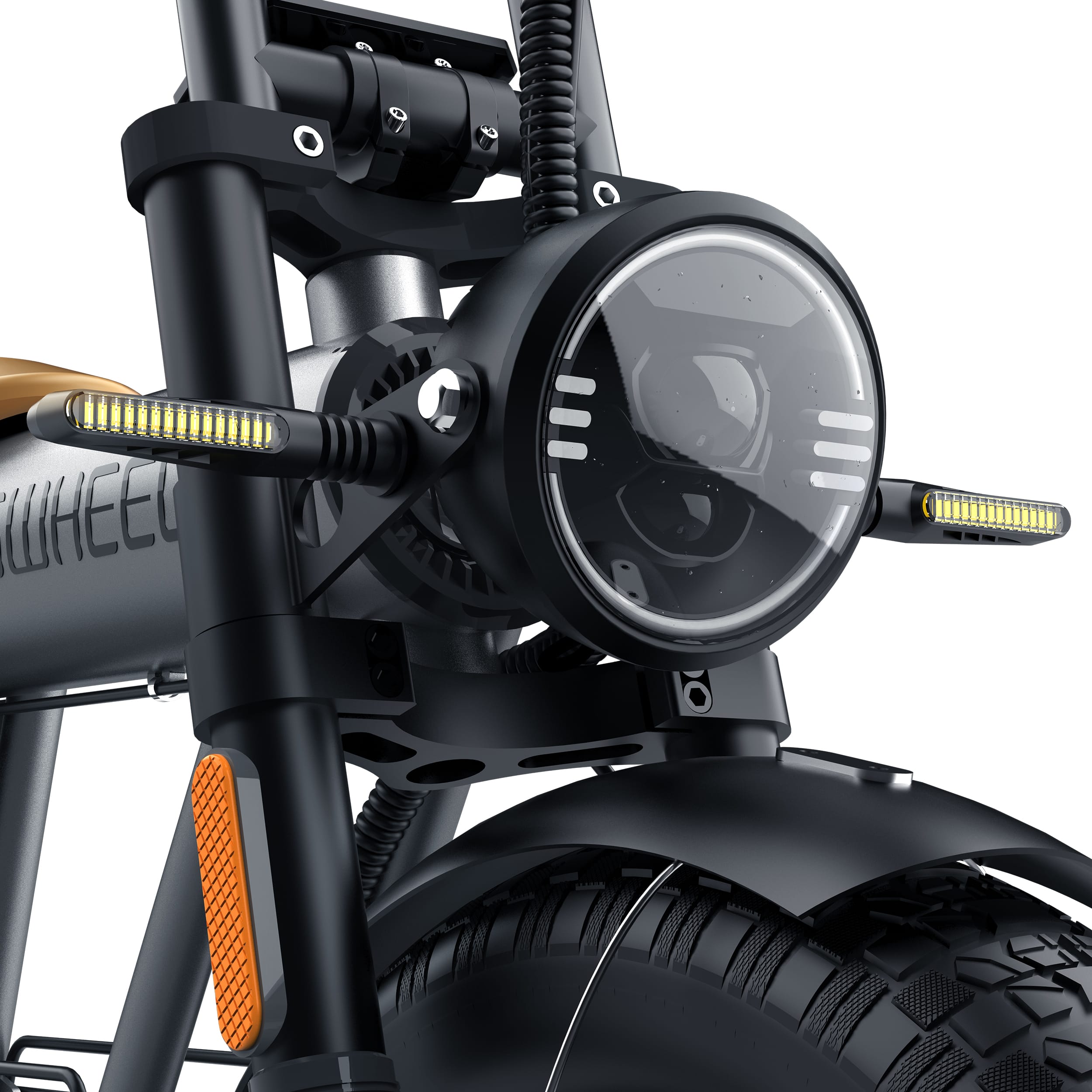

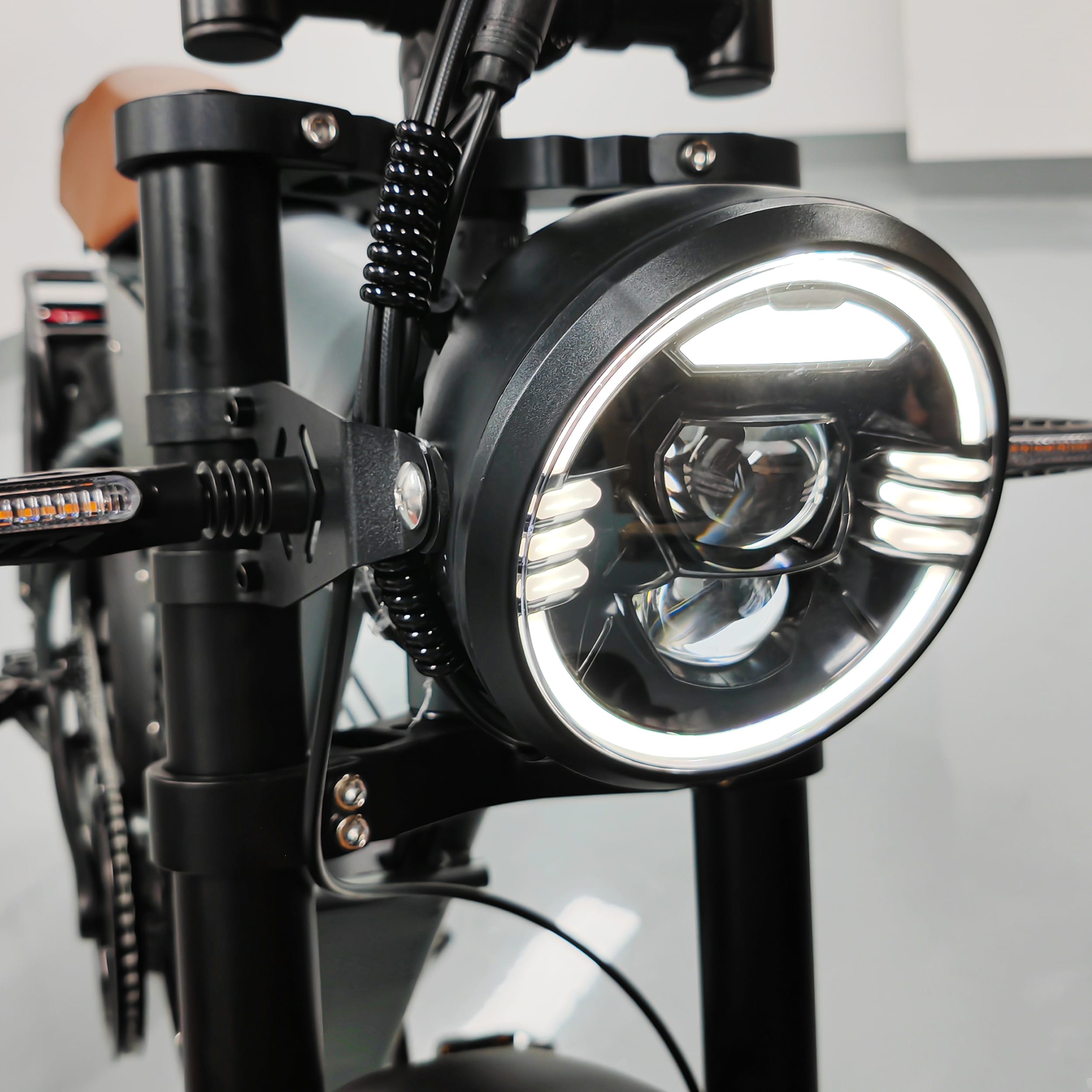

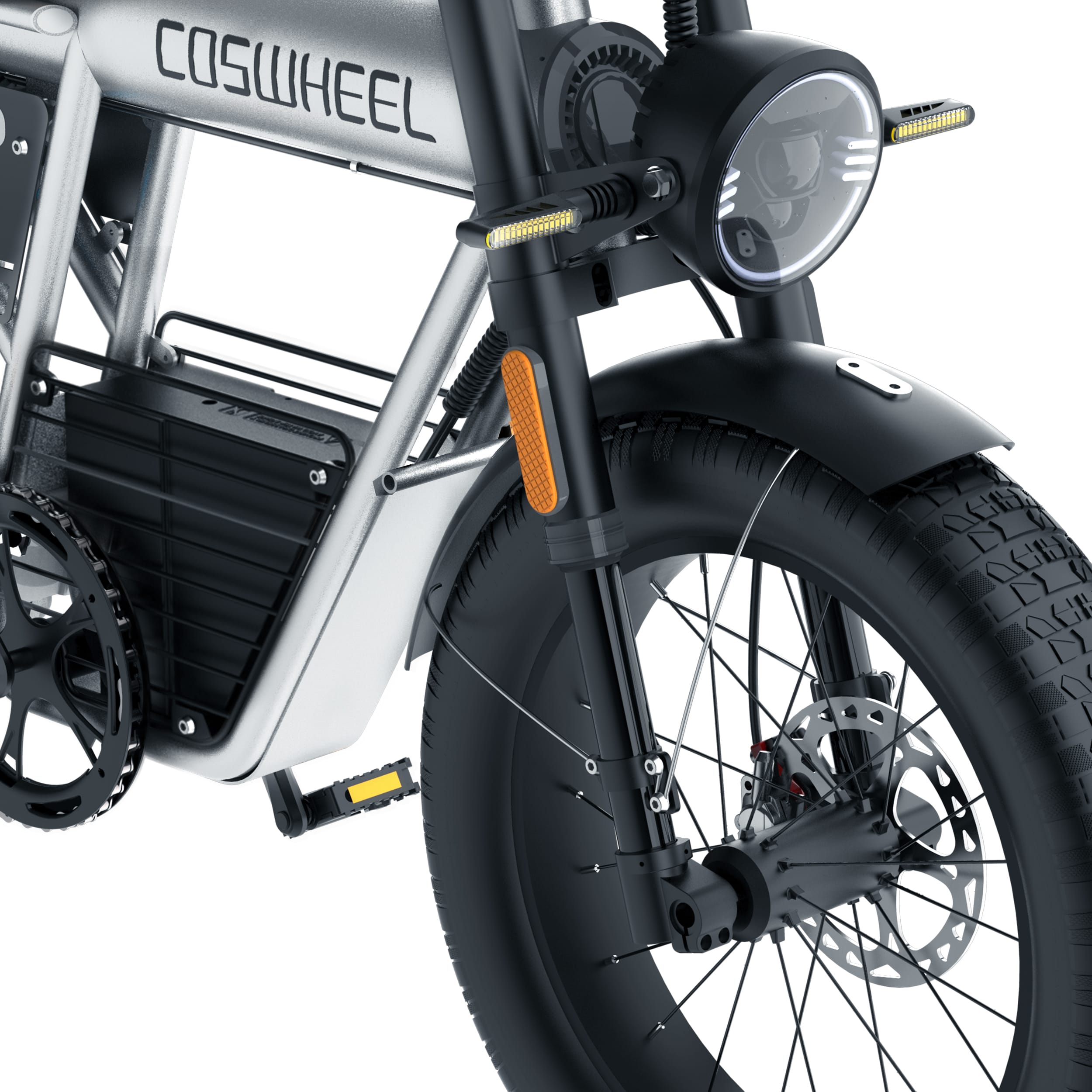

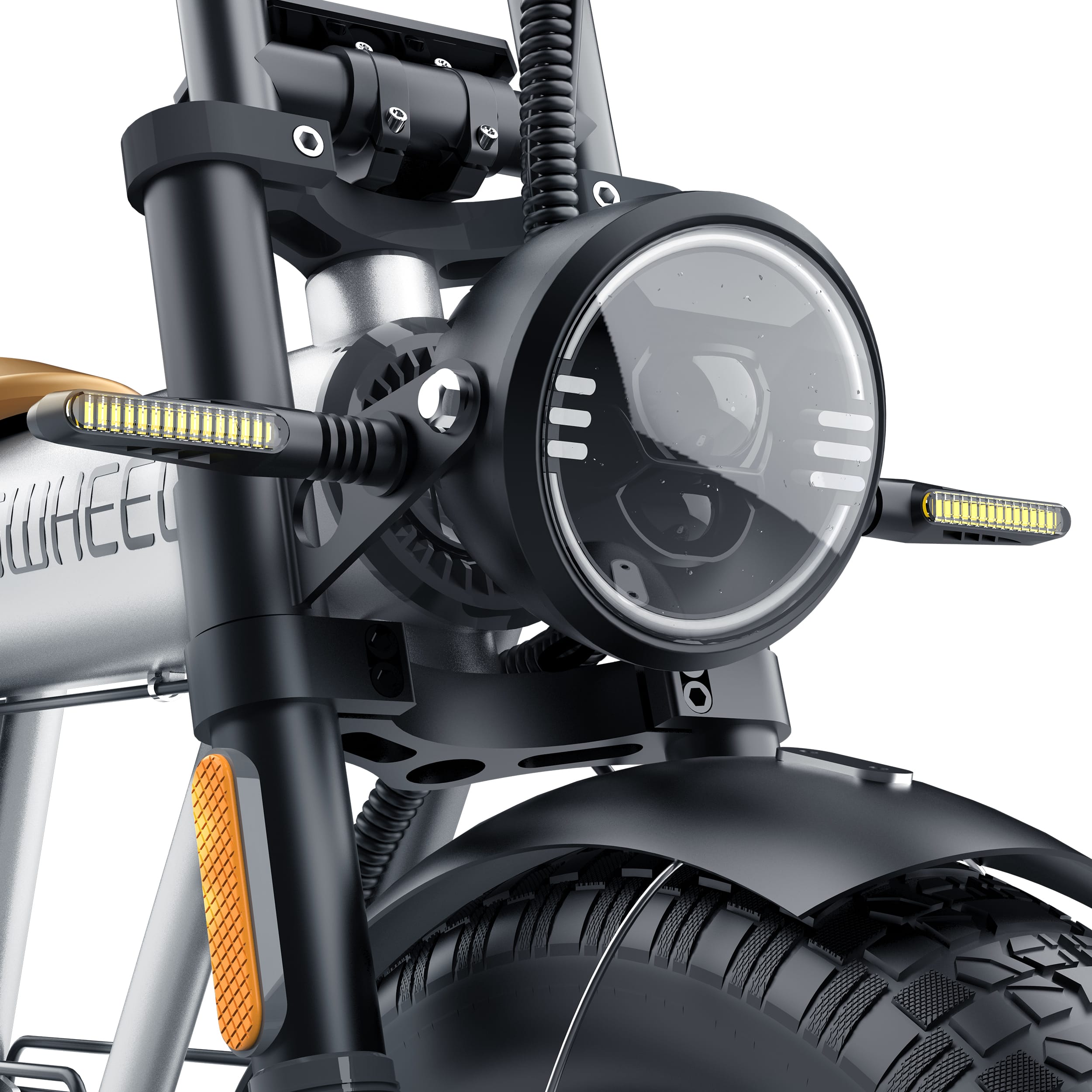

Angel Retro Headlight
The round angel retro headlight, 120 LUX, plus the flowing turn signal, with a high-end and heavy feel, makes you a unique rider.

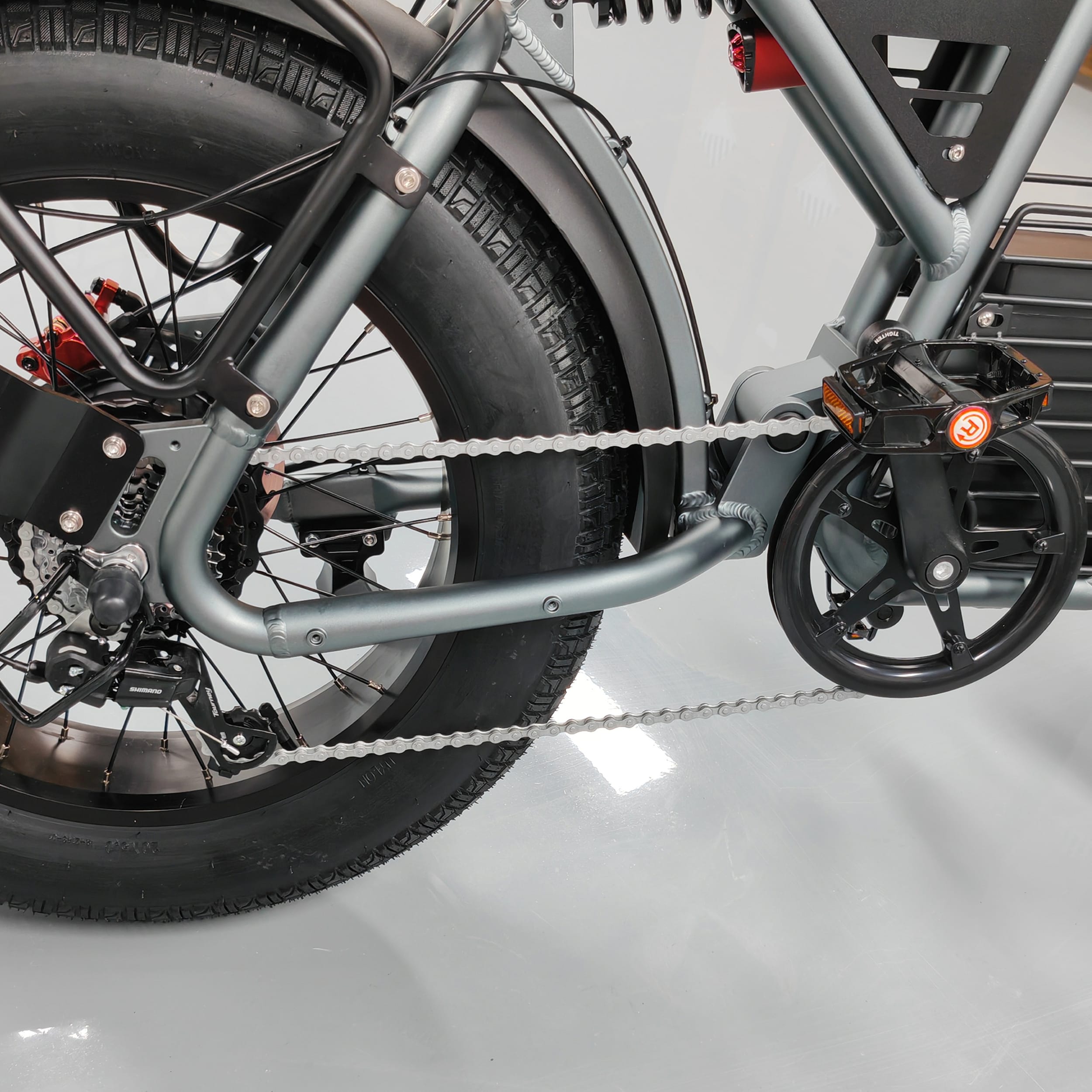

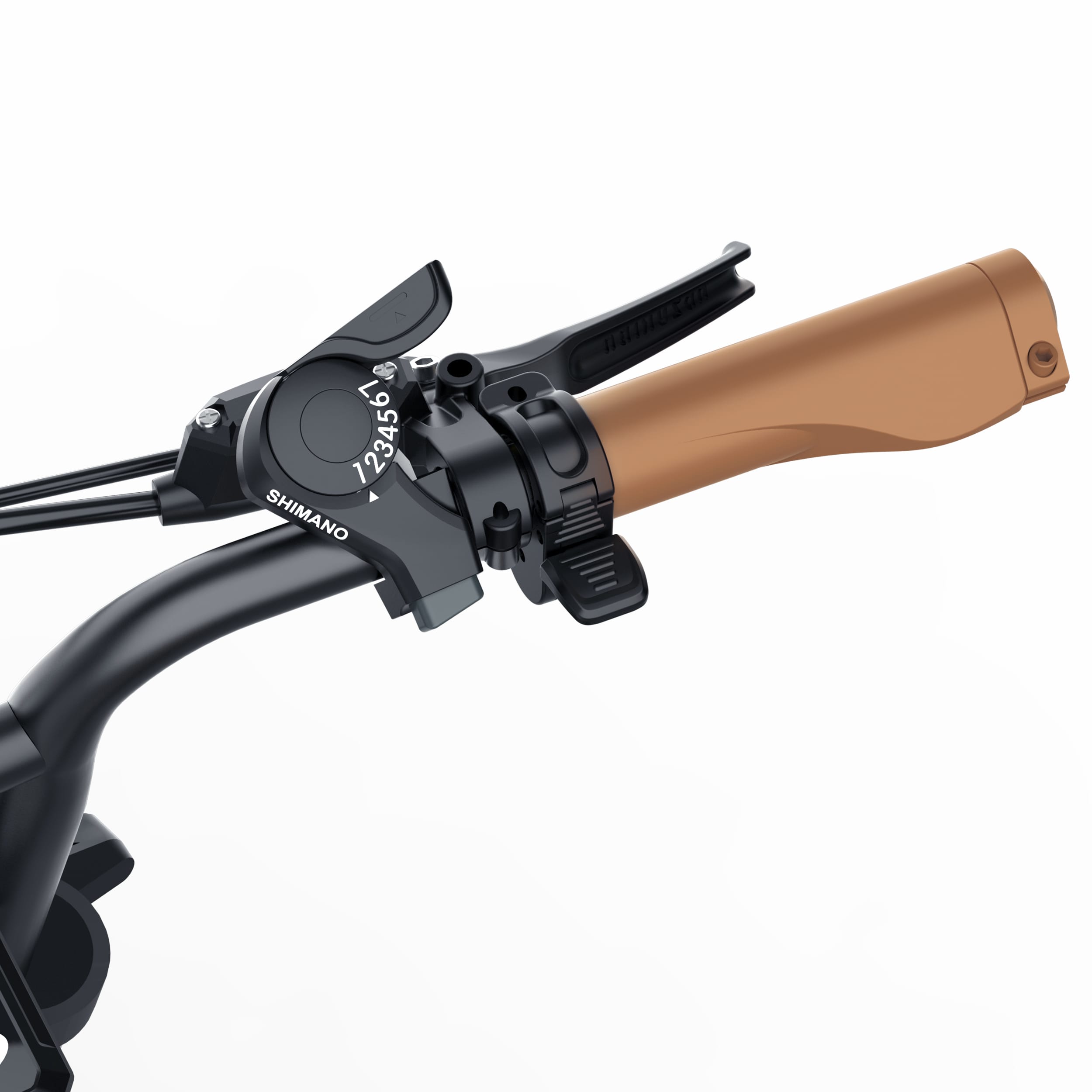

7-Speed Gearing
Shimano 7-speed transmission system can handle all kinds of road conditions with ease. With rust-proof chain and double chain cover crank design, it is not easy to drop the chain and is not afraid of wind and rain.
Ride CT20 Together
CT20 Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 50+miles (80km) in Class-2 throttle-only mode (pure electricity); 87miles (140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
- Battery: 48V 25Ah Battery (Lithium 18650 Cells)
- Energy: 1200Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 1.0 No / 2.0 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining

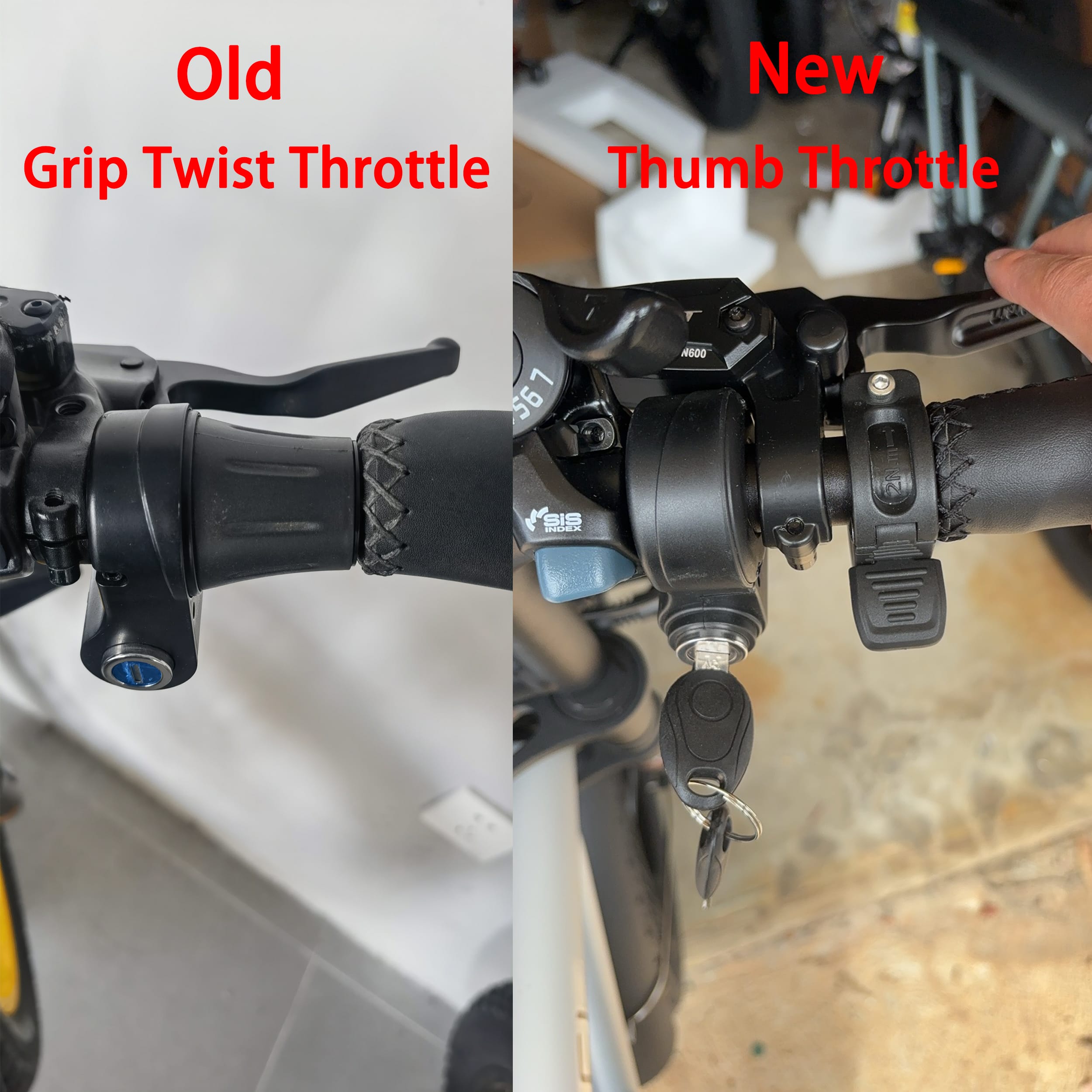

- Throttle: Grip Twist Throttle (Old) / Thumb Throttle (New)
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 28A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Sand Black 31.8*660
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 33.4" (85cm)
- Bike Height: 45.3" (115cm)
- Wheelbase: 45.3" (115cm)
- Handlebar Width: 26.4" (67cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
- Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)
Legitimate
US: It has passed the US UL2849 certification and can be shipped with a 750W logo affixed to the motor according to the laws of each state.
EU: At present, European customers have not reported any regulatory issues after riding. We have CE and COC certificates. The speed of bikes shipped to Europe will be limited to 25km/h when they leave the factory. After receiving the bike, you can contact us for guidance on lifting the speed limit. We can also send you a 250W logo to be affixed to the motor in accordance with European regulations.
Other Regions: Please consult us
Support
Manual
Certificate
- EU EN15194 and CE certification
- EU EN15194 and CE test report
- COC Certificate
VIN Number
The VIN number (Serial number) of the CT20 ebike is in the middle of the front fork of each CT20 (please note that the VIN number of the CT20 is unique and cannot be repeated)
Package
CT20 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1
- EU EN15194 and CE certification
- EU EN15194 and CE test report
- COC Certificate
The VIN number (Serial number) of the CT20 ebike is in the middle of the front fork of each CT20 (please note that the VIN number of the CT20 is unique and cannot be repeated)
CT20 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1
