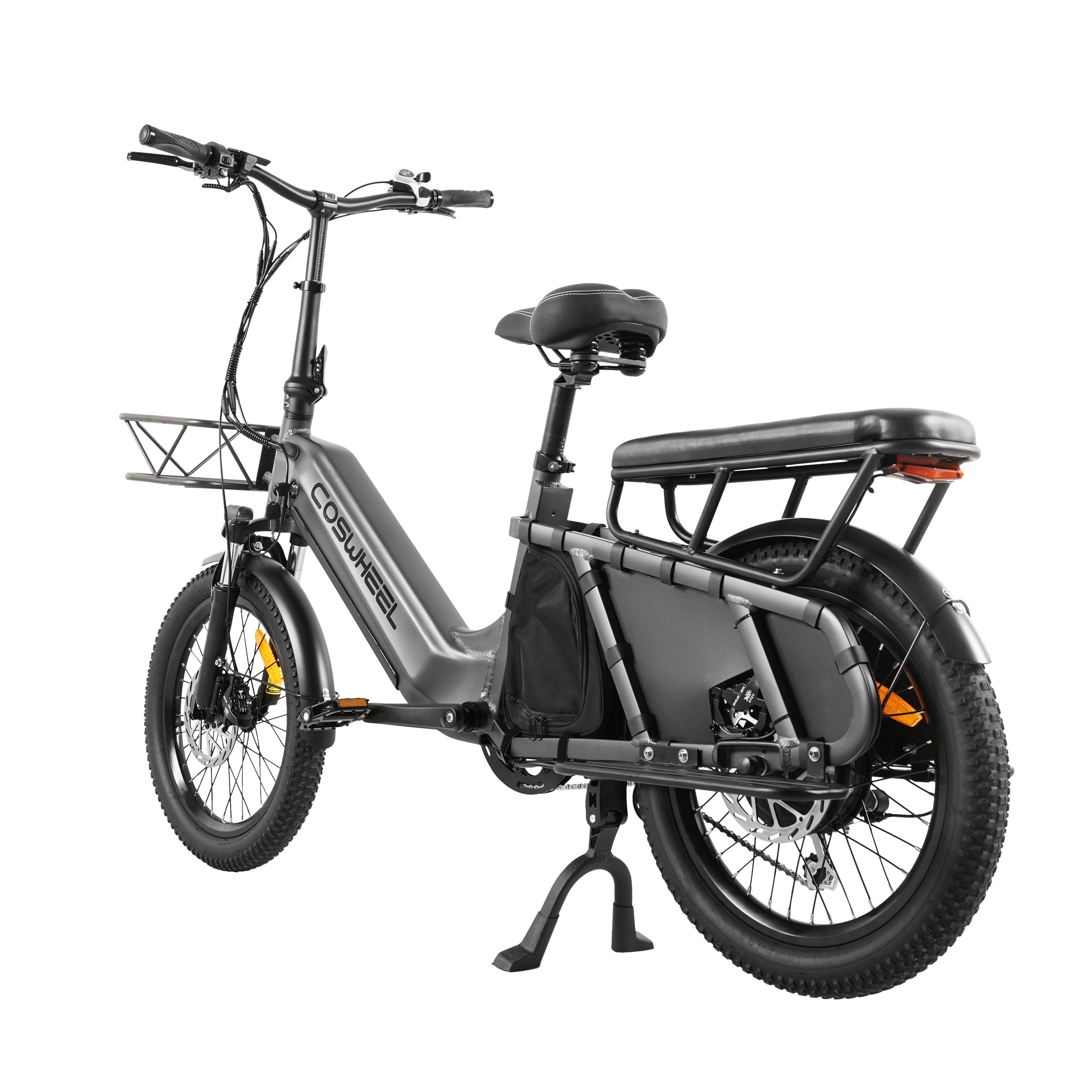

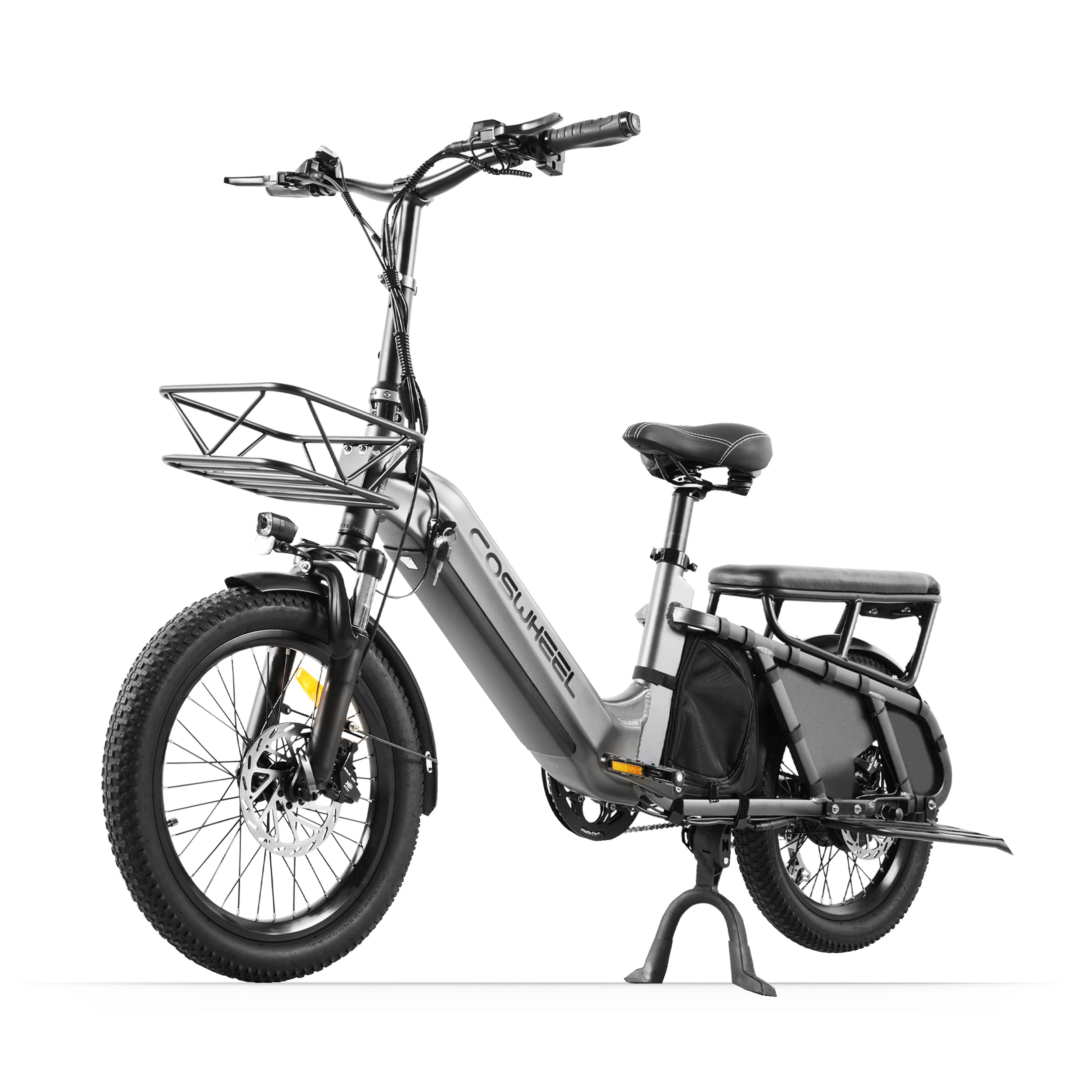

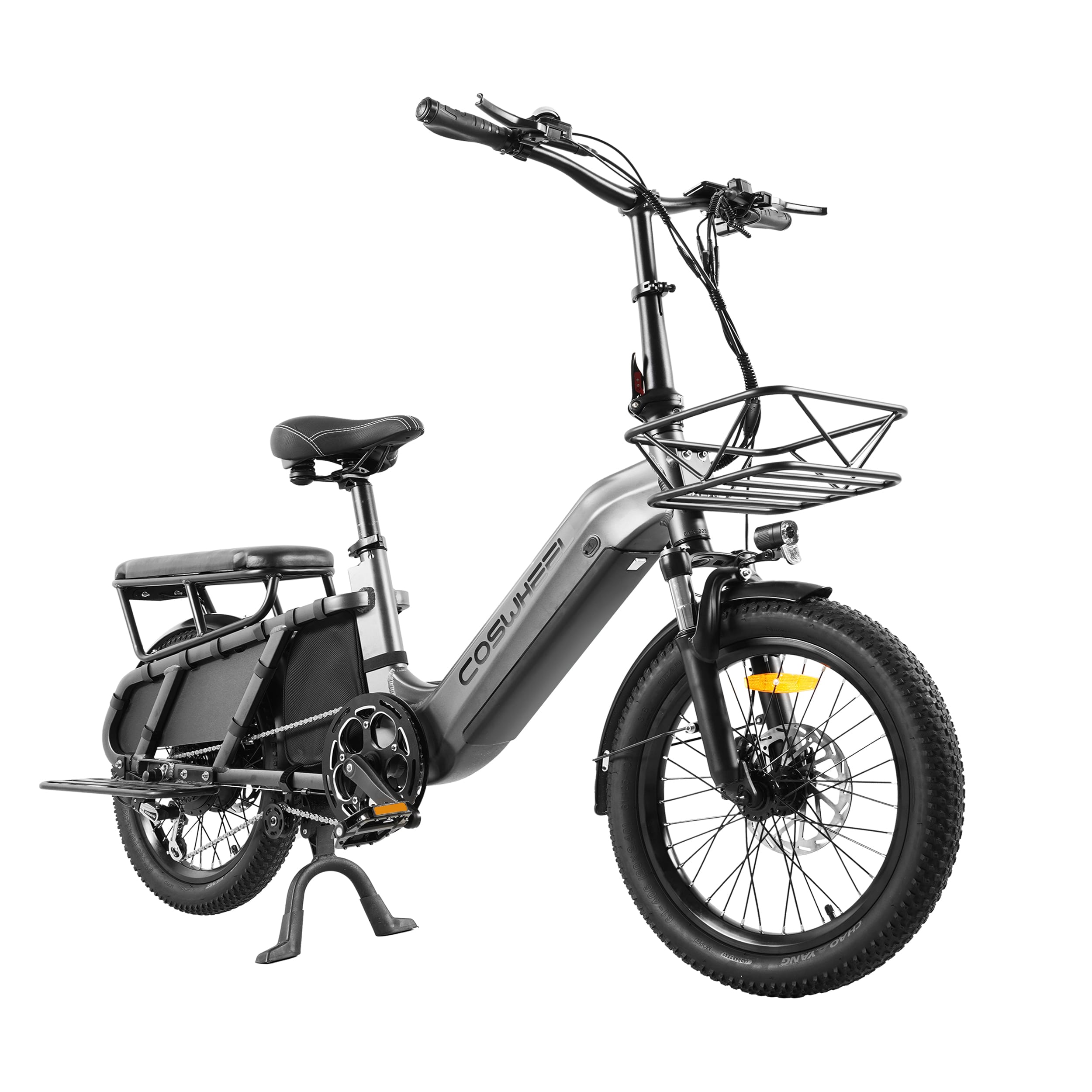

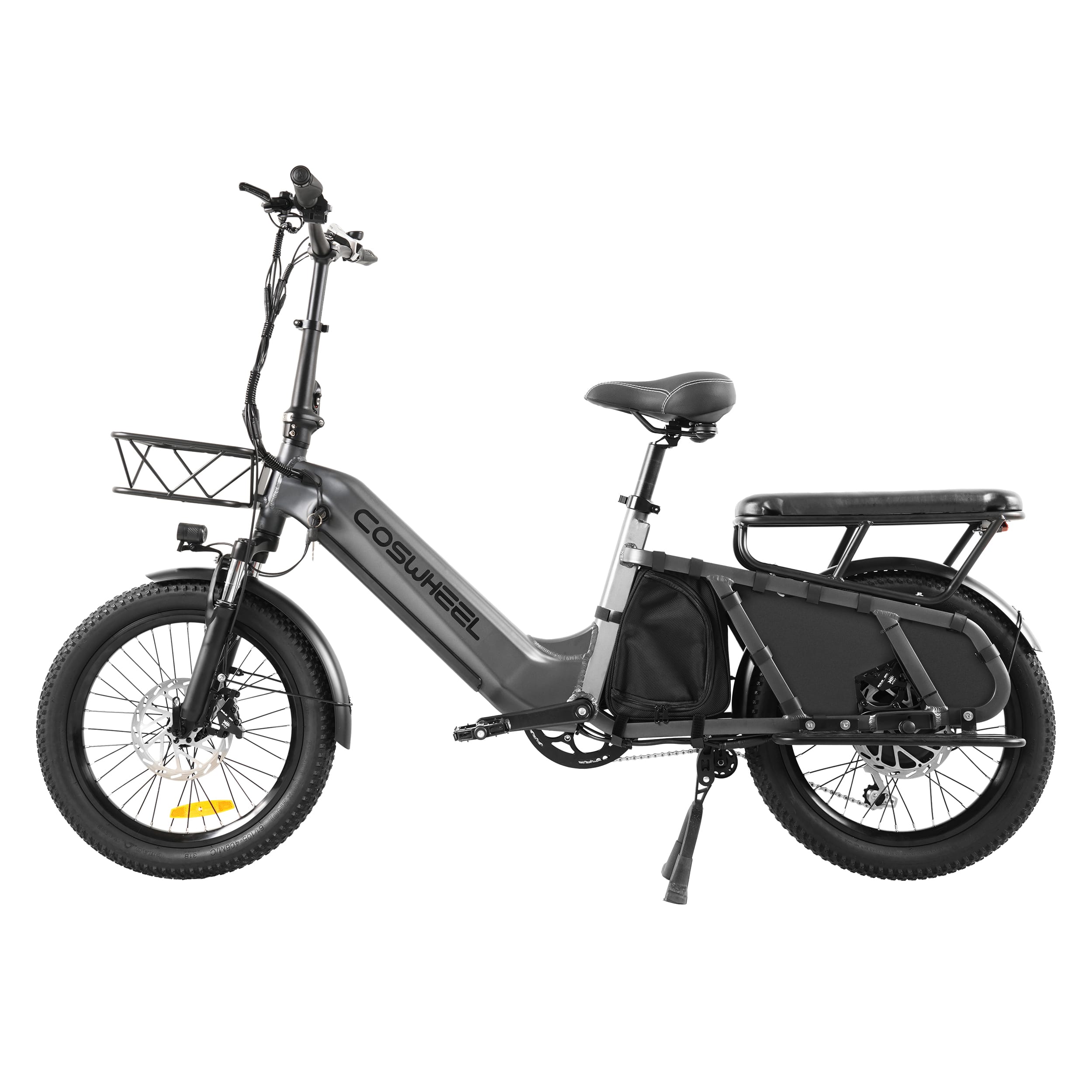

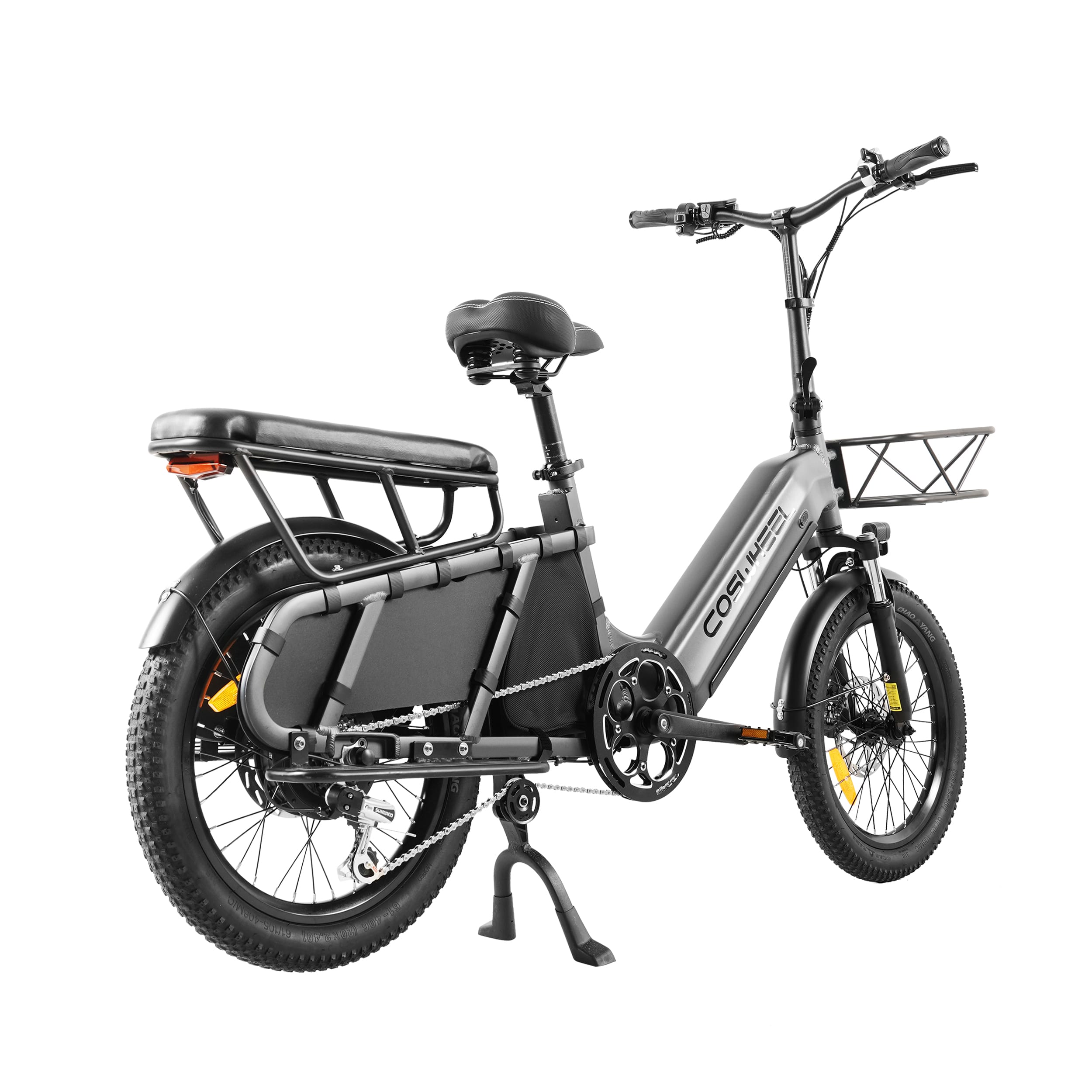

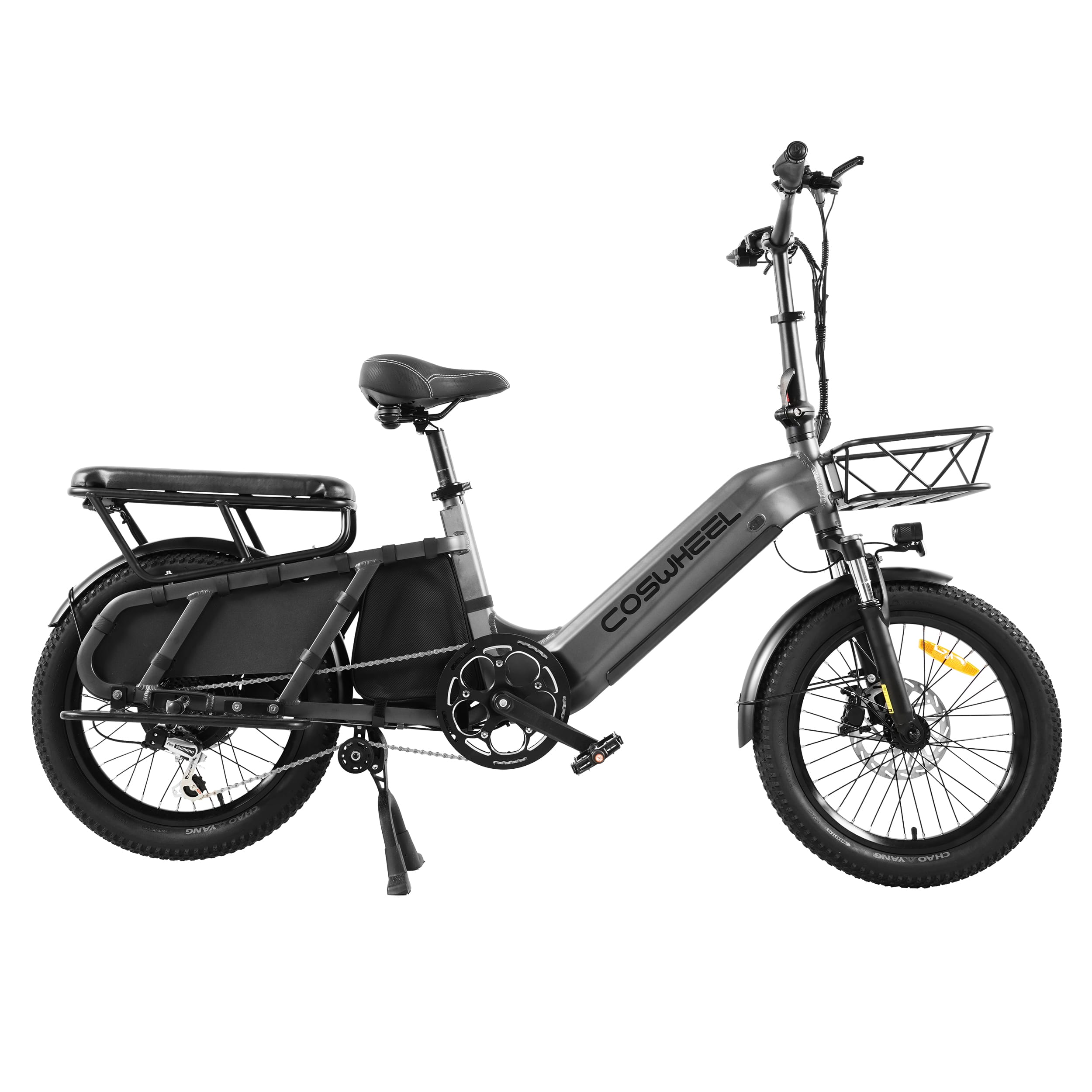

HQ20 Electric Cargo Bike
60N.m torque, can climb 35° slope, free front cargo basket, free bag, free cushions, free running boards, torque sensor ebike
Heavy hydraulic brake family electric bike
Torque Sensors Conquer Steep Hills
The HQ20 has been upgraded with a new torque sensor and a high-speed brushless motor with a peak power of 1300W (rated 750W), making it one of the best cargo e-bikes. Its smooth power delivery and 6-speed Shimano transmission make it easier to conquer steep hills.
Stronger Carrying Capacity
The HQ20 is constructed of aluminum alloy for enhanced load-bearing capacity, with a maximum load capacity of 450 pounds. The free front cargo basket, free bag, free cushions, and free running boards give you even more cargo space when you're out and about. Plus, with a 19.2Ah lithium battery, the bike boasts a maximum range of 67 miles (108km), ensuring you'll enjoy your ride to the fullest.
HQ20 Every Part Counts

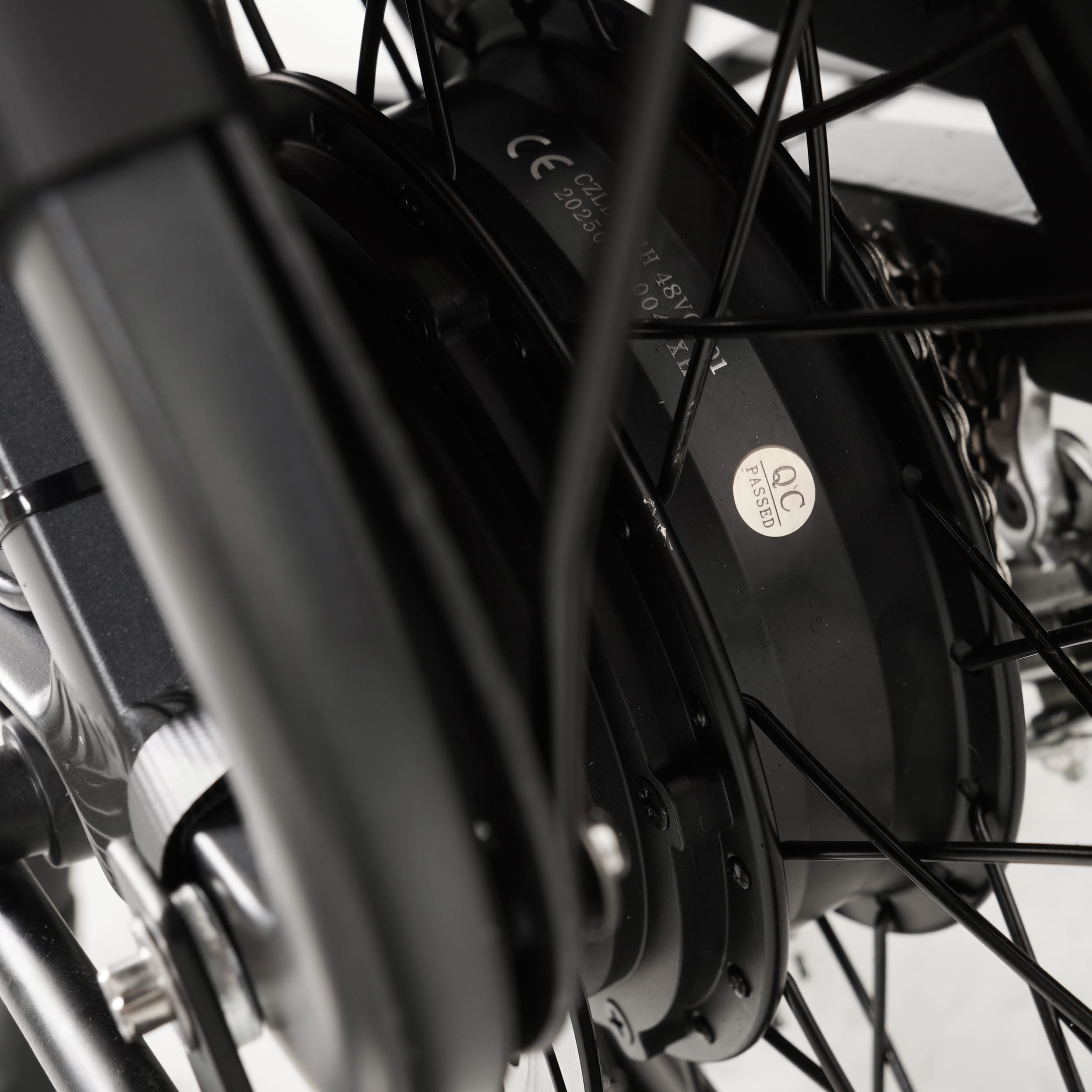

Peak 1300W Motor
The HQ20 is equipped with a peak 1300W (rated 750W) high-speed brushless motor, a torque of 60N.m, a maximum speed of 28mph (45km/h), and can easily climb a 35° slope.

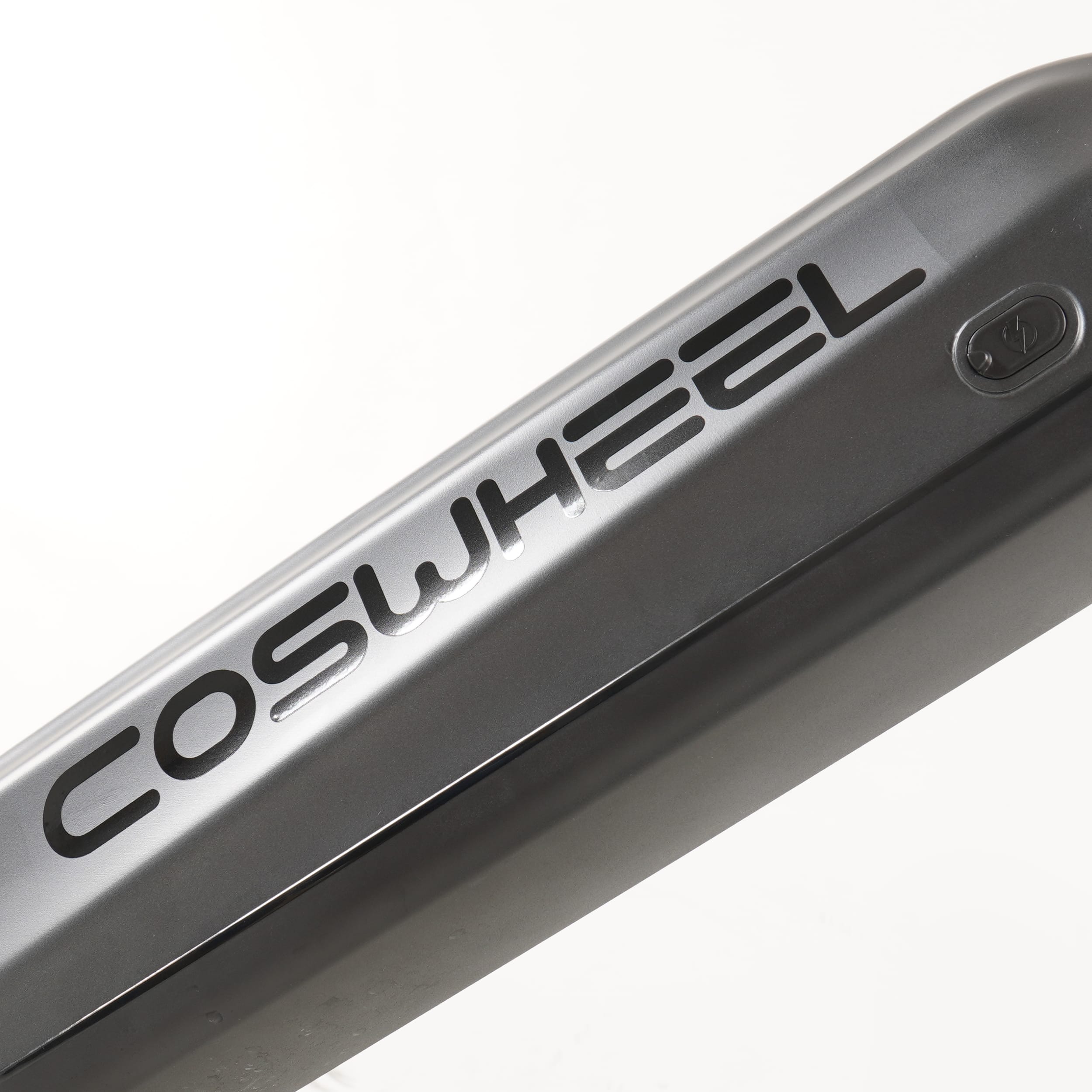

19.2AH Removable Battery
The HQ20 is equipped with a 19.2AH removable lithium battery, 922WH, with a maximum range of 67 miles (108km).

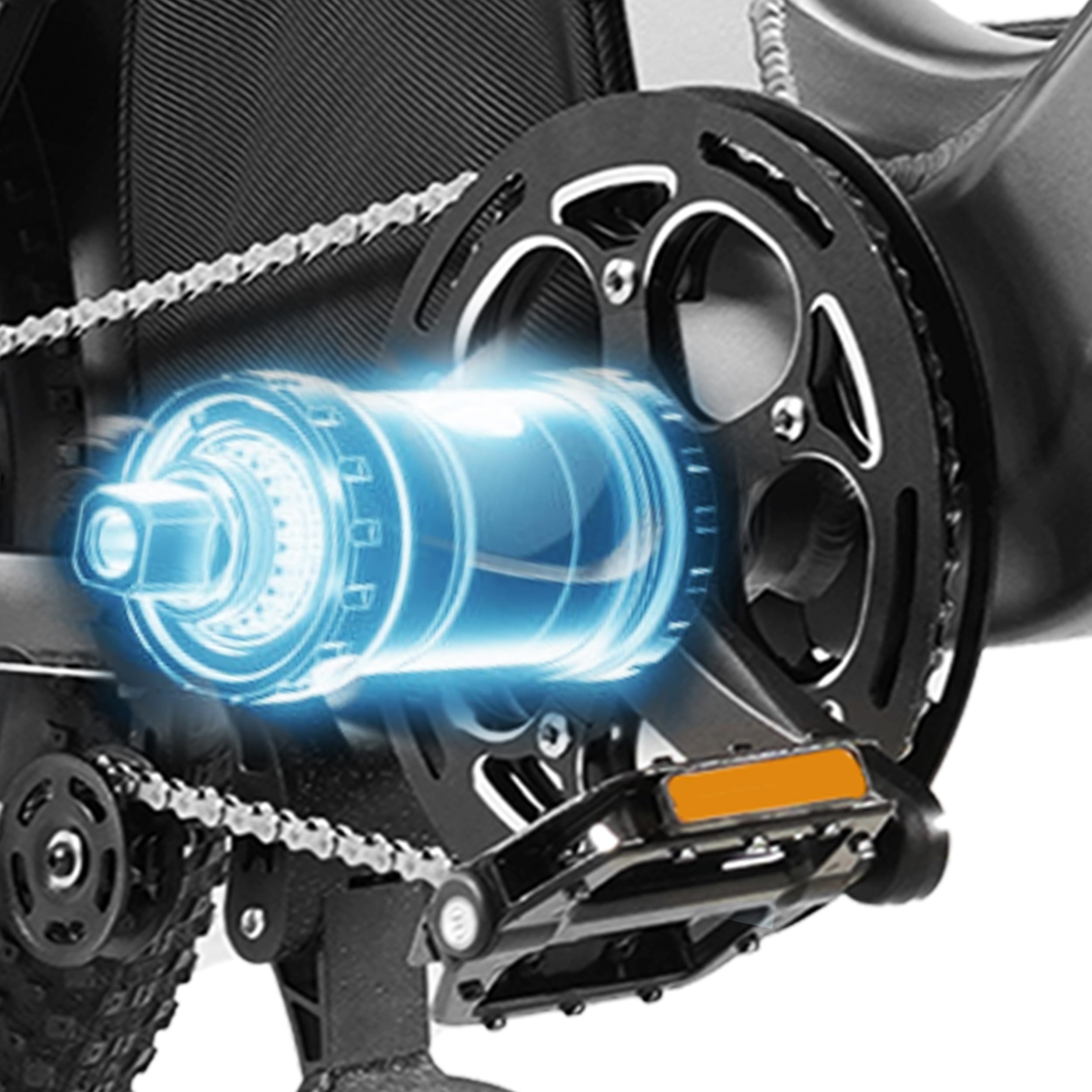

Torque Sensors
It uses a new torque sensor, which ensures smooth power output and outputs power according to the strength of your foot, making riding more labor-saving and friendly to the elderly and disabled.

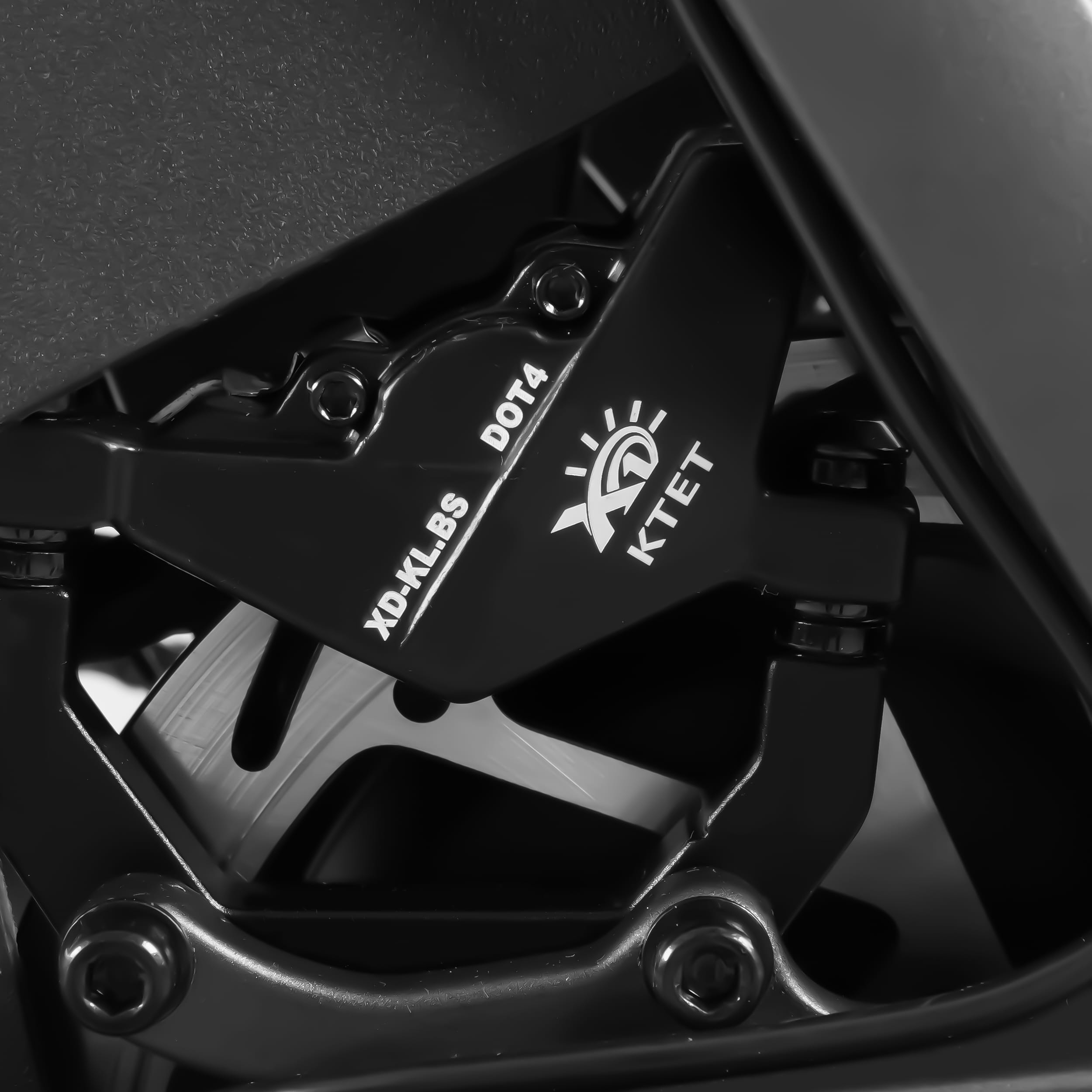

Heavy-duty Hydraulic Brakes
It uses heavy-duty hydraulic brakes and is equipped with 180mm brake discs, which provide more stable braking and shorter braking distance.

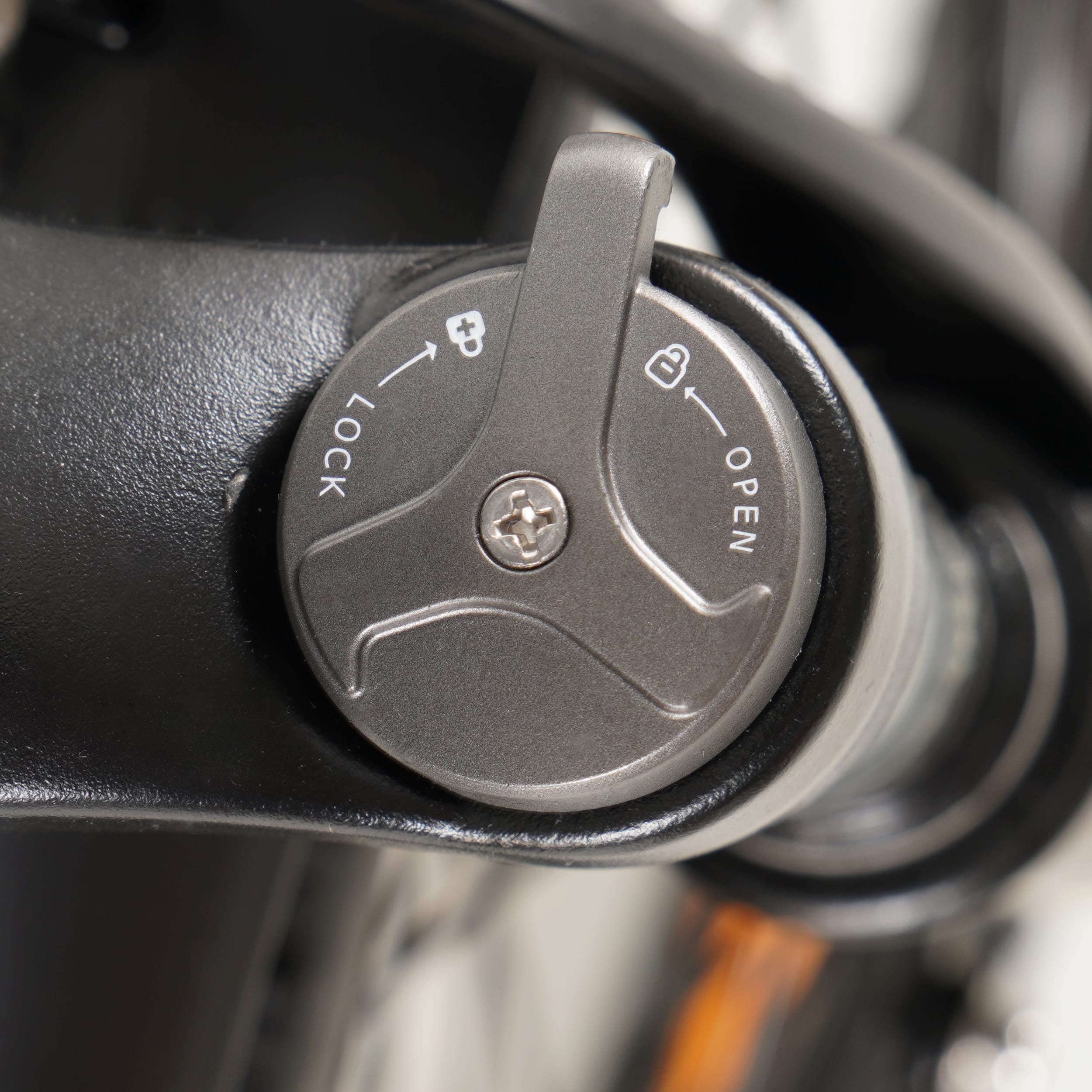

Lockable Front Suspension
The front suspension has 80mm travel and is equipped with a locking function, which can fix the front fork and prevent it from rebounding, allowing you to enjoy more riding pleasure.

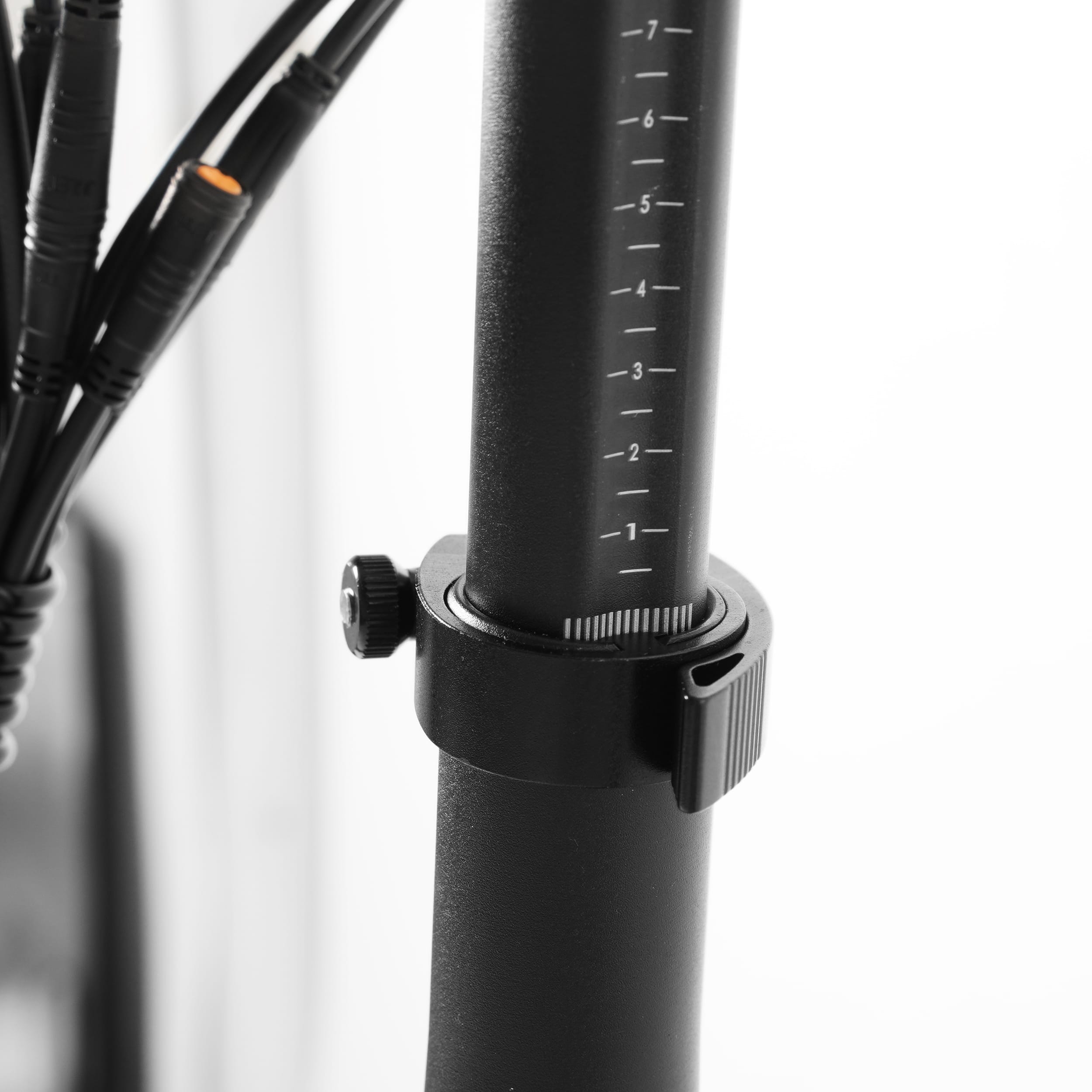

Adjustable Handlebar
The handlebars can be adjusted in height according to your preference and can be folded, which is very convenient.

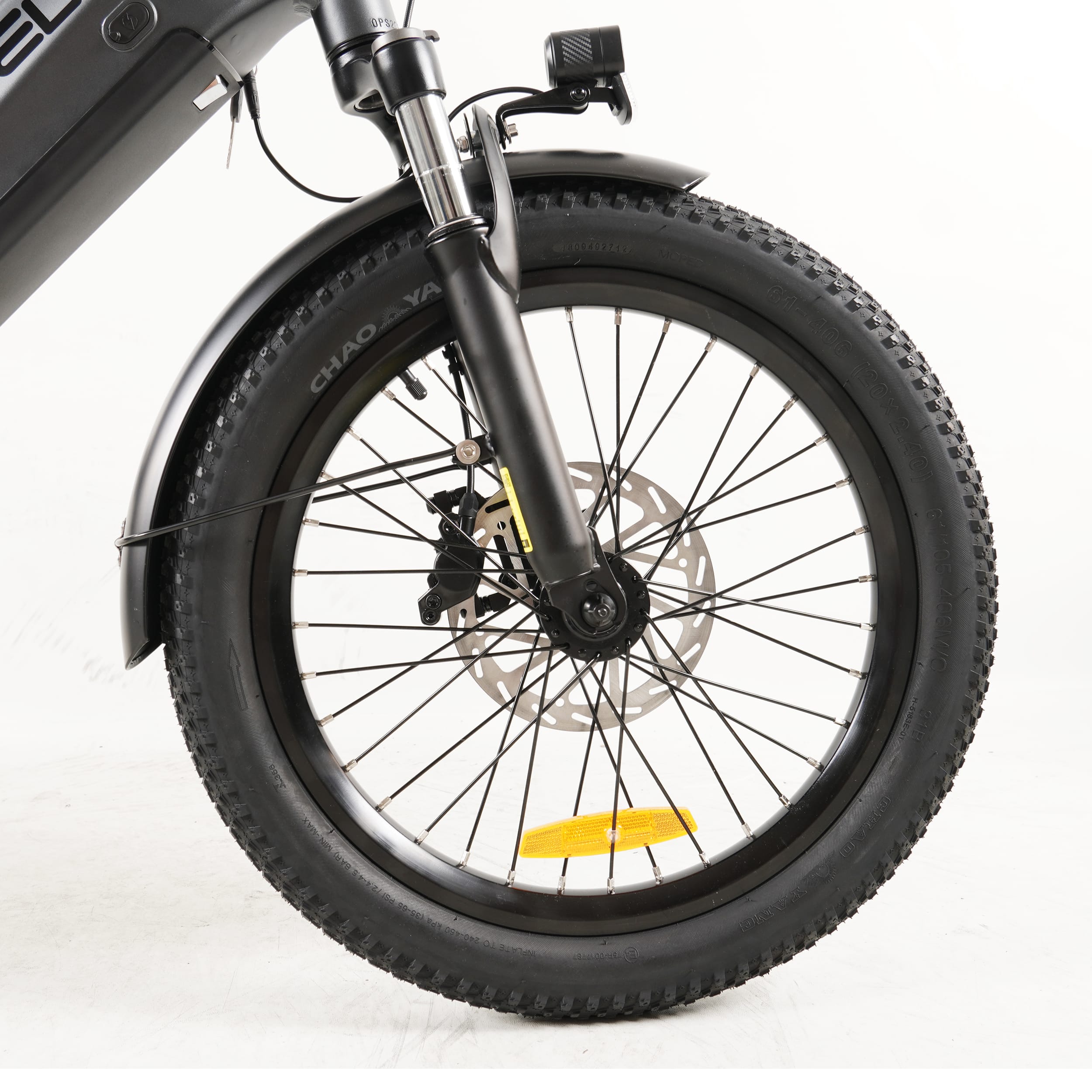

20"*2.4" All-terrain Tires
The HQ20 is equipped with 20"*2.4" Chaoyang all-terrain tires, which have less friction resistance and are more suitable for family travel.

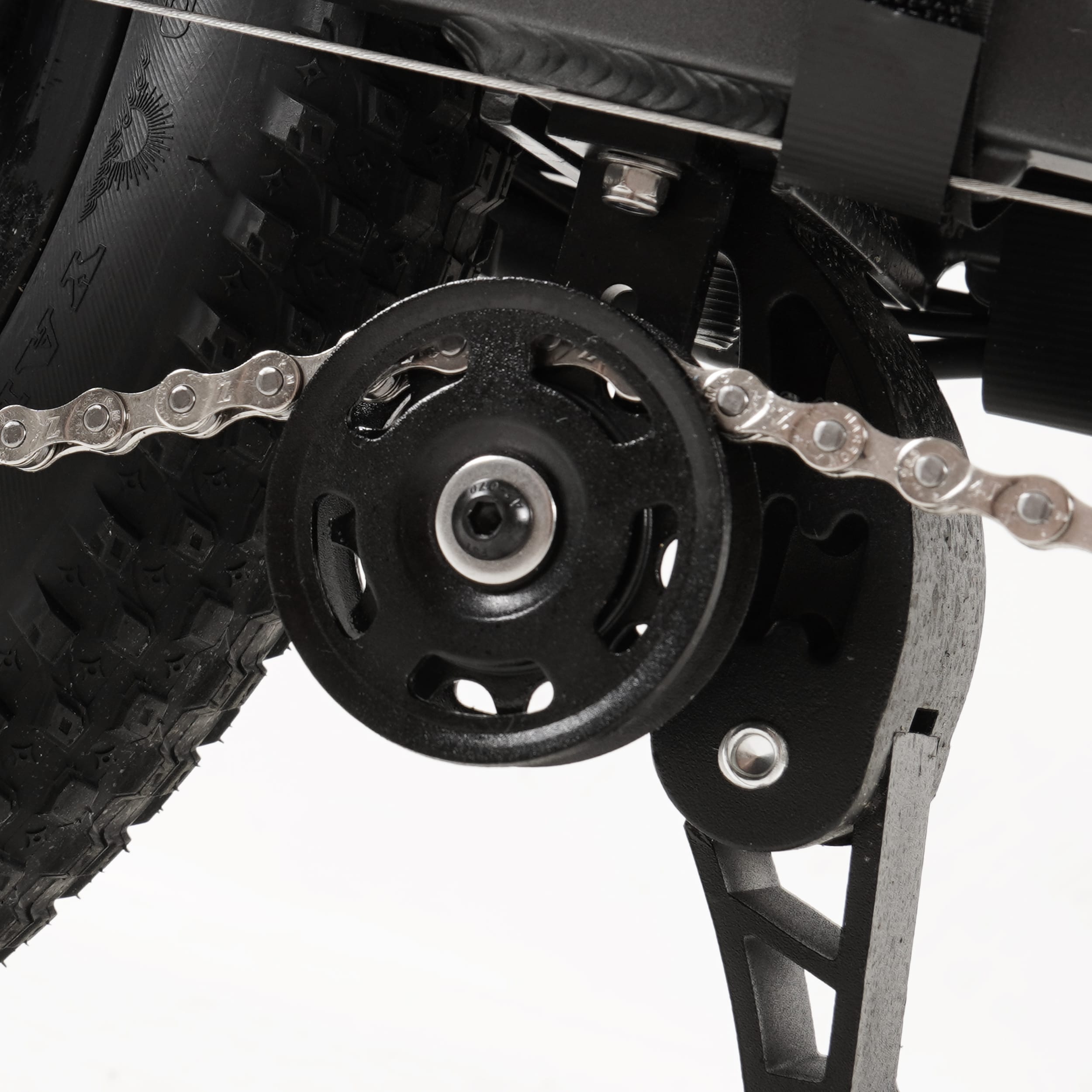

Chain Support
HQ20 uses a chain support for the first time to reduce the risk of the chain falling off during long-distance travel.

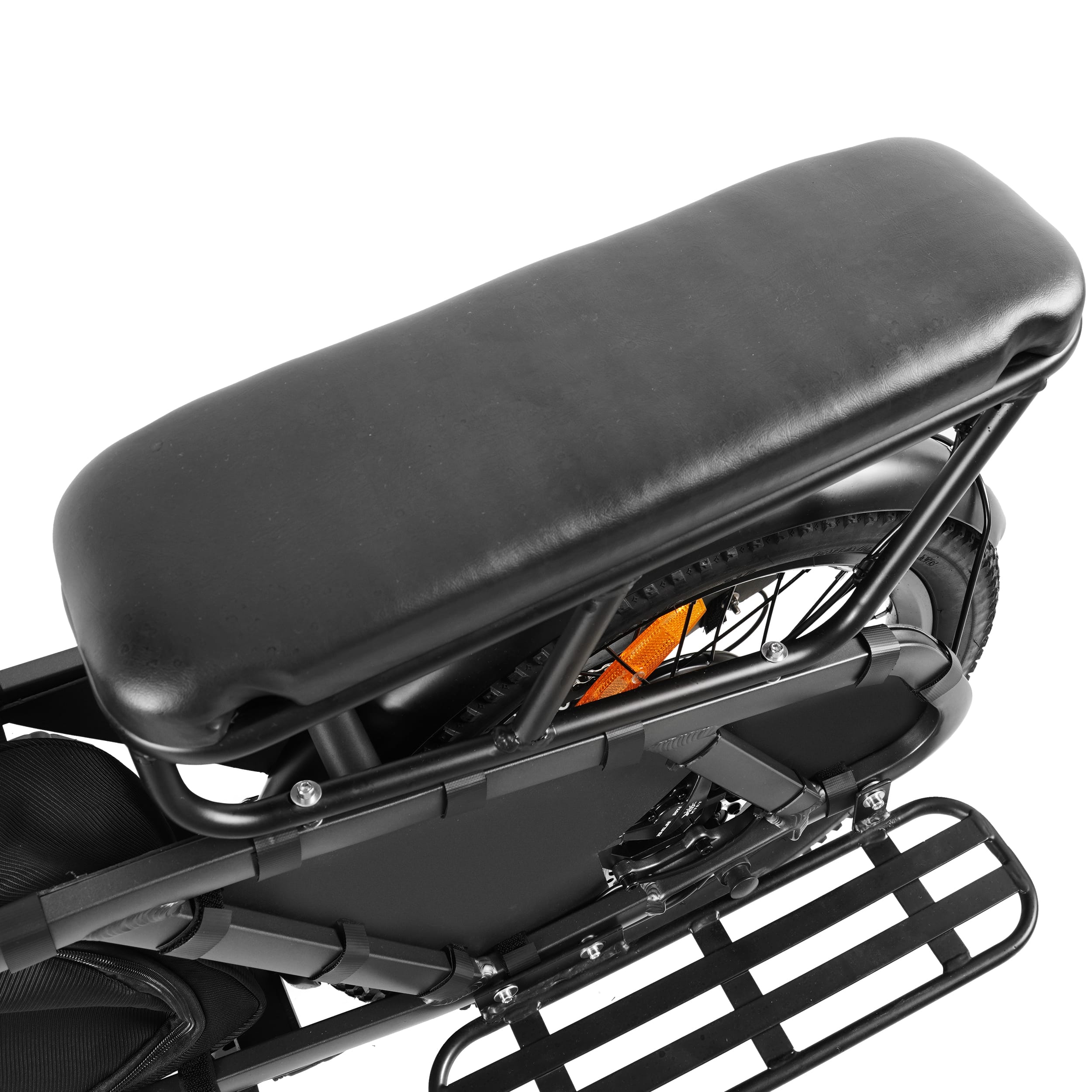

Free Cargo Accessories
When you purchase HQ20, you will receive a free front cargo basket, hanging bag, cushion and running boards, which will give you a stronger loading capacity when traveling and further demonstrate COSWHEEL's thoughtful care for users.
HQ20 Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 38+miles (61km) in Class-2 throttle-only mode (pure electricity); 67miles (108km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1300W(Rated 750W) Brushless Rear Hub Motor 60N.m
- Battery: 48V 19.2Ah Battery (Lithium 18650 Cells)
- Energy: 922Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel, Lockable
- Brakes: Hydraulic Brakes, Equipped with 180mm Stainless Brake Disc
- Tires: Chaoyang Off Road Tire 20" × 2.4" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Grip Twist Throttle
Electronics
- Charger: 54.6V2A Charger
- Charging Time: 7.5-10 Hours

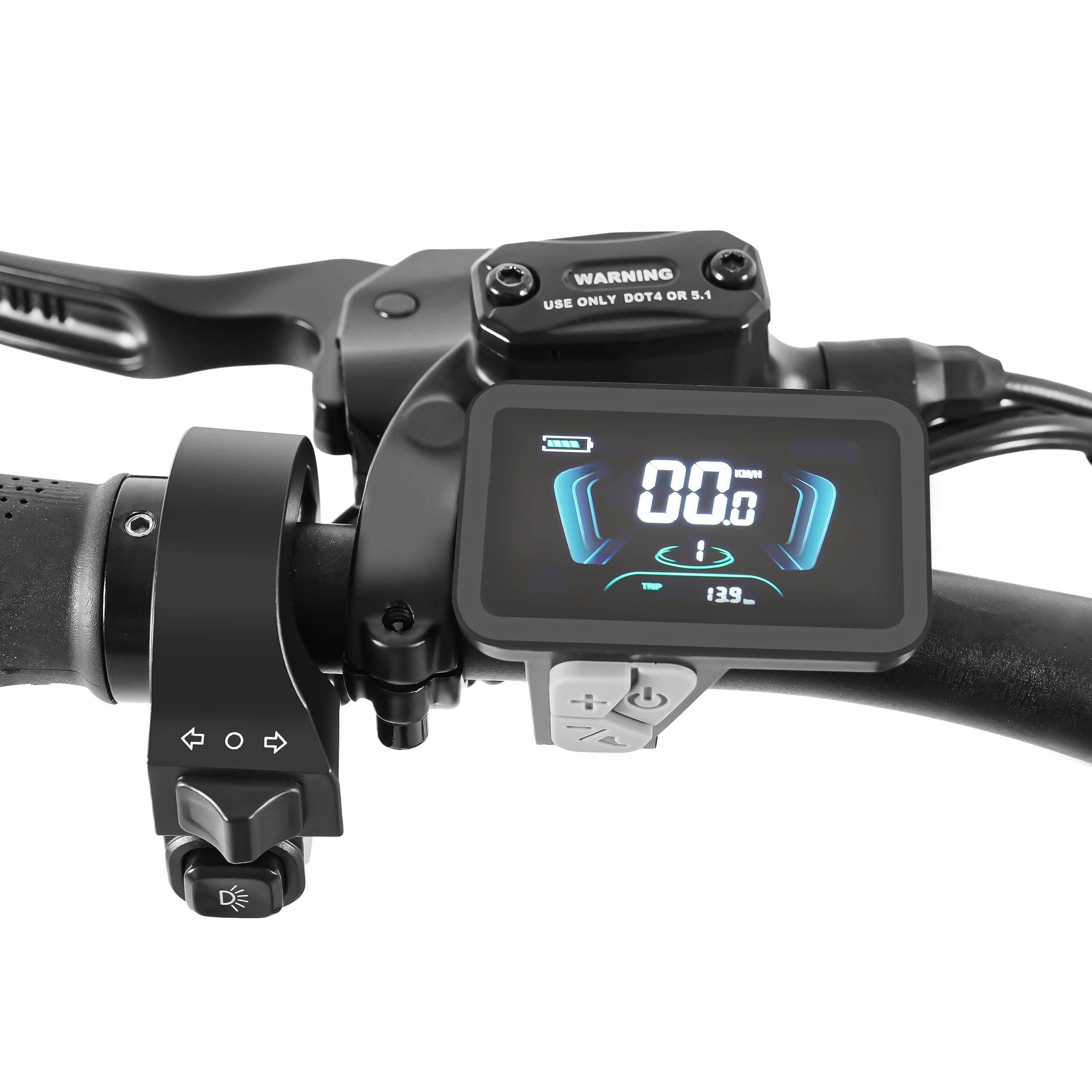

- Display: Easy Read LCD Display
- Controller: 48V 25+A

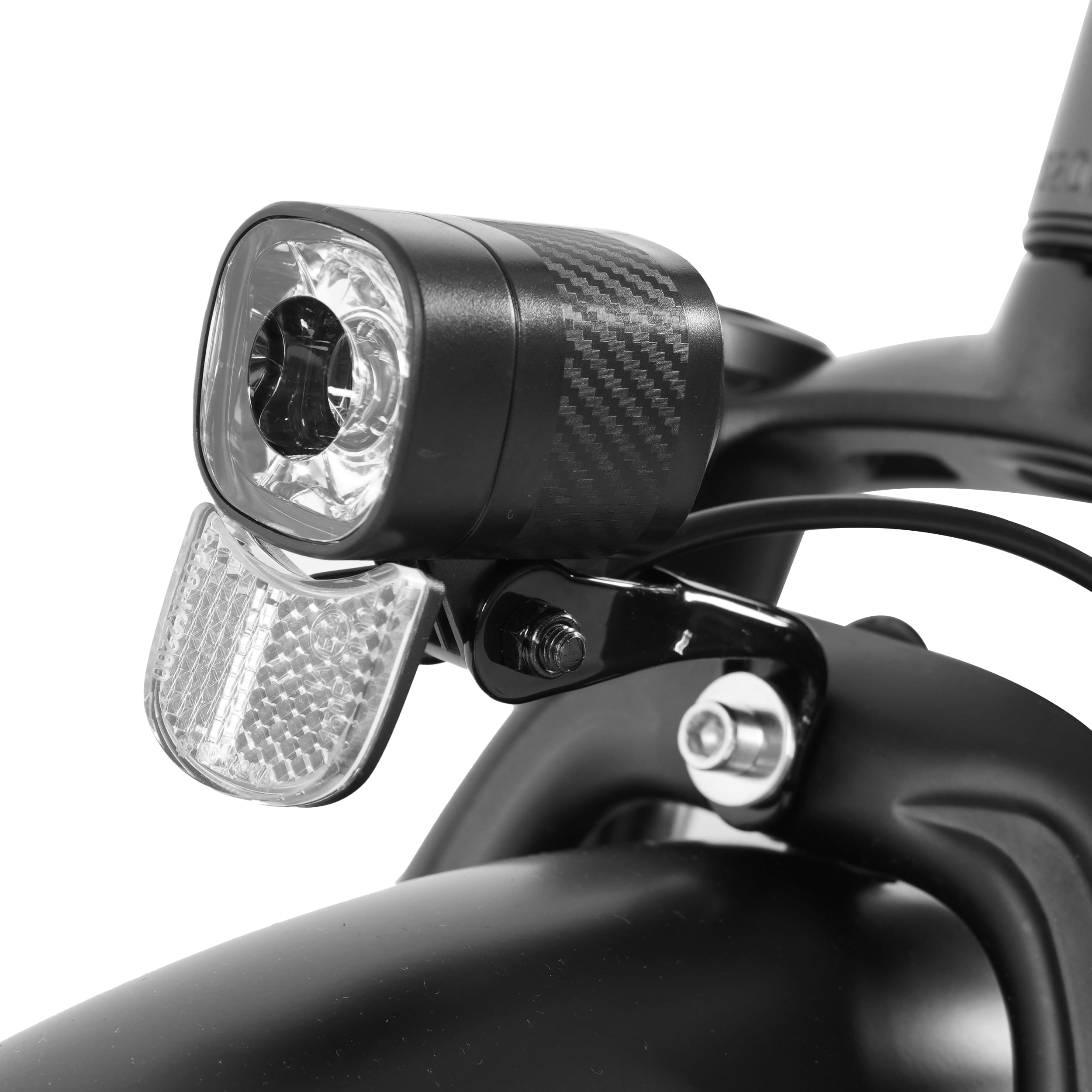

- Front Light: LED, 120 LUX

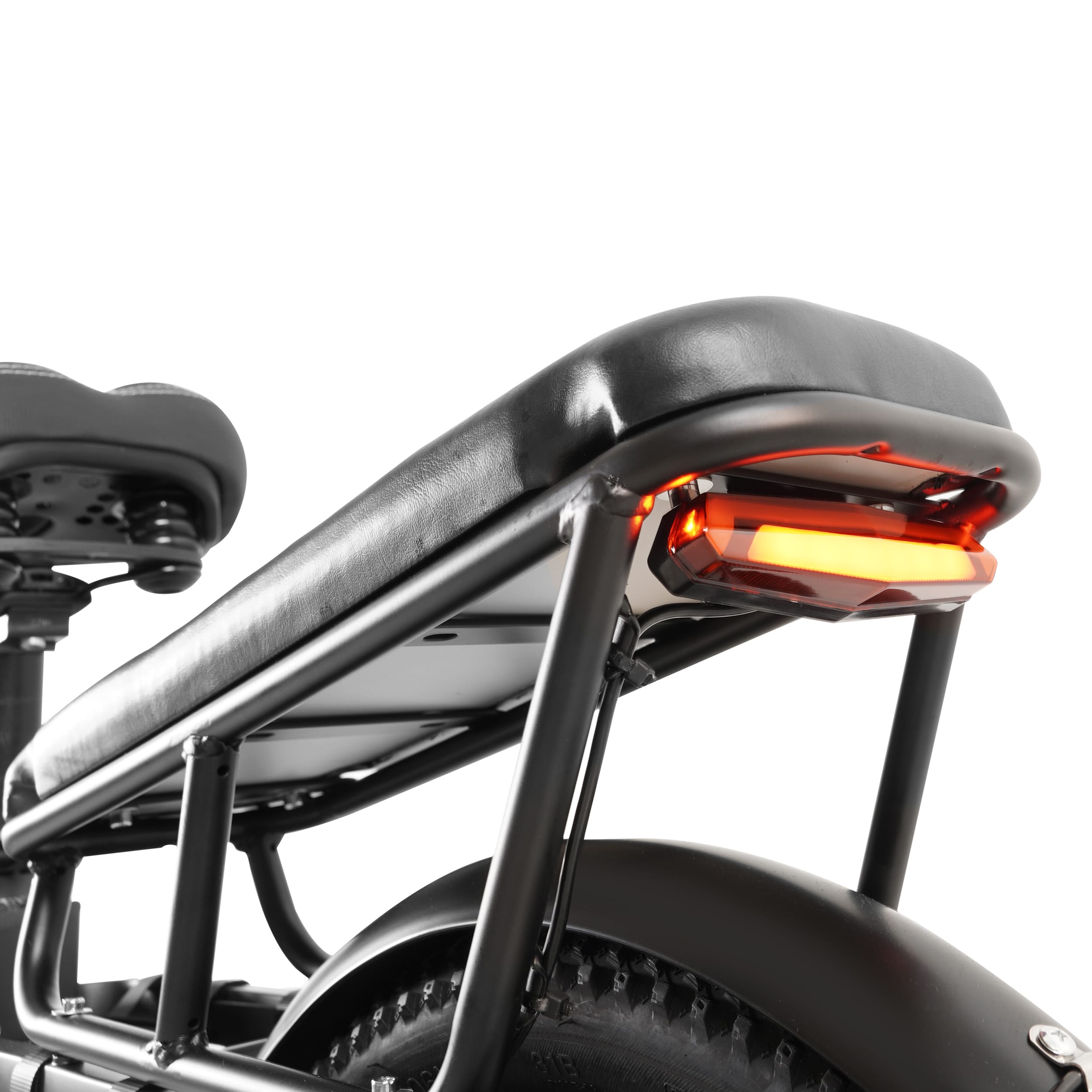

- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Torque Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

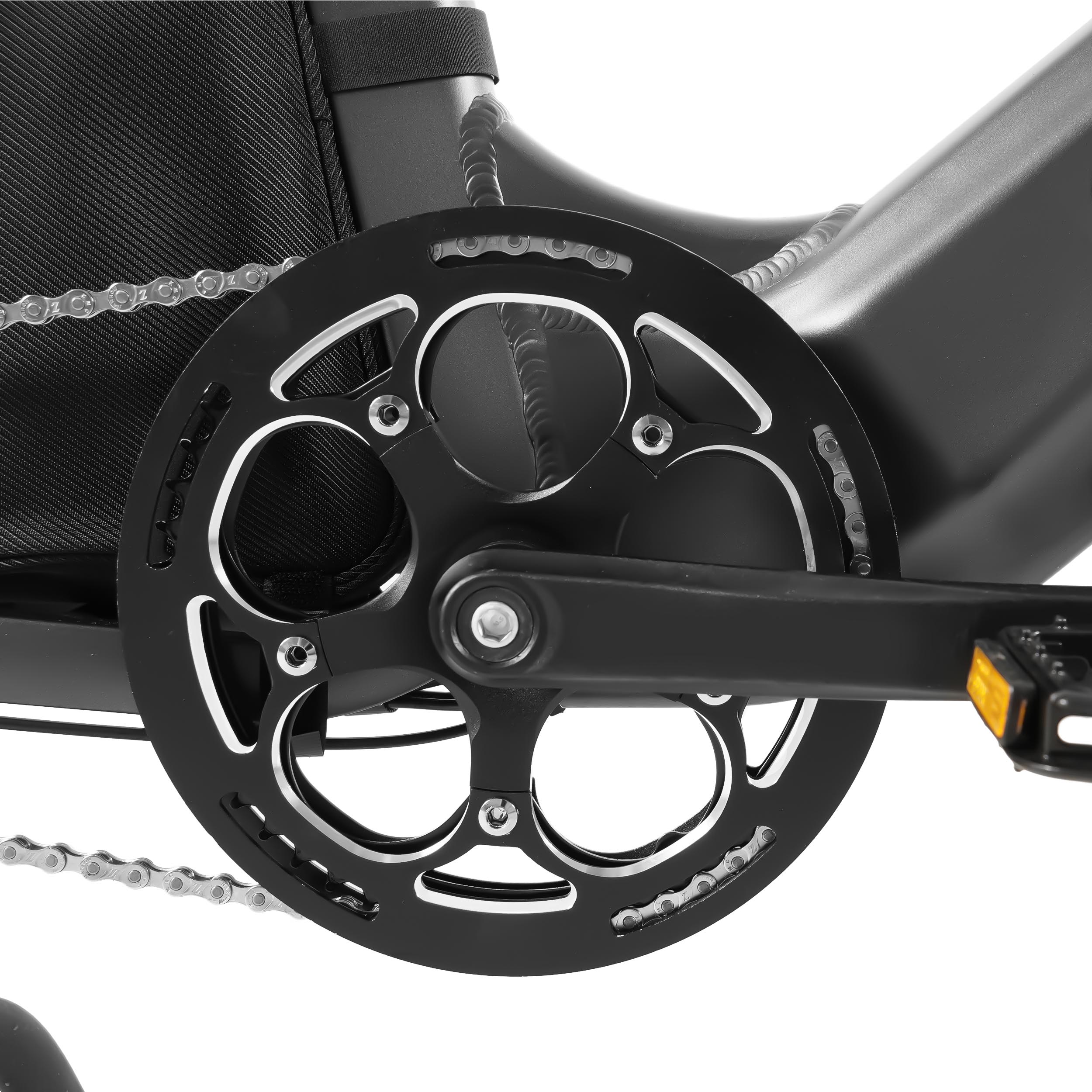

- Crank: 148T 170mm 6-speed ED Tooth Plate

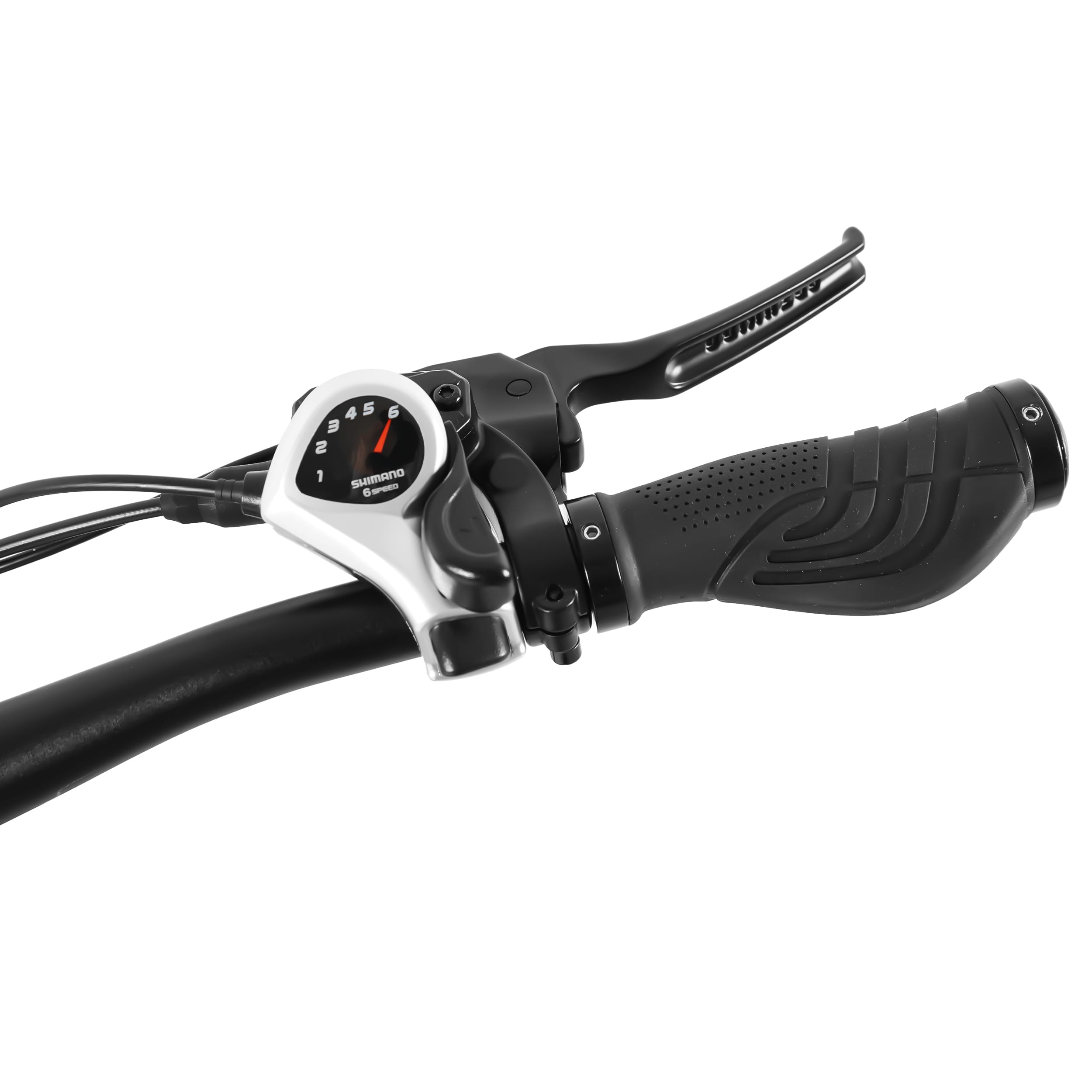

- Rear Derailleur: Shimano 6-Speed
- Chain: 6-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Aluminum Alloy
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 31.1"-35.8"（79-91cm)
- Handlebar Height: 43.3"-45.7" (110-116cm)
- Bike Weight: ≥84lbs (with Battery) (≥38kg)
- Maximum Load: 450lbs (200kg)
- Safe Load: 330lbs (150kg)
- Overall Size: 70.1" * 27.6" *43.3" (178*70*110cm)
- Package Size: 59.8" * 11" * 29.1" (152*28*74cm)
Support
Manual
Get HQ20 ebike manual
Certificate
- UL2849 test report
- GCC certification
- GCC test report
- EU EN15194 and CE certification
- EU EN15194 and CE test report
VIN Number
The VIN number (Serial number) of the HQ20 ebike is in the middle of the front fork of each HQ20 (please note that the VIN number of the HQ20 is unique and cannot be repeated)
Package
HQ20 Ebike*1/Fender*2/Charger*1/Display Manual*1/Tool Bag*1/Bag*1/Bottle Cage*1/Phone Holder*1/Front Cargo Basket*1/Throttle Handle*1/Cushion*1/Running Board*1
