M20 EBIKE
torque 50N.m, can climb 25 degrees slope, off-road commuting ebike
M20 Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52+miles (84km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m
- Battery: 48V 15Ah Battery (Lithium 18650 Cells)
- Energy: 720Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Brakes: Line Brake, Equipped with 160mm Stainless Brake Disc
- Tires: Road Tire 20"*4"
- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 22A
- Front Light: LED
- Rear Light: LED
- Pedal Assist: 3 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Bend Handlebar
Geometry
- Suitable Height: 5'1" - 6'8"
- Seat Height: 33.9" (86cm)
- Bike Height: 41.3" (105cm)
- Wheelbase: 43.3" (110cm)
- Handlebar Width: 29.1" (74cm)
- Bike Weight: ≥71lbs (with Battery) (≥32kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 64.2" * 29.1" *41.3" (163*74*105cm)
- Package Size: 55.1" * 12.6" * 31.5" (140*32*80cm)
M20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
The frame has been redesigned, and the battery is angled into the frame, making it easier for women to ride.
The seat is adjustable, suitable for people with a height of 5.0-6.8(ft) to ride.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
By adjusting the height of the rear suspension, the height of the bike can be adjusted up or down.
M20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
The frame has been redesigned, and the battery is angled into the frame, making it easier for women to ride.
The seat is adjustable, suitable for people with a height of 5.0-6.8(ft) to ride.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
By adjusting the height of the rear suspension, the height of the bike can be adjusted up or down.
The M20 is equipped with a high-speed brushless motor with a peak value of 1000W (rated at 750W), with an instantaneous maximum current of 22AH and a torque of 50N.m, allowing you to easily shuttle between cities and country roads.
M20 provides three high-quality 18650 lithium battery options of 720Wh (15AH), with a battery life of up to 52miles (84km) and a maximum speed of 28MPH (45KM/H), which is legal and meets Class 2 and Class 3 mode, please ride with confidence.
The M20 is equipped with a front shelf (excluding the front cargo basket) and a rear shelf, making it easier for you to better assemble parts and travel.
Customers And M20
Support
Manual
VIN Number
The VIN number (Serial number) of the M20 ebike is in the middle of the front fork of each M20, as shown in the picture (please note that the VIN number of the M20 is unique and cannot be repeated);
Package
M20 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1/Front Shelf*1
The VIN number (Serial number) of the M20 ebike is in the middle of the front fork of each M20, as shown in the picture (please note that the VIN number of the M20 is unique and cannot be repeated);
M20 Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1/Front Shelf*1
Customer Reviews

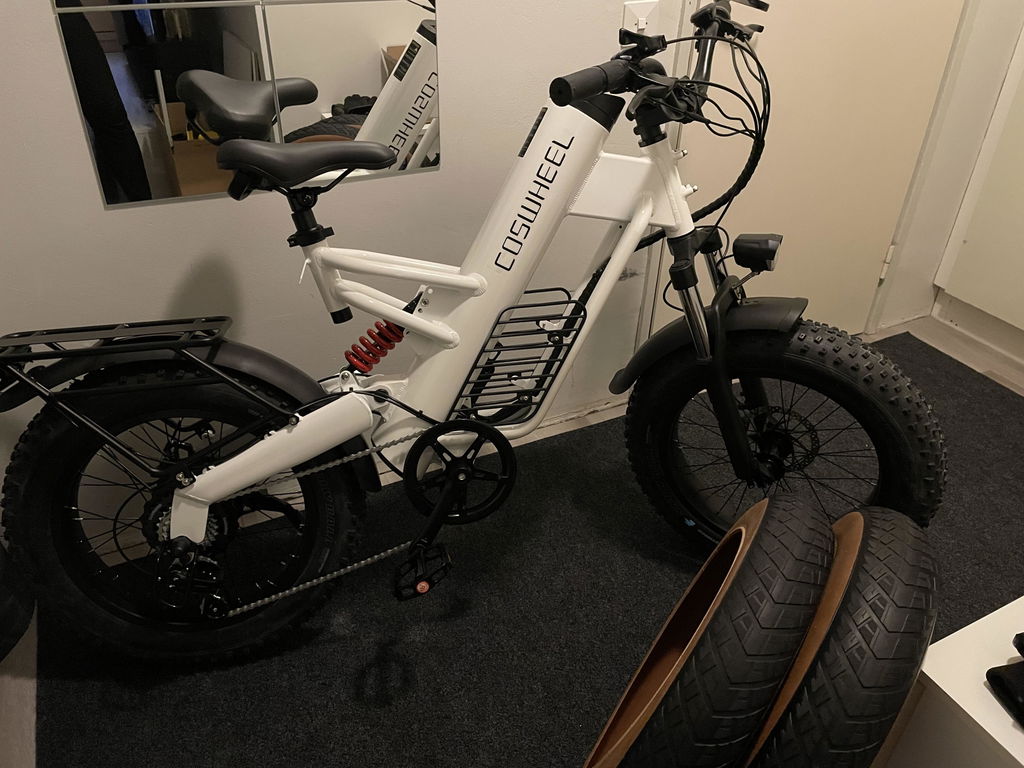

Great bike, also @ winter. Changed tires for winter.
